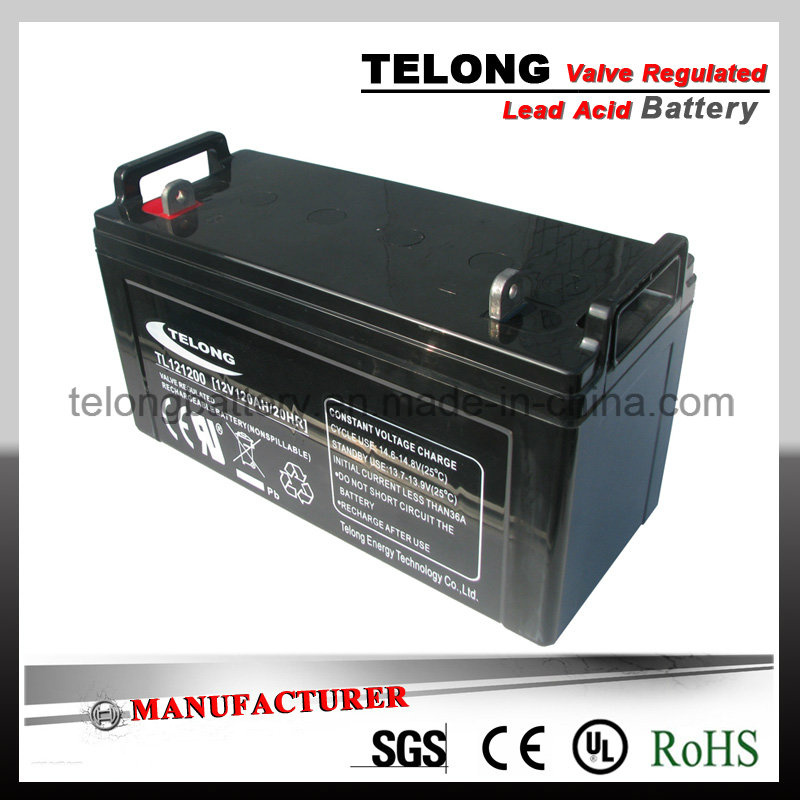

12V120ah Gel Battery for Solar Power System

12V120ah Gel Battery for Solar Power System
Price: US $ 99.85-110/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: TL121200
Weight: 32kg
Color: Black / White / Grey
Designed Life: 15 Years
Warranty: 5 Years
Type: Lead-Acid Batteries
Usage: Boat
Nominal Voltage: 12V
Discharge Rate: Low Discharge Rate
Shape: Square Battery
Rechargeable: Chargeable
Electrolyte: Silicate

Product Description

12V120AH Gel battery for solar power system
Product Description

1. Performance: maintenance free / valve regulated / Rechargeable

2. Warranty: 5 Year ,changed with quality problem.

3. OEM/ODM: Yes

4. Certification: CE, SGS, UL, ROHS

Feature.

• Absorbent Glass Mat (AGM) technology for superior performance
• Valve regulated, spill proof construction allows safe operation in any position
• Power/volume ratio yielding unrivaled energy density
• Rugged impact resistant ABS case and cover

• Maintenance free operation.
• Rechargeable. Low self discharge. Long Life Design
• U.L. recognized under file number MH49357

Application

• Control Equipment
• Electronic Cash Registers
• Electric Test Equipment
• Emergency lighting Systems
• Fire & Security
• Geophysical Equipment



• Medical Equipment

• Portable Cine & Video Lights
• Power Tools
• Television & Video Recorders
• Vending Machines
• Uninterruptible Power Supplies

Product Name
12V 120Ah Sealed Maintenance Free Battery
Material
Silicate,lead,ABS plastic,Rubber,Copper,Fiberglass
Color
Black/Grey


Size
Length          405mm (15.94inches)
Width            173mm(6.81inches)
Height           207mm (8.15inches)
Total Height (with terminal)     232mm (9.13inches)
Weight  Approx
32kg (70.48 lbs)


Battery Capacity
25'C (77'C)
20HR,10.80V,25ºC/77ºF
120AH/6.0A
10HR, 10.80V,25ºC/77ºF
114AH/11.4A
5HR, 10.80V,25ºC/77ºF
96AH/19.2A
1HR, 10.20V,25ºC/77ºF
72AH/72.0A
Internal Resistance
Full charged Battery at 25 'C(77'F )
85milliohms


Battery Capacity affected by Temperature
40'C (104F)
103%
25'C (77'F)
100%
0'C (32'F
95%
(-15'C )5'F
85%

Battery Self-Discharge
25'C (77'F)
Initial Charging Current less than 36.0A

Voltage 14.6-14.9V (Cycle Applications)

Voltage 13.6-13.9V (Stand-By Service)

Shenzhen Telong Energy Technology Co., Ltd was founded in 2005, Specialized in researching, developing, producing and sales of lead acid battery, lithium battery and Gel battery.

Telong is a leading battery producer in the Chinese market as a deep cycle battery supplier for electric bicycles, distributed primarily under the Telong brand. With over ten years of experience and extensive technical expertise in the lead-acid battery industry, Telong's dedication to research and development is evident in increasingly widespread recognition of Telong goods offering consistent quality in high capacity, high energy density, deep discharge, more cycles with sustained discharge time, and more operational stability.

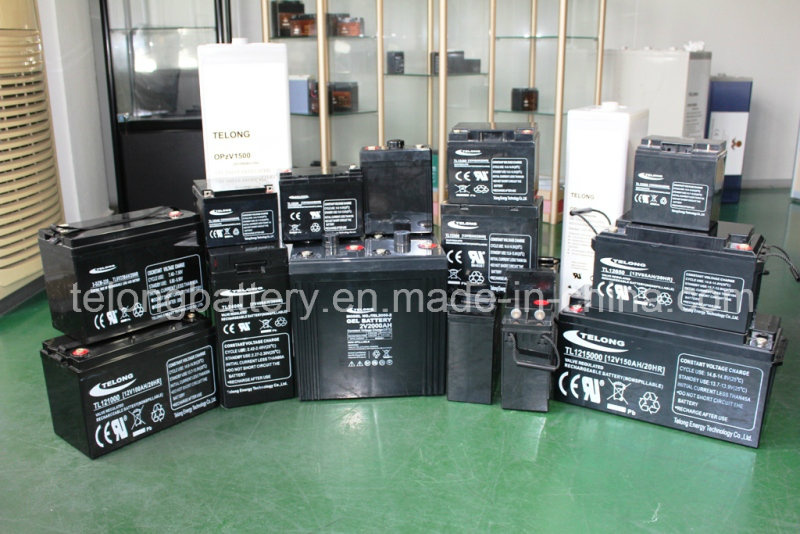

Telong has mainly produce the following series - CR\ER\PL\DZM\TL\TEL\GEL\TLD\TLF\OPZV\OPZS including 500 kinds of products. These products are widely used by many different industries, such as telecommunication, power system, radio and television system, railway, solar, UPS, electric vehicles, cars, golf cars, forklifts, emergency lights, security, alarm, gardening tool, baby carrier etc. Its worldwide sales network already covers more than 100 countries and regions, and has a good cooperation partnership with several excellent operators.

In an endless pursuit of perfection, Telong continues to blaze new trails in quality battery production. For quality control, Telong established professional Quality Management Center and successfully got the certificates of ISO9001, TS16949 quality management system and ISO14001 environment management system and also has passed the audit of OHSAS18001. The products has been authorized as 'Good quality products and Inspection-free in China' by national quality inspection department. Telong Products have also obtained the CE and RoHS authentication of the European Union, UL recognition the USA, Our reputation is built on the promise that ethical behavior and fair business practices will result in a satisfied and growing customer base. Telong prides itself by delivering its promises in a timely and efficient manner. We listen attentively to our customers, and are constantly reviewing our business practices and procedures in order to make changes that will benefit our customers.
