| Prod Model: |
CS12-120Ah |
| Model: |
Lead Acid Battery12V120ah |
| Size: |
407*174*210*233mm |
| Weight: |
33.5kgs |
| Color: |
Black |
| Capacity: |
120ah |
| Delivery Time: |
15-20days |
| Warranty: |
3 Years |
| Design Lifespan: |
12-15 Years |
| Market: |
Global / Yemen |
| Applications: |
UPS/Solar / Telecom |
| Type: |
Lead-Acid Batteries |
| Usage: |
Wind |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
Lead Acid battery 12V200ah |
Product Description
CSPOWER Deep Cycle series 12V Sealed free maintenance lead acid batteries up to 300Ah (D Type, "D"
behind the model name stands for deep-cycle application) are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycle(deep cycle). It uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, which allows for a much longer life in deep cycle applications.

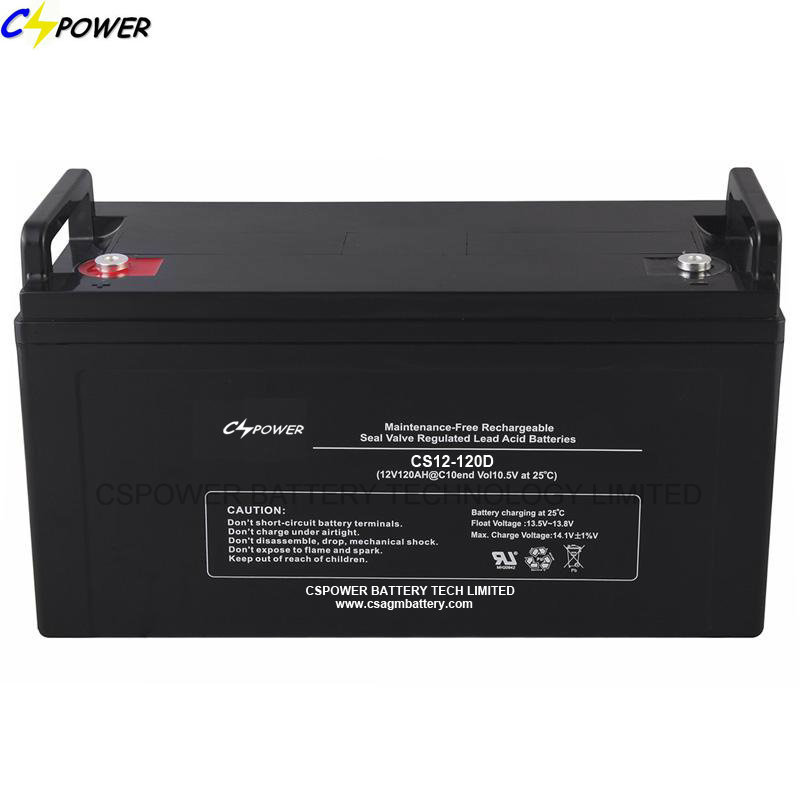

12V120ah Lead Acid Battery Deep Cycle Solar Battery
Advanced Features:
1. Sealed and maintenance free operation
2. Non-Spillable construction design
3. Safety valve installation for explosion proof.
4. High quality and high reliability.
5. Exceptional deep discharge recovery performance.
6. Low self discharge characteristic.
7. Flexibility design for multiple install positions
8. The operating ambient temperature -40ºC to +65ºC
9. Long life span 10-12 years
10. Using oxygen recombination technology: maintenance-free
11. Pb-Ca-Sn alloy for plate grids: less gassing and less self-discharging
12. High quality AGM separator: extend cycle life and prevents micro short circuit
13. ABS material: increases the strength of battery container. (Flame-retardant ABS is optional)
14. High purity raw material: ensures low self discharge rate
15. Silver-coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity
12V120ah Lead Acid Battery Deep Cycle Solar Battery
Characteristics
1.Absorbent glass mat (AGM).The glass -fiber separator in SLA battery are made with advanced technology - this high porosity of the separators retains adequate electrolyte for the reaction with active material of the plates.
2.It's designed to operate for up to 10 years at 20°C on the basis of accelerated tests.
3. If depth of discharge is 30%, cycle service lifecan reach maximum at about 1000 times. GEL battery can reached 2000 times.
4. Its warranty is 3 years for proper use in telecommunication.
5. Battery case is making of fire proofs material therefore the case is very strong. It can avoid the fire.
6. Its using insert terminal. And it is not only beautiful but also easily distinguished and installed.
7. Maintenance free As it is valve-regulated sealed. Glass -mat is utilized acid is trapped inside .It is leak proof and refilling is no needed.
8. High power -to-weightratio - TOYO SLA batteries can provide much power in comparison to its Weight
9. No Memory Effect. - Some batteries say nickel -cadmium batteries. It will become conditioned to provide less power after repetitious short usage /discharge.
10. Low self discharge-the self -discharge rate for TOYO SLA. Battery is about 2-3% per month at room temperature compared with 20-30% for other common battery systems.
11. Longer service life-utilized thick and massive calcium grate ensure that HENDA SLA battery has a longer service life
12. High discharge rate -since the internal resistance is low, the battery can provide high rate of discharge
13.Wide operation temperature range- HENDA SLA battery capacity is rated at 20 °C, and will operate from -20°Cto + 60°C when it is fully charged. Ambient temperature is 20°C, service life will be more efficient under 15°C to 25°C..
14. Easy of shipment- It is classified as non- dangerous goods and is acceptable to be shipped on passenger and cargo
www.csagmbattery.com
lead acid battery
deep cycle agm battery
solar battery
AGM battery
Construction
Positive plate - Thick high Sn low Ca grid with special paste
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency
Separator - Advanced AGM separator for high pressure cell design
Electrolyte - Dilute high purity sulfuric acid
Battery container and cover -Fire resistance ABS, water proof
Pillar seal - Two layers epoxy resin seal
Relief valve - Complete with integrated flame arrestor
Applications
Electric Powered Vehicles, Golf Cars and Buggies, Wheel Chairs, Power Tools, Electric Powered Toys, Control System, Medical Equipments, UPS systems, Inverter systems, Solar and Wind, Emergency systems, Security systems, and so on.
Charging voltage and settings
l . Constant voltage charging is recommended
2. Recommended float charge voltage: 2.27V/cell @20~25°C
3. Float voltage temperature compensation: -3mV/°C/cel l
4. Float voltage range: 2.27 to 2.30 V/cell @ 20~25°C
5. Cyclic application charge voltage : 2.40 to 2.47 V/cell @ 20~25°C
6. Max. charge current allowable : 0.25C
Complied standards
1. IEC 60896-21/22
2. IEC 61427
3. ISO9001/14001/18001
4. Eurobat guide, long life
5. BS6290 part 4
6. GB/T 22473
7. CE
8. IATA and IMDG
website: www.csagmbattery.com
Certificates of CSPOWER Batteries 2v 6v 12v: CE, IEC, ISO,MSDS
Why Choose CSPOWER?
1) Nearly 13 years leading manufacturer,established in 2003. Factroy size: 50000 square meter
2) Strict management system and quality control, 100% inspection.Factories are satisfied with ISO 9001 & ISO
14001, products with CE/RoHS/TLC etc approval.
3) A professional experienced team to provide you high-quality service.All enquires will be replied in 24 hours.
4) Competitive price help you to occupy more market share
5) 20000KWH production capacity to guarantee the best deliver time
6) 1-3 years warranty policy, up to now, our product defective rate is under 0.4%.
CSPOWER BATTERY TAGS:
1. 2V battery,long life battery, battery pack ,12V Solar battery, battery for 48v system,6V solar battery,
2. Gel Battery, AGM Battery, Batteries lead acid, SLA Battery, Free maintenance battery, Sealed battery, Deep cycle battery, Solar Power battery,VRLA Battery,rechargeable battery, Long life battery, Solar Gel Battery
3. Storage battery, Solar panel Battery, Inverter battery, Solar charger controller battery, UPS Battery, Marine battery, car battery, Electrical battery, Telecom Battery, Solar back-up battery, Terminal battery, Front Access battery, battery pack, Solar batteries, 12v battery
4. OPzV Battery, Gel Battery, 2V tubular battery, Deep cycle battery, Long life Gel Battery, OPzV tubular plates battery
5. Front terminal battery, front access battery, terminal battery, telecom battery, long type battery, VRLA Batteries, gel terminal battery, front terminal gel battery
Moredetails, welcome to our website for visiting: http://www.csagmbattery.com
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
