12V120s Rechargeable VRLA Battery Used for Solar System
| Price: |
US $ 90.5-95.5/Piece |
| Min Order: |
85/Piece |
| Pay Type: |
T/T |
| Prod Model: |
6FM120S (12V120Ah) |
| Separator: |
AGM |
| Charge Voltage (Cycle): |
2.40~2.50V |
| Container Material: |
ABS(UL94-Hb) *Flammability Resistance of (UL94-V0) |
| Material Lead: |
#1 Lead Top Quality in China |
| Terminal: |
Nb or B |
| Color: |
Grey or Black |
| Self Discharge: |
Less Than 3% Per Month |
| Certificate: |
ISO, UL, Ce |
| Capacity: |
120ah |
| Delivery Time: |
7-15days |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

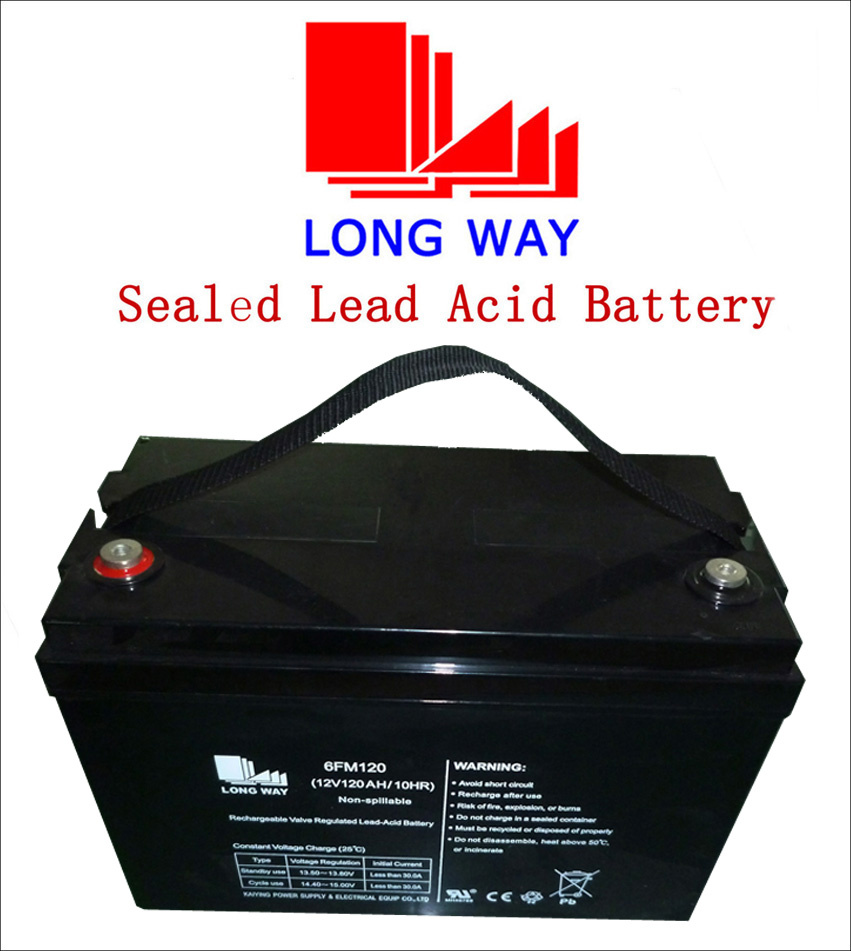

12V120S rechargeable VRLA battery used for solar system
LONGWAY® 6FM120S is specially designed for green energy systems . 6FM120S
have a good deep cycle property, maintenance-free . It can be used for more than 350
cycles at 100% discharge in cycle service, up to 12 years in standby service. | Normal Voltage | 12V |
| Capacity | 120Ah@10Hr-rate to 1.80V per cell@25ºC
138Ah@10Hr-rate to 1.80V per cell@25ºC |
| Weight | Approx.(35.0±3%) kg (77.16lbs) |
| Maximum Discharge Current | 1200A(5sec) |
| Internal Resistance | Approx. 5mΩ full charged @25ºC |
| Operating Temperature Range | Discharge: -20ºC~60ºC
Charge: 0ºC~50ºC
Storage: -20ºC~60ºC |
| Nominal Operating Temperature Range | 25ºC±3ºC |
| Float Charging Voltage | 13.7~13.9VDC/unit Average @25ºC |
| Maximum Charging Current | 30A |
| Equalization and Cycle Service | 14.4V~15.0VDC/unit Average @ 25ºC |
| Self Discharge | LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored
for more than 6 months at 25ºC. Self-discharge ratio less than 3%
per month at 25ºC. Please charge batteries before using. |
| Terminal | Terminal F17 |
| Container Material | ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request |
| Dimensions | L405*W173*H210(TH237)mm |
Structure and Characteristic of 12v 120ah lead acid battery:
1. Lead-Calcium six alloy sheet grating and coated mounding plate electrode: high capacity and long service life.
2. Lead-Tin multiple alloy bus bars: Small internal Resistance, corrosion resistance and can stand long term floating charging.
3. Sealed Construction and safe explosion-proof:Advanced AGM septum, Absorbs optimum electrolytic without leaving dissociated liquid, full air cathode absorption and can be placed in any position.
4. ABS Engineering plastics shell: anti-aging
5. Silicon Fluorine rubber sealed safety cap: Safe and flameproof without leakage of corrosive gas and liquid.
6. AR electrolyte analysis: Low self-discharging.
7. Maintenance free: No need to add distilled water and electrolyte
Company Profile
KaiYing Power Supply & Electrical Equip Co., Ltd., established in 2000, is specialized in the research, design, manufacture and sales of
Valve Regulated Lead Acid (VRLA) battery.
Location: QuanZhou China
Owner: Hong Bingwen
Established: 2000
Business scope: VRLA battery
Research, produce, sales
Area: 50000 m2
Registered capital: 6,890,000USD
Employee: 830--1000
Capacity: 2,000,000 KVAH
Sales:64,000,000USD
If get interest, just contact me freely.
12V120S rechargeable VRLA battery used for solar system
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
