12V12ah Hr Series Lead Acid Battery for Communications

Name: 12V12ah Hr Series Lead Acid Battery for Communications
Brand: all-electronics-online.com
SKU: 730787482
Availability: InStock
Rating: 4.6 (47 reviews)

Price:	US $ 13.32-14.32/Piece
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	12V12ah HR
Certificate:	ISO, UL, Ce
Self Discharge:	Less Than 3% Per Month
Color:	Grey or Black
Terminal:	Nb or B
Material Lead:	#1 Lead Top Quality in China
Container Material:	ABS(UL94-Hb) *Flammability Resistance of (UL94-V0)
Charge Voltage (Cycle):	2.40~2.50V
Separator:	AGM
Design Time:	10-12 Years
Operating Temperature:	-20c~50c
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

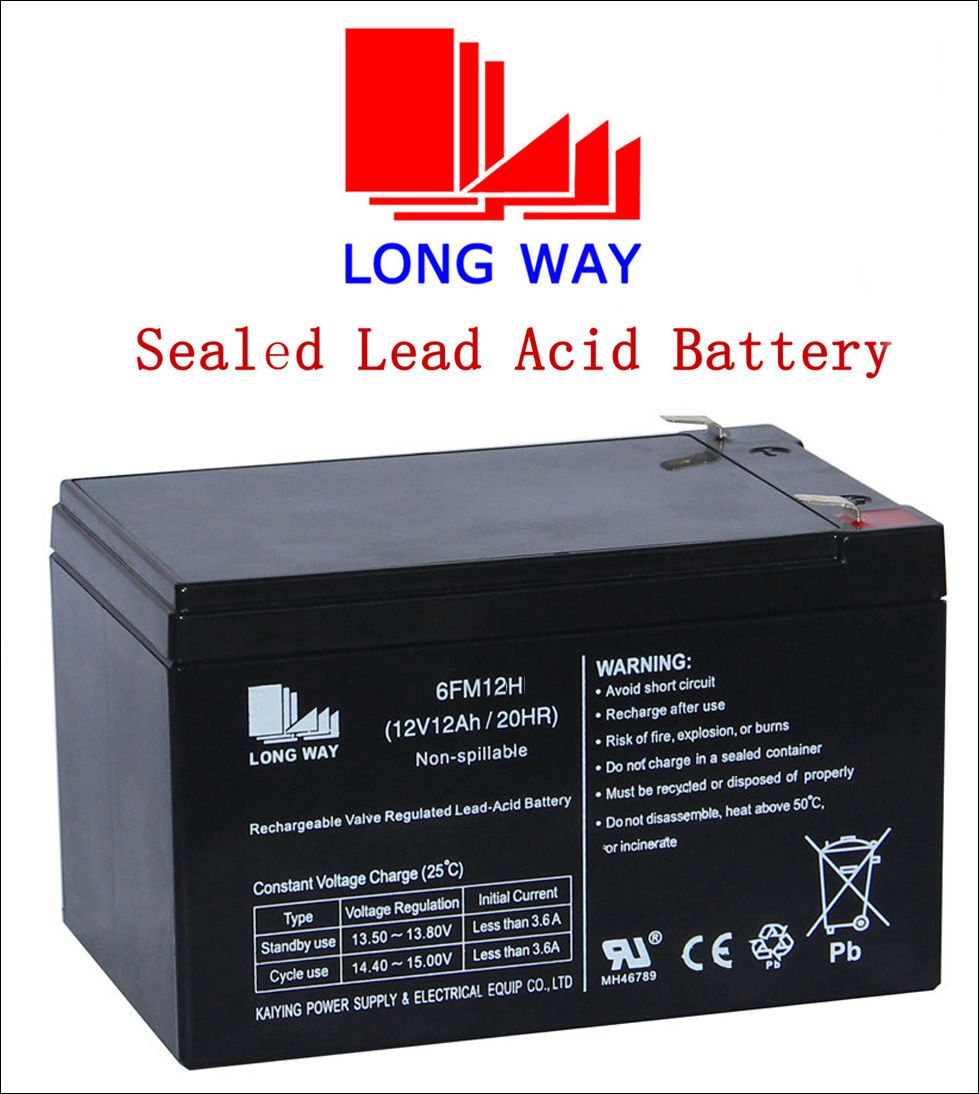

12V12ah HR series lead acid battery for Communications

LONGWAY® 6FM12H is specially designed for high efficient
discharge application. Its characteristics are high energy density.
It can be used for more than 260 cycles at 100% discharge in
cycle service, up to 5 years in standby service.

Normal Voltage	12V
Capacity	12Ah@20Hr-rate to 1.75V per cell@25ºC
Weight	Approx. (3.5%)kg(2.21bs)
Maximum Discharge Current	120A(5sec)
Internal Resistance	Approx.12mΩ full charged @25ºC
Operating Temperature Range	Discharge: -20ºC~60ºC Charge: 0ºC~50ºC Storage: -20ºC~60ºC
Nominal Operating Temperature Range	25ºC±3ºC
Float Charging Voltage	13.7~13.9VDC/unitAverage @25ºC
Maximum Charging Current	3.6A
Equalization and Cycle Service	14.4V~15.0VDC/unit Average @ 25ºC
Self Discharge	LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.
Terminal	F2
Container Material	ABS(UL94-HB) *Flammability resistance of (UL94-V0) can be available upon request
Dimensions	L151W65H95(TH101)mm

12V12ah HR series lead acid battery for Communications

Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.

As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.

Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.

During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
