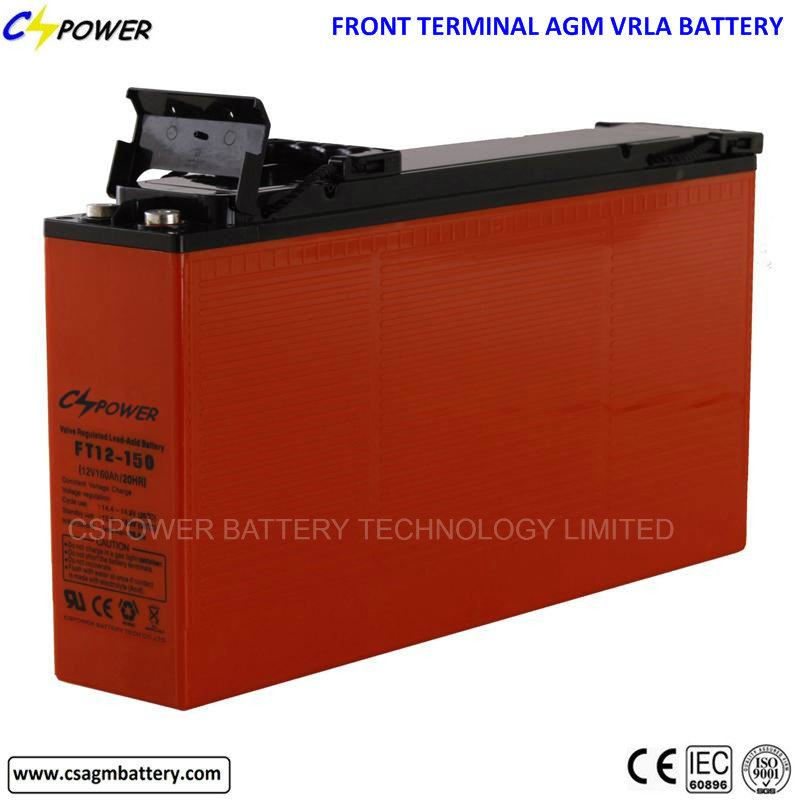

12V150ah Rechargeable Front Terminal AGM Battery for Solar/Telecom
| Price: |
US $ 100-180/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
FT12-150Ah |
| Model: |
Front Terminal Battery FT12-150 |
| Size: |
551*110*288*288mm |
| Net Weight: |
44kg |
| Warranty: |
3 Years |
| Delivery Time: |
10-15 Days |
| Color: |
Orange Bosy with Black Cover |
| Capacity: |
150ah |
| Certificate: |
Ce, IEC, ISO |
| Brand: |
Cspower/OEM |
| Lifasapn: |
10-12 Years |
| Type: |
Lead-Acid Batteries |
| Usage: |
Wind and Solar System |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
Front Terminal Battery FT12-200 |
Product Description
12V150Ah Rechargeable Front Terminal AGM Battery for Solar/Telecom
CSPOWER Front Terminal Battery CharacteristicsCSPOWER Front Terminal lead acid battery is mainly used in the area of communication, which is novel in design, reasonable in structure and occupying the leading position in the same industry of the world.
As with previous INTELEC (International Telecommunications Energy) conferences, many people were concerned about the life and durability of VRLA (Valve Regulated Lead Acid) batteries. It can be employed in numerous applications in the fields of communications. In order to ensure that the power supply is guaranteed at all times, essential facilities are backed up with high performances battery systems. Sudden breaks in the power supply are then no longer a problem. If the power suddenly fails, battery systems take over the emergency supply of power.
CSPOWER Front Terminal Battery detailed Special Advantages
(1). Excellent safety performance: No electrolyte leakage, battery swelling and cracking under normal use.
(2). Good discharging performance: With smooth discharging voltage and mild discharging platform.
(3). Good shock-proof performance: The fully charged and completely fixed battery, with 4mm amplitude and 16.7HZ frequency do have a normal open circuit voltage without leakage, batteries swelling or cracking problem after one-hour vibration.
(4). Good impact-proof performance: The fully charged battery is proved to maintian normal open circuit voltage and be without leakage or batteries swelling or cracking after droping three times from 20cm height naturally to a 1 cm-thick hardwood board.
(5). Good resistance to overdischarge: In temperature of 25 degrees Celsius, the fully charged battery discharges with fixed resistance which is equivalent to the one required by 1 CA discharge of the battery for three weeks, and it can restore capacity over 75%.
(6). Good resistance to overcharge: The fully charged battery is proved to maintian normal open circuit voltage and be without leakage or batteries swelling or cracking in temperature of 25 degrees Celsius after chargeing at 0.1 CA for 48 hours, and the capacity maintian over 95%.
(7). Good resistance to high current: The fully charged battery is proved to be without conductive part melted or any appearance deformation after discharging at 2 CA for 5 minutes or 10 CA for 5 seconds.12v150AH Front Terminal SLA Gel Battery for Solar Storage Advantages:
1. Sealed free maintenance lead acid battery.
2. Non spillable and water proof.
3. Environmental friendly.
4. Thick pasted plates with high quality lead-tin-calcium alloy grids for long service life
5. Centralized venting system for gas ventilation
6. Plastics or rope handles for handling and installation convenience
7. Front access terminals for easy and quick connection
8. Low internal resistance
9. Lower self discharge
10. Design life is over 12 years
11. Case and cover in strong flame retardant ABS, V0 class
12. Widely working environment: Can be used at widely difference in temperature from subzero 40 to 60. 12v150AH Front Terminal SLA Gel Battery for Solar Storage Application
Control systems, Electric toys, Emergency lamp, Power tools, Medical treatment equipment, Alarm system, Emergency light system, Standby power supply, UPS and computer standby power supply, Power system, Telecommunication system, Firefighting equipment standby power supply, Railway system, Power station, Ship equipment, Military equipment, Telephone switching system.12v150AH Front Terminal SLA Gel Battery for Solar Storage Notice Don't near the hot source and don't under the sunshine.
Don't charge in the sealed container.
No short circuit. It should be addition charge if you don't use, and single charge per three months, to avoid irreversible sulfating. The battery should be changed when the battery jar broken or the electrolyte omitted, to avoid acid corrosion.
Don't store in the space of acid gas.
You should be careful and regular check when use the battery. To avoid the battery don't work. You should change the battery if the capacity is not full or has been damage, especially after one year using.
Don't put the battery in the fire, or it will explode.
CSPOWER Front terminal Batteries 12v Specifications
Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 20hrs/25 | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| FL12-55 | 12 | 55 | 17 | 37.5 | 277 | 10.9 | 106 | 4.17 | 222 | 8.74 | 222 | 8.74 | T16 |
| FL12-75 | 12 | 75 | 27 | 59.67 | 562 | 22.1 | 114 | 4.49 | 188 | 7.4 | 188 | 7.4 | T16A |
| FL12-100 | 12 | 100 | 30.6 | 67.6 | 508 | 20 | 109 | 4.29 | 223 | 8.78 | 238 | 9.37 | T16 |
| FL12-110 | 12 | 110 | 32.5 | 71.83 | 395 | 15.51 | 110 | 4.29 | 287 | 11.29 | 287 | 11.29 | T16 |
| FL12-120 | 12 | 120 | 38 | 83.7 | 551 | 21.7 | 109 | 4.29 | 239 | 9.41 | 239 | 9.41 | T16 |
| FL12-150 | 12 | 150 | 50 | 110.20 | 551 | 21.7 | 109 | 4.29 | 288 | 11.34 | 288 | 11.34 | T16 |
| FL12-180 | 12 | 180 | 56 | 123 | 547 | 21.5 | 125 | 4.92 | 317 | 12.48 | 317 | 12.48 | T16 |
| FL12-200 | 12 | 200 | 60 | 126 | 560 | 22.1 | 125 | 4.92 | 316 | 12.44 | 316 | 12.44 | T16 |

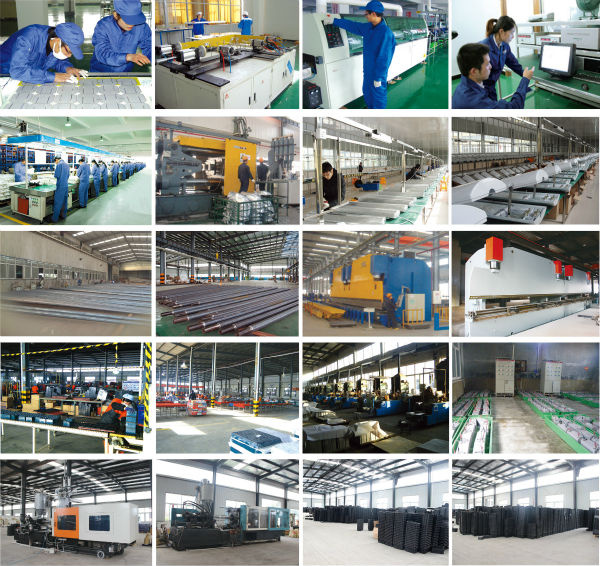

CSPOWER Battery Factory View
CSPOWER Battery visitors from Booie

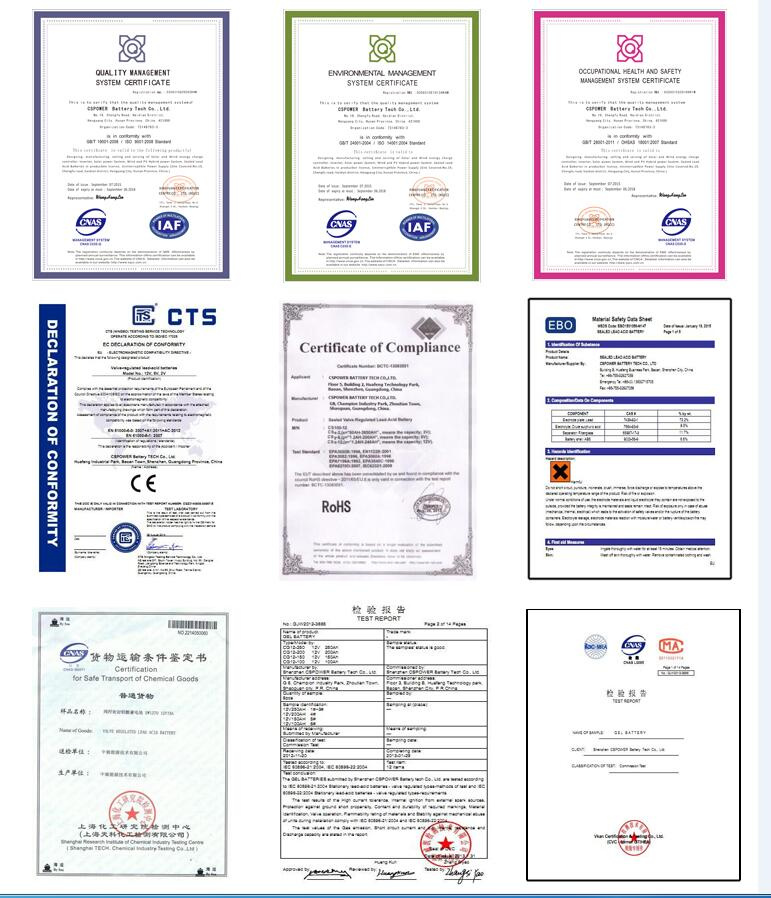

CSPOWER Certificates: CE, IEC, ISO
CSPOWER goal
Creative.
Excellent quality.
Top service.
Stand same line with customer.
Long term business.CSPOWER TAGS:1. Terminal Battery, Front Access battery, Front terminal battery, 12v solar battery, UPS Battery, Telecom Battery, solar back-up battery, 12v front terminal Battery 2. Gel Battery, Deep cycle Battery, Solar Gel Battery, Solar panel Battery, Solar Inverter Battery, Solar charger controller Battery 3. Lead acid battery, rechargeable battery, SLA Battery, SMF Battery, Free maintenance battery, sealed battery, AGM BatteryMore details, welcome to our website: http://www.csagmbattery.com/
Your questions will get reply within 24hours.
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
