| Prod Model: |
FL12-150Ah |
| Model: |

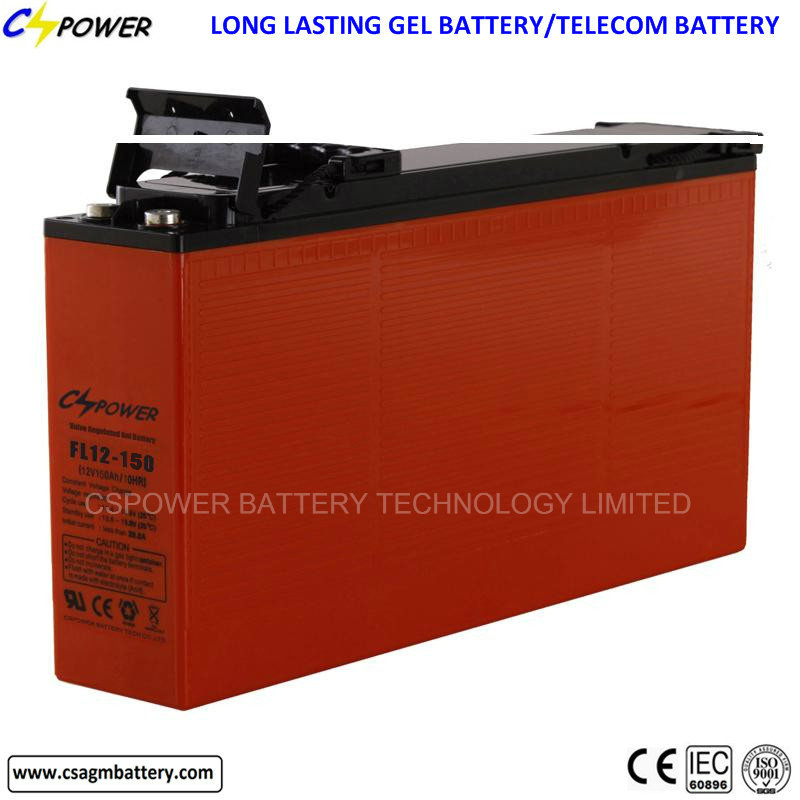

Solar Front Terminal Gel Battery 12V150ah |
| Size: |
551*110*288*288mm |
| Weight: |
44kgs |
| Terminal: |
M8 |
| Color: |
Orange Red |
| Voltage: |
12V |
| Warranty: |
3 Years |
| Lifespan: |
12years |
| Certificate: |
Ce,IEC,ISO |
| MOQ: |
25PCS |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar and Wind System |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
| Electrolyte: |
Gel |
Product Description
12V150ah rechargeable Gel Front Terminal Battery, for Telecom/ Solar
CSPOWER BATTERY TAGS:
1. lithium-ion battery, LiFePO4 Battery; Lithium battery, rechargeable battery pack,19inch battery pack, Lithium Battery Pack,Lithium Iron Phosphate Battery, Lithium Battery Bank
2. 2V battery,long life battery, battery pack ,12V Solar battery, battery for 48v system,6V solar battery,
3. Gel Battery, AGM Battery, Batteries lead acid, SLA Battery, Free maintenance battery, Sealed battery, Deep cycle battery, Solar Power battery,VRLA Battery,rechargeable battery, Long life battery, Solar Gel Battery
4. Storage battery, Solar panel Battery, Inverter battery, Solar charger controller battery, UPS Battery, Marine battery, car battery, Electrical battery, Telecom Battery, Solar back-up battery, Terminal battery, Front Access battery, battery pack, Solar batteries, 12v battery
5. OPzV Battery, Gel Battery, 2V tubular battery, Deep cycle battery, Long life Gel Battery, OPzV tubular plates battery
6. Front terminal battery, front access battery, terminal battery, telecom battery, long type battery, VRLA Batteries, gel terminal battery, front terminal gel battery
Key Specifications/Special Features:
Specifications:
Nominal voltage: 12V
Rated capacity (C10 H): 150Ah
Sealed type: sealed
Maintenance type: free
Container material: ABS
Dimensions: 551x 110 x 288mm
Weight: 44kg
12V150ah rechargeable Gel Front Terminal Battery, for Telecom/ Solar
Features:
1. This stationary battery comes with a superior gel electrolyte where sulfuric acid is evenly mixed with silica fume and acid layering does not exist
2. Electrolyte is gel like and immobile, which enables no leakage and uniform reaction of battery plates
3. Serving as perfect power supply equipment, the gel battery is designed with slim shape
Front access terminal connection is convenient for installation and maintenance, space saving
4. Radial type grid design and tight assembly technology enable prominent high rate discharge performance for our front access gel battery
5. Due to a unique design, the electrolyte volume of this battery cannot reduce in use, and it requires no watering during service life
6. Special anti-corrosion grid alloy is utilized so that the energy storage device comes with more than 8 years of design life at 25°C
7. High purity raw materials ensure super low battery self discharge
8. Thanks to the use of gas recombination technology, our front access gel battery boasts extremely high seal reaction efficiency and yields no acid mist, thus friendly and pollution-free to the environment
9. By means of special design and high reliable sealing technology, the battery is well sealed, thus ensuring definite safety
12V150ah rechargeable Gel Front Terminal Battery, for Telecom/ Solar
Applications:
1. 19 and 23-inch power cabinet

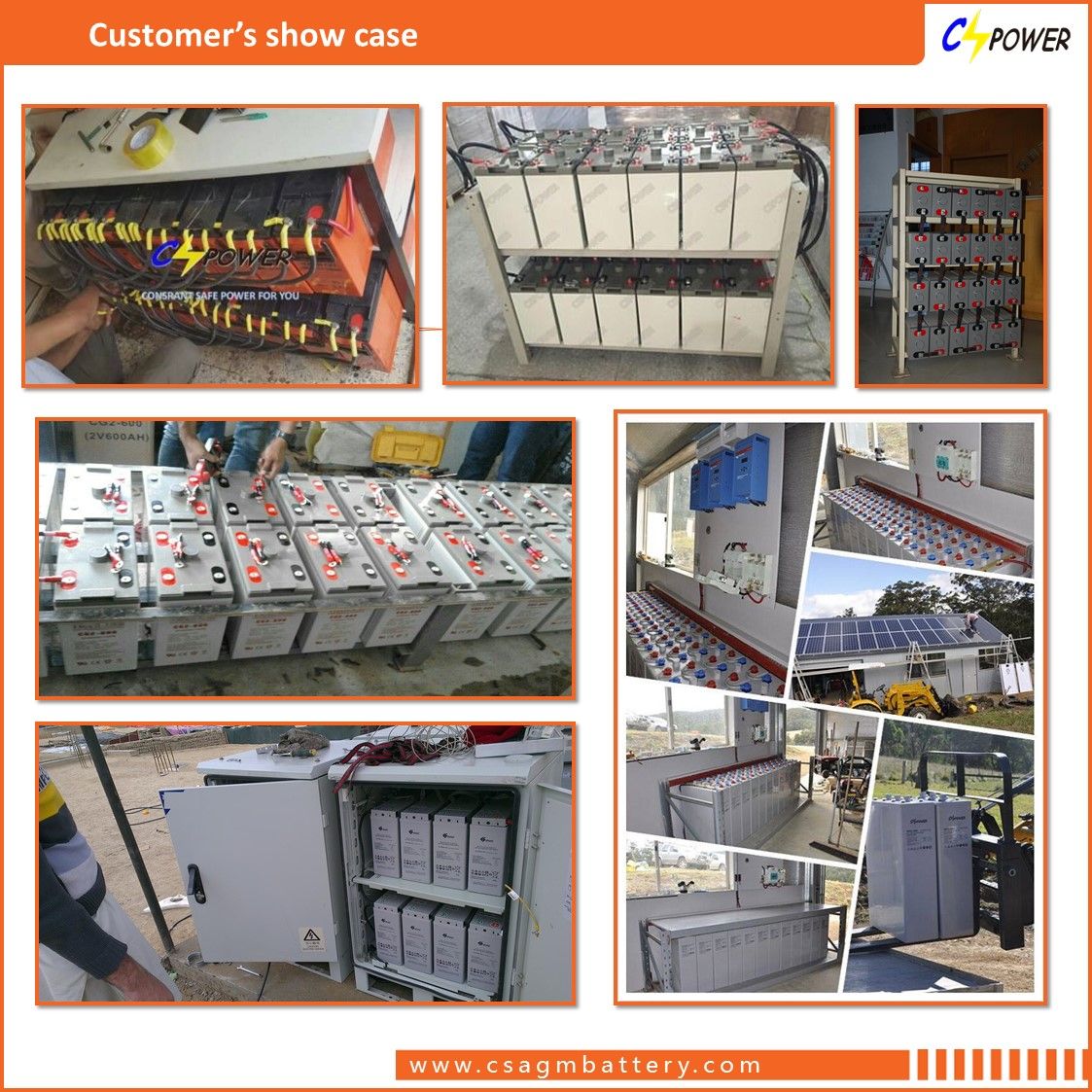

2. Telecommunication systems including exchange board, microwave station, mobile base station, data center, radio and broadcast station
3. Power supply system of private network of LAN
4. Signal system and emergency lighting system
5. EPS and UPS system
12V150ah rechargeable Gel Front Terminal Battery, for Telecom/ Solar
CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

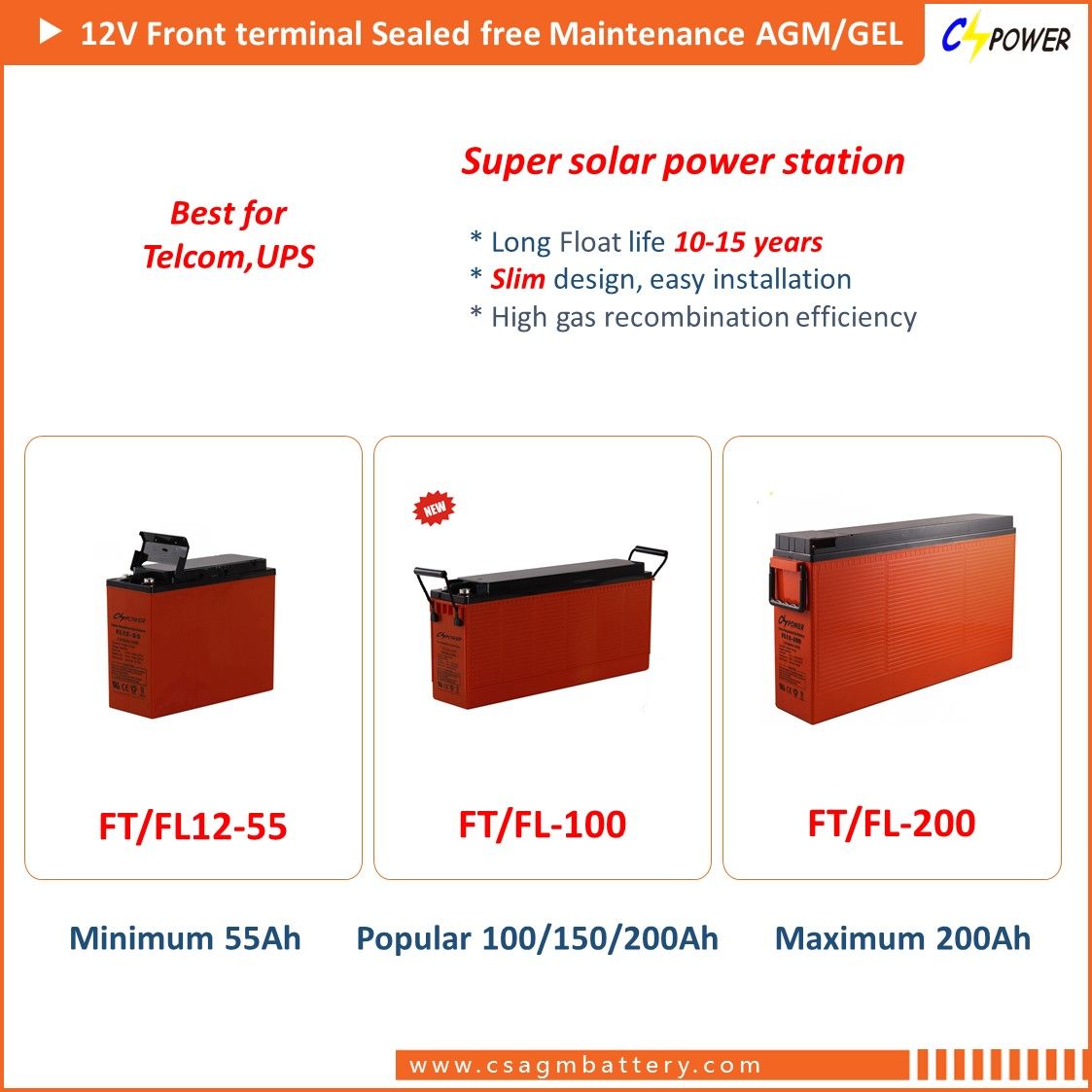

Front terminal GEL Battery 12V Specifications
| CSPOWER MODEL | Voltage | Capacity | Dimension (mm) | Weight (kg) | Terminal | Bolt |
| (V) | (Ah) | Length | Width | Height | Total Height | (±3%) |
| FL12-55 | 12 | 55/10HR | 277 | 106 | 223 | 223 | 16 | T2 | M6×16 |
| FL12-80 | 12 | 80/10HR | 562 | 114 | 188 | 188 | 25 | T3 | M6×16 |
| FL12-100 | 12 | 100/10HR | 507 | 110 | 223 | 223 | 29.4 | T4 | M8×16 |
| FL12-105/110 | 12 | 110/10HR | 394 | 110 | 286 | 286 | 30.5 | T4 | M8×16 |
| FL12-125 | 12 | 125/10HR | 552 | 110 | 239 | 239 | 38 | T4 | M8×16 |
| FL12-150 | 12 | 150/10HR | 551 | 110 | 288 | 288 | 44 | T4 | M8×16 |
| FL12-160 | 12 | 160/10HR | 551 | 110 | 288 | 288 | 44.5 | T4 | M8×16 |
| FL12-175 | 12 | 175/10HR | 546 | 125 | 316 | 323.5 | 53.5 | T5 | M8×16 |
| FL12-180 | 12 | 180/10HR | 560 | 125 | 316 | 316 | 54 | T5 | M8×16 |
| FL12-200 | 12 | 200/10HR | 560 | 125 | 316 | 316 | 55.3 | T5 | M8×16 |
| Products will be improved without notice, please contact sales for specification in kind prevail. |
www.csagmbattery.com
Welcome to concult us any time, we will be there for you in 24hours.
CSPOWER solar Batteries production details and applications
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.

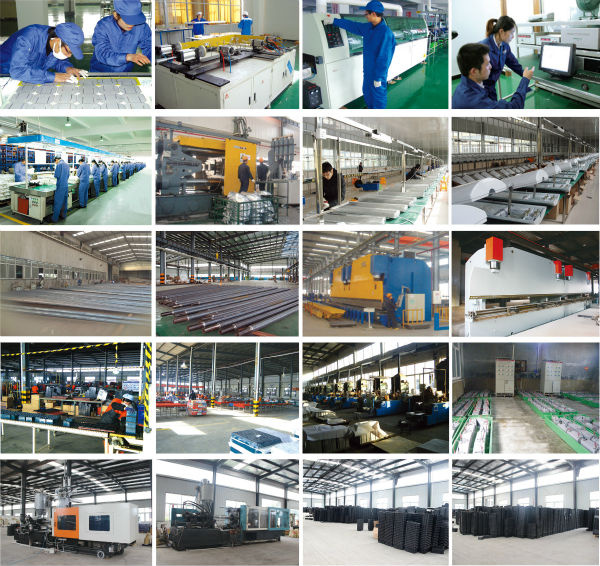

Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
