12V180ah High Quality Front Terminal Deep Cycle Telecom Battery
| Price: |
US $ 150-200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
6-GFM (F) -180 12V180ah |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
560mm*125mm*316mm |
| Service Life: |
10-12 Years |
| Cycle Life: |
1000 Times |
| Name: |
12V180ah High Quality Front Terminal Deep Cycle Te |
| Performance: |
Deep Cycle |
| Technology: |
Maintenance Free, Non Spillable |
| Separator: |
AGM |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Power |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
12V180ah High Quality Front Terminal Deep Cycle Telecom BatteryAdvantage:Front Terminal type more fit for the certain cabinet, easier for maintenance;More cycle life, excellent deep discharge performance;
Low self discharge rate, less than 2% at 20°C;Strict inspection system, material inspection, in-production inspection, before-delivery inspection;
Really low return rate, less than 0.03%;
Competitive price, multiple choice.Application:1. Telecom Installations
2. UPS system3.Green energy systems (solar, wind, hydro, etc)4.Solar power stations 5.Electricity power supply systems (EPS)6.boats or buoys7.Signal station8.Survey and Mapping system9/Emergency lighting10.Traffic lights11.Street lighteningSpecification:Front Terminal Series designed for Applied in 19 foot and 23 foot standard power cabinet, Network access equipment to, Power source system for franchised network and LAN,
UPS and back-up power sources.
Voltage: 12V Capacity: 55Ah 180Ah
Designed service life: 12 years(20C)
Excellent high power discharge performance
Excellent heat dispersion
Acid filtering and ventilating construction design
Extremely low self-discharge rate: ≤ 1% (20C) monthly on average
Wide suitability of ambient temperature range: -15~45C
Patent terminal design to ensure reliable sealing
Flexible connecting
Optional fire retardant design
SunBright has won good reputation from market. In the year 2008, SBB is the only power supplier for Mount Everest section of Olympic torch route.
Up to now, we have successfully cooperated with APC, SeeSa ,Motorola, Philips, Winpower etc.,
| COMMON BATTERY MODEL |
| NO. | MODEL | DIMENSION(MM) |
| L | W | H | T.H |
| 1 | 3-FM-4 | 70 | 47 | 100 | 104 |
| 2 | 3-FM-4.5 | 70 | 47 | 100 | 104 |
| 3 | 3-FM-5 | 70 | 47 | 100 | 104 |
| 4 | 3-FM-5.5 | 70 | 47 | 100 | 104 |
| 5 | 3-FM-6 | 85 | 47 | 100 | 105 |
| 6 | 3-FM-7 | 151 | 35 | 94 | 98 |
| 7 | 3-FM-7.5 | 151 | 35 | 94 | 98 |
| 8 | 3-FM-8 | 151 | 35 | 94 | 98 |
| 9 | 3-FM-10 | 151 | 50 | 94 | 98 |
| 10 | 3-FM-12 | 151 | 50 | 94 | 98 |
| 11 | 6-FM-4 | 90 | 70 | 101 | 105 |
| 12 | 6-FM-4.5 | 90 | 70 | 101 | 105 |
| 13 | 6-FM-5 | 90 | 70 | 101 | 105 |
| 14 | 6-FM-5.5 | 90 | 70 | 101 | 105 |
| 15 | 6-FM-6 | 90 | 70 | 101 | 105 |
| 16 | 6-FM-7 | 151 | 65 | 94 | 98 |
| 17 | 6-FM-7.5 | 151 | 65 | 94 | 98 |
| 18 | 6-FM-8 | 151 | 65 | 94 | 98 |
| 19 | 6-FM-8.5 | 151 | 65 | 94 | 98 |
| 20 | 6-FM-10 | 151 | 98 | 94 | 98 |
| 21 | 6-FM-12 | 151 | 98 | 94 | 98 |
| 22 | 6-FM-17 | 181 | 77 | 167 | 167 |
| 23 | 6-FM-18 | 181 | 77 | 167 | 167 |
| 24 | 6-FM-20 | 181 | 77 | 167 | 167 |
| 25 | 6-FM-24 | 175 | 166 | 125 | 125 |
| 26 | 6-FM-26 | 175 | 166 | 125 | 125 |
| 27 | 6-FM-33 | 195 | 130 | 155 | 168 |
| 28 | 6-FM-35 | 195 | 130 | 155 | 168 |
| 29 | 6-FM-38 | 196 | 165 | 170 | 170 |
| 30 | 6-FM-40 | 196 | 165 | 168 | 168 |
| 31 | 6-FM-50 | 230 | 137 | 210 | 215 |
| 32 | 6-FM-55 | 230 | 137 | 210 | 215 |
| 33 | 6-GFM-65 | 350 | 167 | 174 | 174 |
| 34 | 6-GFM-60 | 260 | 167 | 213 | 216 |
| 35 | 6-GFM-70 | 260 | 167 | 213 | 216 |
| 36 | 6-GFM-80 | 330 | 173 | 217 | 220 |
| 37 | 6-GFM-85 | 330 | 173 | 217 | 220 |
| 38 | 6-GFM-90 | 330 | 173 | 217 | 220 |
| 39 | 6-GFM-100 | 330 | 173 | 217 | 220 |
| 40 | 6-GFM-120 | 406 | 173 | 236 | 236 |
| 41 | 6-GFM-150 | 486 | 171 | 243 | 243 |
| 42 | 6-GFM-180 | 523 | 240 | 219 | 223 |
| 43 | 6-GFM-190 | 523 | 240 | 219 | 223 |
| 44 | 6-GFM-200 | 523 | 240 | 219 | 223 |
| 45 | 6-GFM-230 | 521 | 269 | 203 | 206 |
| 46 | 6-GFM-250 | 520 | 269 | 220 | 224 |
| 47 | GFM-100 | 171 | 68 | 328 | 348 |
| 48 | GFM-200 | 174 | 112 | 335 | 345 |
| 49 | GFM-300 | 176 | 155 | 332 | 341 |
| 50 | GFM-400 | 210 | 175 | 332 | 342 |
| 51 | GFM-500 | 243 | 174 | 332 | 342 |
| 52 | GFM-600 | 300 | 175 | 332 | 342 |
| 53 | GFM-800 | 412 | 175 | 332 | 342 |
| 54 | GFM-1000 | 480 | 175 | 332 | 342 |
| 55 | GFM-1500 | 405 | 355 | 343 | 353 |
| 56 | GFM-2000 | 490 | 353 | 343 | 353 |
| 57 | GFM-2500 | 490 | 353 | 343 | 353 |
| 58 | GFM-3000 | 710 | 353 | 341 | 363 |
| 59 | 6-GFM(F)-120 | 557 | 125 | 232 | 232 |
| 60 | 6-GFM(F)-150 | 551 | 109 | 288 | 288 |
| 61 | 6-DZM-20 | 182 | 77 | 170 | 170 |
|
|
|
|
|
|
|
|
|
|
|
|

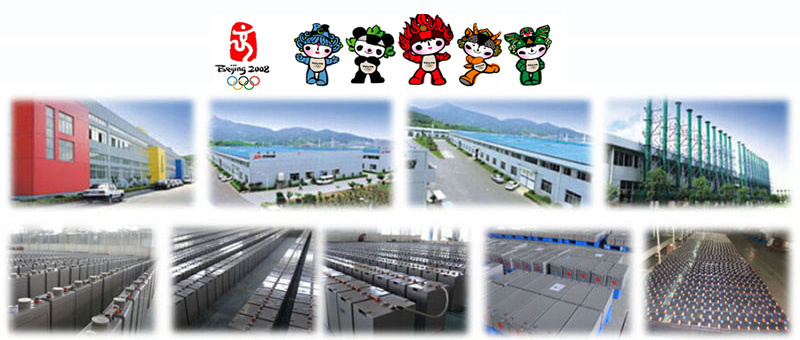

Sunbright Power, leading manufacturer focused in design and produce maintenance free sealed lead acid battery in China. The company registered capital of 8 million USD, with a total investment 70 million USD. It covers an area of 220 acres, 70, 000 square meter production plant, and annual production capacity of one million KVAh.
The batteries made by Sunbright include backup batteries applied in telecommunications, Power Plant, UPS battery, fire alarm system, emergency lighting and efficient energy storage batteries used in solar energy, wind energy and, as well as motive power batteries for electric vehicles, golf carts, electric forklift, electric traction trucks and other fields. All products are CE certificated, UL certificated, and TLC, ROSH certificated.
Sunbright Power possess the advanced technology and top equipment, the company has co-founded with the Fudan University, "Fudan University – Sunbright Power Electrochemical Energy Research Center", also cooperation with Wuhan University in research focused on super-batteries used in electric vehicles, and together with the Zhejiang University in focused research in ultra-low temperature resistance batteries. As well as powerful alliance and close technology partner with the world' S leading battery manufacturer BE Company in the Australian. Through independent research, cooperative research, and absorbed technology from foreign battery manufacturers, Sunbright built many market oriented products for our esteemed customers.
Sunbright Power regards product quality the life of the company. It has the strictest quality assurance system, the company has adopted the following: SGS ISO9001 quality management system certificate, ISO14001 environment system certificate, and the company actively promote the 5S and Six Sigma management.
With qualified product and reliable service, Sunbright batteries have been widely reputed in the oversea market. "Sunbright" is now marching towards perfection in an unconventional developing. By booming of the national battery industry as its own duties, exceeding the limits and bravely facing competition from any other enterprises, "Sunbright" is becoming a shining pearl in Chinese lead acid battery industry.
