| Prod Model: |
TL12180 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimenstions: |
181(L)*76(W)168(H)Mm |
| Weight: |
5.3kg |
| Color: |
Black/ Grey/ White |
| Container Material: |
ABS |
| Charge (Cycle Use): |
14.5~15.0V |
| Charge (Standby Use): |
13.5~13.8V |
| Designed Life: |
3 Years |
| Warranty: |
1 Year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar Home System, Alarm System , |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

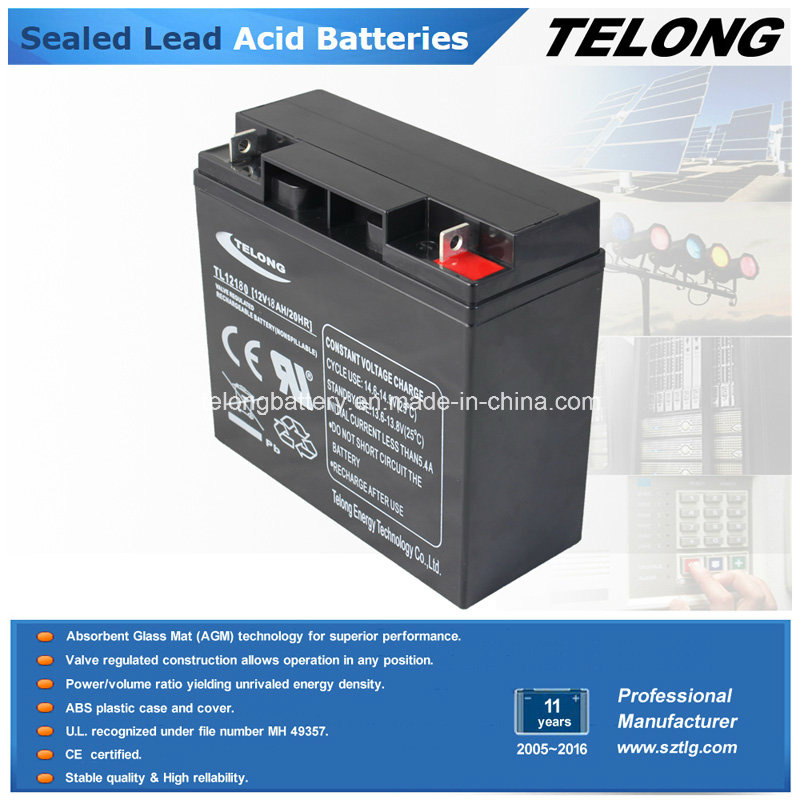

TELONG TL12180 (12V18ah) lead acid battery utilizing the latest advance design Oxygen Recombination
Technology,it It has obtained the CE and RoHS authentication of the European Union, UL recognition the USA. And the Battery is widely used in solar home lighting system, alarm system, ups, toy car and so on.
BATTERY CONSTRUCTION
| Electrolyte | Positive Plate | Negative Plate | Container |
| Sulfuric acid | Lead dioxide | lead | ABS |
|
| Cover | Safety valve | Terminal | Separator |
| ABS | Rubber | Copper | Fiberglass |
SPECIFICATION
| Nominal Voltage | 12V |
| Rated capacity (20 hour rate) | 18 Ah |
| Dimension | Length | 181mm (7.1inches) |
| Width | 76mm (2.96 inches) |
| Height | 168mm (6.55inches) |
| Weight Approx | 5.3Kg(11.69Ibs) |
FEATURE
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%
and freedom from electrolyte maintenance or water adding.
2).Not restricted for air transport complies
3).UL CE ROHS-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications.
7).Maintenance-free operation.
8).Low self discharge. Long Life Design
9).Wide Operation Temperature Range
10).Available in flame retardant ABS material for the battery case
CHARACTERISTICS
Capacity
25'C (77'C) | 20 hour rate(0.90A ) | 18.0AH |
| 10 hour rate(1.67A ) | 16.7AH |
| 5hour rate(3.06A ) | 15.3AH |
| 1 hour rate(11.3A ) | 11.3AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 11milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
Charge
(Constant Voltage) | Initial Charging Current less than 5.4 A |
| Voltage 14.5~15.0 V |
| Voltage 13.5~13.8 V |
APPLICATIONS
Control equipments / Emergency Light / Solar system
Alarm systems / Power tools
Traffic signal
Medical equipments / Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS) and stand-by power for computers
OTHER INFORMATION
| 1 | Logo: Mine or Yours (silk printing) |
| 2 | Packaging: in Carton Box Packing in Wooden Pallet
Pcs/ctn: 4pcs/ctn
Ctn size: 330*190*185cm
GW/NW: 21.3kg/21.2kg |
| 3 | Payment terms: T/T(with 30% deposit); L/C at sight |
| 4 | Date of delivery: 15~25 days after receipt of the deposit |
| 5 | Loading port: Shenzhen (China) |
| 6 | Sample charge: FREE |
