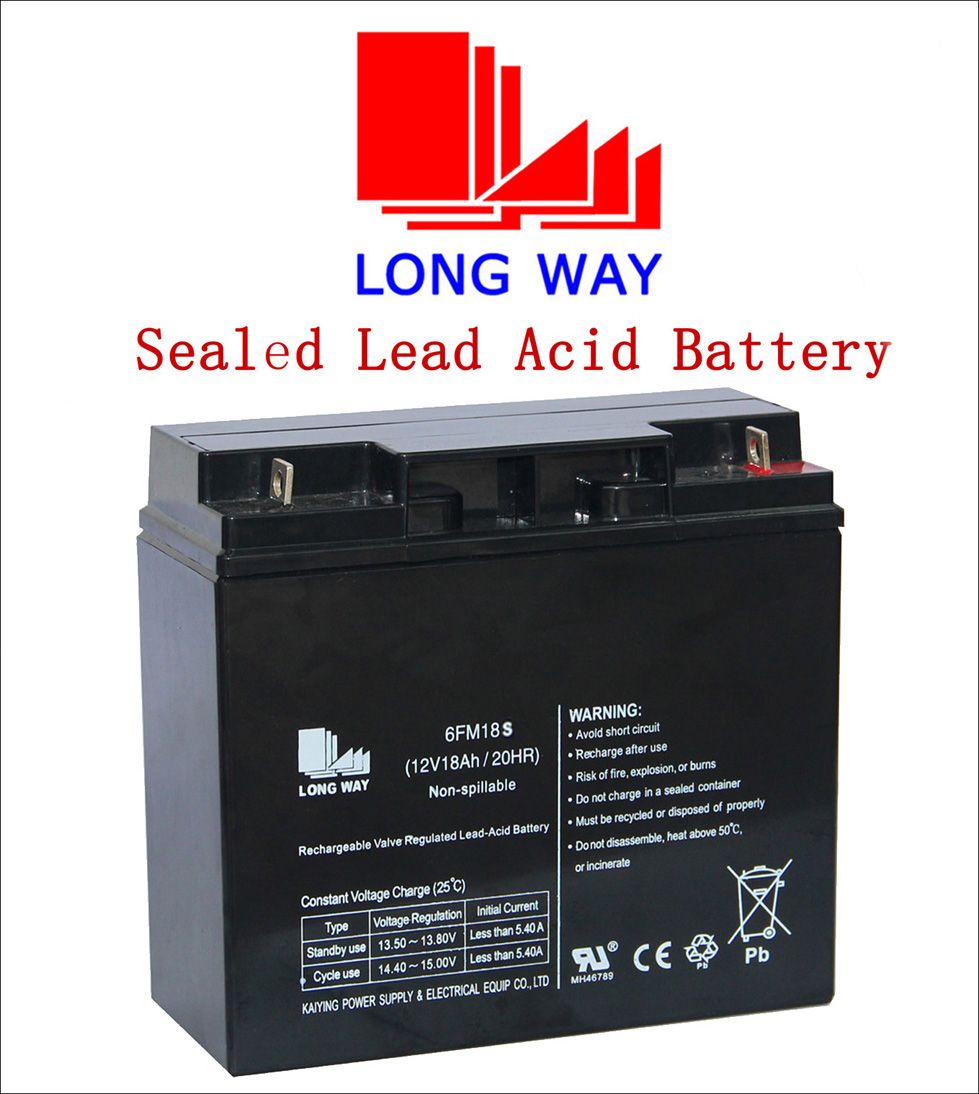

12V18ah Solar Gel Battery for Solar Power System

Prod Model:	12V18ah
Operating Temperature:	-20c~50c
Design Time:	10-12 Years
Separator:	AGM
Charge Voltage (Cycle):	2.40~2.50V
Container Material:	ABS(UL94-Hb) *Flammability Resistance of (UL94-V0)
Material Lead:	#1 Lead Top Quality in China
Terminal:	Nb or B
Color:	Grey or Black
Self Discharge:	Less Than 3% Per Month
Certificate:	ISO, UL, Ce
Type:	Lead-Acid Batteries
Usage:	Lighting
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

12V18ah solar gel battery for solar power system

LONGWAY® 6FM18S is specially designed for green energy systems . 6FM18S
have a good deep cycle property, maintenance-free . It can be used for more than
350 cycles at 100% discharge in cycle service, up to 8 years in standby service.

Specifications:
Cells per Unit 6
Normal Voltage 12V
Capacity
18Ah@10Hr-rate to 1.80V per cell@25ºC
21Ah@100Hr-rate to 1.90V per cell@25ºC
Weight Approx.(5.1kg±3%) (11.24bs)
Maximum Discharge Current 180A(5sec)
Internal Resistance Approx. 14mΩ full charged @25ºC
Operating Temperature Range Discharge: -20ºC~60ºC
Charge: 0ºC~50ºC
Storage: -20ºC~60ºC
Nominal Operating Temperature Range 25ºC±3ºC
Float Charging Voltage 13.7~13.9VDC/unit Average @25ºC
Maximum Charging Current 5.4A
Equalization and Cycle Service 14.4V~15.0VDC/unit Average @ 25ºC
Self Discharge LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored
for more than 6 months at 25ºC. Self-discharge ratio less than 3%
per month at 25ºC. Please charge batteries before using.
Terminal Terminal F4
Container Material ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request

Gel Battery
LONGWAY gel series battery is manufactured silica gel to immobilize the electrolyte inside the battery. The proven silica gel technology improves battery cycle life and performance at cold ambient temperatures. The deep discharge cycles is increased by 30% as compared with the AGM battery.

General Features
Environmentally friendly
Longer Service Life
High reliability and quality
High power density
Excellent recovery from Deep Discharge
Living up to Prevailing Standards
Non-sensitive-to Occasional deep discharges
International leading technology

Applications
Solar and wind systems
Cable TV
Telecommunications
Wheelchair
Marine equipment
Military equipment
Emergency lighting
Power plants
Medical devices
Golf cart

If get interest, just contact me freely.



12V18ah solar gel battery for solar power system
