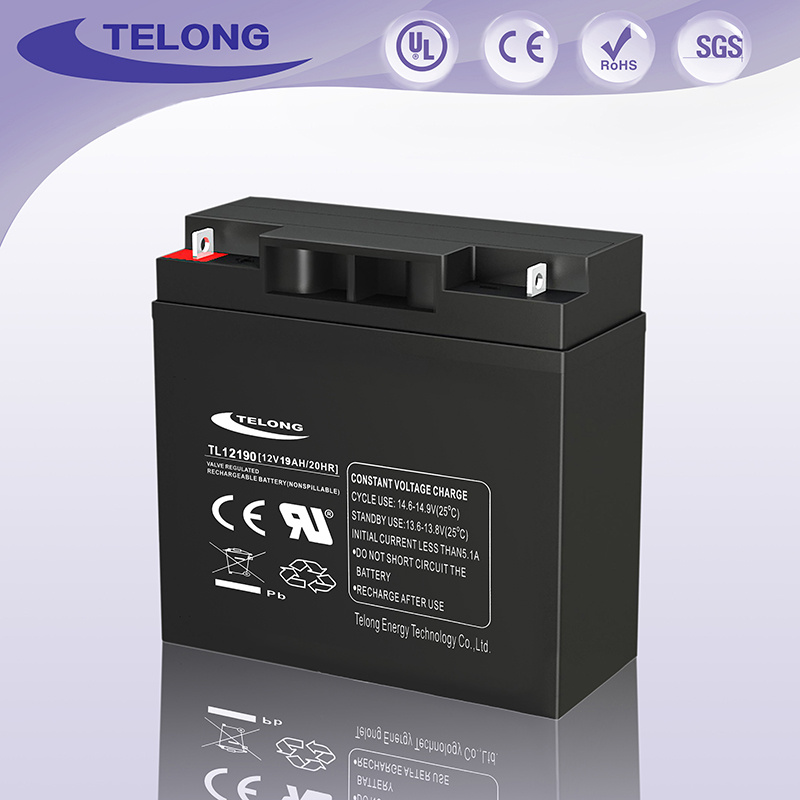

12V19ah High Quality Solar Battery AGM Lead Acid Battery

Name: 12V19ah High Quality Solar Battery AGM Lead Acid Battery
Brand: all-electronics-online.com
SKU: 800488565
Availability: InStock
Rating: 4.6 (40 reviews)

Price:	US $ 17-19.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TL12190
Normal Capacity:	19ah
Dimension:	181(L)76(W)168(H)mm
Weight:	5.7kg
Color:	Grey , Black or Other
Charge Voltage (Cycle):	14.4~15.0V
Charge Voltage (Float):	13.5~13.8V
Designed Lifef:	5 Years
Warranty:	1 Year
Type:	Lead-Acid Batteries
Usage:	Chirdren Scooter,Solar System, Alarm System
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

TELONG TL12190 (12V19Ah) Solar power lead acid batteries have obtained the CE and RoHS authentication of the European Union, UL recognition the USA.Those batteries is good used for solar system chirdren scooter, alarm system and so on.

BATTERY CONSTRUCTION OF 12V19Ah BATTERY

Electrolyte	Positive Plate	Negative Plate	Container
Sulfuric acid	Lead dioxide	lead	ABS

Cover	Safety valve	Terminal	Separator
ABS	Rubber	Copper	Fiberglass

APPLICATIONS OF 12V19Ah SEALED BATTERY

Solar system / Alarm systems / Scooter
Mini Solar System / Control equipments
Telecommunication / Communication systems
Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS) and stand-by power for computers

CHARACTERISTICS OF 12V20Ah LEAD ACID BATTERY

Capacity 25'C (77'C)	20 hour rate(1.00A )	19.4AH
	10 hour rate(1.84A )	19.0AH
	5 hour rate(3.44A )	16.0AH
	1 hour rate(13.0A )	12.4AH
Internal Resistance	Full charged Battery at 25 'C(77'F )	12 milli-ohm
Capacity affected by Temp	40'C (104F)	102%
	25'C (77'F)	100%
	0'C (32'F)	85%
	(-15'C )5'F	65%
Self-Discharge 25'C (77'F)	Capacity after 3 month storage	91%
	Capacity after 6 month storage	82%
	Capacity after 12 month storage	64%
Terminal	F3/F13
Charge (Constant Voltage)	Initial Charging Current less than 6 A
	Voltage 14.4-15.0V
	Voltage 13.5-13.8V
