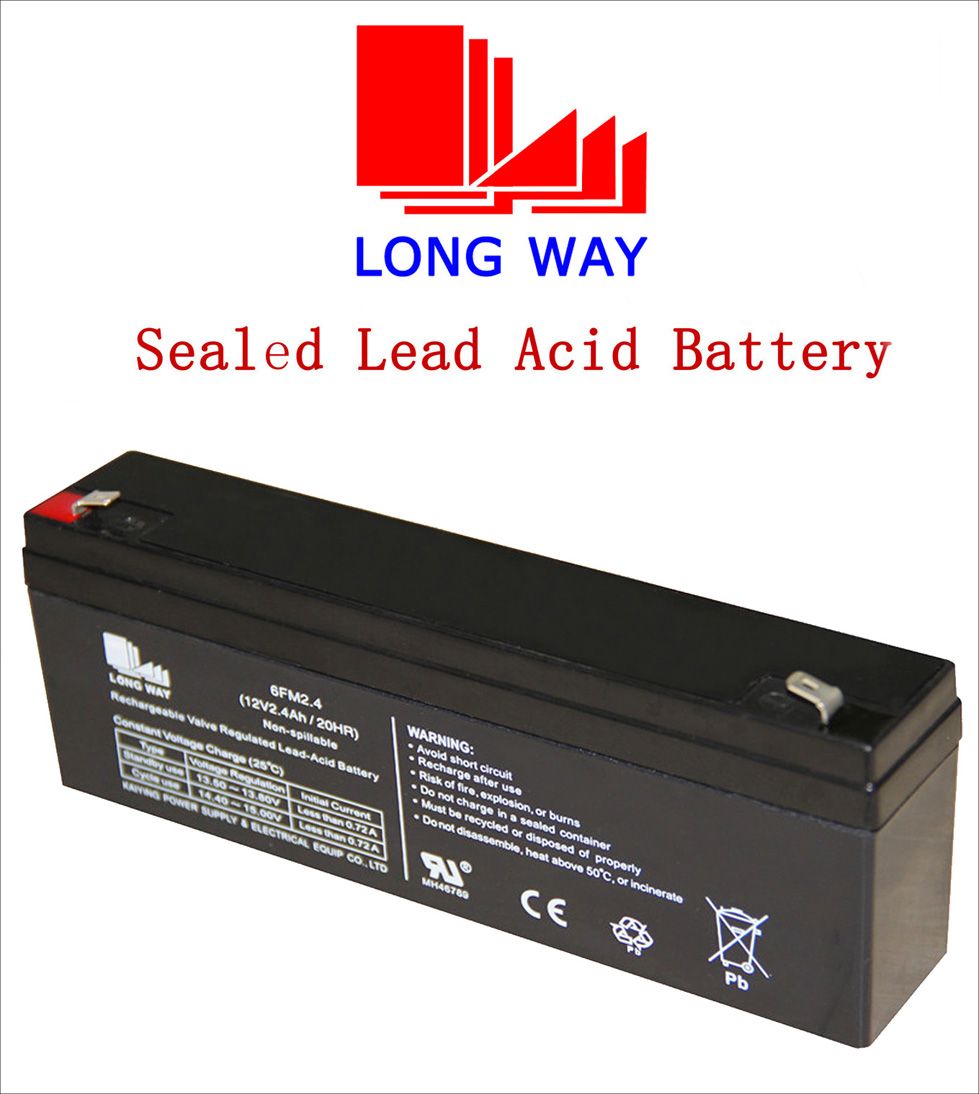

12V2.4ah Rechargeable VRLA Battery Used for Security System

Prod Model:	6FM2.4 (12V2.4Ah)
Operating Temperature:	-20c~50c
Design Time:	5-8 Years
Separator:	AGM
Charge Voltage (Cycle):	2.40~2.50V
Container Material:	ABS(UL94-Hb) *Flammability Resistance of (UL94-V0
Material Lead:	#1 Lead Top Quality in China
Terminal:	Nb or B
Color:	Grey or Black
Self Discharge:	Less Than 3% Per Month
Certificate:	ISO, UL, Ce
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

12V2.4Ah rechargeable VRLA battery used for security system

LONGWAY® Standard battery is design for a general purpose by
KaiYing Power. 6FM2.4 is a general purpose battery up to 5 years
in star service or more than 260 cycles at 100% discharge in cycle
service. As with all LONGWAY® batteries, all are rechargeable
highly efficient, leak proof and maintenance free.


Normal Voltage	12V
Capacity	2.4Ah@20Hr-rate to 1.75V per cell@25ºC
Weight	Approx.(0.99±3%) kg (6.61lbs)
Maximum Discharge Current	24A(5sec)
Internal Resistance	Approx.50mΩ full charged @25ºC
Operating Temperature Range	Discharge: -20ºC~60ºC Charge: 0ºC~50ºC Storage: -20ºC~60ºC
Nominal Operating Temperature Range	25ºC±3ºC
Float Charging Voltage	13.7~13.9VDC/unit Average @25ºC
Maximum Charging Current	0.72A
Equalization and Cycle Service	14.4V~15.0VDC/unit Average @ 25ºC
Self Discharge	LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.
Terminal	F1(0.187)
Container Material	ABS(UL94-HB) *Flammability resistance of (UL94-V0) can be available upon request
Dimensions	L178*W35*H61(TH67)mm

Standard Series
LONGWAY Standard series valve regulated lead acid batteries are designed with AGM (Absorbent Glass Mat) technology and for general application purpose. Such as UPS, telecom, and electrical utilities with 5 years design life, the batteries comply to the most popular international standards, such as IEC60896-21/22, BS62904, Eurobat Guide. The battery container and cover are available both in V0 class flame retardant ABS or HBO ABS plastics.

General Features
Stable Quality & High Reliability
Sealed Construction
Environmentally Friendly
Maintenance-Free Operation
Low Pressure Venting System
Heavy Duty Grid
Low Self Discharge
UL Component Recognition(MH 46789)

Applications
Alarm Systems
Cable Television
Communications Equipment
Control Equipment
Computers
Electronic Cash Registers
Electric Test Equipment
Electric Powered Bicycle and Wheel chair
Emergency lighting Systems
Fire & Security
Geophysical Equipment
Medical Equipment
Micro Processor Based Office Machines
Portable Cine & Video Lights
Power Tools
Solar Powered Systems
Telecommunications Systems
Television & Video Recorders
Toys
Uninterrupted Power Suppliers
Vending Machines

LONGWAY battery used for AGM VRLA/SLA maintenance-free battery.
6V - 1.3Ah to 12Ah used for emergency lighting and alarm lighting and sound application.
12V - 0.8Ah to 250Ah used for power storage and backup for standby power & deep cycle use.
2V - 50Ah to 3000Ah used for solar power systems and telecommunication are using all self-made high quality and thick deep cycle plates.

If get interest, just contact me freely.



12V2.4Ah rechargeable VRLA battery used for security system
