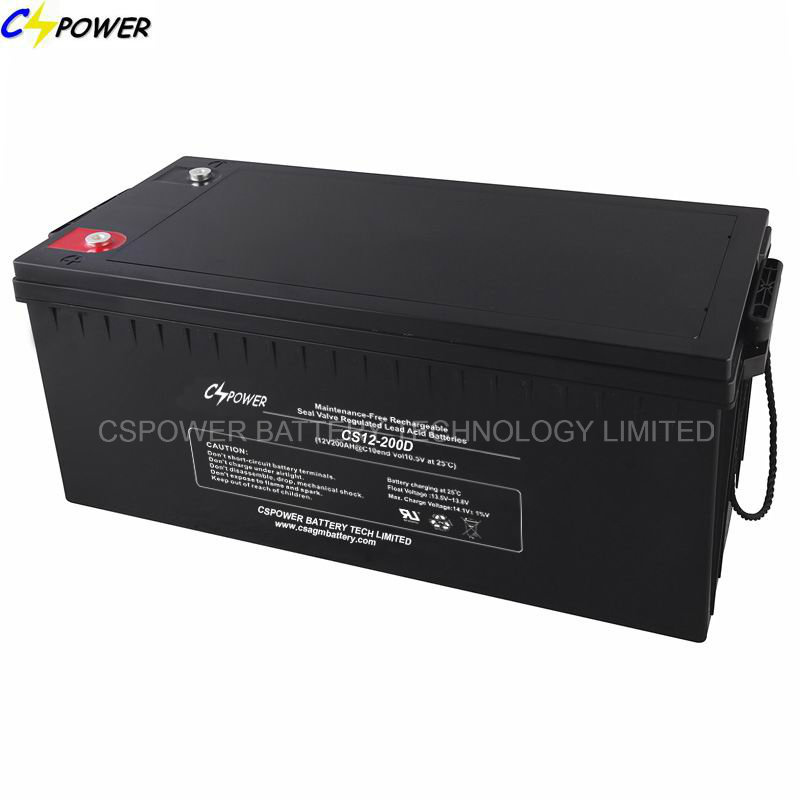

12V200 Deep Cycle Lead Acid Storage Battery for Solar CS12-200d
| Price: |
US $ 160-200/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
CS12-200D storage battery |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
L*W*H=522*240*218mm |
| Voltage: |
12V Storage Battery |
| Maximum Power: |
300ah Deep Cycle Battery |
| Weight: |
56kgs Solar Battery |
| Warranty: |
3 Years Power Battery |
| Expected Cycle Time: |
10-12 Years AGM Battery |
| Delivery Time: |
7days Lead Acid Battery |
| Brand: |
Cspower/OEM |
| Export Markets: |
Global |
| Terminal: |
as Customer Request |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
12V200 Deep Cycle Gel Storage Battery for solar
CSPOWER 12V200ah Storage Battery CS12-200D lead acid battery obtained the CE, ISO, IEC, SGS certifications, maintenance-free solar storage battery, the battery is widely used in solar system, power station, ups, backup system, communication equipment and so on.
CHARACTERISTICS
| Model No | Rated Voltage(V) | Capacity (Ah) | Dimension | Weight | Terminal Type |
| Length | Width | Height | Total Height | kg |
| mm | mm | mm | mm |
| CS12-200D | 12 | 200 | 522 | 240 | 218 | 242 | 56 | T11
|
Capacity
25'C (77'C) | 10 hour rate(20.0A ) | 200.0AH |
| 5hour rate(34.5A ) | 179.0AH |
| 3hour rate(52.0A ) | 156.0AH |
| 1 hour rate(122.0A ) | 126.0AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 2.7milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
Charge
(Constant Voltage) | Initial Charging Current less than 60 A |
| (Cycle use) Voltage 14.6-15.0V |
| (Float use) Voltage 13.6-13.8V |
Advantage
1. Excellent safety performance
2. Good dischargeing performance
3. Good stock-proof performance
4. Good impact-proof performance:
5. Good resistance to overdischarge
6. Good resistance to overcharge
7. Good resistance to high current
Application
- Alarm System
- Cable Television
- Communication Equipment
- Control Equipment
- Security System
- Medical Equipment
- UPS
- Power Tools
- Toys
- Emergency Power System
Contact CSPOWER Details:
Tel: 0086-755-29123661
Web: www.csbattery.net
www.csagmbattery.com
www.cssolarbattery.com
http://cspower.en.made-in-china.com/
| Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 10hrs/25ºC | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CS12-7D | 12 | 7 | 2.2 | 4.84 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-12D | 12 | 12 | 3.65 | 8.03 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-18D | 12 | 18 | 5.5 | 12.1 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-20D | 12 | 20 | 5.8 | 12.76 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-22D | 12 | 22 | 6.5 | 14.3 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3/T12 |
| CS12-24D | 12 | 24 | 8.1 | 17.82 | 166 | 6.54 | 126 | 4.96 | 174 | 6.5 | 181 | 7.13 | T32 |
| CS12-28D | 12 | 28 | 8.9 | 19.58 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-33D | 12 | 33 | 10.2 | 22.44 | 196 | 7.7 | 131 | 5.16 | 155 | 6.10 | 180 | 7.09 | T16 |
| CS12-35D | 12 | 35 | 10.4 | 22.88 | 197 | 7.76 | 130 | 5.12 | 163 | 6.42 | 180 | 7.09 | T6/T16 |
| CS12-40D | 12 | 40 | 13.5 | 29.7 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CS12-45D | 12 | 45 | 14.5 | 31.9 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T5 |
| CS12-55D | 12 | 55 | 16.2 | 35.64 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/16 |
| CS12-65D | 12 | 65 | 20.5 | 45.10 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| CS12-70D | 12 | 70 | 23.4 | 51.5 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 215 | 8.46 | T14 |
| CS12-80D | 12 | 80 | 23.4 | 51.5 | 260 | 10.2 | 169 | 6.65 | 211 | 8.30 | 229 | 8.46 | T14 |
| CS12-90D | 12 | 90 | 27 | 59.40 | 307 | 12.1 | 169 | 6.65 | 211 | 8.30 | 215 | 8.46 | T16 |
| CS12-100D | 12 | 100 | 31.1 | 68.42 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CS12-120D | 12 | 120 | 36.5 | 80.3 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-134D | 12 | 134 | 41 | 90.20 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 287 | 11.3 | T9/T20 |
| CS12-150D | 12 | 150 | 45 | 99.00 | 484 | 19.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | T11 |
| CS12-180D | 12 | 180 | 56.5 | 124.3 | 522 | 20.6 | 240 | 9.45 | 216 | 8.5 | 240 | 9.45 | T9 |
| CS12-200D | 12 | 200 | 60 | 132 | 522 | 20.6 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-230D | 12 | 230 | 64 | 140.8 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 240 | 9.45 | T9 |
| CS12-250D | 12 | 250 | 69 | 151.8 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T11 |
| CS6-100D | 6 | 100 | 17 | 37.4 | 195 | 7.67 | 170 | 6.69 | 206 | 8.11 | 211 | 8.31 | T16 |
| CS6-105D | 6 | 105 | 18.5 | 40.70 | 280 | 11.02 | 128 | 5.03 | 203 | 7.99 | 203 | 7.99 | T16 |
| CS6-120D | 6 | 120 | 19 | 41.80 | 195 | 7.67 | 170 | 6.69 | 206 | 8.11 | 211 | 8.31 | T16 |
| CS6-150D | 6 | 150 | 27 | 59.40 | 260 | 10.2 | 180 | 7.09 | 247 | 9.22 | 252 | 9.92 | T16 |
| CS6-180D | 6 | 180 | 28 | 63.80 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 252 | 9.92 | T16 |
| CS6-200D | 6 | 200 | 29 | 61.60 | 306 | 12.04 | 169 | 6.63 | 223 | 8.77 | 228 | 8.97 | T16 |
| CS6-225D | 6 | 225 | 34.5 | 75.90 | 243 | 9.57 | 188 | 7.4 | 275 | 10.83 | 275 | 10.83 | T16 |
| CL2-300 | 2 | 300 | 18.8 | 41.4 | 171 | 6.7 | 151 | 5.9 | 330 | 13.0 | 366 | 14.4 | T20 |
| CL2-350 | 2 | 350 | 24.5 | 53.90 | 211 | 8.31 | 176 | 6.92 | 331 | 13 | 356 | 14 | T20 |
| CL2-400 | 2 | 400 | 26.7 | 58.7 | 210 | 8.27 | 176 | 6.93 | 329 | 13.0 | 366 | 14.4 | T20 |
| CL2-500 | 2 | 500 | 31 | 68.20 | 242 | 9.5 | 172 | 6.8 | 331 | 13.0 | 366 | 14.4 | T20 |
| CL2-600 | 2 | 600 | 38 | 83.80 | 301 | 11.9 | 175 | 6.89 | 331 | 13.0 | 366 | 14.4 | T20 |
| CL2-800 | 2 | 800 | 53 | 116.60 | 410 | 16.1 | 175 | 6.89 | 330 | 13.3 | 365 | 14.4 | T20 |
| CL2-1000 | 2 | 1000 | 63 | 138.60 | 475 | 18.7 | 175 | 6.89 | 330 | 12.99 | 356 | 14.02 | T20 |
| CL2-1500 | 2 | 1500 | 101 | 223 | 401 | 15.8 | 351 | 13.8 | 342 | 13.5 | 369 | 14.5 | T20 |
| CL2-2000 | 2 | 2000 | 132 | 290. | 491 | 19.3 | 351 | 13.8 | 343 | 13.5 | 369 | 14.5 | T20 |
| CL2-3000 | 2 | 3000 | 195 | 430 | 710 | 28.0 | 352 | 13.9 | 342 | 13.5 | 369 | 14.5 | 20 |
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
