12V200ah AGM / Gel Solar Power Battery
| Price: |
US $ 166-185.8/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
TLG12-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
522*240*219(L*W*Hmm) |
| Weight: |
60.0kg |
| Rated Capacity: |
12V200ah Gel Battery |
| Container Material: |
ABS |
| Color: |
Black/ White/ Grey |
| Certificate: |
CE, UL, RoHS, MSDS, Un38.3 |
| Company Type: |
Factory |
| Terminal Type: |
T11/T19 |
| OEM/ODM: |
Yes |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
6V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
12V200AH Deep Cycle AGM Sealed Lead Acid Solar Power Battery/UPS Battery
Model Number:TLG12-200
1.Product Decription
-With high technology and advanced machine,good quality and competitive items are available
-located in ShenZhen, We can provide convenient logistics
-From the shop workers to sales department, we are frofessional enough to service for you
2. Product parameters
Model: TLG12-200
Certificate: CE, UL, RoHS, MSDS, UN38.3
Voltage: 12V
Capacity: 200Ah
Dimension: 522*240*219(L*W*Hmm)
Net weight: 60.0kg
Terminal Type:T11/T19
OEM/ODM: Yes

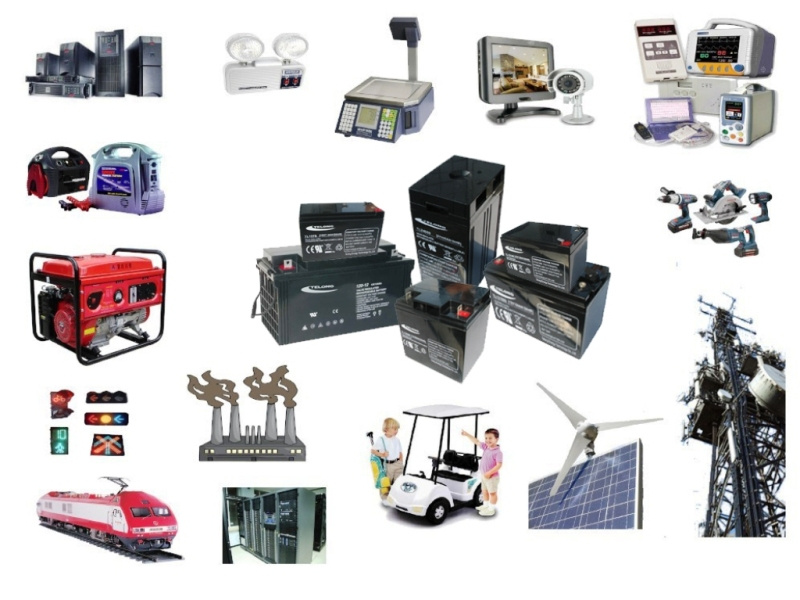

3. Applications
- Solar power system
- Wind power system
- Emergency lighting system
- UPS and emergency power supply
- Control system
- Medical equipment
- Telecommunication equipment
4. Features
- Maintenance-free lead acid battery
- Small internal resistance, high output power
- Up to 5 years service life
- Complete sealed (no liquid leakage, no acid gas spill)
- Low self-discharge rate, less than 3.5% per month
- Can be used any direction, easy to transport
- Good corrosion resistant performance and deep discharge recovery performance
5. Advantage
- Lowest purchasing cost with no quality worry
- Premium quality with real no problem batteries
- Standard but perfect individual printing and packing
- Maximize your profit by ordering directly with us, the terminal manufacturer
- Professional OEM is available for your esteemed company
6. Quality Assurance
- Equipment control
We adopt the entire computer automatic control (Density testing, adding acid, charging, etc.)
- Raw material control
Any raw material will be forbidden used in the production if they didn't pass the testing by laboratory strictly.
- Production process control
The semi-finished products must pass several inspections in the production line.
- Finished products control
Before packaging, the finished battery must be tested 100% by our function testing machine and pass the inner resistance testing, density testing, 3-5ºC discharge performance testing etc.
- Shipment control
The goods can't be sold unless their appearance and performance are tested 100% by the professional inspector.
7. Notice
- Don't put the battery exposure or lost in the fire.
- Don't make the wrong terminals connected when charging.
- Avoid battery short circuit.
- Avoid excessive physical shock or vibration.
- Don't disassemble or deform the battery.
- Keep out of the reach of children.
- Never use a modified or damaged charger.
- Store the battery in a cool, dry and well-ventilated area.
- Regulations vary in different countries, dispose of in accordance with local regulations.
8.More information, Welcome to visit our website
http://www.sztlg.com/
http://telongbattery.en.made-in-china.com/

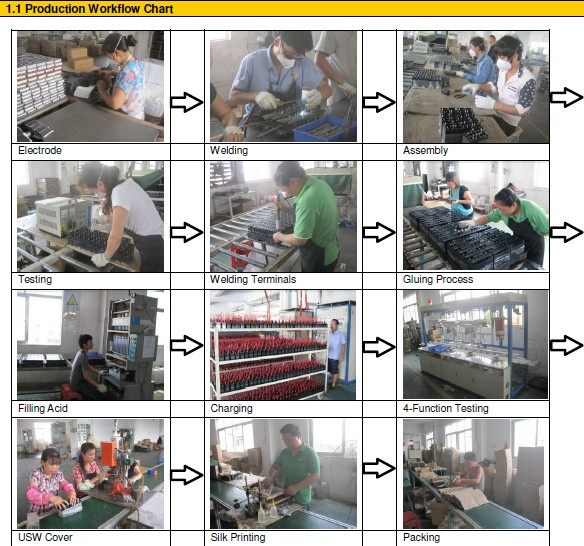

9.Production process
10.Certifications
| Model | Nominal Voltage(V) | Rated Capacity(Ah) | Dimension | Weight | Terminal |
| L | W | H | Total Hight |
| mm | in | mm | in | mm | in | mm | in | kg | pound |
| GEL100-2 | 2 | 100 | 171 | 6.73 | 72 | 2.83 | 206 | 8.11 | 211 | 8.31 | 7.0 | 15.4 | F10 |
| GEL150-2 | 2 | 150 | 172 | 6.77 | 102 | 4.02 | 205 | 8.07 | 227 | 8.94 | 9.0 | 19.8 | F10 |
| GEL200-2 | 2 | 200 | 173 | 6.81 | 111 | 4.37 | 330 | 13 | 364 | 14.3 | 14.5 | 32.0 | F10 |
| GEL300-2 | 2 | 300 | 171 | 6.73 | 151 | 5.94 | 330 | 13 | 364 | 14.3 | 20.0 | 44.1 | F10 |
| GEL400-2 | 2 | 400 | 210 | 8.27 | 176 | 6.93 | 330 | 13 | 367 | 14.5 | 27.0 | 59.5 | F10 |
| GEL500-2 | 2 | 500 | 241 | 9.49 | 175 | 6.89 | 330 | 13 | 367 | 14.5 | 33.5 | 73.8 | F10 |
| GEL600-2 | 2 | 600 | 302 | 11.9 | 175 | 6.89 | 330 | 13 | 367 | 14.5 | 38.5 | 84.9 | F10 |
| GEL800-2 | 2 | 800 | 400 | 16.1 | 178 | 6.89 | 330 | 13 | 367 | 14.5 | 54.0 | 119.0 | F10 |
| GEL1000-2 | 2 | 1000 | 475 | 18.7 | 175 | 6.89 | 330 | 13 | 367 | 14.5 | 63.0 | 138.9 | F10 |
| GEL1200-2 | 2 | 1200 | 475 | 18.7 | 175 | 6.89 | 330 | 13 | 367 | 14.5 | 73.0 | 160.9 | F10 |
| GEL1500-2 | 2 | 1500 | 400 | 15.75 | 350 | 13.8 | 345 | 13.6 | 382 | 15.04 | 95.0 | 209.4 | F10 |
| GEL2000-2 | 2 | 2000 | 490 | 19.3 | 350 | 13.8 | 345 | 13.6 | 382 | 15.04 | 123 | 271.1 | F10 |
| GEL2500-2 | 2 | 2500 | 490 | 19.3 | 350 | 13.8 | 345 | 13.6 | 382 | 15.04 | 145 | 319.6 | F10 |
| GEL3000-2 | 2 | 3000 | 710 | 28 | 350 | 13.8 | 345 | 13.6 | 382 | 15.04 | 190 | 418.8 | F10 |
| GEL3500-2 | 2 | 3500 | 710 | 28 | 350 | 13.8 | 345 | 13.6 | 382 | 15.04 | 205 | 451.8 | F10 |
| GEL24-12 | 12 | 24 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 8.2 | 18.1 | F4 |
| GEL26-12 | 12 | 26 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 8.5 | 18.7 | F4 |
| GEL33-12 | 12 | 33 | 195 | 7.68 | 130 | 5.12 | 155 | 6.1 | 168 | 6.61 | 10.5 | 23.1 | F11 |
| GEL40-12 | 12 | 40 | 197 | 7.76 | 165 | 6.5 | 170 | 6.69 | 170 | 6.69 | 13.0 | 28.6 | F11 |
| GEL45-12 | 12 | 45 | 197 | 7.76 | 165 | 6.5 | 170 | 6.69 | 170 | 6.69 | 14.5 | 32.0 | F11 |
| GEL50-12 | 12 | 50 | 277 | 10.9 | 106 | 4.17 | 222 | 8.74 | 229 | 9.02 | 16.5 | 36.4 | F11 |
| GEL55-12 | 12 | 55 | 229 | 9.02 | 138 | 5.43 | 208 | 8.19 | 212 | 8.35 | 18.0 | 39.7 | F11 |
| GEL65-12 | 12 | 65 | 350 | 13.8 | 167 | 6.57 | 179 | 7.05 | 179 | 7.05 | 21.0 | 46.3 | F11 |
| GEL75-12 | 12 | 75 | 260 | 10.24 | 169 | 6.65 | 208 | 8.19 | 212 | 8.35 | 23.0 | 50.7 | F21 |
| GEL80-12A | 12 | 80 | 564 | 22.0 | 115 | 4.53 | 189 | 7.44 | 189 | 7.44 | 28.5 | 62.8 | F12 |
| GEL80-12B | 12 | 80 | 350 | 13.8 | 167 | 6.57 | 179 | 7.05 | 179 | 7.05 | 23.0 | 50.7 | F11 |
| GEL90-12 | 12 | 90 | 306 | 12.05 | 169 | 6.65 | 208 | 8.19 | 212 | 8.35 | 26.5 | 58.4 | F21 |
| GEL100-12 | 12 | 100 | 328 | 12.92 | 171 | 6.74 | 214 | 8.43 | 218 | 8.59 | 30.5 | 67.2 | F12 |
| GEL120-12 | 12 | 120 | 410 | 16.14 | 176 | 6.93 | 227 | 8.94 | 227 | 8.94 | 35.5 | 78.24 | F12 |
| GEL134-12 | 12 | 134 | 341 | 13.4 | 173 | 6.81 | 283 | 11.1 | 288 | 11.3 | 40.0 | 88.2 | F12 |
| GEL150-12 | 12 | 150 | 482 | 19 | 170 | 6.69 | 242 | 9.53 | 242 | 9.53 | 44.5 | 98.1 | F12 |
| GEL180-12 | 12 | 180 | 522 | 20.6 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 55.5 | 122.3 | F12 |
| GEL200-12 | 12 | 200 | 522 | 20.6 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 60.0 | 132.2 | F12 |
| GEL225-12 | 12 | 225 | 522 | 20.6 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 63.0 | 138.9 | F12 |
| GEL250-12 | 12 | 250 | 520 | 20.5 | 269 | 10.6 | 220 | 8.6 | 224 | 8.82 | 69.5 | 153.2 | F12 |
Shenzhen Telong Energy Technology Co., Ltd was founded in 2005, Specialized in researching, developing, producing and sales of lead acid battery, lithium battery and Gel battery.
Telong is a leading battery producer in the Chinese market as a deep cycle battery supplier for electric bicycles, distributed primarily under the Telong brand. With over ten years of experience and extensive technical expertise in the lead-acid battery industry, Telong's dedication to research and development is evident in increasingly widespread recognition of Telong goods offering consistent quality in high capacity, high energy density, deep discharge, more cycles with sustained discharge time, and more operational stability.
Telong has mainly produce the following series - CR\ER\PL\DZM\TL\TEL\GEL\TLD\TLF\OPZV\OPZS including 500 kinds of products. These products are widely used by many different industries, such as telecommunication, power system, radio and television system, railway, solar, UPS, electric vehicles, cars, golf cars, forklifts, emergency lights, security, alarm, gardening tool, baby carrier etc. Its worldwide sales network already covers more than 100 countries and regions, and has a good cooperation partnership with several excellent operators.
In an endless pursuit of perfection, Telong continues to blaze new trails in quality battery production. For quality control, Telong established professional Quality Management Center and successfully got the certificates of ISO9001, TS16949 quality management system and ISO14001 environment management system and also has passed the audit of OHSAS18001. The products has been authorized as 'Good quality products and Inspection-free in China' by national quality inspection department. Telong Products have also obtained the CE and RoHS authentication of the European Union, UL recognition the USA, Our reputation is built on the promise that ethical behavior and fair business practices will result in a satisfied and growing customer base. Telong prides itself by delivering its promises in a timely and efficient manner. We listen attentively to our customers, and are constantly reviewing our business practices and procedures in order to make changes that will benefit our customers.
