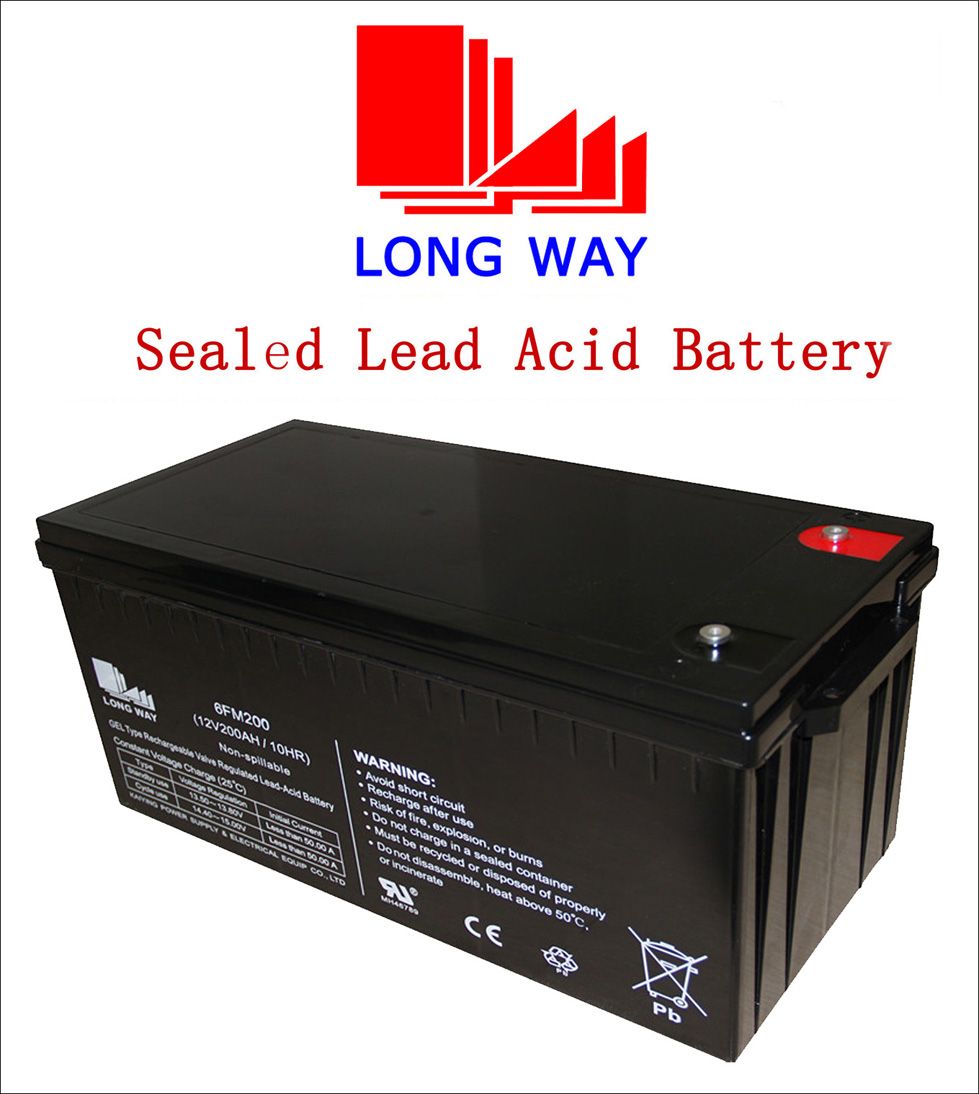

12V200ah Gel Deep Cycyle Marine Battery

Prod Model:	12V200AH
Operating Temperature:	-20c~50c
Design Time:	10-12 Years
Separator:	AGM
Charge Voltage (Cycle):	2.40~2.50V
Container Material:	ABS(UL94-Hb) *Flammability Resistance of (UL94-V0
Material Lead:	#1 Lead Top Quality in China
Terminal:	Nb or B
Color:	Grey or Black
Self Discharge:	Less Than 3% Per Month
Certificate:	ISO, UL, Ce
Type:	Lead-Acid Batteries
Usage:	Boat
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

12V200AH GEL deep cycyle marine battery

LONGWAY® Standard battery is design for a general purpose by
KaiYing Power. 6FM200G/E is a general purpose battery up to 8
years in float service or more than 260 cycles at 100% discharge in
cycle service. As with all LONGWAY® batteries, all are
rechargeable highly efficient, leak proof and maintenance free.

Specifications:
Cells per Unit 6
Normal Voltage 12V
Capacity 200Ah@10Hr-rate to 1.80V per cell@25ºC
Weight Approx.(58.0±3% kg) (127.87lbs)
Maximum Discharge Current 2000A(5sec)
Internal Resistance Approx. 4.2mΩ full charged @25ºC
Operating Temperature Range Discharge: -20ºC~60ºC
Charge: 0ºC~50ºC
Storage: -20ºC~60ºC
Nominal Operating Temperature Range 25ºC±3ºC(77ºF±5ºF)
Float Charging Voltage 13.7~13.9VDC/unit Average @25ºC
Maximum Charging Current 50A
Equalization and Cycle Service 14.4V~15.0VDC/unit Average @ 25ºC
Self Discharge LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored
for more than 6 months at 25ºC. Self-discharge ratio less than 3%
per month at 25ºC. Please charge batteries before using.
Terminal Terminal F13/F19
Container Material ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request

Structure and Characteristic of 12v 200ah lead acid battery:
1. Lead-Calcium six alloy sheet grating and coated mounding plate electrode: high capacity and long service life.
2. Lead-Tin multiple alloy bus bars: Small internal Resistance, corrosion resistance and can stand long term floating charging.
3. Sealed Construction and safe explosion-proof:Advanced AGM septum, Absorbs optimum electrolytic without leaving dissociated liquid, full air cathode absorption and can be placed in any position.
4. ABS Engineering plastics shell: anti-aging
5. Silicon Fluorine rubber sealed safety cap: Safe and flameproof without leakage of corrosive gas and liquid.
6. AR electrolyte analysis: Low self-discharging.
7. Maintenance free: No need to add distilled water and electrolyte

If get interest, just contact me freely.



12V200AH GEL deep cycyle marine battery
