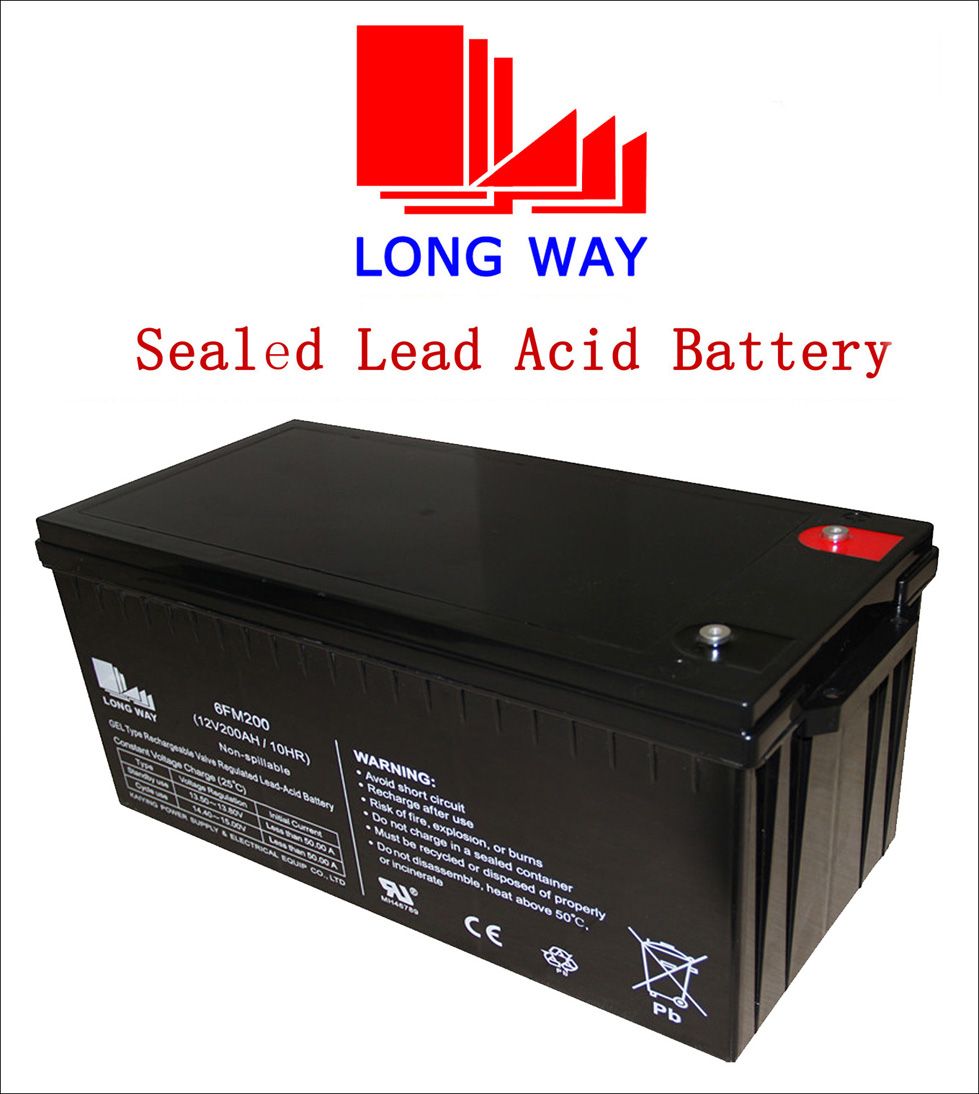

12V200ah Gel Storge Sealed Solar UPS Battery

Prod Model:	6FM200GEL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Grey or Black or Orange
Certification:	UL CE RoHS ISO9001 etc
Termanal:	Nb/B
Weight:	61kg
Type:	Lead-Acid Batteries
Usage:	Solar Battery
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

Storage GEL  lead acid battery series
Trademark: Longway
Product Description
Model: 6FM200G (12V200AH/10HR)
Size: 522*240*216 (total height: 242) mm
Terminal: NB
Weight: 61.00kg
Packing Qty: 1 PCS/CTN
500 PCS/Container
Lead-time: 20 days for one container
OEM acceptable

Applications: Alarm systems, Cable television, communications equipment, control equipment,
Computers, electronic cash registers, electric test equipment,
Electric powered bicycle and wheel chair,
Emergency lighting systems, fire&security, geophysical equipment,
Marine equipment, medical equipment,
Micro processor based office machines, portable cine&video lights,
Power tools, solar powered systems,
Telecommunications systems, television&video recorders, toys,
Uninterruptible power supplies, vending machines;

Features and benefits:
12 years design life at floating conditions.
Long life ecpectancy of 5 years at renewable energy system.
Wide temperature range from -20 to 60 degress Celsius.
Nano gel electrolyte eliminate the acid stratification and prolong cycle life.
Round trip efficiency as high Tin low Ca alloy and high density paste.
Low self-discharge rate and long shelf life (1 year at 25 degress Celsius).
Excellent deep discharge recovery capability.

Standby Standard Series batteries
Battery Model	Nominal Voltage(V)	Nominal Capacity          (AH)	Length		Width		Height		Total Height		Weight(5%)		Terminal
			In	mm	In	mm	In	mm	In	mm	Pound	Kg	Type	Position
6FM1.2	12	1.2	3.86	98	1.71	43.5	2.05	52	2.28	58	1.26	0.57	F1	E
6FM2.2	12	2.2	2.78	70.5	1.87	47.5	3.90	99	4.09	104	1.70	0.77	F1	C
6FM2.4	12	2.4	7.01	178	1.38	35	2.40	61	2.64	67	2.14	0.97	F1	C
6FM2.6	12	2.6	2.78	70.5	1.87	47.5	3.90	99	4.09	104	1.83	0.83	F1	C
6FM3.2	12	3.2	5.28	134	2.64	67	2.34	59.5	2.60	66	2.80	1.27	F1/F2	E
6FM4	12	4	3.54	90	2.76	70	3.98	101	4.21	107	3.15	1.43	F1/F2	C
6FM4.5	12	4.5	3.54	90	2.76	70	3.98	101	4.21	107	3.26	1.48		C
6FM5	12	5	3.54	90	2.76	70	3.98	101	4.21	107	3.57	1.62	F1/F2	C
6FM5A	12	5	5.51	140	1.89	48	4.13	105	4.13	105	3.66	1.66	F2+F1-	C
6FM5B	12	5	5.94	151	2.01	51	3.66	93	3.90	99	3.66	1.66	F1	F
6FM5.5	12	5.5	3.54	90	2.76	70	3.98	101	4.21	107	3.86	1.75	F1/F2	C
6FM5.5A	12	5.5	5.51	140	1.89	48	4.13	105	4.13	105	3.86	1.75	F2+F1-	C
6FM5.5B	12	5.5	5.94	151	2.01	51	3.66	93	3.90	99	3.66	1.66	F1	F
6FM6	12	6	5.94	151	2.56	65	3.70	94	3.94	100	4.30	1.95	F1/F2	F
6FM7	12	7	5.94	151	2.56	65	3.70	94	3.94	100	4.63	2.10	F1/F2	F
6FM7.2	12	7.2	5.94	151	2.56	65	3.70	94	3.94	100	4.74	2.15	F1/F2	F
6FM7.5	12	7.5	5.94	151	2.56	65	3.70	94	3.94	100	4.85	2.20	F1/F2	F
6FM8	12	8	5.94	151	2.56	65	3.70	94	3.94	100	5.07	2.30	F1/F2	F
6FM8E	12	8	5.94	151	2.56	65	3.70	94	3.94	100	5.07	2.30	F1/F2	F
6FM9	12	9	5.94	151	2.56	65	3.70	94	3.94	100	5.73	2.60	F1/F2	F
6FM10A	12	10	5.94	151	2.56	65	4.37	111	4.61	117	6.61	3.00	F2	F
6FM10B	12	10	5.94	151	2.56	65	4.37	111	4.61	117	6.39	2.90	F2	F
6FM10	12	10	5.94	151	3.86	98	3.74	95	3.98	101	6.72	3.05	F2	F
6FM11	12	11	7.13	134	3.15	80	6.34	161	6.50	165	10.10	4.58	F3	C
6FM12	12	12	7.13	151	3.86	98	3.74	95	3.98	101	7.17	3.25	F2	F
6FM14	12	14	7.13	151	3.86	98	3.74	95	3.98	101	8.27	3.75	F2	F
6FM15	12	15	7.13	181	3.03	77	6.57	167	6.57	167	10.14	4.60	F4	D
6FM17	12	17	7.13	181	3.03	77	6.57	167	6.57	167	11.02	5.00	F4	D
6FM18	12	18	7.13	181	3.03	77	6.57	167	6.57	167	11.90	5.40	F4	D
6FM18C	12	18	7.13	181	3.03	77	6.57	167	6.57	167	11.24	5.10	F4	D
6FM20	12	20	7.13	181	3.03	77	6.57	167	6.57	167	12.35	5.60	F4	D
6FM24	12	24	6.89	175	6.54	166	4.96	126	4.96	126	16.76	7.60	F4/F8	D
6FM26	12	26	6.89	175	6.54	166	4.96	126	4.96	126	18.96	8.60	F4/F8	D
6FM28	12	28	6.89	175	6.54	166	4.96	126	4.96	126	19.84	9.00	F4/F8	D
6FM28A	12	28	6.50	165	4.96	126	6.89	175	7.01	178	18.74	8.50	F14/F9	D
6FM30	12	30	7.68	195	5.12	130	6.34	161	6.54	166	20.94	9.50	F9/F15	C
6FM33	12	33	7.68	195	5.12	130	6.34	161	6.54	166	22.49	10.20	F9	C
6FM35	12	35	7.68	195	5.12	130	6.34	161	6.54	166	23.15	10.50	F9	C
6FM38	12	38	7.80	198	6.54	166	6.69	170	6.69	170	28.66	13.00	F9	D
6FM40	12	40	7.80	198	6.54	166	6.69	170	6.69	170	29.76	13.50	F9	D
6FM45	12	45	7.80	198	6.54	166	6.69	170	6.69	170	30.86	14.00	F9	D
6FM50	12	50	9.02	229	5.43	138	8.19	208	8.39	213	37.04	16.80	F9	C
6FM55	12	55	9.02	229	5.43	138	8.19	208	8.39	213	38.58	17.50	F9	C
6FM60	12	60	10.20	259	6.65	169	8.19	208	8.39	213	47.40	21.50	F9	C
6FM65	12	65	13.78	350	6.50	165	7.17	182	7.17	182	46.30	21.00	F6/F9	C
6FM70	12	70	10.20	259	6.65	169	8.19	208	8.39	213	47.40	21.50	F9	C
6FM75	12	75	10.20	259	6.65	169	8.19	208	8.39	213	50.71	23.00	F9	C
6FM80B	12	80	10.20	259	6.65	169	8.19	208	8.39	213	51.81	23.50	F9	C
6FM80	12	80	12.09	307	6.57	167	8.27	210	8.46	215	55.12	25.00	F9	C
6FM90	12	90	12.09	307	6.57	167	8.19	208	8.39	213	58.42	26.50	F9	C
6FM95	12	95	12.09	307	6.57	167	8.19	208	8.39	213	59.52	27.00	F9	C
6FM100H	12	100	12.99	330	6.81	173	8.62	219	8.82	224	66.14	30.00	F11	C
6FM100E	12	100	12.99	330	6.81	173	8.62	219	8.82	224	65.04	29.50	F11	C
6FM120	12	120	15.94	405	6.81	173	9.33	237	9.33	237	77.16	35.00	F11	C
6FM120E	12	120	12.99	330	6.81	173	8.62	219	8.82	224	68.34	31.00	F11	C
6FM134	12	134	13.43	341	6.81	173	11.14	283	11.34	288	91.49	41.50	F10	C
6FM150	12	150	19.02	483	6.69	170	9.49	241	9.49	241	97.00	44	F11	C
6FM160	12	160	13.43	341	6.81	173	11.14	283	11.34	288	99.21	45	F10	C
6FM200	12	200	20.55	522	9.45	240	8.62	219	8.82	224	132.28	60	F11	E
6FM200E	12	200	20.55	522	9.45	240	8.62	219	8.82	224	134.48	61	F11	E
6FM230	12	230	20.51	521	10.59	269	7.99	203	8.19	208	145.51	66	F11	F
6FM250	12	250	20.47	520	10.59	269	8.66	220	9.65	245	154.32	70	F11	E
