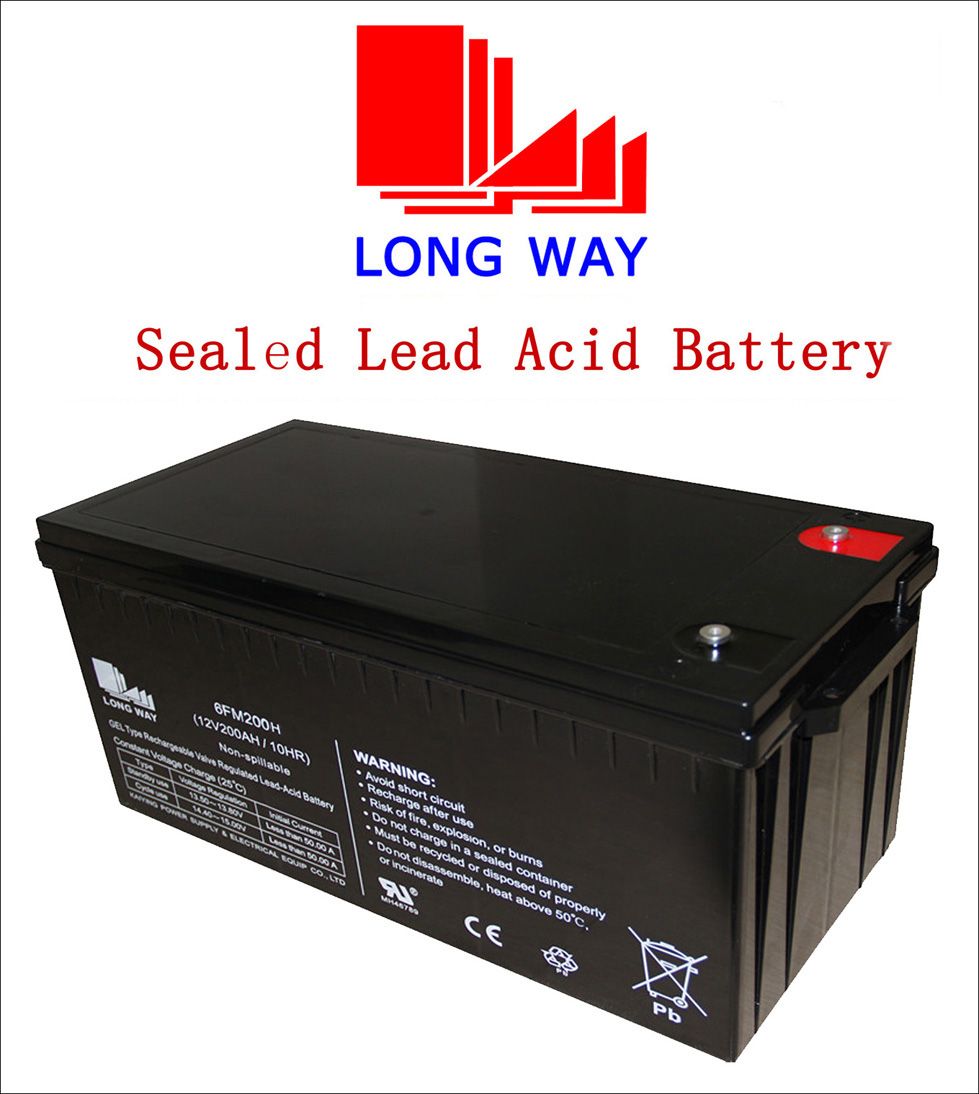

12V200ah High Power VRLA Storageable Battery Used for Electrical Vehicles
| Price: |
US $ 130/Piece |
| Min Order: |
200/Piece |
| Pay Type: |
T/T |
| Prod Model: |
6FM200H (12V200Ah) |
| Operating Temperature: |
-20c~50c |
| Design Time: |
10-12 Years |
| Separator: |
AGM |
| Charge Voltage (Cycle): |
2.40~2.50V |
| Container Material: |
ABS(UL94-Hb) *Flammability Resistance of (UL94-V0) |
| Material Lead: |
#1 Lead Top Quality in China |
| Terminal: |
Nb or B |
| Color: |
Grey or Black |
| Self Discharge: |
Less Than 3% Per Month |
| Certificate: |
ISO, UL, Ce |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

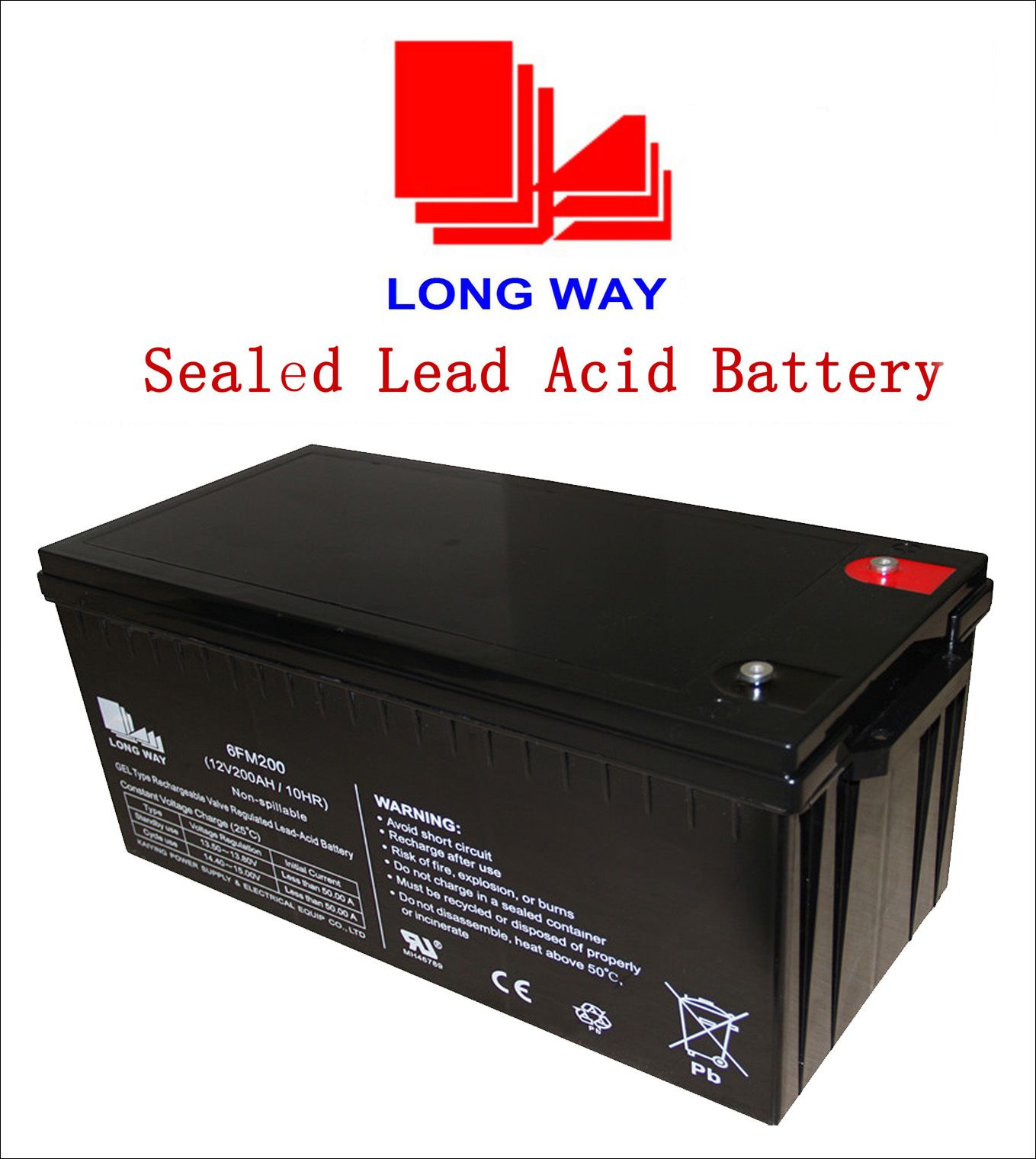

12V200Ah High power VRLA storageable battery used for electrical vehicles
LONGWAY® 6FM200H specially designed for high efficient discharge
application .Its characteristics are high energy density , small footprint and high
discharge efficiency . It can be used for more than 260 cycles at 100%
discharge in cycle service , up to 10 year in standy service.As with all
batteries, all are rechargeable highly efficient, leak proof an maintenance free.
| Normal Voltage | 12V |
| Capacity | 200Ah@10Hr-rate to 1.80V per cell@25ºC |
| Weight | Approx.(58.0±3% kg) (127.87lbs) |
| Maximum Discharge Current | 2000A(5sec) |
| Internal Resistance | Approx. 4.2mΩ full charged @25ºC |
| Operating Temperature Range | Discharge: -20ºC~60ºC
Charge: 0ºC~50ºC
Storage: -20ºC~60ºC |
| Nominal Operating Temperature Range | 25ºC±3ºC |
| Float Charging Voltage | 13.7~13.9VDC/unit Average @25ºC |
| Maximum Charging Current | 50A |
| Equalization and Cycle Service | 14.4V~15.0VDC/unit Average @ 25ºC |
| Self Discharge | LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored
for more than 6 months at 25ºC. Self-discharge ratio less than 3%
per month at 25ºC. Please charge batteries before using. |
| Terminal | Terminal F13/F19 |
| Container Material | ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request |
| Dimensions | L522*W240*H219(TH224) |
Structure and Characteristic of 12v 200ah lead acid battery:
1. Lead-Calcium six alloy sheet grating and coated mounding plate electrode: high capacity and long service life.
2. Lead-Tin multiple alloy bus bars: Small internal Resistance, corrosion resistance and can stand long term floating charging.
3. Sealed Construction and safe explosion-proof:Advanced AGM septum, Absorbs optimum electrolytic without leaving dissociated liquid, full air cathode absorption and can be placed in any position.
4. ABS Engineering plastics shell: anti-aging
5. Silicon Fluorine rubber sealed safety cap: Safe and flameproof without leakage of corrosive gas and liquid.
6. AR electrolyte analysis: Low self-discharging.
7. Maintenance free: No need to add distilled water and electrolyte
HR Series
The new LONGWAY HR series batteries are specially designed for applications that require high power output. By optimum design of battery grids and plate paste formula, the HR series can deliver up to 40% more power than LONGWAY standard series.
Features and Benefits
Environment Friendly
Lower Internal Resistance
Positive and Negative plates in Lead-calcium tin alloy
Superior energy density and very high power output
Operates at a low internal pressure
Gas recombination
A recognized component of UL
Lead calcium grids for extended life six months shelf life at 20C
Applications
Office machines and computers
Telecommunication
UPS Equipment
Electrical facilities
Vending machine
If get interest, just contact me freely.
12V200Ah High power VRLA storageable battery used for electrical vehicles
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
