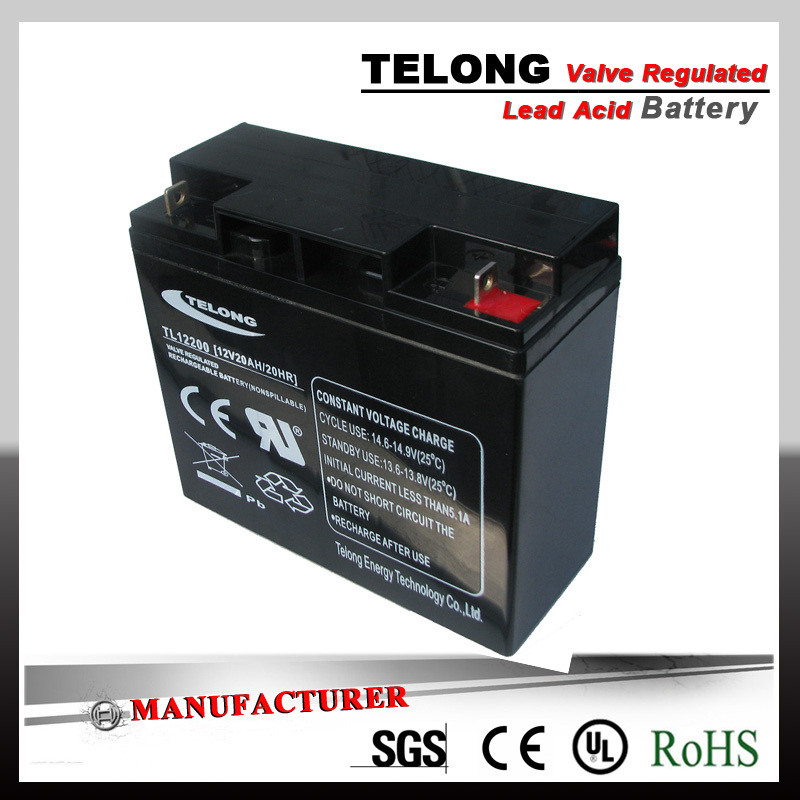

12V20ah Rechargeable AGM Deep Cycle Gel Lead Acid Battery for Solar System
| Price: |
US $ 13.95-25/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
TL12200 |
| Normal Capacity: |
20ah |
| Battery Color: |
Black |
| Quality Certificates: |
Ce, UL, RoHS |
| Designed Life: |
5 Years |
| Warranty: |
1 Year |
| Battery Type: |
Amg Valve Regulated Lead Acid Battery |
| OEM: |
Yes |
| Terminal Type: |
F1/F2 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar System |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
Specification1) AGM lead acid battery for Solar System2) Nominal voltage: 12 V3) Nominal capacity: 20Ah4) Dimensions: 181*76*168(mm)5) Weight: 5.5 kg6) Warranty: 1 years7) Lead time: 15-20 work days
Solar Battery Advantage:
- Long service life
- High discharge rate
- Low self-discharge rate
- Deep cycle
- Super cycling ability
- Excellent high current performance
- Safe and reliability
- No memory effect
- Variety of installation
- High temperature resistance
- Vibration resistance
- Wide operating temperature range
Solar Battery Applications
Electricity& Communication System
Solar &Wind Energy Storage System
Uninterrupted Power Supply system(UPS)
Emergency Power Supply system(EPS)
Emergency Lighting System &Small Lamp
Control Equipments
Medical Equipment
Railway, Aerospace and navigation
EVFeature:1.Descriptions and knowledge :upsbattery,deep Cycle Battery is mainly made up of positive and negative plates, special diaphragm, deep electrolyte, battery shell and security valve and so on. Through colloid technology, the electrolyte is fixed in solid state in battery. The advanced AGM battery had greatly improved the cycling performance (cycling increased 80%) by adopting the unique grid alloy and the high-density lead paste formula The Deep Cycle series are specially designed for applying in solar energy photovoltaic power system,wind turbine system, UPS and Standby power for unattended base station 2.General Features:1. Good Cycling Performance, 70% DOD (Depth of Discharge) ≥ 1000 TimesThe advanced AGM battery had greatly improved the cycling performance (cycling increased 80%) by adopting the unique grid alloy and the high-density lead paste formula. 2.Excellent Charge Acceptance and Good Recovery after deep discharge or over dischargeAdopting unique grid alloy and special electrolyte formula, the deep cycle batteries are excellent in charge acceptance and good in recovery after deep discharge or over discharge. 3.Superior Performance both in high temperature and cold environmentThe advanced AGM battery has enhanced its working ability both in high temperature and cold environment by adding a certain kind of special additive to the grid, the active substance and the electrolyte. 4.Sealed and Maintenance FreeAdopted valve-regulated sealed technology and has designed a special security valve in order to ensure the safety and keep it environment friendly. CHARACTERISTICSCapacity
25'C (77'F) | 20 hour rate(1.00A ) | 20.0AH |
| 10 hour rate(1.84A ) | 18.4AH |
| 5 hour rate(3.44A ) | 17.2AH |
| 3 hour rate(5.10A ) | 15.3AH |
| 1 hour rate(13.00A ) | 13.0AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 12 milli-ohm |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
Capacity affected by Temp
| 40'C (104F) | 102% |
| 25'C (104F) | 100% |
| 0'C (104F) | 85% |
| -15'C (104F) | 65% |
| Charge(Constant Voltage) | Cycle | Initial Charging Currentless than 6.0 A
Voltage: 14.4~15 V |
| | Float | Voltage: 13.5~13.8 V |
| Model | Normal
Voltage
(V) | Normal
Capacity(AH) | Dimension
(L*W*Hmm) | Weight
(kg) |
| TG1226 | 12 | 2.6 | 70*47*100 | 0.84 |
| TG1223 | 12 | 2.3 | 178*34*60 | 0.95 |
| TG1270 | 12 | 7 | 151*65*95 | 2.00 |
| TG12240 | 12 | 24 | 176*166*125 | 8.00 |
| TG12330 | 12 | 33 | 196*133*172 | 10.50 |
| TG12450 | 12 | 45 | 196*165*175 | 15.0 |
| TG12650 | 12 | 65 | 348*168*178 | 20.5 |
| TF121500 | 12 | 150 | 409*177*229 | 35.0 |
| TG121200 | 12 | 120 | 552*110*288 | 45.0 |
Shenzhen Telong Energy Technology Co., Ltd was founded in 2005, Specialized in researching, developing, producing and sales of lead acid battery, lithium battery and Gel battery.
Telong is a leading battery producer in the Chinese market as a deep cycle battery supplier for electric bicycles, distributed primarily under the Telong brand. With over ten years of experience and extensive technical expertise in the lead-acid battery industry, Telong's dedication to research and development is evident in increasingly widespread recognition of Telong goods offering consistent quality in high capacity, high energy density, deep discharge, more cycles with sustained discharge time, and more operational stability.
Telong has mainly produce the following series - CR\ER\PL\DZM\TL\TEL\GEL\TLD\TLF\OPZV\OPZS including 500 kinds of products. These products are widely used by many different industries, such as telecommunication, power system, radio and television system, railway, solar, UPS, electric vehicles, cars, golf cars, forklifts, emergency lights, security, alarm, gardening tool, baby carrier etc. Its worldwide sales network already covers more than 100 countries and regions, and has a good cooperation partnership with several excellent operators.
In an endless pursuit of perfection, Telong continues to blaze new trails in quality battery production. For quality control, Telong established professional Quality Management Center and successfully got the certificates of ISO9001, TS16949 quality management system and ISO14001 environment management system and also has passed the audit of OHSAS18001. The products has been authorized as 'Good quality products and Inspection-free in China' by national quality inspection department. Telong Products have also obtained the CE and RoHS authentication of the European Union, UL recognition the USA, Our reputation is built on the promise that ethical behavior and fair business practices will result in a satisfied and growing customer base. Telong prides itself by delivering its promises in a timely and efficient manner. We listen attentively to our customers, and are constantly reviewing our business practices and procedures in order to make changes that will benefit our customers.
