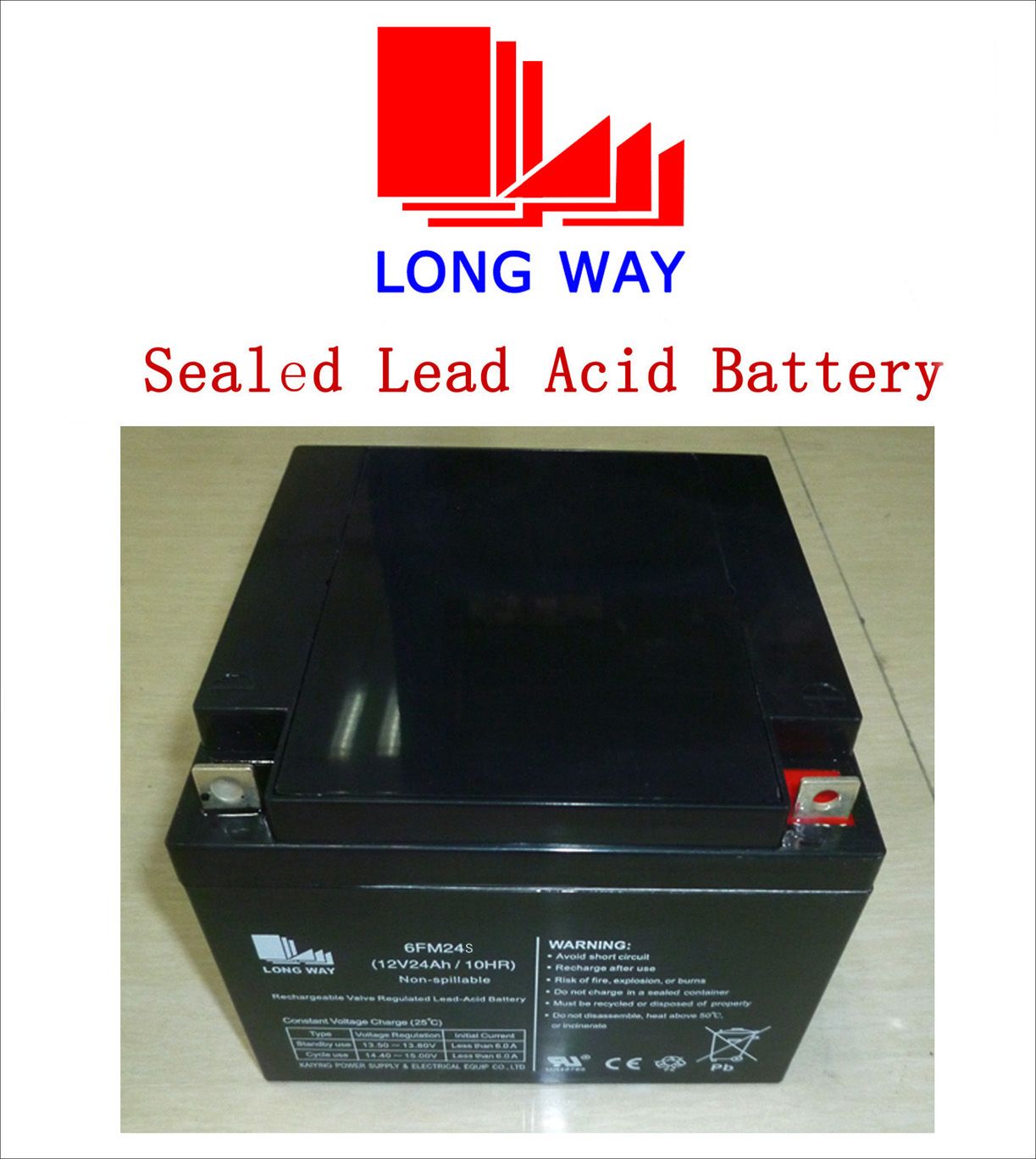

12V24ah Deep Cycle Solar System Gel Battery

Prod Model:	6FM24(12v24ah/10hr)
Operating Temperature:	-20c~60c
Design Time:	10-12 Years
Separator:	AGM
Color:	Grey or Black
Self Discharge:	Less Than 3% Per Month
Certificate:	ISO, UL, Ce
Type:	Lead-Acid Batteries
Usage:	Lighting
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

Gel 12V24ah solar battery

LONGWAY® 6FM24S is specially designed for green energy systems . 6FM50S
have a good deep cycle property, maintenance-free . It can be used for more
than 350 cycles at 100% discharge in cycle service, up to 12 years in standby
service.

Specifications
Cells per unit: 6
Normal voltage: 12V
Capacity:24Ah@20Hr-rate to 1.75V per cell@25ºC

Weight:Approx.(7.6±3%) kg (16.76lbs)
Maximum discharge current:240A(5sec)
Internal resistance: Approx. 10mΩ full charged @25ºC
Operating temperature range:
      Discharge: -20ºC~60ºC
      Charge: 0ºC~50ºC
      Storage: -20ºC~60ºC
Nominal operating temperature range: 25ºC±3ºC
Float charging voltage:13.7~13.9VDC/unit Average @25ºC
Maximum charging current:6.0A
Equalization and cycle service: 14.4V~15.0VDC/unit Average @ 25ºC
Self-discharge: LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored
for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.
Terminal: Terminal F5
Container material: ABS(UL94-HB)*Flammability resistance of (UL94-V0) can be available upon request
Dimensions: L175*W166*H126(TH126)mm

Gel Battery
LONGWAY gel series battery is manufactured silica gel to immobilize the electrolyte inside the battery. The proven silica gel technology improves battery cycle life and performance at cold ambient temperatures. The deep discharge cycles is increased by 30% as compared with the AGM battery.

General Features
Environmentally friendly
Longer Service Life
High reliability and quality
High power density
Excellent recovery from Deep Discharge
Living up to Prevailing Standards
Non-sensitive-to Occasional deep discharges
International leading technology

Applications
Solar and wind systems
Cable TV
Telecommunications
Wheelchair
Marine equipment
Military equipment
Emergency lighting
