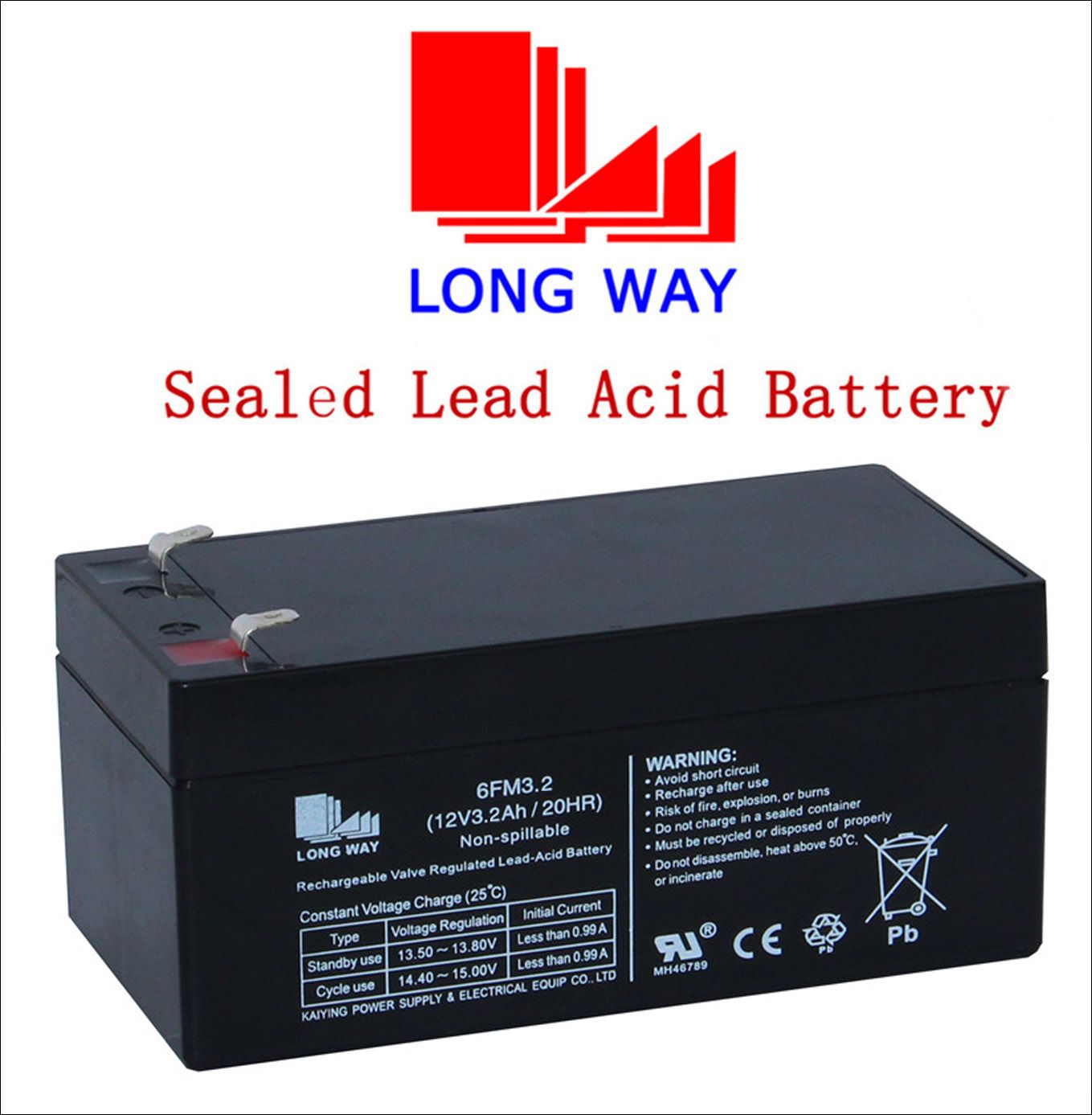

12V3.2ah UPS VRLA SLA Battery

Prod Model:	12v3.2ah
Operating Temperature:	Operating Temperature
Design Time:	10-12 Years
Separator:	AGM
Charge Voltage (Cycle):	2.40~2.50V
Container Material:	ABS(UL94-Hb) *Flammability Resistance of (UL94-V0)
Material Lead:	#1 Lead Top Quality in China
Terminal:	Nb or B
Color:	Grey or Black
Self Discharge:	Less Than 3% Per Month
Certificate:	ISO, UL, Ce
Type:	Lead-Acid Batteries
Usage:	Lighting
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

12V3.2ah ups VRLA sla battery

LONGWAY® Standard battery is design for a general purpose by KaiYing Power. 6FM3.2 is a general purpose battery up to 5 years in star service or more than 260 cycles at 100% discharge in cycle service. As with all LONGWAY® batteries, all are rechargeable highly efficient, leak proof and maintenance free.

Specifications:

Cells per Unit	6
Normal Voltage	12V
Capacity	3.2Ah@20Hr-rate to 1.75V per cell@25ºC
Weight	Approx. (1.29±3%)kg(2.84lbs)
Maximum Discharge Current	32A(5sec)
Internal Resistance	Approx. 40mΩ full charged @25ºC
Operating Temperature Range	Discharge: -20ºC~60ºC Charge: 0ºC~50ºC Storage: -20ºC~60ºC
Nominal Operating Temperature Range	25ºC±3ºC(77ºF±5ºF)
Float Charging Voltage	13.5~13.8VDC/unit Average @25ºC
Maximum Charging Current	0.96A
Equalization and Cycle Service	14.4V~15.0VDC/unit Average @ 25ºC
Self Discharge	LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.
Terminal	F1(0.187)/F2(0.250)
Container Material	ABS(UL94-HB) *Flammability resistance of (UL94-V0) can be available upon request



Constant Current Discharge Characteristics (A, 25ºC)
F.V/TIME	5min	10min	15min	30min	60min	2h	3h	5h	8h	10h	20h
9.60	12.2	7.68	6.08	3.52	2.08	1.14	0.81	0.55	0.35	0.30	0.16
9.90	11.8	7.45	5.93	3.43	2.03	1.13	0.81	0.55	0.35	0.30	0.16
10.2	11.6	7.30	5.84	3.38	2.00	1.12	0.80	0.54	0.35	0.30	0.16
10.5	11.2	7.07	5.65	3.27	1.93	1.11	0.79	0.54	0.35	0.30	0.16
10.8	10.9	6.86	5.54	3.21	1.90	1.10	0.78	0.53	0.35	0.29	0.16
Constant Power Discharge Characteristics (Watt, 25ºC)
F.V/TIME	5min	10min	15min	30min	60min	2h	3h	5h	8h	10h	20h
9.60	132	86.6	69.3	40.3	24.1	13.30	9.65	6.59	4.24	3.59	1.95
9.90	132	84.0	67.6	39.3	23.5	13.24	9.60	6.56	4.25	3.59	1.95
10.2	129	82.3	66.5	38.7	23.1	13.10	9.50	6.50	4.21	3.55	1.93
10.5	125	79.7	64.5	37.5	22.4	12.97	9.41	6.43	4.22	3.54	1.93
10.8	121	77.4	63.2	36.8	22.0	12.84	9.31	6.37	4.18	3.53	1.92

Structure and Characteristic of 12v 3.2ah lead acid battery:
1. Lead-Calcium six alloy sheet grating and coated mounding plate electrode: high capacity and long service life.
2. Lead-Tin multiple alloy bus bars: Small internal Resistance, corrosion resistance and can stand long term floating charging.
3. Sealed Construction and safe explosion-proof:Advanced AGM septum, Absorbs optimum electrolytic without leaving dissociated liquid, full air cathode absorption and can be placed in any position.
4. ABS Engineering plastics shell: anti-aging
5. Silicon Fluorine rubber sealed safety cap: Safe and flameproof without leakage of corrosive gas and liquid.
6. AR electrolyte analysis: Low self-discharging.
7. Maintenance free: No need to add distilled water and electrolyte

LONGWAY standard series valve regulated lead acid batteries are designed with AGM(Absorbent Glass Mat) technology and for general application purpose, such as UPS, telecom, and electrical utilities with 5 years design life, the batteries comply to the most popular international standards, such as IEC60896-21/22, BS6290-4, Eurobat Guide. The battery container and cover are available both in VO class flame retardant ABS or HBO ABS plastics.

If get interest, just contact me freely.



12V3.2ah ups VRLA sla battery
