| Prod Model: |
6FM38(12V38AH/10HR ) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Grey or Black or Others |
| Terminal: |
F21 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
Rectangle Battery |
Product Description

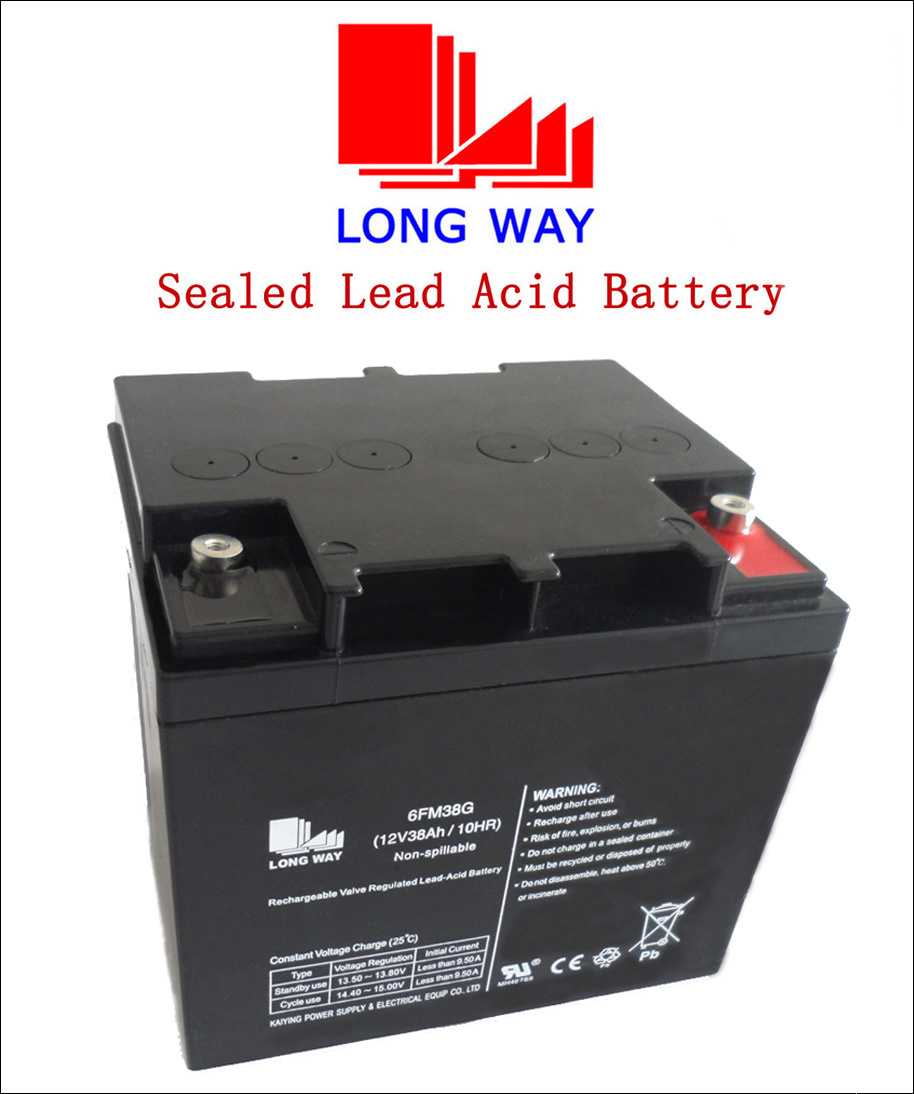

LONGWAY 12V38AH emergency lighting systems rechargeable sla battery
LONGWAY® UPS Standard battery is design for a general purpose by KaiYing Power.
6FM38G is a general purpose battery up to 8 years in floate service or more than 260 cycles At 100% discharge in cycle service. As with all LONGWAY® Batteries, all are rechargeable highly efficient, leak proof and maintenance free.
Place of OriginFujian, China (Mainland)
Brand Name: LONGWAY
Model Number: LW12-38
Normal Voltage: 12V
Usage: UPS
Sealed Type: Sealed
Maintenance Type: Free
Size: 198*166*170*170mm
Weight: 12.50kg/27.56lbs
Capacity: 38Ah@10Hr-rate to2.10V per cell@25° C
Terminal: Terminal F21Nominal Operating Temperature Range:25°C±3°C
Pack by cartons,1PC/CT
Container Material:ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request
General Features
Ø Stable quality&high reliability
Ø Sealed construction
Ø Environmentally friendly
Ø Maintenance-free operation
Ø Low pressure venting system
Ø Heavy duty grid
Ø Low self discharge
Ø UL component recognition(MH46789)
Applications:
Alarm systems, Cable television, communications equipment, control equipment,
Computers, electronic cash registers, electric test equipment,
Electric powered bicycle and wheel chair etc.Our certificate

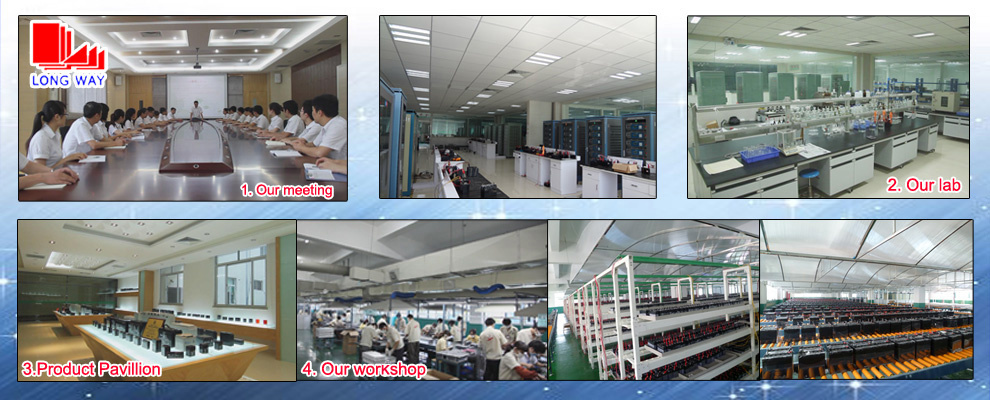

Our factory photo
For more information, please feel free to contact us .| Standby LONGWAY Standard Series batteries |
| Battery Model | Nominal Voltage(V) | Nominal Capacity
(AH) | Length | Width | Height | Total Height | Weight(5%) | Terminal |
| In | mm | In | mm | In | mm | In | mm | Pound | Kg | Type | Position |
| 6FM1.2 | 12 | 1.2 | 3.86 | 98 | 1.71 | 43.5 | 2.05 | 52 | 2.28 | 58 | 1.26 | 0.57 | F1 | E |
| 6FM2.2 | 12 | 2.2 | 2.78 | 70.5 | 1.87 | 47.5 | 3.90 | 99 | 4.09 | 104 | 1.70 | 0.77 | F1 | C |
| 6FM2.4 | 12 | 2.4 | 7.01 | 178 | 1.38 | 35 | 2.40 | 61 | 2.64 | 67 | 2.14 | 0.97 | F1 | C |
| 6FM2.6 | 12 | 2.6 | 2.78 | 70.5 | 1.87 | 47.5 | 3.90 | 99 | 4.09 | 104 | 1.83 | 0.83 | F1 | C |
| 6FM3.2 | 12 | 3.2 | 5.28 | 134 | 2.64 | 67 | 2.34 | 59.5 | 2.60 | 66 | 2.80 | 1.27 | F1/F2 | E |
| 6FM4 | 12 | 4 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.15 | 1.43 | F1/F2 | C |
| 6FM4.5 | 12 | 4.5 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.26 | 1.48 | | C |
| 6FM5 | 12 | 5 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.57 | 1.62 | F1/F2 | C |
| 6FM5A | 12 | 5 | 5.51 | 140 | 1.89 | 48 | 4.13 | 105 | 4.13 | 105 | 3.66 | 1.66 | F2+F1- | C |
| 6FM5B | 12 | 5 | 5.94 | 151 | 2.01 | 51 | 3.66 | 93 | 3.90 | 99 | 3.66 | 1.66 | F1 | F |
| 6FM5.5 | 12 | 5.5 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.86 | 1.75 | F1/F2 | C |
| 6FM5.5A | 12 | 5.5 | 5.51 | 140 | 1.89 | 48 | 4.13 | 105 | 4.13 | 105 | 3.86 | 1.75 | F2+F1- | C |
| 6FM5.5B | 12 | 5.5 | 5.94 | 151 | 2.01 | 51 | 3.66 | 93 | 3.90 | 99 | 3.66 | 1.66 | F1 | F |
| 6FM6 | 12 | 6 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.30 | 1.95 | F1/F2 | F |
| 6FM7 | 12 | 7 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.63 | 2.10 | F1/F2 | F |
| 6FM7.2 | 12 | 7.2 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.74 | 2.15 | F1/F2 | F |
| 6FM7.5 | 12 | 7.5 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.85 | 2.20 | F1/F2 | F |
| 6FM8 | 12 | 8 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 5.07 | 2.30 | F1/F2 | F |
| 6FM8E | 12 | 8 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 5.07 | 2.30 | F1/F2 | F |
| 6FM9 | 12 | 9 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 5.73 | 2.60 | F1/F2 | F |
| 6FM10A | 12 | 10 | 5.94 | 151 | 2.56 | 65 | 4.37 | 111 | 4.61 | 117 | 6.61 | 3.00 | F2 | F |
| 6FM10B | 12 | 10 | 5.94 | 151 | 2.56 | 65 | 4.37 | 111 | 4.61 | 117 | 6.39 | 2.90 | F2 | F |
| 6FM10 | 12 | 10 | 5.94 | 151 | 3.86 | 98 | 3.74 | 95 | 3.98 | 101 | 6.72 | 3.05 | F2 | F |
| 6FM11 | 12 | 11 | 7.13 | 134 | 3.15 | 80 | 6.34 | 161 | 6.50 | 165 | 10.10 | 4.58 | F3 | C |
| 6FM12 | 12 | 12 | 7.13 | 151 | 3.86 | 98 | 3.74 | 95 | 3.98 | 101 | 7.17 | 3.25 | F2 | F |
| 6FM14 | 12 | 14 | 7.13 | 151 | 3.86 | 98 | 3.74 | 95 | 3.98 | 101 | 8.27 | 3.75 | F2 | F |
| 6FM15 | 12 | 15 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 10.14 | 4.60 | F4 | D |
| 6FM17 | 12 | 17 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 11.02 | 5.00 | F4 | D |
| 6FM18 | 12 | 18 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 11.90 | 5.40 | F4 | D |
| 6FM18C | 12 | 18 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 11.24 | 5.10 | F4 | D |
| 6FM20 | 12 | 20 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 12.35 | 5.60 | F4 | D |
| 6FM24 | 12 | 24 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 16.76 | 7.60 | F4/F8 | D |
| 6FM26 | 12 | 26 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 18.96 | 8.60 | F4/F8 | D |
| 6FM28 | 12 | 28 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 19.84 | 9.00 | F4/F8 | D |
| 6FM28A | 12 | 28 | 6.50 | 165 | 4.96 | 126 | 6.89 | 175 | 7.01 | 178 | 18.74 | 8.50 | F14/F9 | D |
| 6FM30 | 12 | 30 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 6.54 | 166 | 20.94 | 9.50 | F9/F15 | C |
| 6FM33 | 12 | 33 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 6.54 | 166 | 22.49 | 10.20 | F9 | C |
| 6FM35 | 12 | 35 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 6.54 | 166 | 23.15 | 10.50 | F9 | C |
| 6FM38 | 12 | 38 | 7.80 | 198 | 6.54 | 166 | 6.69 | 170 | 6.69 | 170 | 28.66 | 13.00 | F9 | D |
| 6FM40 | 12 | 40 | 7.80 | 198 | 6.54 | 166 | 6.69 | 170 | 6.69 | 170 | 29.76 | 13.50 | F9 | D |
| 6FM45 | 12 | 45 | 7.80 | 198 | 6.54 | 166 | 6.69 | 170 | 6.69 | 170 | 30.86 | 14.00 | F9 | D |
| 6FM50 | 12 | 50 | 9.02 | 229 | 5.43 | 138 | 8.19 | 208 | 8.39 | 213 | 37.04 | 16.80 | F9 | C |
| 6FM55 | 12 | 55 | 9.02 | 229 | 5.43 | 138 | 8.19 | 208 | 8.39 | 213 | 38.58 | 17.50 | F9 | C |
| 6FM60 | 12 | 60 | 10.20 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 47.40 | 21.50 | F9 | C |
| 6FM65 | 12 | 65 | 13.78 | 350 | 6.50 | 165 | 7.17 | 182 | 7.17 | 182 | 46.30 | 21.00 | F6/F9 | C |
| 6FM70 | 12 | 70 | 10.20 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 47.40 | 21.50 | F9 | C |
| 6FM75 | 12 | 75 | 10.20 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 50.71 | 23.00 | F9 | C |
| 6FM80B | 12 | 80 | 10.20 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 51.81 | 23.50 | F9 | C |
| 6FM80 | 12 | 80 | 12.09 | 307 | 6.57 | 167 | 8.27 | 210 | 8.46 | 215 | 55.12 | 25.00 | F9 | C |
| 6FM90 | 12 | 90 | 12.09 | 307 | 6.57 | 167 | 8.19 | 208 | 8.39 | 213 | 58.42 | 26.50 | F9 | C |
| 6FM95 | 12 | 95 | 12.09 | 307 | 6.57 | 167 | 8.19 | 208 | 8.39 | 213 | 59.52 | 27.00 | F9 | C |
| 6FM100H | 12 | 100 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 66.14 | 30.00 | F11 | C |
| 6FM100E | 12 | 100 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 65.04 | 29.50 | F11 | C |
| 6FM120 | 12 | 120 | 15.94 | 405 | 6.81 | 173 | 9.33 | 237 | 9.33 | 237 | 77.16 | 35.00 | F11 | C |
| 6FM120E | 12 | 120 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 68.34 | 31.00 | F11 | C |
| 6FM134 | 12 | 134 | 13.43 | 341 | 6.81 | 173 | 11.14 | 283 | 11.34 | 288 | 91.49 | 41.50 | F10 | C |
| 6FM150 | 12 | 150 | 19.02 | 483 | 6.69 | 170 | 9.49 | 241 | 9.49 | 241 | 97.00 | 44 | F11 | C |
| 6FM160 | 12 | 160 | 13.43 | 341 | 6.81 | 173 | 11.14 | 283 | 11.34 | 288 | 99.21 | 45 | F10 | C |
| 6FM200 | 12 | 200 | 20.55 | 522 | 9.45 | 240 | 8.62 | 219 | 8.82 | 224 | 132.28 | 60 | F11 | E |
| 6FM200E | 12 | 200 | 20.55 | 522 | 9.45 | 240 | 8.62 | 219 | 8.82 | 224 | 134.48 | 61 | F11 | E |
| 6FM230 | 12 | 230 | 20.51 | 521 | 10.59 | 269 | 7.99 | 203 | 8.19 | 208 | 145.51 | 66 | F11 | F |
| 6FM250 | 12 | 250 | 20.47 | 520 | 10.59 | 269 | 8.66 | 220 | 9.65 | 245 | 154.32 | 70 | F11 | E |
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
