| Prod Model: |
12v40ah/10hr (6FM40S) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Grey or Black or Orange |
| Size: |
Size: 165*125*175 (Total Height: 182) Mm |
| Key Words: |
Solar Battery |
| Terminal: |
F9/F15 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar System |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
Rectangle Battery |
Product Description

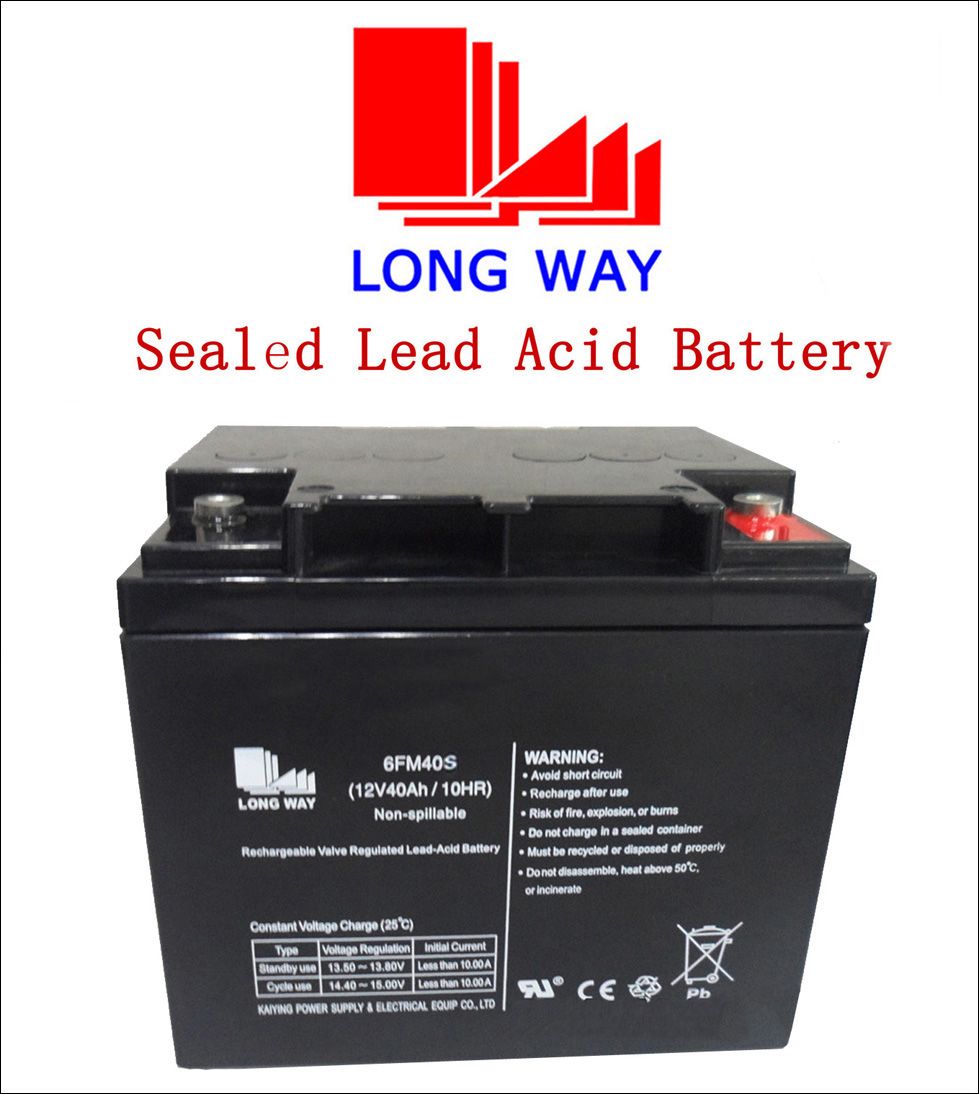

LONGWAY 12V40ah Sealed Lead-Acid Battery (6FM40S)
LONGWAY is a professinal manufacturing factory, our product are made by good material, they have long cycle life with deep discharge,
Low discharge rate. I'm sure you can get best quality in best price here.
Model: 6FM40S(12V40AH)
Size: 198*166*170*170MM
Color: Grey or Black or Orange
General Features
Stable quality&high reliability
Sealed construction
Environmentally friendly
Maintenance-free operation
Low pressure venting system
Heavy duty grid
Low self discharge
UL component recognition(MH46789)
Applications:
Alarm systems, Cable television, communications equipment, control equipment,
Computers, electronic cash registers, electric test equipment,
Electric powered bicycle and wheel chair,
Emergency lighting systems, fire&security, geophysical equipment,
Marine equipment, medical equipment,
Micro processor based office machines, portable cine&video lights,
Power tools, solar powered systems,
Telecommunications systems, television&video recorders, toys,
Uninterruptible power supplies, vending machines;
Our factory photo
Our certificate
If any interest, welcome to contact us freely.
| Standby LONGWAY Standard Series batteries |
| Battery Model | Nominal Voltage(V) | Nominal Capacity
(AH) | Length | Width | Height | Total Height | Weight(5%) | Terminal |
| In | mm | In | mm | In | mm | In | mm | Pound | Kg | Type | Position |
| 6FM1.2 | 12 | 1.2 | 3.86 | 98 | 1.71 | 43.5 | 2.05 | 52 | 2.28 | 58 | 1.26 | 0.57 | F1 | E |
| 6FM2.2 | 12 | 2.2 | 2.78 | 70.5 | 1.87 | 47.5 | 3.90 | 99 | 4.09 | 104 | 1.70 | 0.77 | F1 | C |
| 6FM2.4 | 12 | 2.4 | 7.01 | 178 | 1.38 | 35 | 2.40 | 61 | 2.64 | 67 | 2.14 | 0.97 | F1 | C |
| 6FM2.6 | 12 | 2.6 | 2.78 | 70.5 | 1.87 | 47.5 | 3.90 | 99 | 4.09 | 104 | 1.83 | 0.83 | F1 | C |
| 6FM3.2 | 12 | 3.2 | 5.28 | 134 | 2.64 | 67 | 2.34 | 59.5 | 2.60 | 66 | 2.80 | 1.27 | F1/F2 | E |
| 6FM4 | 12 | 4 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.15 | 1.43 | F1/F2 | C |
| 6FM4.5 | 12 | 4.5 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.26 | 1.48 | | C |
| 6FM5 | 12 | 5 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.57 | 1.62 | F1/F2 | C |
| 6FM5A | 12 | 5 | 5.51 | 140 | 1.89 | 48 | 4.13 | 105 | 4.13 | 105 | 3.66 | 1.66 | F2+F1- | C |
| 6FM5B | 12 | 5 | 5.94 | 151 | 2.01 | 51 | 3.66 | 93 | 3.90 | 99 | 3.66 | 1.66 | F1 | F |
| 6FM5.5 | 12 | 5.5 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.86 | 1.75 | F1/F2 | C |
| 6FM5.5A | 12 | 5.5 | 5.51 | 140 | 1.89 | 48 | 4.13 | 105 | 4.13 | 105 | 3.86 | 1.75 | F2+F1- | C |
| 6FM5.5B | 12 | 5.5 | 5.94 | 151 | 2.01 | 51 | 3.66 | 93 | 3.90 | 99 | 3.66 | 1.66 | F1 | F |
| 6FM6 | 12 | 6 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.30 | 1.95 | F1/F2 | F |
| 6FM7 | 12 | 7 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.63 | 2.10 | F1/F2 | F |
| 6FM7.2 | 12 | 7.2 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.74 | 2.15 | F1/F2 | F |
| 6FM7.5 | 12 | 7.5 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.85 | 2.20 | F1/F2 | F |
| 6FM8 | 12 | 8 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 5.07 | 2.30 | F1/F2 | F |
| 6FM8E | 12 | 8 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 5.07 | 2.30 | F1/F2 | F |
| 6FM9 | 12 | 9 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 5.73 | 2.60 | F1/F2 | F |
| 6FM10A | 12 | 10 | 5.94 | 151 | 2.56 | 65 | 4.37 | 111 | 4.61 | 117 | 6.61 | 3.00 | F2 | F |
| 6FM10B | 12 | 10 | 5.94 | 151 | 2.56 | 65 | 4.37 | 111 | 4.61 | 117 | 6.39 | 2.90 | F2 | F |
| 6FM10 | 12 | 10 | 5.94 | 151 | 3.86 | 98 | 3.74 | 95 | 3.98 | 101 | 6.72 | 3.05 | F2 | F |
| 6FM11 | 12 | 11 | 7.13 | 134 | 3.15 | 80 | 6.34 | 161 | 6.50 | 165 | 10.10 | 4.58 | F3 | C |
| 6FM12 | 12 | 12 | 7.13 | 151 | 3.86 | 98 | 3.74 | 95 | 3.98 | 101 | 7.17 | 3.25 | F2 | F |
| 6FM14 | 12 | 14 | 7.13 | 151 | 3.86 | 98 | 3.74 | 95 | 3.98 | 101 | 8.27 | 3.75 | F2 | F |
| 6FM15 | 12 | 15 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 10.14 | 4.60 | F4 | D |
| 6FM17 | 12 | 17 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 11.02 | 5.00 | F4 | D |
| 6FM18 | 12 | 18 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 11.90 | 5.40 | F4 | D |
| 6FM18C | 12 | 18 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 11.24 | 5.10 | F4 | D |
| 6FM20 | 12 | 20 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 12.35 | 5.60 | F4 | D |
| 6FM24 | 12 | 24 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 16.76 | 7.60 | F4/F8 | D |
| 6FM26 | 12 | 26 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 18.96 | 8.60 | F4/F8 | D |
| 6FM28 | 12 | 28 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 19.84 | 9.00 | F4/F8 | D |
| 6FM28A | 12 | 28 | 6.50 | 165 | 4.96 | 126 | 6.89 | 175 | 7.01 | 178 | 18.74 | 8.50 | F14/F9 | D |
| 6FM30 | 12 | 30 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 6.54 | 166 | 20.94 | 9.50 | F9/F15 | C |
| 6FM33 | 12 | 33 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 6.54 | 166 | 22.49 | 10.20 | F9 | C |
| 6FM35 | 12 | 35 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 6.54 | 166 | 23.15 | 10.50 | F9 | C |
| 6FM38 | 12 | 38 | 7.80 | 198 | 6.54 | 166 | 6.69 | 170 | 6.69 | 170 | 28.66 | 13.00 | F9 | D |
| 6FM40 | 12 | 40 | 7.80 | 198 | 6.54 | 166 | 6.69 | 170 | 6.69 | 170 | 29.76 | 13.50 | F9 | D |
| 6FM45 | 12 | 45 | 7.80 | 198 | 6.54 | 166 | 6.69 | 170 | 6.69 | 170 | 30.86 | 14.00 | F9 | D |
| 6FM50 | 12 | 50 | 9.02 | 229 | 5.43 | 138 | 8.19 | 208 | 8.39 | 213 | 37.04 | 16.80 | F9 | C |
| 6FM55 | 12 | 55 | 9.02 | 229 | 5.43 | 138 | 8.19 | 208 | 8.39 | 213 | 38.58 | 17.50 | F9 | C |
| 6FM60 | 12 | 60 | 10.20 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 47.40 | 21.50 | F9 | C |
| 6FM65 | 12 | 65 | 13.78 | 350 | 6.50 | 165 | 7.17 | 182 | 7.17 | 182 | 46.30 | 21.00 | F6/F9 | C |
| 6FM70 | 12 | 70 | 10.20 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 47.40 | 21.50 | F9 | C |
| 6FM75 | 12 | 75 | 10.20 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 50.71 | 23.00 | F9 | C |
| 6FM80B | 12 | 80 | 10.20 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 51.81 | 23.50 | F9 | C |
| 6FM80 | 12 | 80 | 12.09 | 307 | 6.57 | 167 | 8.27 | 210 | 8.46 | 215 | 55.12 | 25.00 | F9 | C |
| 6FM90 | 12 | 90 | 12.09 | 307 | 6.57 | 167 | 8.19 | 208 | 8.39 | 213 | 58.42 | 26.50 | F9 | C |
| 6FM95 | 12 | 95 | 12.09 | 307 | 6.57 | 167 | 8.19 | 208 | 8.39 | 213 | 59.52 | 27.00 | F9 | C |
| 6FM100H | 12 | 100 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 66.14 | 30.00 | F11 | C |
| 6FM100E | 12 | 100 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 65.04 | 29.50 | F11 | C |
| 6FM120 | 12 | 120 | 15.94 | 405 | 6.81 | 173 | 9.33 | 237 | 9.33 | 237 | 77.16 | 35.00 | F11 | C |
| 6FM120E | 12 | 120 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 68.34 | 31.00 | F11 | C |
| 6FM134 | 12 | 134 | 13.43 | 341 | 6.81 | 173 | 11.14 | 283 | 11.34 | 288 | 91.49 | 41.50 | F10 | C |
| 6FM150 | 12 | 150 | 19.02 | 483 | 6.69 | 170 | 9.49 | 241 | 9.49 | 241 | 97.00 | 44 | F11 | C |
| 6FM160 | 12 | 160 | 13.43 | 341 | 6.81 | 173 | 11.14 | 283 | 11.34 | 288 | 99.21 | 45 | F10 | C |
| 6FM200 | 12 | 200 | 20.55 | 522 | 9.45 | 240 | 8.62 | 219 | 8.82 | 224 | 132.28 | 60 | F11 | E |
| 6FM200E | 12 | 200 | 20.55 | 522 | 9.45 | 240 | 8.62 | 219 | 8.82 | 224 | 134.48 | 61 | F11 | E |
| 6FM230 | 12 | 230 | 20.51 | 521 | 10.59 | 269 | 7.99 | 203 | 8.19 | 208 | 145.51 | 66 | F11 | F |
| 6FM250 | 12 | 250 | 20.47 | 520 | 10.59 | 269 | 8.66 | 220 | 9.65 | 245 | 154.32 | 70 | F11 | E
|
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
