| Prod Model: |
TL1240 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Tl1240 |
| Voltage: |
12V |
| Capacity: |
4ah |
| Dimension: |
90*70*101/107mm |
| Designed Life:3 Years: |
3years |
| Weight: |
1.28kg |
| Color:Grey Or Black: |
Grey , Black or Other |
| Standby Use: |
13.6-13.8V |
| Cycle Use: |
14.5-14.9V |
| Internal Resistance: |
35mohms |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting Battery |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

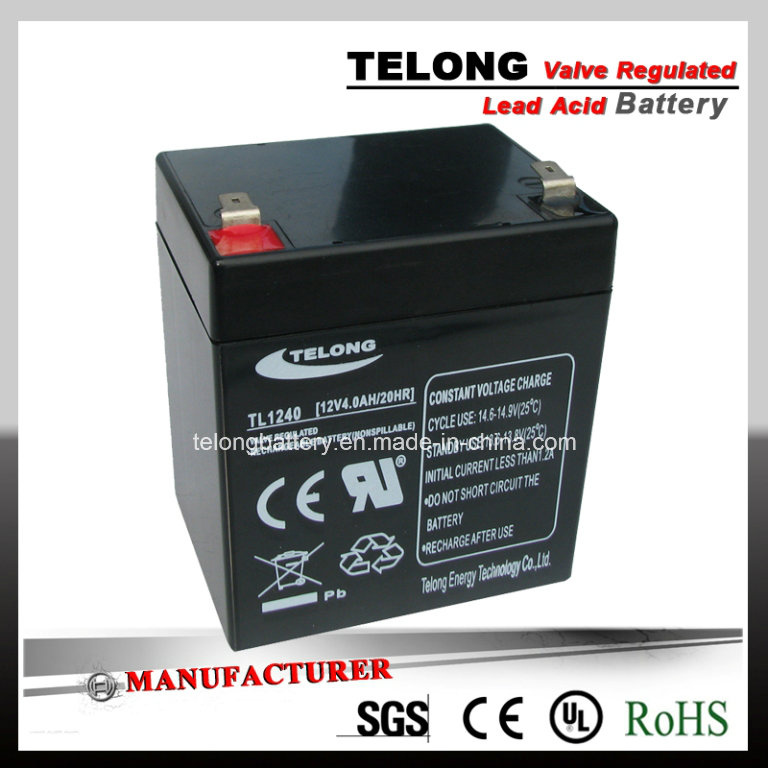

12V4AH AGM Lead-Acid Battery for UPS1. Product parametersModel: TL1240
Certificate: CE, UL, RoHS, MSDS, UN38.3
Voltage: 12V
Capacity: 4.0Ah
Dimension: 90× 70× 101/107mm(Length× Width× High/Total High)
Quantity per carton: 10PCS
Gross weight per carton: 13.0kg
2. Applications:Remote Switching Control equipments
Communication systems Portable Lights
Alarm systems Power tools
Medical equipments Electric toys
Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS) and stand-by power for computers
3. Features(1) When it is safe surroundings, maintenance free, and add water is not need.
(2) Equalization charges are not required and cycle or standby (or float) use.
(3) Long life for 3 year.
(4) low resistance and energy output is more remarkable.
(5) Fully enclosed (not liquid leakage, no acid gas spill).
(6) Low self-discharge rate.
4. Welcome to visit our websitehttp://www.telongbattery.com/
http://telongbattery.en.made-in-china.com/
5. Others:1, OEM orders are available
2, Superior quality and cost-performance ratio
3, Tags, plugs and connectors are available
4, We could design and produce vrla battery for customized configurations is available (we could design and develop Lead acid battery according to your product work performance & structure apprearance)
| Batterymodel | TL1240 |
| Nominal voltage | 12V |
| Number of cell | 4 |
| Design Life | 3 years |
| Capacity 77ºF (25ºC) | 20 hour rate (0.2A,10.5V) | 10 hour rate (0.38A,10.5V) | 5 hour rate
(0.7A,10.5V) | 1 hour rate (2.5A,9.6V) |
| 4.0Ah | 3.8Ah | 3.5Ah | 2.5Ah |
| Dimensions | Length | Width | Height | Total Height |
| 90±1mm | 70±1mm | 101±1mm | 107±1mm |
| Approx. weight | 1.28Kg |
| Internal resistance | Full charged at 77ºF(25ºC):35mOhms |
| Self discharge 68ºF(20ºC) | Capacity after 3 month storage | Capacity after 6 month storage | Capacity after 12 month storage |
| 90% | 80% | 60% |
| Capacity affected by temperature(20 hour rate) | 104ºF(40ºC) | 77ºF(25ºC) | 32ºF(10ºC) | 5ºF(-15ºC) |
| 102% | 100% | 85% | 65% |
Operating temperature
range | Discharge | Charge | Storage |
| -20~60ºC | -10~60ºC | -20~60ºC |
| Max. discharge current 77ºF(25ºC) | 60A(5s) |
| Short circuit current | 200A |
| Charge(Constant Voltage) | Float: 4.54~4.60V/77ºF(25ºC) |
Cycle:4.85~4.90V/77ºF(25ºC)
Max Current:1.0A |
Product List| Battery | Nominal | Nominal | Dimension | Terminal |
| Voltage | Capacity | Length | Width | Height | Total Height | Type |
| (V) | (Ah) | mm | in | mm | in | mm | in | mm | in | |
| TL1208 | 12 | 0.8 | 96 | 3.78 | 25 | 0.98 | 62 | 2.44 | 62 | 2.44 | T13/T9 |
| TL1213 | 12 | 1.3 | 97 | 3.82 | 43 | 1.69 | 52 | 2.05 | 58 | 2.28 | F1 |
| TL1220A | 12 | 2 | 143 | 5.63 | 24 | 0.94 | 65 | 2.56 | 65 | 2.56 | T10 |
| TL1220B | 12 | 2 | 150 | 5.9 | 20 | 0.79 | 90 | 3.54 | 90 | 3.54 | T11 |
| TL1222 | 12 | 2.2 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 107 | 4.21 | F1 |
| TL1223A | 12 | 2 | 182 | 7.17 | 24 | 0.94 | 61 | 2.4 | 61 | 2.4 | T10 |
| TL1223B | 12 | 2.3 | 178 | 7.01 | 35 | 1.38 | 61 | 2.4 | 67 | 2.64 | F1 |
| TL1225A | 12 | 2.5 | 104 | 4.09 | 48 | 1.9 | 70 | 2.76 | 70 | 2.76 | F1/F2 |
| TL1225B | 12 | 2.5 | 104 | 4.09 | 48 | 1.9 | 70 | 2.76 | 70 | 2.76 | T16 |
| TL1226A | 12 | 2.6 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 107 | 4.21 | F1 |
| TL1226B | 12 | 2.6 | 178 | 7.01 | 35 | 1.38 | 61 | 24 | 67 | 2.64 | F1 |
| TL1228A | 12 | 2.8 | 104 | 4.09 | 48 | 1.9 | 70 | 2.76 | 70 | 2.76 | T16 |
| TL1228B | 12 | 2.8 | 104 | 4.09 | 48 | 1.9 | 70 | 2.76 | 70 | 2.76 | F1/F2 |
| TL1229 | 12 | 2.9 | 79 | 3.11 | 55.5 | 2.19 | 98.5 | 3.88 | 104 | 4.09 | F1 |
| TL1232 | 12 | 3.2 | 134 | 5.28 | 67 | 2.64 | 61 | 2.4 | 67 | 2.64 | F1 |
| TL1235 | 12 | 3.5 | 134 | 5.28 | 67 | 2.64 | 61 | 2.4 | 67 | 2.64 | F1 |
| TL1240A | 12 | 4 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 107 | 4.21 | F2 |
| TL1240B | 12 | 4 | 195 | 7.68 | 47 | 1.85 | 71 | 2.8 | 76 | 2.99 | F1 |
| TL1245A | 12 | 4.5 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 107 | 4.21 | F2 |
| TL1245C | 12 | 4.5 | 140 | 5.51 | 48 | 1.89 | 102 | 40.2 | 103 | 40.6 | F1/F2 |
| TL1250 | 12 | 5 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 107 | 4.21 | F2 |
| TL1255 | 12 | 5.5 | 140 | 5.51 | 48 | 1.89 | 102 | 40.2 | 104 | 4.09 | F1/F2 |
| TL1260 | 12 | 6 | 151 | 5.94 | 51 | 2.01 | 93 | 3.66 | 99 | 3.9 | F2 |
| TL1265 | 12 | 6.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | F2 |
| TL1270 | 12 | 7 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | F2 |
| TL1272 | 12 | 7.2 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | F2 |
| TL1275 | 12 | 7.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | F2 |
| TL1280 | 12 | 8 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | F2 |
| TL1290A | 12 | 9 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | F2 |
| TL12100B | 12 | 10 | 151 | 5.94 | 98 | 3.86 | 110 | 4.33 | 114 | 4.49 | F2 |
| TL12120 | 12 | 12 | 151 | 5.94 | 98 | 3.86 | 95 | 3.74 | 101 | 3.98 | F2 |
| TL12140 | 12 | 14 | 151 | 5.94 | 98 | 3.86 | 95 | 3.74 | 101 | 3.98 | F2 |
| TL12150 | 12 | 15 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | F3 |
| TL12170A | 12 | 17 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | F3 |
| TL12200A | 12 | 20 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | F3 |
| TL12220A | 12 | 22 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | F3 |
| TL12240A | 12 | 24 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | F4 |
| TL12240C | 12 | 24 | 165 | 6.5 | 125 | 4.92 | 175 | 6.89 | 182 | 7.17 | F6 |
| TL12260A | 12 | 26 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | F4 |
| TL12280A | 12 | 28 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | F4 |
| TL12280C | 12 | 28 | 165 | 6.5 | 125 | 4.92 | 175 | 6.89 | 182 | 7.17 | F6 |
| TL12300A | 12 | 30 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | F4 |
| TL12330A | 12 | 33 | 195 | 7.68 | 130 | 5.12 | 155 | 6.1 | 180 | 7.09 | F7 |
| TL12400A | 12 | 40 | 197 | 7.76 | 165 | 6.5 | 170 | 6.69 | 170 | 6.69 | F4 |
| TL12420A | 12 | 42 | 197 | 7.76 | 165 | 6.5 | 170 | 6.69 | 170 | 6.69 | F4 |
| TL12450A | 12 | 45 | 197 | 7.76 | 165 | 6.5 | 170 | 6.69 | 170 | 6.69 | F4 |
| TL12500A | 12 | 50 | 257 | 10.1 | 132 | 5.2 | 200 | 7.87 | 200 | 7.87 | F4/F11 |
| TL12500B | 12 | 50 | 250 | 9.84 | 160 | 6.3 | 178 | 7.01 | 197 | 7.76 | F5 |
| TL12550A | 12 | 55 | 229 | 9.02 | 138 | 5.43 | 208 | 8.19 | 212 | 8.35 | F11 |
| TL12550C | 12 | 55 | 229 | 9.02 | 138 | 5.43 | 208 | 8.19 | 227 | 8.94 | F5 |
| TL12600A | 12 | 60 | 250 | 9.84 | 160 | 6.3 | 178 | 7.01 | 197 | 7.76 | F5 |
| TL12600B | 12 | 60 | 259 | 10.2 | 168 | 6.61 | 208 | 8.19 | 214 | 8.43 | F17/F21 |
| TL12650A | 12 | 65 | 350 | 13.78 | 167 | 6.57 | 179 | 7.05 | 179 | 7.05 | F5 |
| TL12750A | 12 | 75 | 258 | 10.2 | 166 | 6.54 | 206 | 8.11 | 210 | 8.27 | F11 |
| TL12750B | 12 | 75 | 258 | 10.2 | 166 | 6.54 | 206 | 8.11 | 235 | 9.25 | F9 |
| TL12750C | 12 | 75 | 260 | 10.2 | 169 | 6.65 | 208 | 8.19 | 212 | 8.35 | F21 |
| TL12750E | 12 | 75 | 260 | 10.2 | 169 | 6.65 | 208 | 8.19 | 228 | 8.98 | SAM |
| TL12800A | 12 | 80 | 350 | 13.78 | 167 | 6.57 | 179 | 7.05 | 179 | 7.05 | F5 |
| TL12900A | 12 | 90 | 306 | 12.1 | 169 | 6.65 | 208 | 8.19 | 212 | 8.35 | F21 |
| TL121000A | 12 | 100 | 328 | 12.92 | 171 | 6.74 | 214 | 8.43 | 220 | 8.66 | F5 |
| TL121000C | 12 | 100 | 328 | 12.92 | 171 | 6.74 | 214 | 8.43 | 234 | 9.21 | SAM |
| TL121150A | 12 | 115 | 328 | 12.92 | 171 | 6.74 | 214 | 8.43 | 220 | 8.66 | F5 |
| TL121200A | 12 | 120 | 410 | 16.14 | 176 | 6.93 | 227 | 8.94 | 227 | 8.94 | F5 |
| TL121200C | 12 | 120 | 410 | 16.14 | 176 | 6.93 | 227 | 8.94 | 240 | 9.45 | SAM |
| TL121340 | 12 | 134 | 341 | 13.4 | 173 | 6.81 | 283 | 11.1 | 288 | 11.3 | F12 |
| TL121500A | 12 | 150 | 482 | 19 | 170 | 6.69 | 242 | 9.53 | 242 | 9.53 | F5 |
| TL121800A | 12 | 180 | 522 | 20.55 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | F12 |
| TL122000A | 12 | 200 | 522 | 20.55 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | F12 |
| TL122200A | 12 | 220 | 522 | 20.55 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | F12 |
| TL122250A | 12 | 225 | 522 | 20.55 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | F12 |
| TL122500 | 12 | 250 | 520 | 20.5 | 269 | 10.6 | 220 | 8.6 | 224 | 8.82 | F12 |
Shenzhen Telong Energy Technology Co., Ltd was founded in 2005, Specialized in researching, developing, producing and sales of lead acid battery, lithium battery and Gel battery.
Telong is a leading battery producer in the Chinese market as a deep cycle battery supplier for electric bicycles, distributed primarily under the Telong brand. With over ten years of experience and extensive technical expertise in the lead-acid battery industry, Telong's dedication to research and development is evident in increasingly widespread recognition of Telong goods offering consistent quality in high capacity, high energy density, deep discharge, more cycles with sustained discharge time, and more operational stability.
Telong has mainly produce the following series - CR\ER\PL\DZM\TL\TEL\GEL\TLD\TLF\OPZV\OPZS including 500 kinds of products. These products are widely used by many different industries, such as telecommunication, power system, radio and television system, railway, solar, UPS, electric vehicles, cars, golf cars, forklifts, emergency lights, security, alarm, gardening tool, baby carrier etc. Its worldwide sales network already covers more than 100 countries and regions, and has a good cooperation partnership with several excellent operators.
In an endless pursuit of perfection, Telong continues to blaze new trails in quality battery production. For quality control, Telong established professional Quality Management Center and successfully got the certificates of ISO9001, TS16949 quality management system and ISO14001 environment management system and also has passed the audit of OHSAS18001. The products has been authorized as 'Good quality products and Inspection-free in China' by national quality inspection department. Telong Products have also obtained the CE and RoHS authentication of the European Union, UL recognition the USA, Our reputation is built on the promise that ethical behavior and fair business practices will result in a satisfied and growing customer base. Telong prides itself by delivering its promises in a timely and efficient manner. We listen attentively to our customers, and are constantly reviewing our business practices and procedures in order to make changes that will benefit our customers.
