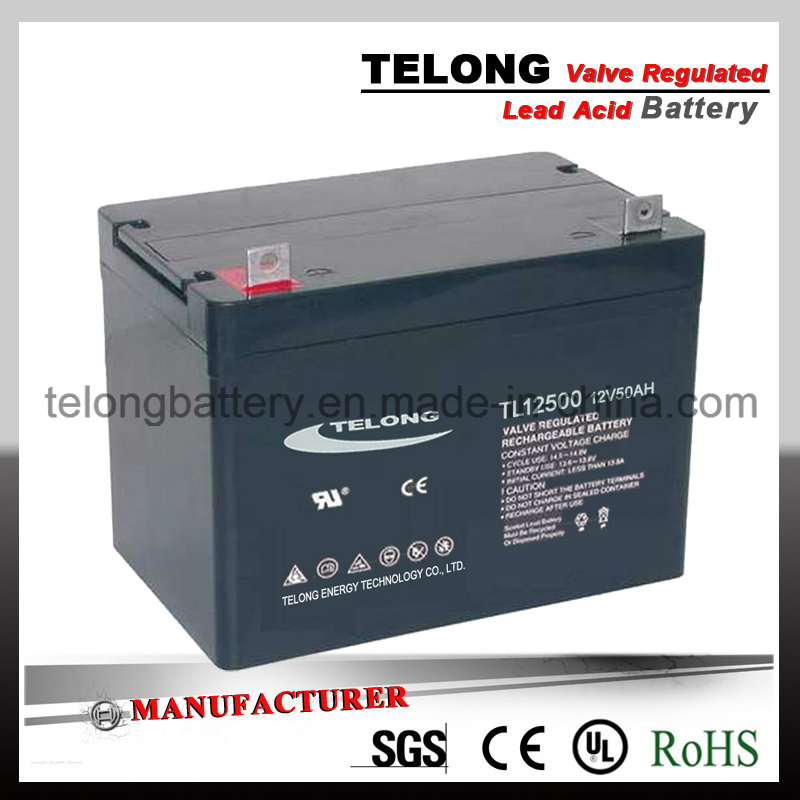

12V50ah AGM Deep Cycle Gel Battery for Solar
| Price: |
US $ 40-49.88/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
TL12500 |
| Color: |
Black |
| Normal Capacity: |
50ah |
| Design Life: |
10 Years |
| Warranty: |
2 Years |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar System |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
12V50AH AGM Deep Cycle Gel battery for SolarThis series designed for Solar power system, UPS/EPS, Emergency lighting (medical, insurance, bank, tax administration and recreation), Spot light, energy saving lamp, Railway and airline signals, Alarming and security, Instruments and meters, electrical D/C power sources.Specification| Nominal Voltage | 12V |
| Nominal Capacity (10HR) | 50.0AH |
| Product Series | Standby |
| Dimensions | Length 227±2mm(8.93inches) |
| Width 138±2mm(5.43inches) |
| Container Height 212±3mm(8.34inches) |
| Total Height(with Terminal) 217±2mm(8.54inches) |
| Approx Weight | 15.0 kg/ 33.0 lbs |
| Terminal | M6-16/M8-16 |
| Rated Capacity | 52.0AH/2.60A (20HR,10.80V,25ºC/77ºF) |
| 50.0AH/5.00A (10HR,10.80V,25ºC/77ºF) |
| 42.5AH/8.50A (5HR,10.80V,25ºC/77ºF) |
| 37.5AH12.50A (3HR,10.80V,25ºC/77ºF) |
| 32.5AH/32.5A (1HR,10.20V,25ºC/77ºF) |
| Max.Discharge Current | 750A(5s) |
| Internal Resistance | Approx 10mΩ |
| Operating Temp.Range | Discharge: -15~50ºC(5~122ºF) |
| Charge: -0~40ºC(32~104ºF) |
| Storage: -15~40ºC(5~104ºF) |
| Nominal Operating Temp.Range | 25±3ºC(77±5ºF) |
| Cycle Use | Initial Charging Current less than 15.0A.Voltage 14.6V~14.9V at 25ºC(77ºF) Temp.Coefficient -5mV/ºC |
| Standby Use | Initial Charging Current less than 15.0A Voltage 13.6V~13.9V at 25ºC(77ºF) Temp.Coefficient -3mV/ºC |
Capacity affected
by Temperature | 40ºC 104ºF 103% |
| 25ºC 77ºF 100% |
| 0ºC 32ºF 80% |
| Self Discharge | Telong series batteries may be stored for up to 8 months at25ºC(77ºF) and then a freshening charge is required.
For higher temperatures the time interval will be shorter |
| Design Life | 10 years |
| Discharge Constant Current (Amperes at 77°F/25°C) |
| F.V/Time | 5min | 10min | 15min | 30min | 45min | 1h | 2h | 3h | 5h | 10h | 20h |
| 9.60V | 170.2 | 135.6 | 97.4 | 55.5 | 41.5 | 33.1 | 17.84 | 12.92 | 8.70 | 5.09 | 2.61 |
| 9.90V | 164.7 | 130.1 | 91.9 | 54.6 | 41.0 | 32.6 | 17.38 | 12.92 | 8.64 | 5.02 | 2.61 |
| 10.20V | 155.6 | 121.9 | 87.4 | 52.8 | 40.5 | 32.4 | 17.38 | 12.74 | 8.60 | 5.02 | 2.61 |
| 10.50V | 135.6 | 101.9 | 82.8 | 50.1 | 39.9 | 32.0 | 17.29 | 12.38 | 8.60 | 5.00 | 2.60 |
| 10.80V | 121.9 | 87.4 | 78.3 | 43.7 | 39.6 | 31.4 | 16.65 | 12.19 | 8.50 | 5.00 | 2.60 |
| Constant Power Discharge (Watts at 77°F/25°C) |
| F.V/Time | 5min | 10min | 15min | 30min | 45min | 1h | 2h | 3h | 5h | 10h | 20h |
| 9.60V | 1856 | 1495 | 1072 | 649.7 | 472.7 | 379.7 | 203.7 | 148.0 | 100.5 | 54.96 | 30.13 |
| 9.90V | 1780 | 1427 | 1016 | 626.1 | 464.1 | 373.5 | 202.8 | 147.2 | 100.0 | 54.15 | 30.13 |
| 10.20V | 1695 | 1346 | 966 | 595.1 | 459.8 | 373.5 | 200.7 | 146.8 | 99.6 | 54.15 | 29.85 |
| 10.50V | 1485 | 1132 | 912 | 560.6 | 455.7 | 367.6 | 198.4 | 144.7 | 99.6 | 53.69 | 29.20 |
| 10.80V | 1325 | 1022 | 861 | 485.0 | 447.4 | 361.3 | 192.4 | 140.7 | 98.7 | 52.87 | 28.64 |
| Battery Construction |
| COMPONENT | Positive plate | Negative plate | Container | Cover | Safety valve | Terminal | Separator | Electrolyte |
| RAW MATERIAL | Lead dioxide | Lead | ABS | ABS | Rubber | Copper | Fiberglass | Sulfuric acid |
Shenzhen Telong Energy Technology Co.,Ltd.Add: Zhongxing Building,Fukang Industrial Zone,Renmin,Guanlan Town,Shenzhen,ChinaTEL: +86-755-29052355 29052353 29052352 FAX:+86-755-27981742
Web: www.telongbattery.com
Shenzhen Telong Energy Technology Co., Ltd was founded in 2005, Specialized in researching, developing, producing and sales of lead acid battery, lithium battery and Gel battery.
Telong is a leading battery producer in the Chinese market as a deep cycle battery supplier for electric bicycles, distributed primarily under the Telong brand. With over ten years of experience and extensive technical expertise in the lead-acid battery industry, Telong's dedication to research and development is evident in increasingly widespread recognition of Telong goods offering consistent quality in high capacity, high energy density, deep discharge, more cycles with sustained discharge time, and more operational stability.

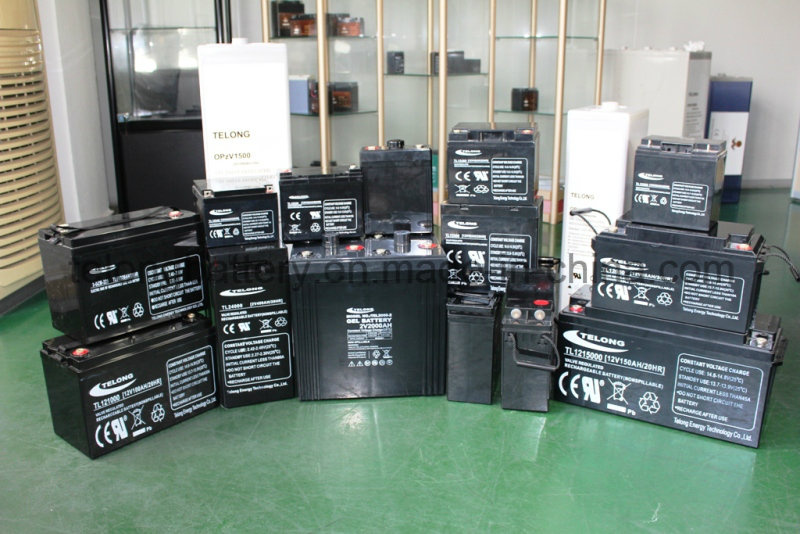

Telong has mainly produce the following series - CR\ER\PL\DZM\TL\TEL\GEL\TLD\TLF\OPZV\OPZS including 500 kinds of products. These products are widely used by many different industries, such as telecommunication, power system, radio and television system, railway, solar, UPS, electric vehicles, cars, golf cars, forklifts, emergency lights, security, alarm, gardening tool, baby carrier etc. Its worldwide sales network already covers more than 100 countries and regions, and has a good cooperation partnership with several excellent operators.
In an endless pursuit of perfection, Telong continues to blaze new trails in quality battery production. For quality control, Telong established professional Quality Management Center and successfully got the certificates of ISO9001, TS16949 quality management system and ISO14001 environment management system and also has passed the audit of OHSAS18001. The products has been authorized as 'Good quality products and Inspection-free in China' by national quality inspection department. Telong Products have also obtained the CE and RoHS authentication of the European Union, UL recognition the USA, Our reputation is built on the promise that ethical behavior and fair business practices will result in a satisfied and growing customer base. Telong prides itself by delivering its promises in a timely and efficient manner. We listen attentively to our customers, and are constantly reviewing our business practices and procedures in order to make changes that will benefit our customers.
