| Prod Model: |
6FM55FR( 12V55ah/10hr) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE/UL/ISO9001/ISO14001/Ohsas18001 |
| Color: |
Grey or Black |
| Terminal: |
F10 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
Rectangle Battery |
Product Description
LONGWAY front Access terminal sealed lead acid rechargeable battery
General Features
1. Environmental friendly
2. Thick pasted plates with quality lead-tin-calcium alloy grids for long service life
3. Centralized venting system for gas ventilation
4. Plastics or rope handles for handling and installation convenience
5. Front access terminals for easy and quick connection
6. Low internal resistance
7. Lower self discharge
Applications
Communication equipment
Telecommunication System
Uninterruptible power supplies
Electronic cash registers
Microprocessor based office machine
Other standby power supplies
LONGWAY® FR battery is a front terminal battery. 6FM55FR battery is a front terminal battery up to 12 years expected life for Telecom use. As with all LONGWAY® Batteries, all are rechargeable highly efficient, leak proof and maintenance free.
Spectification
Model: LW12V55AH/FR series
Size: L291*W106*H223(TH230)
Cells per Unit: 6
Normal Voltage; 12V
Capacity: 55Ah@10Hr-rate to 1.80V per cell@25º C
Weight: Approx(18.0± 3%kg) (39.7lbs)
Maximum Discharge Current: 550A(5sec)
Internal Resistance: Approx. 6.4mΩ Full charged @25º C
Operating Temperature Range: Discharge: -20º C ~60º C
Charge: 0º C ~50º C
Storage: -20º C ~60º C
Nominal Operating Temperature Range: 25º C ± 3º C
Float Charging Voltage: 13.7~13.9VDC/unit Average @25º C
Maximum Charging Current: 13.75A
Equalization and Cycle Service: 14.4V~15.0VDC/unit Average @ 25º C
Self Discharge: LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored for more than 6 months at 25º C. Self-discharge ratio less than 3% per month at 25º C. Please charge batteries before using.
Terminal: Terminal F10
Container Material: ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request

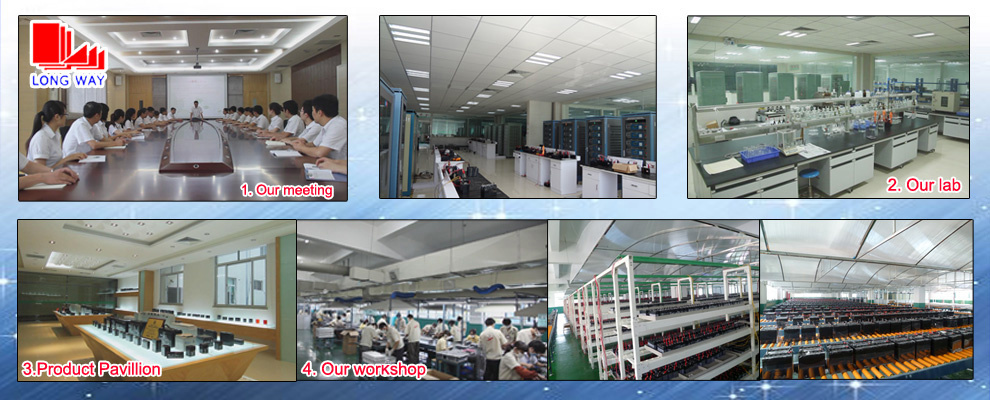

Our factory photo
Our certificate
If any interest, welcome to contact us freely.| Battery Model | Internal model | Nominal Voltage (V) | Nominal Capacity (AH) | Length | Width | Height | Total Height | Weight(±5%) | Terminal |
| In | mm | In | mm | In | mm | In | mm | Pound | Kg | Type | Position |
| 6FM55FR | FR12-55 | 12 | 55 | 11.5 | 291 | 4.17 | 106 | 8.78 | 223 | 9.06 | 230 | 39.7 | 18.0 | F12 | E |
| 6FM75FR | FR12-75 | 12 | 75 | 22.1 | 562 | 4.53 | 115 | 7.36 | 187 | 7.64 | 194 | 51.8 | 23.5 | F12 | E |
| 6FM85FR | FR12-85 | 12 | 85 | 22.1 | 562 | 4.53 | 115 | 7.36 | 187 | 7.64 | 194 | 56.2 | 25.5 | F12 | E |
| 6FM105FR | FR12-105 | 12 | 105 | 20.7 | 527 | 4.33 | 110 | 8.86 | 225 | 9.13 | 232 | 71.7 | 32.5 | F12 | E |
| 6FM110FR | FR12-110 | 12 | 110 | 16.1 | 410 | 4.33 | 110 | 11.3 | 288 | 11.6 | 295 | 72.8 | 33.0 | F12 | E |
| 6FM125FR | FR12-125 | 12 | 125 | 21.7 | 551 | 4.29 | 109 | 9.41 | 239 | 9.41 | 239 | 79.4 | 36.0 | F12 | E |
| 6FM125FR/A | FR12-125/A | 12 | 125 | 21.6 | 549.5 | 4.13 | 105 | 12.40 | 315 | 12.40 | 315 | 79.4 | 36.0 | F12 | E |
| 6FM125FR/B | FR12-125/B | 12 | 125 | 21.6 | 549.5 | 4.13 | 105 | 11.22 | 285 | 12.40 | 315 | 86.9 | 39.4 | F12 | E |
| 6FM150FR | FR12-150 | 12 | 150 | 22.2 | 565 | 4.33 | 110 | 11.3 | 288 | 11.6 | 295 | 97.0 | 44.0 | F12 | E |
| 6FM170FR | FR12-170 | 12 | 170 | 22.0 | 560 | 4.92 | 125 | 12.4 | 316 | 12.4 | 316 | 103.6 | 47.0 | F12 | E |
| 6FM180FR | FR12-180 | 12 | 180 | 22.0 | 560 | 4.92 | 125 | 12.4 | 316 | 12.4 | 316 | 114.6 | 52.0 | F12 | E |
| 6FM180FR/A | FR12-180A | 12 | 180 | 21.5 | 546 | 4.92 | 125 | 12.8 | 324 | 12.8 | 324 | 103.6 | 47.0 | F13 | E |
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
