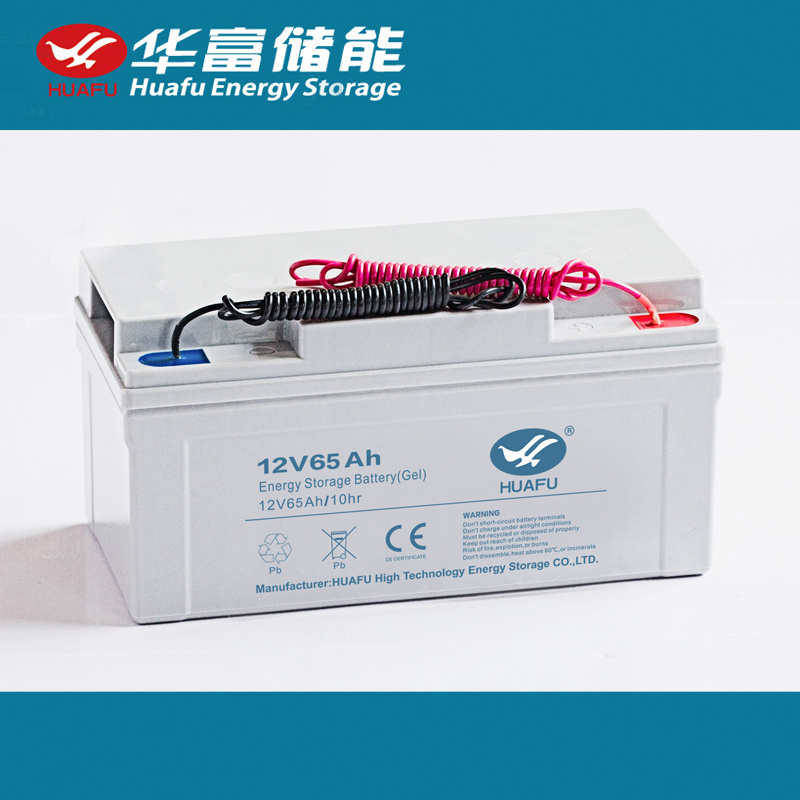

12V65 Deep Cycle Battery Gel Battery
| Price: |
US $ 88-98/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
6-CNJ-65 |
| Net Size: |
350*166*174*174(L*W*H)mm |
| Total H: |
174mm |
| Weight: |
24.6kgs |
| Maintenance Free: |
Yes |
| Warranty: |
4 Years |
| Design Life: |
8 Years |
| Type: |
Lead-Acid Batteries |
| Usage: |
off-Grid Power Station |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
Huafu SMF Battery 12v65ah maintenance free UPS Battery.
Battery Properties: Sealed Battery / Maintenance Free Battery / Rechargeable Battery
Warranty: 3 Years. Any battery with quality problem will be changed
Quality system & Certifications: ISO9001,ISO14001,OHSAS18001-2007, CE, UL, IEC, ROHS, SGS
Huafu Battery Construction
| Element | Electrolyte | Positive Plate | Negative Plate | Container |
| Material | Sulfuric acid | Lead dioxide | lead | ABS |
| |
| Element | Cover | Safety valve | Terminal/Wire | Separator |
| Material | ABS | Rubber | Copper | Fiberglass |
Huafu 12V65Ah maintenance free Battery Specification
| Rated Voltage | 12V |
| Rated capacity (10 hour rate) | 65Ah |
| Dimension | Length | 350mm (13.79inches) |
| Width | 166mm (6.54inches) |
| Height | 174mm (6.86inches) |
| Total Height (with terminal) | 174mm (6.86inches) |
| Weight Approx | 20.0Kgs (44Ibs) |
| Terminal | Cable(2.5 mm²×2 m) | M6-16 Cooper Terminal |
Huafu 12V65AH SMF Battery Characteristic
| Capacity at 25'C (77'C) | 10 hour rate / 1.8V/Cell | 65Ah |
| Charge | Limit initial current to 16.25A. |
| Cycle Applications | 14.5V-14.8V |
| "Float" or "Stand-By" Service | 13.5V-13.8V |
| Ambient Temperature | -25'C~50'C |
Huafu Sealed Maintenance Free Battery Feature
1). AGM (Absorbing Glass Mat) technology of which the electrolyte is absorbed.
2). Maintenance-free operation - no addition of water to the electrolyte is required.
3). Sealed Battery with Valve Regulated Construction .Can be mounted in any orientation.
4). Wide range of operating temperatures with temperature compensated charging.
5). Computer designed lead, calcium tin alloy grid for high power density.
6). Extended service life due to low self-discharge levels.
7). Available in flame retardant ABS material for the battery case
Huafu Brand Battery Application
solar (wind) household system, off-grid power station, solar (wind) energy communication,
solar traffic lights, solar building system, solar (wind) energy street lighting system
communication base station, mobile energy storage system,
Railway signal /Medical Equipment, Alarm system , Emergency Lighting
Control equipments, Telecommunication /Communication systems
Electric Power Supply /DC power Supply, Other standby or primary power supplies.
Huafu 12V 65AH UPS Battery Packing information
| In carton | packing in wooden Box |
| Pcs/Ctn | Ctn Size | Ctns/Box | Box Size |
| 1 | 363*179*220mm | 60 | 1140*965*1050mm |
| |
Video Links: https://youtu.be/ym-x6_zv4YY
Huafu High Technology Energy Storage Co., Ltd is a leader in battery industry for energy storage in China, manufacturer ranks NO. 1 in sales of GEL battery in Chinses market, with more than 20 years experience in producing and exporting environmental friendly Rechargeable Valve Regulated Lead Acid (VRLA) Battery, AGM Sealed Lead Acid (SLA) Batteries, Deep cycle Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, Specialty batteries for plateaus, OPzV Battery, OPzS Batteries, Telecom Batteries, Lead Carbon, Lithium batteries.
Established in 1990, located in Gaoyou Industrical Park of 180000 square meters in Jiangsu, China. Today, Huafu has nearly 200 full-time R&D personnel, nearly 100 part-time R&D personnel, has built a national post-doctoral workstaions, technology research institution for energy storage materials. With International advanced automatic equipment and excellent producing process, Huafu produces an annual capacity of approximately 4, 000, 000kVAh.
Lead battery & Lithium Battery are our major prodcuts: Classify our lead battery into Energy Storage Battery Series, Back-Up Battery, EV Battery. The Energy Storage Battery Series includes 2V and 12V AMG lead acid battery, AGM GEL Battery, Pure Gel Battery, Solar Deep Cycle battery, Lead-Carbon battery, Heat-tolerant battery, Tubular OPZV battery, Tubular OPZS battery. The Back-up battery series includes 2V and 12V VRLA Battery, Telecom Front terminal battery. Our EV battery includes 6V, 8V, 12V battery for electric vehicle, electric forklift, etc. Lithium battery includes LiFePO4, Ternary lithium power battery.
In the passed 20 years, HUAFU staffs has been insisted on gaining the believe of customers by our quality. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognition, like UK's IEC60896.21/22. IEC61427, CE authentication of the European Union, UL recognition of the USA, Soncap certification for Nigeria and Golden Sunflower. RoHS, SGS, etc.
HUAFU ranks NO. 1 in sales of GEL battery in Chinese market. We has been cooperating with China Mobile Limited & Unicom Limited, ZTE Corporation, China Tower, Huawei Technologies, Emerson. Export from 10 years ago, near to Shanghai Port, Our long-term business ship has been built with Philips. Our products has also sold to USA, Brazil, Russia, Iran, Korea, Thailand, South Africa, Nigeria, Italy, Greece, Germany, Spain, etc.
Best Quality, Good Service, In time Support, Competitive Price. Choose Us!
