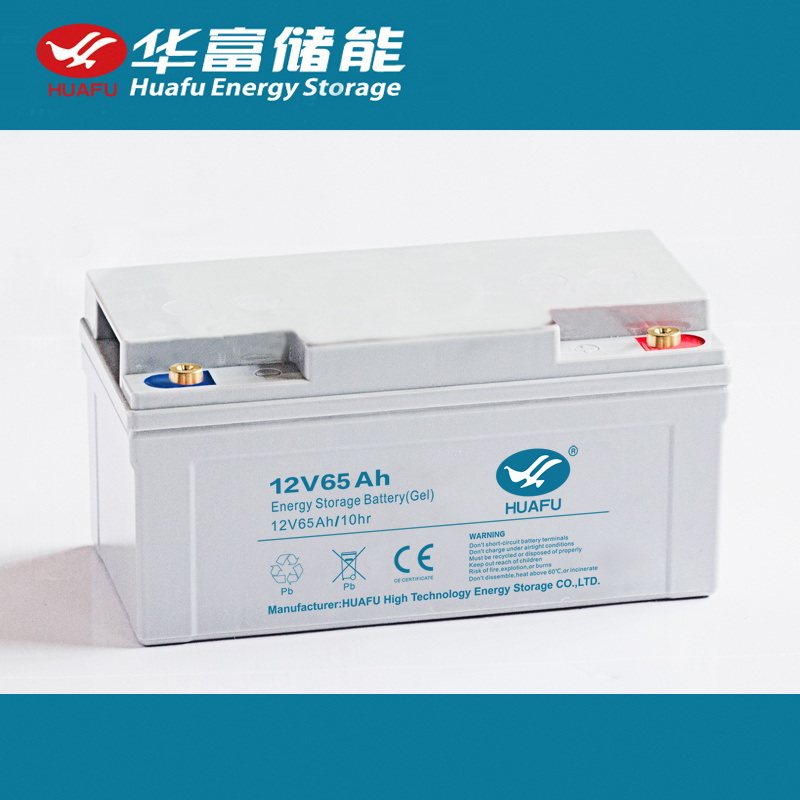

12V65ah Deep Cycle Gel Solar Battery
| Price: |
US $ 92-99.2/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
6-CNJ-65 |
| Size: |
350*166*174*174(L*W*H)mm |
| Design Life: |
8 Years |
| Warranty: |
3 Years |
| Maintenance Free: |
Yes |
| Type: |
Lead-Acid Batteries |
| Usage: |
off Grid Power Station |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
Factory Information: ranks NO.1 in the sales of gel battery in China and has more than 20 years of experience in
producing VRLA AGM/Gel solar battery ,VRLA AGM/Gel Backup battery series (UPS),EV battery ,OPzS, OPzV, Lithium -Iron
and lead carbon battery, etc.Quality system & Certifications: ISO9001,ISO14001,OHSAS18001-2007, CE, UL, IEC, ROHS, SGS
Huafu GEL Battery Construction| Element | Electrolyte | Positive Plate | Negative Plate | Container |
| Material | Colloidal Silicon | Lead dioxide | lead | ABS |
| |
| Element | Cover | Safety valve | Terminal/Wire | Separator |
| Material | ABS | Rubber | Copper | Fiberglass |
1). Electrolyte: Be immobilized in the cell through the use of a gelling agent or absorbed in the separators and plates.The cells shall have no residual free or bulk liquid electrolyte.
2). Separators: Made of fiberglass. Be porous to electrolyte but electrically insulating.
3). Continer & Cover: Cell containers and covers shall be made of a high impact, flame-retardant plastic
4). Terminal: Terminal posts shall be cast in lead or lead alloy and have a copper core insert.
5). Valve: The valve operate at the pressure limits specified. The valve will not allow ingress of outside air into the unit.
Huafu 12V65Ah Rechargeable Battery Specification| Battery Rated Voltage | 12V |
| Rated capacity (10 hour rate) | 65Ah |
| Dimension | Length | 350mm (13.79inches) |
| Width | 166mm (6.54inches) |
| Height | 174mm (6.86inches) |
| Total Height (with terminal) | 174mm (6.86inches) |
| Weight Approx | 20Kgs (44Ibs) |
| Terminal | M6 Copper Terminal | Copper Wire |
Huafu 12V65AH Solar Battery Characteristic| Capacity at 25'C (77'C) | 10 hour rate / 1.8V/Cell | 65Ah |
| Charge | Limit initial current to 16.25A. |
| Cycle Applications | 14.4V-14.8V |
| "Float" or "Stand-By" Service | 13.5V-13.8V |
Note: Due to the self-discharge characteristics of this type of battery, it is
imperative that they be charged within 6 months of storage, otherwise permanent
loss of capacity might occur as a result of sulfation. |
| Operating Temperature Range | -35'C~60'C |
Shelf Life
(% of nominal capacity at 77°F (25°C)) | 1 Month | 97% |
| 3 Months | 93% |
| 6 Months | 87% |
| The shelf life shall be a minimum of 6 months at 25°C. The available capacity at the end of this time period shall not be less than 80% of the rated capacity. The cell shall recharge to at least 80% of the rated capacity within 8 hours. |
Huafu Sealed Maintenance Free Battery Feature1). Absorbent Glass Mat (AGM) technology for superior performance
2). Valve regulated, spill proof construction allows safe peration in any position
3). Power/volume ratio yielding unrivaled energy density
4). Rugged impact resistant ABS case and cover (UL94-HB)
5). Integrated ABS carrying handles for ease of movement
6). U.L. CE. IEC. SGS. RoHS. ISO9001. ISO14001. OHSAS18001-2007 recognized
7). Maintenance-free operation - no addition of water to the electrolyte is required.
8). Wide range of operating temperatures with temperature compensated charging.
9). Computer designed lead, calcium tin alloy grid for high power density.
10). Extended service life due to low self-discharge levels.
Huafu 12V100AH Battery Packing information| In carton | packing in wooden Box |
| Pcs/Ctn | Ctn | Ctns/Box | Box Size |
| 1 | 363*179*220mm | 60 | 1140*965*1050mm |
| |
Huafu Company Info Video Links: https://youtu.be/ym-x6_zv4YY
Huafu High Technology Energy Storage Co., Ltd is a leader in battery industry for energy storage in China, manufacturer ranks NO. 1 in sales of GEL battery in Chinses market, with more than 20 years experience in producing and exporting environmental friendly Rechargeable Valve Regulated Lead Acid (VRLA) Battery, AGM Sealed Lead Acid (SLA) Batteries, Deep cycle Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, Specialty batteries for plateaus, OPzV Battery, OPzS Batteries, Telecom Batteries, Lead Carbon, Lithium batteries.
Established in 1990, located in Gaoyou Industrical Park of 180000 square meters in Jiangsu, China. Today, Huafu has nearly 200 full-time R&D personnel, nearly 100 part-time R&D personnel, has built a national post-doctoral workstaions, technology research institution for energy storage materials. With International advanced automatic equipment and excellent producing process, Huafu produces an annual capacity of approximately 4, 000, 000kVAh.
Lead battery & Lithium Battery are our major prodcuts: Classify our lead battery into Energy Storage Battery Series, Back-Up Battery, EV Battery. The Energy Storage Battery Series includes 2V and 12V AMG lead acid battery, AGM GEL Battery, Pure Gel Battery, Solar Deep Cycle battery, Lead-Carbon battery, Heat-tolerant battery, Tubular OPZV battery, Tubular OPZS battery. The Back-up battery series includes 2V and 12V VRLA Battery, Telecom Front terminal battery. Our EV battery includes 6V, 8V, 12V battery for electric vehicle, electric forklift, etc. Lithium battery includes LiFePO4, Ternary lithium power battery.
In the passed 20 years, HUAFU staffs has been insisted on gaining the believe of customers by our quality. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognition, like UK's IEC60896.21/22. IEC61427, CE authentication of the European Union, UL recognition of the USA, Soncap certification for Nigeria and Golden Sunflower. RoHS, SGS, etc.
HUAFU ranks NO. 1 in sales of GEL battery in Chinese market. We has been cooperating with China Mobile Limited & Unicom Limited, ZTE Corporation, China Tower, Huawei Technologies, Emerson. Export from 10 years ago, near to Shanghai Port, Our long-term business ship has been built with Philips. Our products has also sold to USA, Brazil, Russia, Iran, Korea, Thailand, South Africa, Nigeria, Italy, Greece, Germany, Spain, etc.
Best Quality, Good Service, In time Support, Competitive Price. Choose Us!
