| Prod Model: |
CS12-65 |
| Voltage: |
12V Gel Battery |
| Size: |
L*W*H=350*167*176mm |
| Capacity: |
65ah Solar Battery |
| Weight: |
20kgs AGM Battery for Solar |
| Warranty: |
3 Years SLA UPS Battery |
| Expected Cycle Time: |
15-20 Years Deep Cycle Battery |
| Delivery Time: |
7days Solar Inverter Battery |
| Brand: |
Cspower/OEM |
| Export Markets: |
Global Storage Battery |
| Terminal: |
T3 Lead Acid Battery |
| Usage: |
Car, Electric Power, Lighting, Boat, Bus, Electric Bicycle, UPS |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Electrolyte: |
Acid |
| Installation: |
Fixed |
| Rechargeable: |
Chargeable |
Product Description

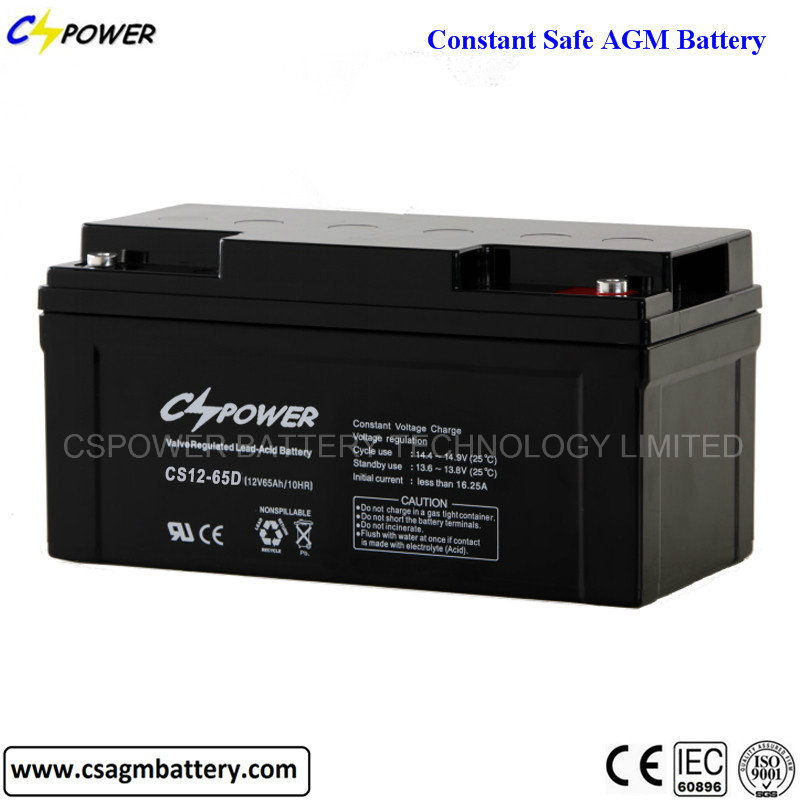

Solar Battery Manufacturer 12V 65ah lead acid AGM Battery for solar
CSPOWER Manufacturer 2V/6V/12V Battery Solar AGM battery sealed lead acid Battery, AGM sealed free maintenance lead acid battery, Solar deep cycle battery upto 2V3000Ah, 6V300Ah, 12V300Ah, total over 400models, mainly used for solar power, wind power, ups system, inverter system, telecom, golf cart, electric vehicles and so on.
Application
- street lighting system and solar garden light system
- UPS
- Alarm System
- Cable Television
- Communication Equipment
- Control Equipment
- Security System
- Medical Equipment
- Power Tools
- Toys
- Emergency Power System
Quality Assurance
- Equipment control
We adopt the entire computer automatic control (Density testing, adding acid, charging, etc. )
- Raw material control
Any raw material will be forbidden used in the production if they didn't pass the testing by laboratory strictly.
- Production process control
The semi-finished products must pass several inspections in the production line.
- Finished products control
Before packaging, the finished battery must be tested 100% by our function testing machine and pass the inner resistance testing, density testing, 3-5º C discharge performance testing etc.
- Shipment control
The goods can't be sold unless their appearance and performance are tested 100% by the professional inspector.
Why choose us
1. Door to door service.
2. Low cost raw material with high quality. We have own plates factory, can manufacture plates by ourselves.
3. Independent designer with more than 10 years design experience.
4. Chief engineers with more than 20years experience in battery field.
5. Product with the international market step.
6. We focus on quality, never use faulse gel and recycle lead.
7. All production lines in our factory are automatic and imported from Germany.
8. Our products are exported to Middle East, Europe, France, Canada, Japan, Korea and else.
9. We would like stand with you in same line to open market with long term business.
About CSPOWER:
Our office is in Shenzhen, factories located in Dongguan and Shaoguan China.
We have obtained CE, ISO, IEC certificates and SGS test report for battery.
CSPOWER Battery Tech Co.,Ltd supply our customers reliable products with high quality and competitive price, since we have our own Lead mine & smelter factory & plate factory & SLA battery assembling factory, the purity quotient of our lead is 99.997%.
OUR BATTERY MATERIAL ADVANTAGES:
1) Container/Cover: Made of UL94HB and UL 94-0ABS Plastic, fire resistance and water proof.
2) 99.99% pure new lead NEVER use recycle lead.
3) Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
4) High quality AGM separator
5) Positive plates: PbCa grids minimize corrosion and prolong life.
6) Terminal post: Copper or lead material with maximum conductivity, enhance the high current rapidly.
7) Vent Valve: Allows the release of the excess gas automatically for safety.
8) Three steps of Seal procedures: Ensure battery completely sealed with safety, never leakage and volatile acid, longer life.
Specification
| CSPOWER MODEL | Voltage | Capacity | Body Dimension (mm) | Weight (kg) | Terminal | Bolt |
| (V) | (Ah) | Length | Width | Height | Total Height | (±3%) |
| CS6-180D | 6 | 180/10HR | 260 | 180 | 247 | 251 | 27.5 | T5 | M8×16 |
| CS6-180DA | 6 | 180/10HR | 306 | 168 | 220 | 226 | 27 | T5 | M8×16 |
| CS6-200D | 6 | 200/10HR | 260 | 180 | 247 | 251 | 29.5 | T5 | M8×16 |
| CS6-200DA | 6 | 200/10HR | 323 | 178 | 224 | 229 | 29.5 | T5 | M8×16 |
| CS6-200DB | 6 | 200/20HR | 306 | 168 | 220 | 222 | 30 | T5 | M8×16 |
| CS6-210D | 6 | 210/20HR | 260 | 180 | 247 | 249 | 29.5 | T5 | M8×16 |
| CS6-220D | 6 | 220/20HR | 306 | 168 | 220 | 222 | 31.5 | T5 | M8×16 |
| CS6-225D | 6 | 225/20HR | 243 | 187 | 275 | 275 | 30.5 | T5 | M8×16 |
| CS6-310D | 6 | 310/20HR | 295 | 178 | 346 | 366 | 46 | T5 | M8×16 |
| CS6-330D | 6 | 330/20HR | 295 | 178 | 354 | 360 | 46.6 | T5 | M8×16 |
| CS6-380D | 6 | 380/20HR | 295 | 178 | 404 | 410 | 55.3 | T5 | M8×16 |
| CS6-420D | 6 | 420/20HR | 295 | 178 | 404 | 410 | 56.8 | T5 | M8×16 |
| CS12-15D | 12 | 15/10HR | 152 | 99 | 96 | 102 | 3.8 | F1/F2 | / |
| CS12-17D/18D | 12 | 17/18/10HR | 181 | 77 | 167 | 167 | 5.2 | T1 | M5×16 |
| CS12-20D | 12 | 20/10HR | 181 | 77 | 167 | 167 | 6 | T2 | M6×16 |
| CS12-24D | 12 | 24/10HR | 166 | 126 | 174 | 174 | 7.7 | T2 | M6×16 |
| CS12-26D | 12 | 26/10HR | 166 | 175 | 126 | 126 | 8.3 | T2 | M6×16 |
| CS12-33D | 12 | 33/10HR | 196 | 130 | 155 | 167 | 10 | T2 | M6×16 |
| CS12-38D | 12 | 38/10HR | 198 | 166 | 172 | 172 | 12.3 | T2 | M6×16 |
| CS12-45D | 12 | 45/10HR | 198 | 166 | 174 | 174 | 13 | T2 | M6×16 |
| CS12-50D | 12 | 50/10HR | 229 | 138 | 208 | 212 | 15.5 | T3 | M6×16 |
| CS12-55D | 12 | 55/10HR | 229 | 138 | 208 | 212 | 16.2 | T3 | M6×16 |
| CS12-65D | 12 | 65/10HR | 350 | 167 | 178 | 178 | 20.5 | T3 | M6×16 |
| CS12-70D | 12 | 70/10HR | 350 | 167 | 178 | 178 | 21.5 | T3 | M6×16 |
| CS12-75D | 12 | 75/10HR | 260 | 169 | 211 | 215 | 22 | T3 | M6×16 |
| CS12-80D | 12 | 85/10HR | 260 | 169 | 211 | 215 | 23.5 | T3 | M8×16 |
| CS12-85D | 12 | 85/10HR | 331 | 174 | 214 | 219 | 25 | T3 | M6×16 |
| CS12-90D | 12 | 90/10HR | 307 | 169 | 211 | 216 | 26.5 | T4 | M8×16 |
| CS12-100D | 12 | 100/10HR | 331 | 174 | 214 | 219 | 28 | T4 | M8×16 |
| CS12-100DA | 12 | 100/10HR | 331 | 174 | 214 | 219 | 29 | T4 | M6×16 |
| CS12-120D | 12 | 120/10HR | 407 | 173 | 210 | 233 | 33 | T5 | M8×16 |
| CS12-120DA | 12 | 120/10HR | 407 | 173 | 210 | 233 | 34 | T5 | M8×16 |
| CS12-135D | 12 | 135/10HR | 341 | 173 | 283 | 288 | 41 | T5 | M8×16 |
| CS12-150DA | 12 | 150/10HR | 484 | 171 | 241 | 241 | 41 | T4 | M8×16 |
| CS12-150D | 12 | 150/10HR | 484 | 171 | 241 | 241 | 44 | T4 | M8×16 |
| CS12-160D | 12 | 160/10HR | 532 | 206 | 216 | 222 | 48.5 | T4 | M8×16 |
| CS12-180D | 12 | 180/10HR | 532 | 206 | 216 | 222 | 53 | T4 | M8×16 |
| CS12-200D | 12 | 200/10HR | 522 | 240 | 219 | 225 | 56 | T5 | M8×16 |
| CS12-200DA | 12 | 200/10HR | 522 | 240 | 219 | 225 | 58.2 | T5 | M8×16 |
| CS12-230D | 12 | 230/10HR | 522 | 240 | 219 | 225 | 61 | T5 | M8×16 |
| CS12-250D | 12 | 250/10HR | 520 | 268 | 220 | 225 | 70 | T5 | M8×16 |
| CS12-300D | 12 | 300/10HR | 520 | 268 | 220 | 225 | 77 | T5 | M8×16 |
| Products will be improved without notice, please contact sales for specification in kind prevail. |
www.csagmbattery.com
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
