Telong Energy Technology Co., Ltd. >> 12V6ah Solar Power Battery with CE UL RoHS

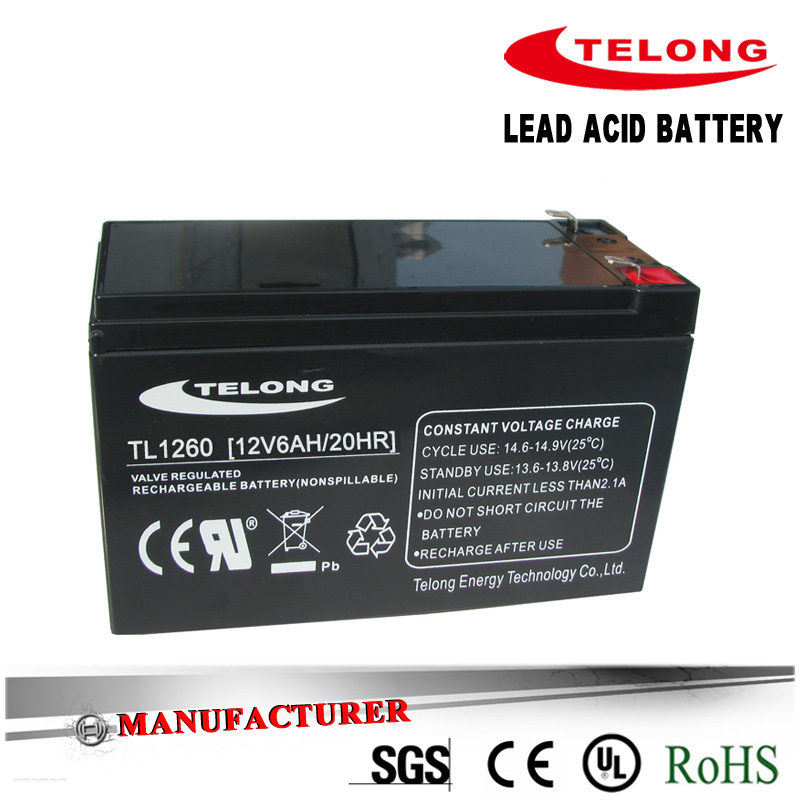

12V6ah Solar Power Battery with CE UL RoHS

12V6ah Solar Power Battery with CE UL RoHS
Price: US $ 5.50-6.0/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: TL1260
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Normal Capacity: 6 Ah
Hour Rate: 20
Size: 151(L)*65(W)*95(H)Mm
Weight: 1.9 Kg
Color: Black / White
Container Material: ABS
Charge Voltage (Cycle): 14.4~15V
Charge Voltage (Float): 13.5~13.8V
Designed Lifef: 3-5 Years
Warranty: 1 Year
Type: Lead-Acid Batteries
Usage: Electric Toys /Tools
Nominal Voltage: 12V
Discharge Rate: High Discharge Rate
Shape: Square Battery
Rechargeable: Chargeable

Product Description


TELONG 12V6ah Battery:  1). Sealed / Maintenance Free / Rechargeable   2).  Warranty: 1 Year , changed with quality problem.
3). OEM / ODM    4). CE UL RoHS approvial     5). Used for: Children car  Solar home kit    Emergency Lighting System.....


BATTERY CONSTRUCTION

ElectrolytePositive PlateNegative PlateContainer
Sulfuric acidLead dioxideleadABS

CoverSafety valveTerminalSeparator
ABSRubberCopperFiberglass


SPECIFICATION

Nominal Voltage12V
Rated capacity (20 hour rate)6.0 Ah
Dimension                Length151mm (5.89 inches)
Width65mm (2.54 inches)
Height                        95mm (3.71inches)
Weight Approx1.9Kg(4.19Ibs)


 QUALITY ASSURANCE

1).Warranty period of one years: the date of the battery from the factory within 12 months, where the Company or the
authority of the professional testing organization determine the quality of failure are battery manufacturers, at designated
locations to give a free replacement battery with the specifications of the new; replace the battery when I While failure
to recover the battery.

2).The identification of large current discharge: new arrival in the battery, 25 ± 1 ºC temperature, fully charged battery
to the model of large current 3 times the rated discharge capacity 7 min, the battery voltage drops below 1.6V / cell,
determined to be unqualified.

3).Determine the capacity of the exception: the new battery installed in the 25 ± 2 ºC after fully charged capacity test,
in three cycles, the 20hour rate capacity can not reach the rated capacity of 90%, After five cycles, 20 hours rate
capacity can not meet 100% of the rated capacity, determined to be ineligible

4).Standard: The Company entered into force in a clear customer contract requirements, contract requirements should be
the standard;if the customer no special requirements, refer to China national machinery Industrial Standard

5).Normal use and maintenance: by TELONG "Lead Acid battery Manual " Operation and Maintenance

6).Quality: The company "technology first, the tree class enterprise; continuous improvement, so the battery quality;
customer first, creating international brand " of quality in strict accordance with ISO9001: 2000 quality system
standards requirements, passion for customer service.


CHARACTERISTICS

Capacity
25'C (77'C)
20 hour rate(0.300A )                                                6.0AH
10 hour rate(0.552A )5.52AH
1 hour rate(3.9A )3.9AH
Internal ResistanceFull charged Battery at 25  'C(77'F  )22 milli-ohm
Capacity affected by Temp40'C (104F)102%
25'C (77'F)100%
0'C (32'F)85%
(-15'C )5'F65%
Self-Discharge
25'C (77'F)
Capacity after 3 month storage91%
Capacity after 6 month storage82%
Capacity after 12 month storage64%
TerminalF1
Charge
(Constant Voltage)
Initial Charging Current less than 1.5 A
Voltage 14.4-15.0V
Voltage 13.5-13.8V



APPLICATIONS

Remote Switching
Control equipments
Communication systems
Alarm systems
Power tools
Medical equipments
Electric toys
Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS) and stand-by power for computers



OTHER INFORMATION

1Logo: silk printing
2Packaging: in Carton Box Packing in Wooden Pallet
3Payment terms: T/T(with 30% deposit); L/C at sight
4Date of delivery: 15-35 days after receipt of the deposit
5Loading port: Shenzhen (China)
6Sample charge: FREE

Shenzhen Telong Energy Technology Co., Ltd was founded in 2005, Specialized in researching, developing, producing and sales of lead acid battery, lithium battery and Gel battery.

Telong is a leading battery producer in the Chinese market as a deep cycle battery supplier for electric bicycles, distributed primarily under the Telong brand. With over ten years of experience and extensive technical expertise in the lead-acid battery industry, Telong's dedication to research and development is evident in increasingly widespread recognition of Telong goods offering consistent quality in high capacity, high energy density, deep discharge, more cycles with sustained discharge time, and more operational stability.

Telong has mainly produce the following series - CR\ER\PL\DZM\TL\TEL\GEL\TLD\TLF\OPZV\OPZS including 500 kinds of products. These products are widely used by many different industries, such as telecommunication, power system, radio and television system, railway, solar, UPS, electric vehicles, cars, golf cars, forklifts, emergency lights, security, alarm, gardening tool, baby carrier etc. Its worldwide sales network already covers more than 100 countries and regions, and has a good cooperation partnership with several excellent operators.

In an endless pursuit of perfection, Telong continues to blaze new trails in quality battery production. For quality control, Telong established professional Quality Management Center and successfully got the certificates of ISO9001, TS16949 quality management system and ISO14001 environment management system and also has passed the audit of OHSAS18001. The products has been authorized as 'Good quality products and Inspection-free in China' by national quality inspection department. Telong Products have also obtained the CE and RoHS authentication of the European Union, UL recognition the USA, Our reputation is built on the promise that ethical behavior and fair business practices will result in a satisfied and growing customer base. Telong prides itself by delivering its promises in a timely and efficient manner. We listen attentively to our customers, and are constantly reviewing our business practices and procedures in order to make changes that will benefit our customers.
