| Prod Model: |
CS12-7.2D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
12V Rechargeable Battery |
| Size: |
L*W*H=151*65*95mm Rechargeable Battery |
| Capacity: |
7.2ah Lead Acid Battery |
| Weight: |
2kgs UPS Battery |
| Warranty: |
1 Year Solar Battery |
| Delivery Time: |
7 Days SMF Battery |
| Brand: |
Cspower/OEM Storage Battery |
| Export Markets: |
Global Power Battery |
| Terminal Type: |
T2 VRLA Battery |
| Color: |
Black or Black Grey |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

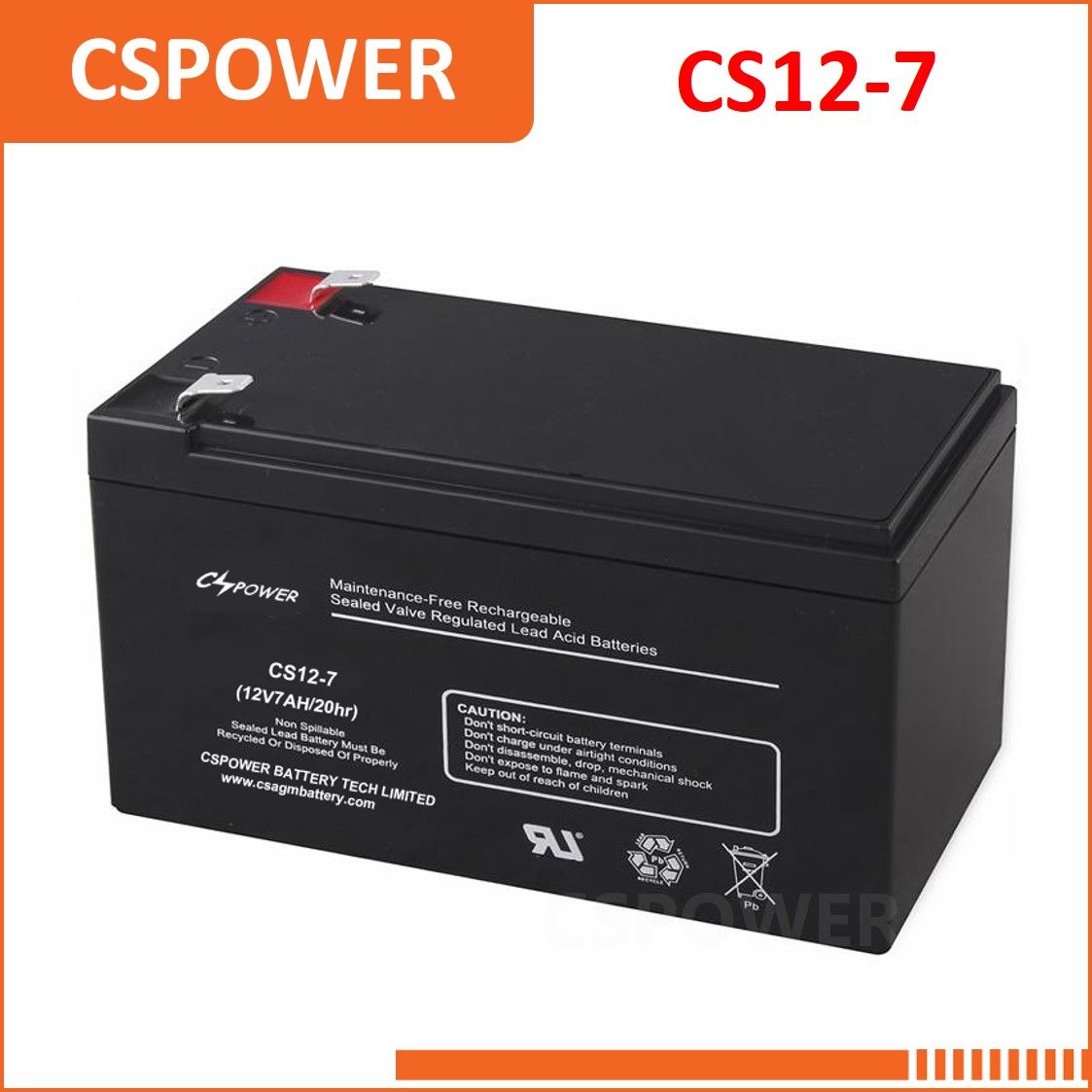

12v7.2ah Rechargeable SLA Battery for ups units
Characteristics
1. Rechargeable Battery SMF Battery UPS Battery lead acid Battery 12V
2. Solar battery/UPS battery/SLA battery12V4ah, 7ah, 7.2ah, 9ah, 12ah, 18ah
3. Maintenance free UPS/SLA Battery
4. Warranty 1years
5. Lead time within 20days
6. CE, ISO, IEC, SGS certificates
Advanced Features:
1. Sealed and maintenance free operation
2. Non-Spillable construction design
3. Safety valve installation for explosion proof.
4. High quality and high reliability.
5. Exceptional deep discharge recovery performance.
6. Low self discharge characteristic.
7. Flexibility design for multiple install positions
8. The operating ambient temperature -40 to +65
9. Long life span 5-8 years
10. Using oxygen recombination technology: Maintenance-free
Application
- Alarm System
- UPS
- Emergency Power System
- Cable Television
- Communication Equipment
- Control Equipment
- Security System
- Medical Equipment
- Power Tools
- Toys
OUR BATTERY MATERIAL ADVANTAGES:
1) Container/Cover: Made of UL94HB and UL 94-0ABS Plastic, fire resistance and water proof.
2) 99.99% pure new lead NEVER use recycle lead.
3) Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
4) High quality AGM separator
5) Positive plates: PbCa grids minimize corrosion and prolong life.
6) Terminal post: Copper or lead material with maximum conductivity, enhance the high current rapidly.
7) Vent Valve: Allows the release of the excess gas automatically for safety.
8) Three steps of Seal procedures: Ensure battery completely sealed with safety, never leakage and volatile acid, longer life.
Operation and maintenance manual
For maintenance free battery, it's free maintenance in the operation. But we can only use it in proper operation to keep the long lifetime of the battery,
(1) Battery Installation
Batteries should be installed possibly in a clean, cool, ventilated and dry place. The battery should be placed upright. Each terminal between the batteries is connected firmly.
(2) The ambient temperature
Ambient temperature is important factor for the battery operation. When the ambient temperature is too high, Battery plate corrosion will be increased, while absorbing more moisture; When the ambient temperature is too low, the battery will not be full charged. All this will affect the battery life. Therefore we suggest the working ambient temperature is around 25 º C.
(3) The charge and discharge current
Battery charge and discharge current usually uses the concept C, the actual value of C is related to the capacity of the battery. For example, a 100AH battery: 1C = 100A. Charging current is around 0.1C; The charging current must not be bigger than 0.3C. Discharge current general requirements in 0.05 ~ 3C range.
(4) Charging voltage
After the battery is full converted to float charging, the float voltage is around 13.0V. If the charging voltage is too high will cause the battery overcharge, otherwise the battery will not be full charged. Charging voltage is abnormal, it may be caused by the battery configuration error, or it may be caused by controller failure. Do not choose the controller with bad quality.
(5) The depth of discharge
Depth of discharge of the battery life is also a important factor for lifetime of battery, the deeper the battery discharge, the fewer the number of cycles, so battery should avoided from deep discharge.
(6) Regular maintenance
Battery should be regular checked in every period time after used, such as check its outlook, measuring the average voltage of each battery, etc.
Our goal
Creative.
Excellent quality.
Top service.
Stand same line with customer.
Long term business.
Contact CSPOWER Details:
Web: www.csbattery.net
www.csagmbattery.com
www.cssolarbattery.com
http://cspower.en.made-in-china.com/
| Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 10hrs/25 | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CS12-1.2D | 12 | 1.2 | 0.55 | 1.21 | 98 | 3.86 | 45 | 1.77 | 52 | 2.05 | 59 | 2.32 | T0 |
| CS12-1.3D | 12 | 1.3 | 0.55 | 1.21 | 98 | 3.86 | 45 | 1.77 | 52 | 2.05 | 59 | 2.32 | T0 |
| CS12-1.9D | 12 | 1.9 | 0.87 | 1.91 | 178 | 7.01 | 35 | 1.38 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-2.9D | 12 | 2.9 | 1.05 | 2.31 | 79 | 3.11 | 56 | 2.20 | 100 | 3.94 | 106 | 4.17 | T0 |
| CS12-2.3D | 12 | 2.3 | 0.90 | 1.98 | 178 | 7.01 | 34 | 1.34 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-3.3D | 12 | 3.3 | 1.24 | 2.73 | 134 | 5.28 | 67 | 2.64 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-3.5D | 12 | 3.5 | 1.28 | 2.82 | 134 | 5.28 | 67 | 2.64 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-4D | 12 | 4 | 1.35 | 2.97 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS12-4.5D | 12 | 4.5 | 1.53 | 3.37 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS12-5D | 12 | 5 | 1.70 | 3.74 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS12-5.5D | 12 | 5.5 | 1.86 | 4.09 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-5D | 12 | 5 | 1.67 | 3.67 | 151 | 5.94 | 51 | 2.01 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-6.5D | 12 | 6.5 | 2.00 | 4.4 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | T1 |
| CS12-7D | 12 | 7 | 2.10 | 4.62 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-7.2D | 12 | 7.2 | 2.20 | 4.84 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-7.5D | 12 | 7.5 | 2.30 | 5.06 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-8D | 12 | 8 | 2.35 | 5.17 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-9D | 12 | 9 | 2.50 | 5.50 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-10D | 12 | 10 | 3.10 | 6.82 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-10D | 12 | 10 | 2.95 | 6.49 | 151 | 5.94 | 65 | 2.56 | 111 | 4.37 | 116 | 4.57 | T2 |
| CS12-12D | 12 | 12 | 3.35 | 7.37 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-14D | 12 | 14 | 3.65 | 8.03 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-15D | 12 | 15 | 4.80 | 10.56 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-17D | 12 | 17 | 5.00 | 11.00 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-18D | 12 | 18 | 5.00 | 11.00 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-20D | 12 | 20 | 5.50 | 12.10 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-24D | 12 | 24 | 7.60 | 16.72 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-24D | 12 | 24 | 7.80 | 17.16 | 166 | 6.54 | 126 | 4.96 | 174 | 6.85 | 181 | 7.13 | T32 |
| CS12-26D | 12 | 26 | 8.10 | 17.82 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-28D | 12 | 28 | 8.60 | 18.92 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-28D | 12 | 28 | 9.00 | 19.80 | 166 | 6.54 | 126 | 4.96 | 174 | 6.85 | 181 | 7.13 | T4 |
| CS12-33D | 12 | 33 | 10.00 | 22.00 | 196 | 7.72 | 131 | 5.16 | 163 | 6.42 | 180 | 7.09 | T16 |
| CS12-35D | 12 | 35 | 10.20 | 22.44 | 196 | 7.72 | 131 | 5.16 | 163 | 6.42 | 180 | 7.09 | T16 |
| CS12-38D | 12 | 38 | 12.20 | 26.84 | 197 | 7.76 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CS12-40D | 12 | 40 | 13.0 | 28.7 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CS12-45D | 12 | 45 | 13.50 | 29.70 | 197 | 7.76 | 166 | 6.54 | 171 | 6.73 | 171 | 6.73 | T12 |
| CS12-50D | 12 | 50 | 16.20 | 35.64 | 230 | 9.06 | 138 | 5.43 | 211 | 8.31 | 224 | 8.82 | T12 |
| CS12-55D | 12 | 55 | 16.20 | 35.64 | 230 | 9.06 | 138 | 5.43 | 211 | 8.31 | 229 | 9.02 | T9/T16 |
| CS12-60D | 12 | 60 | 19.40 | 42.68 | 350 | 13.78 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T7 |
| CS12-65D | 12 | 65 | 20.50 | 45.10 | 350 | 13.78 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| CS12-70D | 12 | 70 | 22.00 | 48.40 | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | T16 |
| CS12-80D | 12 | 80 | 23.40 | 51.48 | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | T14 |
| CS12-80D | 12 | 80 | 22.50 | 49.50 | 350 | 13.78 | 169 | 6.65 | 179 | 7.05 | 179 | 7.05 | T14 |
| CS12-90D | 12 | 90 | 27.00 | 59.40 | 307 | 12.09 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | T16 |
| CS12-90D | 12 | 90 | 27.00 | 59.40 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T8 |
| CS12-100D | 12 | 100 | 29.80 | 65.56 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CS12-100P | 12 | 100 | 30.00 | 66.00 | 407 | 16.02 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-110D | 12 | 110 | 31.10 | 68.42 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CS12-110P | 12 | 110 | 33.40 | 73.48 | 407 | 16.02 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-120D | 12 | 120 | 36.50 | 80.30 | 407 | 16.02 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-150D | 12 | 150 | 42.50 | 93.50 | 484 | 19.06 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | T11 |
| CS12-160D | 12 | 160 | 49.00 | 107.80 | 494 | 19.45 | 204 | 8.03 | 208 | 8.19 | 232 | 9.13 | T18 |
| CS12-165D | 12 | 165 | 49.00 | 107.80 | 494 | 19.45 | 204 | 8.03 | 208 | 8.19 | 232 | 9.13 | T11 |
| CS12-180D | 12 | 180 | 56.50 | 124.30 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-200D | 12 | 200 | 60.00 | 132.00 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-230D | 12 | 230 | 64.00 | 140.80 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T9 |
| CS12-250D | 12 | 250 | 69.50 | 152.90 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T9 |
| CS12-250P | 12 | 250 | 68.00 | 149.60 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-300D | 12 | 300 | 73.00 | 160.60 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T11 |
