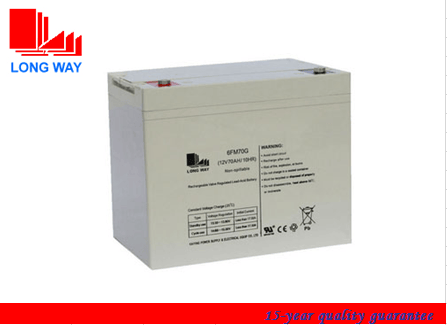

12V70ah SLA Solar Battery for Emergency Lighting System

Name: 12V70ah SLA Solar Battery for Emergency Lighting System
Brand: all-electronics-online.com
SKU: 724980182
Availability: InStock
Rating: 4.3 (40 reviews)

Price:	US $ 63-66/Piece
Min Order:	75/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	12V70Ah
Color:	Grey or Black
Terminal:	F10
Material:	ABS Plastic
Cells Per Unit:	6
Certificate:	Ce/UL/ISO9001/ISO14001/Ohsas18001
Capacity:	70ah@20hr
Packagaing:	1 Pieces in One Carton
Raw Material:	1# Lead,Purity up to 99.994%
Type:	Lead-Acid Batteries
Usage:	Lighting
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

Equipment Sealed Rechargeable Lead Acid SLA Battery 12V70AH

LONGWAY lead acid battery used for UPS / AGM / VRLA / SLA  maintenance-free battery
          I. Power storage  Solar & Wind System (Deep Cycle Battery)
          II. Standby use  UPS battery, Emergence & Alarm, Lighting & Security, Sounding, etc...
          III. Telecommunication and stationary lead acid battery.
  6V - 1.2Ah to 220Ah used for emergency lighting and alarm lighting and sound application.
12V - 0.8Ah to 250Ah used for power storage and backup for standby power & deep cycle use.
2V - 50Ah to 3000Ah used for solar power systems and telecommunication are using all self-made high quality and thick deep cycle plates.

* Model: 6FM70 (12V70AH/10HR)
* Size: 260*169*210(Total Height: 233) MM
* Approx Weight: Approx.(21.3±3%) kg (46.96lbs)
* Terminal: NB/B&F10
* Packing Qty.: : 1 PCS/CTN
*Cells per Unit:6
*Normal Voltage:12V
*Capacity:70Ah@10Hr-rate to 1.80V per cell@25ºC
*Maximum Discharge Current:700A(5sec)
*Internal Resistance:Approx. 6.0mΩ full charged @25ºC
*Operating Temperature RangeDischarge:   -15ºC~50ºC
* Charge: -15ºC~40ºC
* Storage: -15ºC~40ºC
*Nominal Operating Temperature Range:25ºC±3ºC
*Float Charging Voltage:13.7~13.9VDC/unit Average @25ºC
*Maximum Charging Current :17.5A
*Equalization and Cycle Service:14.4V~15.0VDC/unit Average @ 25ºC
*Self Discharge:LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be storedfor more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.
*Container Material:ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request
* Lead-Time: 20 Days after confirming the order For One Container

*Application:
Lighting system;
Security system;
Electric toy;
Medical equipment;
Telecommunication system;
Power systems;
UPS;

*General Features:
Maintenance free;
Convenient for installation;
Safety and no leakage;
Excellent recharge and discharge performance;
Low self-discharge rate;
UL approval

*Designed Service Life: 8 years
*warranty: 2 years
*OEM Acceptable

Our factory photo

Our certificate

For more information, please contact us and welcome you.

Standby LONGWAY 12Volt Standard Series batteries
Battery Model	Nominal Voltage (V)	Nominal Capacity (AH) 20HR	Length		Width		Height		Total Height		Weight(±3%)		Terminal
Battery Model	Nominal Voltage (V)	Nominal Capacity (AH) 20HR	In	mm	In	mm	In	mm	In	mm	lbs	Kg	Type
6FM1.2	12	1.2	3.86	98	1.71	43.5	2.05	52	2.28	58	1.26	0.57	F1
6FM2T	12	2	5.94	151	0.79	20	3.54	90	3.54	90	1.37	0.62	F1
6FM2.0E	12	2	7	178	1.38	35	2.40	61	2.64	67	1.87	0.85	F1
6FM2.2	12	2.2	2.76	70.5	1.87	47.5	3.90	99	4.09	104	1.7	0.77	F1
6FM2.4	12	2.4	7	178	1.38	35	2.40	61	2.64	67	2.1	0.97	F1
6FM2.6A	12	2.6	4.09	104	1.89	48	2.76	70	2.76	70	1.94	0.88	PC
6FM2.6B	12	2.6	2.76	70.5	1.87	47.5	3.90	99	4.010	104	1.87	0.85	F1
6FM2.8	12	2.8	2.66	67.5	2.66	67.5	3.82	97	4.02	102	2.43	1.1	F1
6FM2.9	12	2.9	3.11	79	2.20	56	3.90	99	4.10	104	2.2	1	F1
6FM3.2	12	3.2	5.28	134	2.64	67	2.34	59.5	2.60	66	2.8	1.27	F1/F2
6FM4	12	4	3.54	90	2.76	70	3.98	101	4.21	107	3.09	1.4	F1/F2
6FM4E	12	4	3.54	90	2.76	70	3.98	101	4.21	107	2.54	1.15	F1/F2
6FM4.2	12	4.2	3.54	90	2.76	70	3.98	101	4.21	107	3.15	1.43	F1/F2
6FM4.5	12	4.5	3.54	90	2.76	70	3.98	101	4.21	107	3.31	1.5	F1/F2
6FM5	12	5	3.54	90	2.76	70	3.98	101	4.21	107	3.57	1.62	F1/F2
6FM5E	12	5	3.54	90	2.76	70	3.98	101	4.21	107	3.2	1.45	F1/F2
6FM5A	12	5	5.51	140	1.89	48	4.13	105	4.13	105	3.66	1.66	F2+F1-
6FM5B	12	5	5.94	151	2.01	51	3.66	93	3.90	99	3.66	1.66	F1
6FM5.5	12	5.5	3.54	90	2.76	70	3.98	101	4.21	107	3.86	1.75	F1/F2
6FM5.5A	12	5.5	5.51	140	1.89	48	4.13	105	4.13	105	3.86	1.75	F2+F1-
6FM5.5B	12	5.5	5.94	151	2.01	51	3.66	93	3.90	99	3.86	1.75	F1
6FM7	12	7	5.94	151	2.56	65	3.70	94	3.94	100	4.41	2	F1/F2
6FM7.2	12	7.2	5.94	151	2.56	65	3.70	94	3.94	100	4.52	2.05	F1/F2
6FM7.5A	12	7.5	5.94	151	2.56	65	3.70	94	3.94	100	4.85	2.2	F1/F2
6FM7.6	12	7.6	5.94	151	2.56	65	3.70	94	3.94	100	4.96	2.25	F1/F2
6FM8E	12	8	5.94	151	2.56	65	3.70	94	3.94	100	5.07	2.3	F1/F2
6FM9	12	9	5.94	151	2.56	65	3.70	94	3.94	100	5.73	2.6	F1/F2
6FM10A	12	10	5.94	151	2.56	65	4.37	111	4.61	117	6.61	3	F2
6FM10B	12	10	5.94	151	2.56	65	4.37	111	4.61	117	6.39	2.9	F2
6FM10C	12	10	5.94	151	3.86	98	3.66	93	3.94	100	6.5	2.95	F2
6FM11	12	11	5.28	134	3.15	80	6.34	161	6.34	161	9.04	4.1	F24
6FM12	12	12	5.94	151	3.86	98	3.66	93	3.94	100	7.17	3.25	F2
6FM12A	12	12	5.94	151	3.86	98	3.78	96	4.02	102	7.17	3.25	F2
6FM14	12	14	5.94	151	3.86	98	3.78	96	4.02	102	8.27	3.75	F2
6FM15	12	15	7.13	181	3.03	77	6.57	167	6.57	167	10.58	4.8	F4/F8
6FM17	12	17	7.13	181	3.03	77	6.57	167	6.57	167	11.02	5	F4/F8
6FM18	12	18	7.13	181	3.03	77	6.57	167	6.57	167	11.9	5.4	F4/F8
6FM18C	12	18	7.13	181	3.03	77	6.57	167	6.57	167	11.24	5.1	F4/F8
6FM20	12	20	7.13	181	3.03	77	6.57	167	6.57	167	13.23	6	F4/F8
6FM22	12	22	7.13	181	3.03	77	6.57	167	6.57	167	12.9	5.85	F4/F8
6FM22E	12	22	7.13	181	3.03	77	6.57	167	6.57	167	13.23	6	F4/F8
6FM24G	12	24	6.89	175	6.54	166	4.96	126	4.96	126	16.76	7.6	F5
6FM24B/G	12	24	6.89	175	6.54	166	4.96	126	4.96	126	16.77	7.6	F8
6FM26G	12	26	6.89	175	6.54	166	4.96	126	4.96	126	18.52	8.4	F5/F8
6FM30	12	30	7.68	195	5.12	130	6.34	161	6.54	166	20.06	9.1	F15
6FM33A/G	12	33	7.68	195	5.12	130	6.34	161	6.54	166	24.25	11	F15
6FM33B/G	12	33	7.68	195	5.12	130	6.34	161	6.54	166	22.49	10.2	F9
6FM35G	12	35	7.68	195	5.12	130	6.34	161	6.54	166	23.15	10.5	F9
6FM35A/G	12	35	7.68	195	5.12	130	6.30	160	6.30	160	23.15	10.5	F9
6FM38G	12	38	7.72	196	6.54	166	6.93	176	7.17	182	28.66	13	F21
6FM40A/G	12	40	7.72	196	6.54	166	6.93	176	7.17	182	29.76	13.5	F21
6FM40B/G	12	40	7.72	196	6.54	166	6.93	176	7.17	182	29.76	13.5	F9
6FM45	12	45	7.72	196	6.54	166	6.93	176	7.17	182	30.86	14	F21
6FM50	12	50	9.02	229	5.43	138	8.19	208	8.39	213	36.86	16.5	F20
6FM55A/G	12	55	9.02	229	5.43	138	8.19	208	8.39	213	37.92	17.2	F20
6FM55B/G	12	55	9.02	229	5.43	138	8.19	208	8.39	213	37.92	17.2	F9
6FM60	12	60	13.78	350	6.54	166	6.89	175	7.05	179	44.09	20	F16
6FM65	12	65	13.78	350	6.54	166	6.89	175	6.89	175	46.3	21	F16
6FM65B/G	12	65	13.78	350	6.61	168	7.09	180	7.09	180	46.3	21	F9
6FM70	12	70	10.2	259	6.65	169	8.19	208	8.39	213	46.96	21.3	F20
6FM80	12	80	12.09	307	6.57	167	8.27	210	8.46	215	55.12	25	F20
6FM80A/G	12	70	10.2	259	6.65	169	8.19	208	8.39	213	47.4	21.5	F10
6FM80E	12	80	12.52	318	7.13	181	6.57	167	6.77	172	49.6	22.5	F9
6FM90	12	90	12.09	307	6.57	167	8.19	208	8.39	213	58.42	26.5	F10
6FM95	12	95	12.09	307	6.57	167	8.19	208	8.39	213	59.52	27	F10
6FM100A	12	100	12.99	330	6.81	173	8.62	219	8.82	224	65.04	29.5	F12
6FM100B	12	100	12.99	330	6.81	173	8.62	219	8.82	224	67.24	30.5	F12
6FM100D	12	100	15.94	405	6.81	173	8.27	210	9.33	237	70.55	32	F17
6FM120	12	120	15.94	405	6.81	173	8.27	210	9.33	237	77.16	35	F17
6FM140	12	140	13.43	341	6.81	173	11.14	283	11.34	288	91.49	41.5	F12
6FM150	12	150	19.02	483	6.69	170	9.49	241	9.49	241	98.11	44.5	F18
6FM160	12	160	13.43	341	6.81	173	11.14	283	11.34	288	99.21	45	F12
6FM180	12	180	20.55	522	9.45	240	8.62	219	8.82	224	127.87	58	F23
6FM200	12	200	20.55	522	9.45	240	8.62	219	8.82	224	127.87	58	F23
6FM230	12	230	20.51	521	10.59	269	7.99	203	8.19	208	143.3	65	F24
6FM250	12	250	20.47	520	10.59	269	8.66	220	9.65	245	154.32	70	F25

Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.

As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.

Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.

During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
