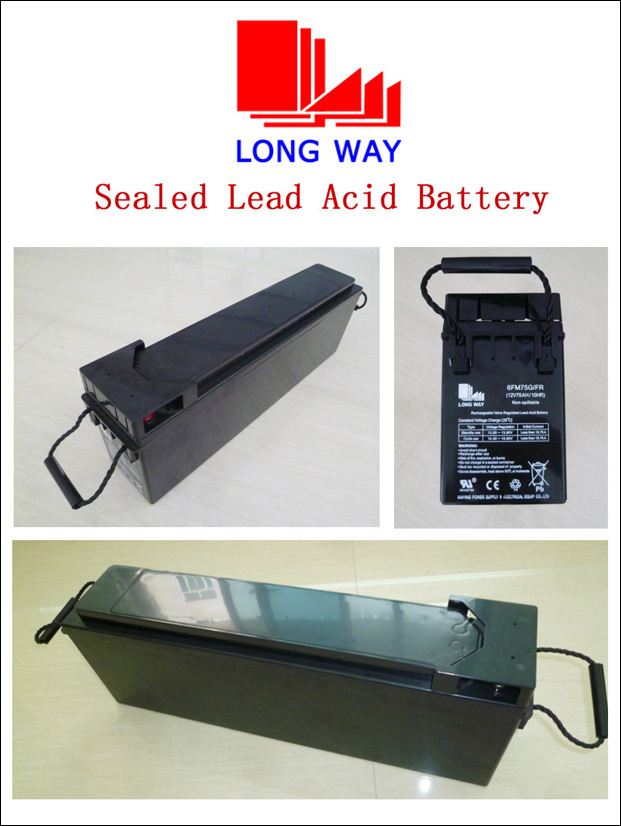

12V75 Fr VRLA Battery Used for UPS System

Prod Model:	12V75
Operating Temperature:	-20c~50c
Design Time:	10-12 Years
Separator:	AGM
Charge Voltage (Cycle):	2.40~2.50V
Container Material:	ABS(UL94-Hb) *Flammability Resistance of (UL94-V0)
Material Lead:	#1 Lead Top Quality in China
Terminal:	Nb or B
Color:	Grey or Black
Self Discharge:	Less Than 3% Per Month
Certificate:	ISO, UL, Ce
Type:	Lead-Acid Batteries
Usage:	Electric Power
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

12V75 FR vrla battery used for UPS system

LONGWAY® FR battery is a front terminal battery. 6FM75FR battery is a front
terminal battery up to 12 years expected life for Telecom use . As with all
LONGWAY® batteries, all are rechargeable highly efficient, leak proof and
maintenance free.

Specifications:
Cells per Unit 6
Normal Voltage 12V
Capacity 75Ah@10Hr-rate to 1.80V per cell@25ºC
Weight Approx(23.5±3%kg) (51.8lbs)
Maximum Discharge Current 750A(5sec)
Internal Resistance Approx. 6.2mΩ full charged @25ºC
Operating Temperature Range Discharge: -20ºC~60ºC
Charge:0ºC~50ºC
Storage: -20ºC~60ºC
Nominal Operating Temperature Range 25ºC±3ºC
Float Charging Voltage 13.7~13.9VDC/unitAverage @25ºC
Maximum Charging Current 18.75A
Equalization and Cycle Service 14.4V~15.0VDC/unit Average @ 25ºC
Self Discharge LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored
for more than 6 months at 25ºC. Self-discharge ratio less than 3%
per month at 25ºC. Please charge batteries before using.
Terminal Terminal F12
Container Material ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request


FR Series
The LONGWAY FR series battery is mainly used in the area of communication, which is novel in design, reasonable in structure and occupying the leading position in the same industry of the world. As with previous INTELEC(international Telecommunications Energy) conferences, many people were concerned about the life and durability of VRLA (Valve Regulated Lead Acid) batteries. It can be employed in numerous applications in the fields of communications. In order to ensure that the power supply is guaranteed at all times, essential facilities are backed up with high performances battery systems. Sudden breaks in the power supply are then no longer a problem. If the power suddenly fails, battery systems take over the emergency supply of power.

General Features
Environmental friendly
Thick pasted plates with high quality lead-tin-calcium alloy grids for long service life
Centralized venting system for gas ventilation
Plastics or rope handles for handling and installation convenience
Front access terminals for easy and quick connection
Low internal resistance
Lower self discharge
Design life is up to 12 years
Case and cover in strong flame retardant ABS. V0 class

Applications
Communication equipment
Uninterruptible Power Supplies
Telecommunication systems
Electronic cash registers
Microprocessor based office machine
Other standby power supplies

If get interest, just contact me freely.



12V75 FR vrla battery used for UPS system
