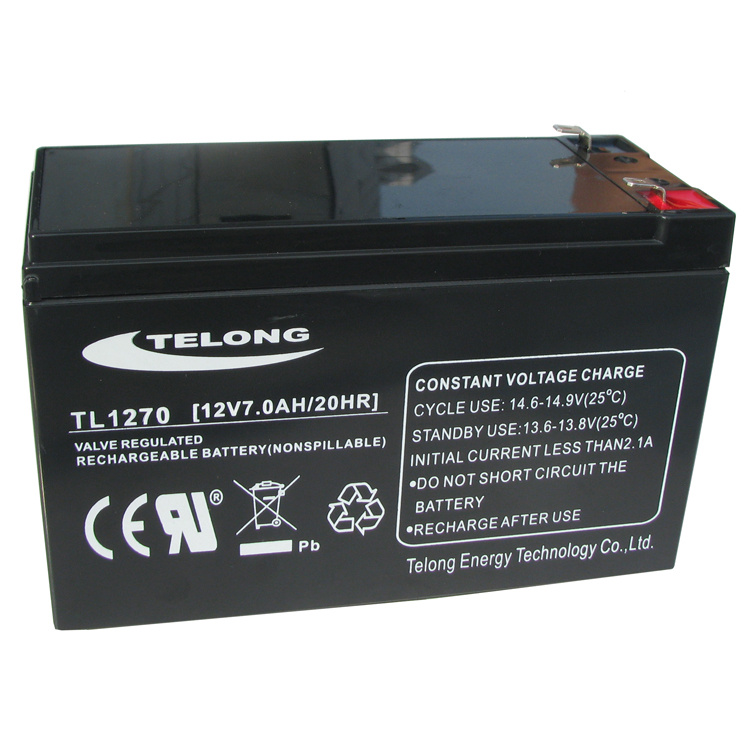

12V7ah Rechargeable Deep Cycle Battery 12V UPS Battery
| Price: |
US $ 6.6-6.9/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
TL1270 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Capacity: |
12V7ah |
| Dimension: |
151*65*95(L*W*H*Tmm) |
| Quality Certificates: |
CE RoHS UL |
| Transportation Certificates: |
SGS MSDS |
| Color: |
White, Black, Grey |
| ODM/OEM: |
Yes |
| Weight: |
2.15kg |
| Company Type: |
Factory, Group Company |
| Container Material: |
ABS |
| Configuration: |
F1.3b4+/5- |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
12V |
Product Description
12V7Ah Battery Rechargeable MF Solar Power Battery
Item No: TL1270
1. Brand Introduction
Established in 2005, TeLong Brand lead acid battery has witnessed 10years' experience development, all our items are according to the CE ROHS UL certificates, which bring us much reputation from all around the world. And that's also the motivation for us to move forward to provide more and better product for our clitents.
2. Characteristics
Capacity
25ºC(77ºF) | 20 hour rate/1.8V | 7A/0.35A |
| 10 hour rate /1.8V | 6.53A/0.653AH |
| 5hour rate /1.75V | 6A/1.2AH |
| 3Hour rate/1.75V | 5.73A/1.79AH
|
| 1 hour rate/1.60V | 4.55A/4.55Ah |
| Internal Resistance | Full Charged Battery at 25ºC(77ºF) | 25 mΩ |
| Capacity afected by teperature (10 hour rate) | 40ºC (104ºF) | 102% |
| 25ºC (77ºF) | 100% |
| 0ºC (32ºF) | 85% |
| -15ºC (5ºF) | 65% |
| Self discharge at 25ºC (77ºF) |
Leoch LP series batteries may be stored for up to 6 months
at 250 C(770F) and then a freshening charge is required.
For higher temperatures the time interval will be shorter.
|
| Terminal | F1/F2 |
|
| Charge(Constant charge) | Cycle | Initial Charging Current less than 1.2A.Voltage
14.4V~15.0V at 250 C(770 F)Temp. Coefficient -30mV/0C |
| Standby Use | No limit on Initial Charging Current Voltage
13.5V~13.8V at 250 C(770 F)Temp. Coefficient -20mV/0C |
| Nominal Operating Temp. Range | 25+/- 3degree(77 +/-5F ) |
3. Application
Electric Powered Toys/ Electric Powered Vehicles
Control System/ Golf Cars and Buggies
Vacuum Cleaners/ Wheel Chairs
Medical Equipments/ UPS
Power Tools/ PVs
4. 12V Lead Acid Battery
| No. | Model No. | Rated Voltage
(V) | Rated Capacity
(AH) | Form Factor(mm) | Terminal | Weight
±4%(Kg) |
| L | W | H |
| mm | mm | mm | Type | Kg |
| 1 | TL1222 | 12 | 2.2 | 70 | 47 | 103 | F1 | 0.8 |
| 2 | TL1223 | 12 | 2.3 | 178 | 34 | 66 | F1 | 0.92 |
| 3 | TL1230 | 12 | 3 | 134 | 66 | 66 | F1/F2 | 1.32 |
| 4 | TL1240 | 12 | 4 | 90 | 70 | 100 | F1/F2 | 1.3 |
| 5 | TL1245 | 12 | 4.5 | 90 | 70 | 100 | F1/F2 | 1.46 |
| 6 | TL1250 | 12 | 5 | 90 | 70 | 100 | F1/F2 | 1.46 |
| 7 | TL1256 | 12 | 5.6 | 90 | 70 | 100 | F1/F2 | 1.7 |
| 8 | TL1260 | 12 | 6 | 151 | 50 | 100 | F1/F2 | 1.8 |
| 9 | TL1270A | 12 | 7 | 151 | 65 | 100 | F1/F2 | 2.05 |
| 10 | TL1270B | 12 | 7 | 151 | 65 | 100 | F1/F2 | 2.15 |
| 11 | TL1280 | 12 | 8 | 151 | 65 | 100 | F1/F2 | 2.3 |
| 12 | TL12100 | 12 | 10 | 151 | 98 | 100 | F1/F2 | 3 |
| 13 | TL12120 | 12 | 12 | 151 | 98 | 100 | F3/F13 | 3.35 |
| 14 | TL12150 | 12 | 15 | 181 | 76 | 167 | F3/F13 | 4.4 |
| 15 | TL12170 | 12 | 17 | 181 | 76 | 167 | F3/F13 | 5 |
| 16 | TL12200 | 12 | 20 | 181 | 76 | 167 | F3/F13 | 5.15 |
| 17 | TL12240 | 12 | 24 | 175 | 166 | 125 | F3/F13 | 8 |
| 18 | TL12320 | 12 | 32 | 196 | 131 | 172 | F7/F11 | 10 |
Shenzhen Telong Energy Technology Co., Ltd was founded in 2005, Specialized in researching, developing, producing and sales of lead acid battery, lithium battery and Gel battery.
Telong is a leading battery producer in the Chinese market as a deep cycle battery supplier for electric bicycles, distributed primarily under the Telong brand. With over ten years of experience and extensive technical expertise in the lead-acid battery industry, Telong's dedication to research and development is evident in increasingly widespread recognition of Telong goods offering consistent quality in high capacity, high energy density, deep discharge, more cycles with sustained discharge time, and more operational stability.
Telong has mainly produce the following series - CR\ER\PL\DZM\TL\TEL\GEL\TLD\TLF\OPZV\OPZS including 500 kinds of products. These products are widely used by many different industries, such as telecommunication, power system, radio and television system, railway, solar, UPS, electric vehicles, cars, golf cars, forklifts, emergency lights, security, alarm, gardening tool, baby carrier etc. Its worldwide sales network already covers more than 100 countries and regions, and has a good cooperation partnership with several excellent operators.
In an endless pursuit of perfection, Telong continues to blaze new trails in quality battery production. For quality control, Telong established professional Quality Management Center and successfully got the certificates of ISO9001, TS16949 quality management system and ISO14001 environment management system and also has passed the audit of OHSAS18001. The products has been authorized as 'Good quality products and Inspection-free in China' by national quality inspection department. Telong Products have also obtained the CE and RoHS authentication of the European Union, UL recognition the USA, Our reputation is built on the promise that ethical behavior and fair business practices will result in a satisfied and growing customer base. Telong prides itself by delivering its promises in a timely and efficient manner. We listen attentively to our customers, and are constantly reviewing our business practices and procedures in order to make changes that will benefit our customers.
