| Prod Model: |
TL1270 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Capacity: |
12V7ah |
| Weight: |
2.0kg |
| Dimension: |
151*65*95(L*W*Hmm) |
| Color: |
Black White Grey |
| Company Type: |
Factory |
| Quality Certificates: |
CE RoHS UL |
| Port: |
Shenzhen |
| Transportation Certificates: |
SGS MSDS |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

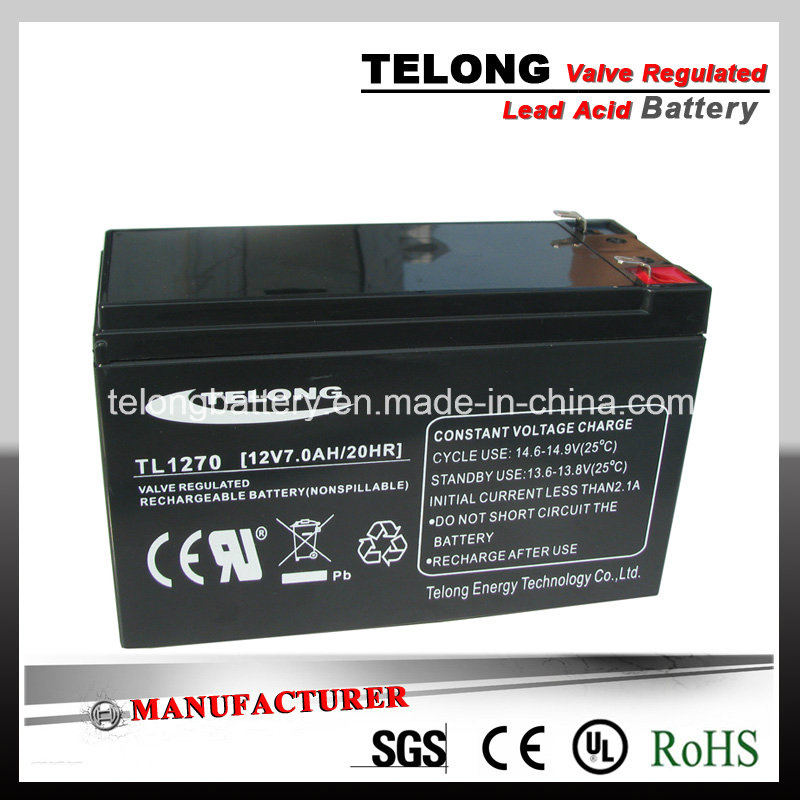

12V7Ah Solar power battery Rechargeable Battery
Item No.: TL1270
1.Product description
-Rated Capacity: 12V7AH
-Weight: 2.0Kg
-Dimension: 151*65*95(L*W*Hmm)
-Color: Black White Grey
-Company Type: Factory
-Certificates: CE ROHS UL
-Port: Shenzhen
2.General features
Sealed Construction
Maintenance Free
Non - Spillable
Absorptive Glass Mat Technology (AGM System)
Gas Recommbination
Position Free & Leakage Free
Stable Quality & High Quality
Long Service Life, Float or Cyclic
Low Pressure Venting System
Safety Measures
Solid Copper Terminal
Low Self Discharge
High Recovery Capability
3. Notice
- Don't put the battery exposure or lost in the fire.
- Don't make the wrong terminals connected when charging.
- Avoid battery short circuit.
- Avoid excessive physical shock or vibration.
- Don't disassemble or deform the battery.
- Keep out of the reach of children.
- Never use a modified or damaged charger.
- Store the battery in a cool, dry and well-ventilated area.
- Regulations vary in different countries, dispose of in accordance with local regulations
4. More informations, welcome to visit our website or contact me directly, all your comments will be highly appreciated.
http://www.sztlg.com/
http://www.telongbattery.com/
http://telonggbattery.en.made-in-china.com/
| No. | Model No. | Rated Voltage
(V) | Rated Capacity
(AH) | Form Factor(mm) | Terminal | Weight
±4%(Kg) |
| L | W | H |
| mm | mm | mm | Type | Kg |
| 1 | TL1222 | 12 | 2.2 | 70 | 47 | 103 | F1 | 0.8 |
| 2 | TL1223 | 12 | 2.3 | 178 | 34 | 66 | F1 | 0.92 |
| 3 | TL1230 | 12 | 3 | 134 | 66 | 66 | F1/F2 | 1.32 |
| 4 | TL1240 | 12 | 4 | 90 | 70 | 100 | F1/F2 | 1.3 |
| 5 | TL1245 | 12 | 4.5 | 90 | 70 | 100 | F1/F2 | 1.46 |
| 6 | TL1250 | 12 | 5 | 90 | 70 | 100 | F1/F2 | 1.46 |
| 7 | TL1256 | 12 | 5.6 | 90 | 70 | 100 | F1/F2 | 1.7 |
| 8 | TL1260 | 12 | 6 | 151 | 50 | 100 | F1/F2 | 1.8 |
| 9 | TL1270A | 12 | 7 | 151 | 65 | 100 | F1/F2 | 2.00 |
| 10 | TL1270B | 12 | 7 | 151 | 65 | 100 | F1/F2 | 2.15 |
| 11 | TL1280 | 12 | 8 | 151 | 65 | 100 | F1/F2 | 2.3 |
| 12 | TL12100 | 12 | 10 | 151 | 98 | 100 | F1/F2 | 3 |
| 13 | TL12120 | 12 | 12 | 151 | 98 | 100 | F3/F13 | 3.35 |
| 14 | TL12150 | 12 | 15 | 181 | 76 | 167 | F3/F13 | 4.4 |
| 15 | TL12170 | 12 | 17 | 181 | 76 | 167 | F3/F13 | 5 |
| 16 | TL12200 | 12 | 20 | 181 | 76 | 167 | F3/F13 | 5.15 |
| 17 | TL12240 | 12 | 24 | 175 | 166 | 125 | F3/F13 | 8 |
| 18 | TL12320 | 12 | 32 | 196 | 131 | 172 | F7/F11 | 10 |
Shenzhen Telong Energy Technology Co., Ltd was founded in 2005, Specialized in researching, developing, producing and sales of lead acid battery, lithium battery and Gel battery.
Telong is a leading battery producer in the Chinese market as a deep cycle battery supplier for electric bicycles, distributed primarily under the Telong brand. With over ten years of experience and extensive technical expertise in the lead-acid battery industry, Telong's dedication to research and development is evident in increasingly widespread recognition of Telong goods offering consistent quality in high capacity, high energy density, deep discharge, more cycles with sustained discharge time, and more operational stability.
Telong has mainly produce the following series - CR\ER\PL\DZM\TL\TEL\GEL\TLD\TLF\OPZV\OPZS including 500 kinds of products. These products are widely used by many different industries, such as telecommunication, power system, radio and television system, railway, solar, UPS, electric vehicles, cars, golf cars, forklifts, emergency lights, security, alarm, gardening tool, baby carrier etc. Its worldwide sales network already covers more than 100 countries and regions, and has a good cooperation partnership with several excellent operators.
In an endless pursuit of perfection, Telong continues to blaze new trails in quality battery production. For quality control, Telong established professional Quality Management Center and successfully got the certificates of ISO9001, TS16949 quality management system and ISO14001 environment management system and also has passed the audit of OHSAS18001. The products has been authorized as 'Good quality products and Inspection-free in China' by national quality inspection department. Telong Products have also obtained the CE and RoHS authentication of the European Union, UL recognition the USA, Our reputation is built on the promise that ethical behavior and fair business practices will result in a satisfied and growing customer base. Telong prides itself by delivering its promises in a timely and efficient manner. We listen attentively to our customers, and are constantly reviewing our business practices and procedures in order to make changes that will benefit our customers.
