| Prod Model: |
12V7Ah |
| Color: |
Grey or Black |
| Terminal: |
F2 |
| Dimensions: |
L225*W47*H100 (Th106)mm |
| Weight: |
2.3kg |
| Type: |
Lead-Acid Batteries |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
| Usage: |
Electaical Scooter |
Product Description
LONGWAY lead acid battery used for UPS / AGM / VRLA / SLA maintenance-free battery
I. Power storage Solar & Wind System (Deep Cycle Battery)
II. Standby use UPS battery, Emergence & Alarm, Lighting & Security, Sounding, etc...
III. Telecommunication and stationary lead acid battery.
6V - 1.2Ah to 190Ah used for emergency lighting and alarm lighting and sound application.
12V - 0.8Ah to 250Ah used for power storage and backup for standby power & deep cycle use.
2V - 50Ah to 2500Ah used for solar power systems and telecommunication are using all self-made high quality and thick deep cycle plates.

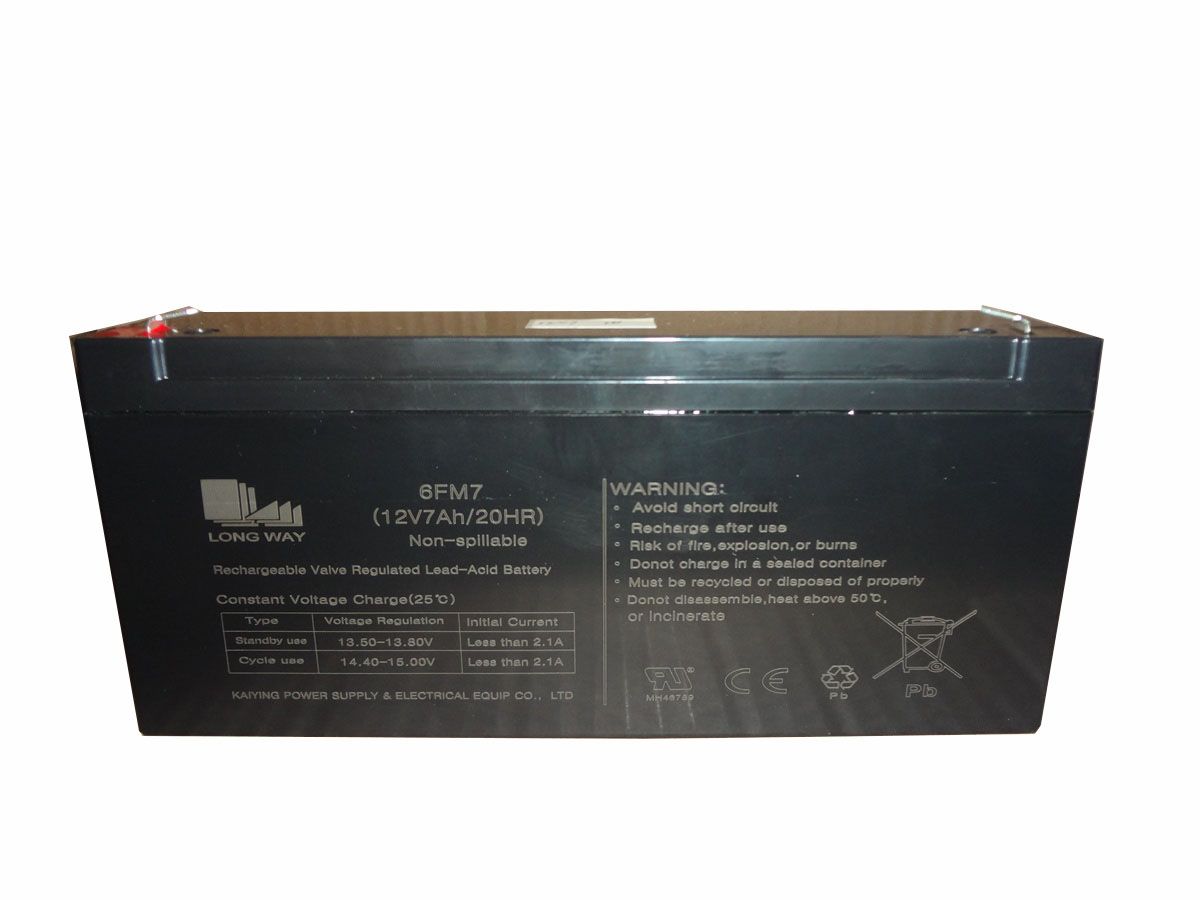

*Model: 6FM7 (12V7AH/20HR)
*Application: electrical scooter
*Size: L225*W47*H100 (TH106)mm
*Approx Weight: 2.3 kg (5.1 lbs)
*Terminal: F1/F2
*Capacity (25º C): 20HR (0.35A) 7AH; 10HR (0.65A) 6.50AH; 5HR (1.19A) 5.95 AH; 1HR (4.20A) 4.20AH
*Internal Resistance (Fully charged at 25º C): 0.035 Ohm
*Self-discharge: 3% of capacity declined per month at 25º C
*Capacity Affected by Temp. (20HR); 40º C 105%; 25º C 100%; 0º C 85%; -15º C 65%
*Charge Voltage (25º C): Cycle use: 14.40-15.00V(-24mV/º C), Max. Current: 2.10 A; Stand-by use: 13.50-13.80V (-18mV/º C)
*Packing Qty.: 10 PCS/CTN
*8, 000-9, 000 PCS /Container
*Lead-Time: 15 Days For One Container
*General Features:
High Recharging Efficiency; Good Renewal Ability after Deep Discharge;
Excellent Performance in Low Temperature; Maintenance-Free;
Safe and Non-spillable; Long Life Service; UL Approvals
*Designed Service Life: 6 years
*warranty: 1 years
*OEM Acceptable
Excellent quality and reasonable price, welcome to contact us
| Standby Part of LONGWAY 12Volt battery series |
| Battery Model | Internal model | Nominal Voltage (V) | Nominal Capacity (AH) 20HR | Length | Width | Height | Total Height | Weight(±3%) | Terminal |
| In | mm | In | mm | In | mm | In | mm | lbs | Kg | Type | Position |
| 6FM50G | LW12-50 | 12 | 50 | 9.02 | 229 | 5.43 | 138 | 8.19 | 208 | 8.39 | 213 | 37.04 | 16.80 | F20 | C |
| 6FM55A/G | LW12-55A | 12 | 55 | 9.02 | 229 | 5.43 | 138 | 8.19 | 208 | 8.39 | 213 | 37.92 | 17.20 | F20 | C |
| 6FM55B/G | LW12-55B | 12 | 55 | 9.02 | 229 | 5.43 | 138 | 8.19 | 208 | 8.39 | 213 | 37.92 | 17.20 | F9 | C |
| 6FM60G | LW12-60 | 12 | 60 | 13.78 | 350 | 6.54 | 166 | 6.89 | 175 | 7.05 | 179 | 44.09 | 20.00 | F16 | D |
| 6FM60A | LW12-60A | 12 | 60 | 9.84 | 250 | 6.30 | 160 | 7.01 | 178 | 7.20 | 183 | 38.14 | 17.30 | F9 | D |
| 6FM65A/G | LW12-65 | 12 | 65 | 13.78 | 350 | 6.54 | 166 | 6.89 | 175 | 6.89 | 175 | 46.30 | 21.00 | F16 | D |
| 6FM65B/G | LW12-65B | 12 | 65 | 13.78 | 350 | 6.61 | 168 | 7.09 | 180 | 7.09 | 180 | 46.30 | 21.00 | F9 | D |
| 6FM70A/G | LW12-70 | 12 | 70 | 10.20 | 259 | 6.65 | 169 | 8.31 | 211 | 9.09 | 231 | 46.96 | 21.30 | F20 | C |
| 6FM70B/G | LW12-70 | 12 | 70 | 10.20 | 259 | 6.65 | 169 | 8.31 | 211 | 8.50 | 216 | 46.96 | 21.30 | F10 | C |
| 6FM80A/G | LW12-80 | 12 | 80 | 12.09 | 307 | 6.57 | 167 | 8.27 | 210 | 8.46 | 215 | 55.12 | 25.00 | F10 | C |
| 6FM80B/G | LW12-80A | 12 | 70 | 10.20 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 47.40 | 21.50 | F10 | C |
| 6FM80E | LW12-80E | 12 | 80 | 12.52 | 318 | 7.13 | 181 | 6.57 | 167 | 6.77 | 172 | 49.60 | 22.50 | F9 | D |
| 6FM90 | LW12-90 | 12 | 90 | 12.09 | 307 | 6.57 | 167 | 8.19 | 208 | 8.39 | 213 | 58.42 | 26.50 | F10 | C |
| 6FM95 | LW12-95 | 12 | 95 | 12.09 | 307 | 6.57 | 167 | 8.19 | 208 | 8.39 | 213 | 59.52 | 27.00 | F10 | C |
| 6FM100A | LW12-100A | 12 | 100 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 65.04 | 29.50 | F12 | C |
| 6FM100B | LW12-100B | 12 | 100 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 67.24 | 30.50 | F12 | C |
| 6FM100C | LW12-100C | 12 | 100 | 13.03 | 331 | 6.81 | 173 | 8.62 | 219 | 9.45 | 240 | 65.04 | 29.50 | F22 | C |
| 6FM100D | LW12-100D | 12 | 100 | 15.94 | 405 | 6.81 | 173 | 8.27 | 210 | 9.33 | 237 | 70.55 | 32.00 | F17 | C |
| 6FM120 | LW12-120 | 12 | 120 | 15.94 | 405 | 6.81 | 173 | 8.27 | 210 | 9.33 | 237 | 77.16 | 35.00 | F17 | C |
| 6FM120A | LW12-120A | 12 | 120 | 15.94 | 405 | 6.81 | 173 | 8.27 | 210 | 9.33 | 237 | 76.06 | 34.50 | F17 | C |
| 6FM120B | LW12-120B | 12 | 120 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 68.34 | 31.00 | F12 | C |
| 6FM120C | LW12-120C | 12 | 120 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 70.55 | 32.00 | F12 | C |
| 6FM140 | LW12-140 | 12 | 140 | 13.43 | 341 | 6.81 | 173 | 11.14 | 283 | 11.34 | 288 | 91.49 | 41.50 | F12 | C |
| 6FM150 | LW12-150 | 12 | 150 | 19.02 | 483 | 6.69 | 170 | 9.49 | 241 | 9.49 | 241 | 98.11 | 44.50 | F18 | C |
| 6FM160 | LW12-160 | 12 | 160 | 13.43 | 341 | 6.81 | 173 | 11.14 | 283 | 11.34 | 288 | 99.21 | 45.00 | F12 | C |
| 6FM160A | LW12-160A | 12 | 160 | 13.43 | 341 | 6.81 | 173 | 11.14 | 283 | 11.14 | 283 | 99.21 | 45.00 | F11 | C |
| 6FM160B | LW12-160B | 12 | 160 | 20.94 | 532 | 8.15 | 207 | 8.46 | 215 | 9.45 | 240 | 111.66 | 50.65 | F24 | E |
| 6FM180 | LW12-180 | 12 | 180 | 20.55 | 522 | 9.45 | 240 | 8.62 | 219 | 8.82 | 224 | 127.87 | 58.00 | F19 | E |
| 6FM200 | LW12-200 | 12 | 200 | 20.55 | 522 | 9.45 | 240 | 8.62 | 219 | 8.82 | 224 | 127.87 | 58.00 | F19 | E |
| 6FM230 | LW12-230 | 12 | 230 | 20.51 | 521 | 10.59 | 269 | 7.99 | 203 | 8.19 | 208 | 143.30 | 65.00 | F24 | F |
| 6FM250 | LW12-250 | 12 | 250 | 20.47 | 520 | 10.59 | 269 | 8.66 | 220 | 9.65 | 245 | 154.32 | 70.00 | F25 | E |
| 9FM7 | LW18-7 | 18 | 7 | 5.94 | 151 | 3.98 | 101 | 3.98 | 101 | 3.98 | 101 | 8.75 | 3.97 | W | D |
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
