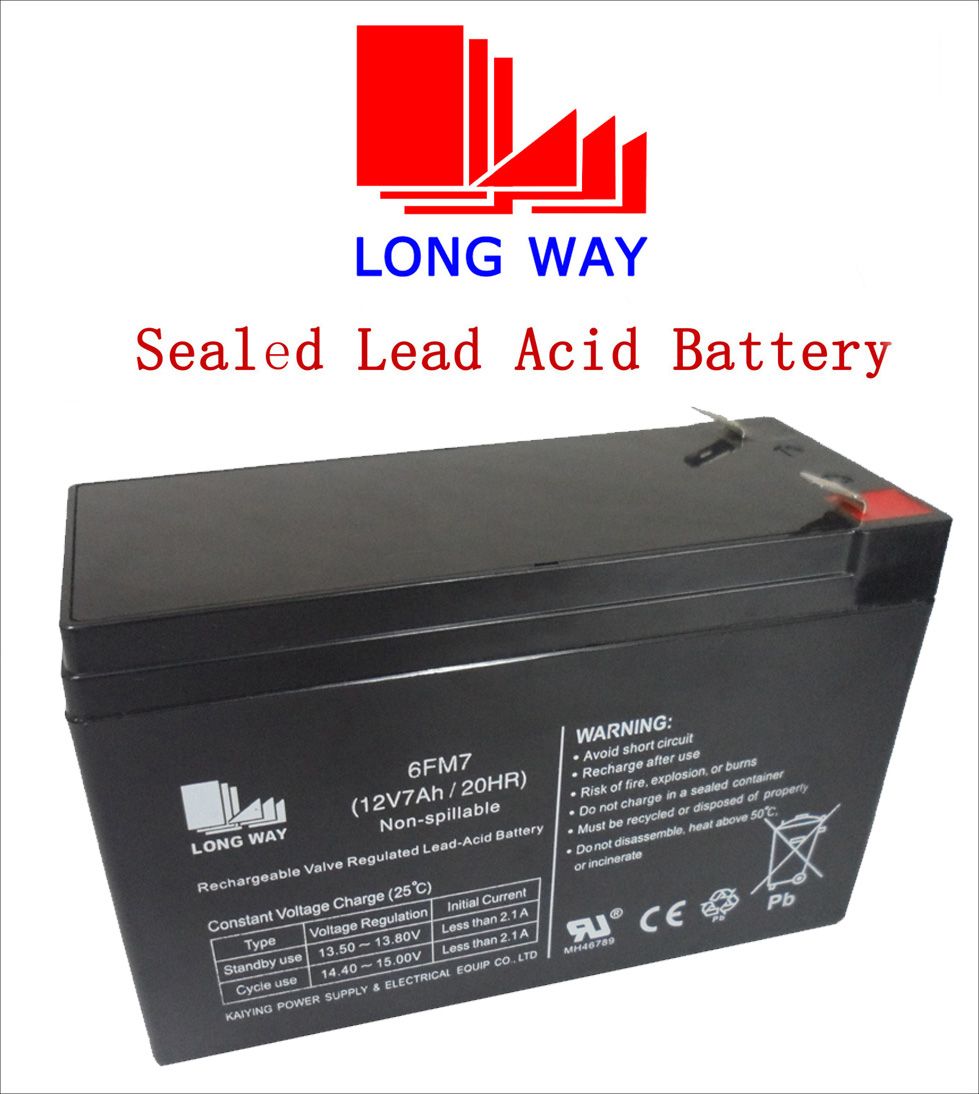

12V7ah UPS Power Solar UPS Gel Battery

Prod Model:	12V7AH/20HR
Color:	Grey or Black
Material:	Polycrystalline Silicon
Certificate:	Ce/UL/ISO9001/ISO14001/Ohsas18001
Weight:	2.15kg
Type:	Lead-Acid Batteries
Nominal Voltage:	12V
Discharge Rate:	Medium Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

LONGWAY lead acid battery used for UPS / AGM / VRLA / SLA maintenance-free battery
I. Power storage Solar & Wind System (Deep Cycle Battery)
II. Standby use UPS battery, Emergence & Alarm, Lighting & Security, Sounding, etc...
III. Telecommunication and stationary lead acid battery.
6V - 1.2Ah to 190Ah used for emergency lighting and alarm lighting and sound application.
12V - 0.8Ah to 250Ah used for power storage and backup for standby power & deep cycle use.
2V - 50Ah to 2500Ah used for solar power systems and telecommunication are using all self-made high quality and thick deep cycle plates.

*Model: 6FM7S (12V7AH/20HR)
*Application: Solar System; Wind Power System
*Size: 151.4(5.96)*65.5(2.58)*92.8(3.65)*97.3(3.83) mm(inch)
*Approx Weight: 2.33 kg (5.14 lbs)
*Terminal: F1/F2

*Capacity (25º C): 20HR (0.35A) 7AH; 10HR (0.65A) 6.50AH; 5HR (1.19A) 5.95 AH; 1HR (4.20A) 4.20AH
*Internal Resistance (Fully charged at 25º C): 0.031 Ohm
*Self-discharge: 3% of capacity declined per month at 25º C
*Capacity Affected by Temp. (20HR); 40º C 105%; 25º C 100%; 0º C 85%; -15º C 65%
*Charge Voltage (25º C): Cycle use: 14.40-15.00V(-24mV/º C), Max. Current: 2.10 A; Stand-by use: 13.50-13.80V (-18mV/º C)

*Packing Qty.: 10 PCS/CTN
*8, 000-9, 000 PCS /Container
*Lead-Time: 15 Days For One Container

*General Features:
High Recharging Efficiency; Good Renewal Ability after Deep Discharge;
Excellent Performance in Low Temperature; Maintenance-Free;
Safe and Non-spillable; Long Life Service; UL Approvals
*Designed Service Life: 6 years
*warranty: 1 years
*OEM Acceptable

Excellent quality and reasonable price, welcome to contact us

Standby Part of LONGWAY 12Volt battery series
Battery Model	Internal model	Nominal Voltage (V)	Nominal Capacity (AH) 20HR	Length		Width		Height		Total Height		Weight(±3%)		Terminal
				In	mm	In	mm	In	mm	In	mm	lbs	Kg	Type	Position
6FM50G	LW12-50	12	50	9.02	229	5.43	138	8.19	208	8.39	213	37.04	16.80	F20	C
6FM55A/G	LW12-55A	12	55	9.02	229	5.43	138	8.19	208	8.39	213	37.92	17.20	F20	C
6FM55B/G	LW12-55B	12	55	9.02	229	5.43	138	8.19	208	8.39	213	37.92	17.20	F9	C
6FM60G	LW12-60	12	60	13.78	350	6.54	166	6.89	175	7.05	179	44.09	20.00	F16	D
6FM60A	LW12-60A	12	60	9.84	250	6.30	160	7.01	178	7.20	183	38.14	17.30	F9	D
6FM65A/G	LW12-65	12	65	13.78	350	6.54	166	6.89	175	6.89	175	46.30	21.00	F16	D
6FM65B/G	LW12-65B	12	65	13.78	350	6.61	168	7.09	180	7.09	180	46.30	21.00	F9	D
6FM70A/G	LW12-70	12	70	10.20	259	6.65	169	8.31	211	9.09	231	46.96	21.30	F20	C
6FM70B/G	LW12-70	12	70	10.20	259	6.65	169	8.31	211	8.50	216	46.96	21.30	F10	C
6FM80A/G	LW12-80	12	80	12.09	307	6.57	167	8.27	210	8.46	215	55.12	25.00	F10	C
6FM80B/G	LW12-80A	12	70	10.20	259	6.65	169	8.19	208	8.39	213	47.40	21.50	F10	C
6FM80E	LW12-80E	12	80	12.52	318	7.13	181	6.57	167	6.77	172	49.60	22.50	F9	D
6FM90	LW12-90	12	90	12.09	307	6.57	167	8.19	208	8.39	213	58.42	26.50	F10	C
6FM95	LW12-95	12	95	12.09	307	6.57	167	8.19	208	8.39	213	59.52	27.00	F10	C
6FM100A	LW12-100A	12	100	12.99	330	6.81	173	8.62	219	8.82	224	65.04	29.50	F12	C
6FM100B	LW12-100B	12	100	12.99	330	6.81	173	8.62	219	8.82	224	67.24	30.50	F12	C
6FM100C	LW12-100C	12	100	13.03	331	6.81	173	8.62	219	9.45	240	65.04	29.50	F22	C
6FM100D	LW12-100D	12	100	15.94	405	6.81	173	8.27	210	9.33	237	70.55	32.00	F17	C
6FM120	LW12-120	12	120	15.94	405	6.81	173	8.27	210	9.33	237	77.16	35.00	F17	C
6FM120A	LW12-120A	12	120	15.94	405	6.81	173	8.27	210	9.33	237	76.06	34.50	F17	C
6FM120B	LW12-120B	12	120	12.99	330	6.81	173	8.62	219	8.82	224	68.34	31.00	F12	C
6FM120C	LW12-120C	12	120	12.99	330	6.81	173	8.62	219	8.82	224	70.55	32.00	F12	C
6FM140	LW12-140	12	140	13.43	341	6.81	173	11.14	283	11.34	288	91.49	41.50	F12	C
6FM150	LW12-150	12	150	19.02	483	6.69	170	9.49	241	9.49	241	98.11	44.50	F18	C
6FM160	LW12-160	12	160	13.43	341	6.81	173	11.14	283	11.34	288	99.21	45.00	F12	C
6FM160A	LW12-160A	12	160	13.43	341	6.81	173	11.14	283	11.14	283	99.21	45.00	F11	C
6FM160B	LW12-160B	12	160	20.94	532	8.15	207	8.46	215	9.45	240	111.66	50.65	F24	E
6FM180	LW12-180	12	180	20.55	522	9.45	240	8.62	219	8.82	224	127.87	58.00	F19	E
6FM200	LW12-200	12	200	20.55	522	9.45	240	8.62	219	8.82	224	127.87	58.00	F19	E
6FM230	LW12-230	12	230	20.51	521	10.59	269	7.99	203	8.19	208	143.30	65.00	F24	F
6FM250	LW12-250	12	250	20.47	520	10.59	269	8.66	220	9.65	245	154.32	70.00	F25	E
9FM7	LW18-7	18	7	5.94	151	3.98	101	3.98	101	3.98	101	8.75	3.97	W	D
