| Prod Model: |
CS12-7Ah |
| Model: |
VRLA Lead Acid Battery 12V7ah |
| Dimension: |
151*65*94*100mm |
| Weight: |
2.03kgs |
| Terminal: |
F2 |
| Color: |
Black |
| Certificates: |
Ce, IEC, ISO |
| Warranty: |
14months |
| Design Lifespan: |
5years |
| Delivery Time: |
15-20days |
| Battery Type: |
Sealed Free Maintenace Battery |
| Type: |
Lead-Acid Batteries |
| Usage: |
UPS/Back up/Emergency System/Alarm System |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

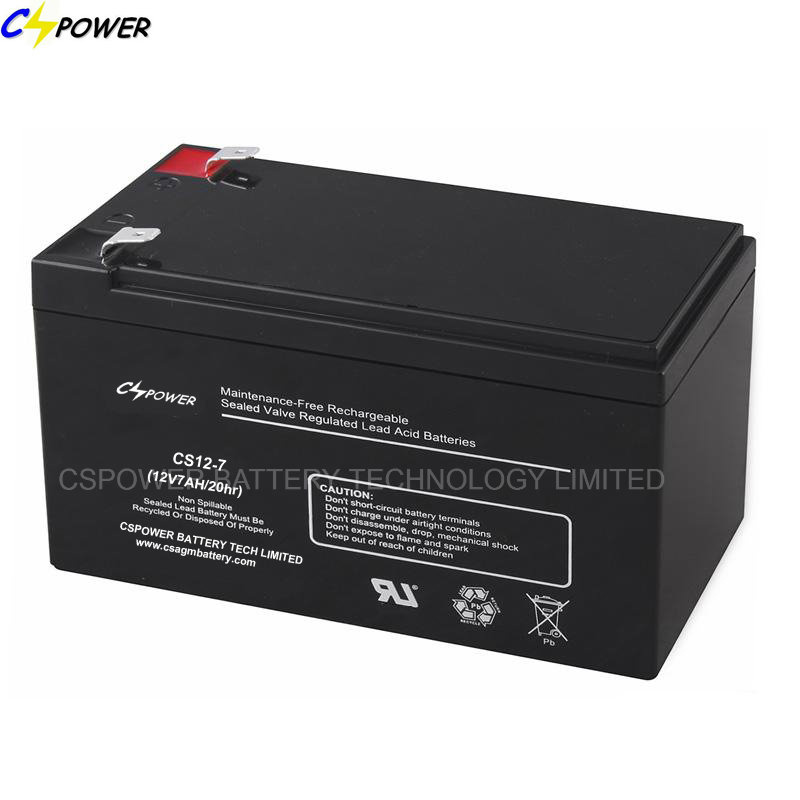

12V7AH VRLA Lead Acid Rechargeable UPS Battery
CSPOWER Company Information
CSPOWER BATTERY TECH CO.,LTD is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery ; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
CSPOWER CS series Sealed free maintenance lead acid batteries are designed with AGM technology, high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the fields of UPS, Security and Emergency lighting system.
They are sealed and free maintenance whole life, valve regulated type standby AGM battery, also named by VRLA battery, SLA battery, and SMF battery.
Features and Advantages for AGM battery vrla /ups/lead acid rechargeable battery 12V7ah
1. Sealed and maintenance free operation
2. Non-Spillable construction design
3. Safety valve installation for explosion proof.
4. 99.99% pure lead plates ensure high quality and high reliability.
5. Exceptional deep discharge recovery performance.
6. Low self discharge characteristic.
7. Flexibility design for multiple install positions
8. The operating ambient temperature -40ºC to +65ºC
9. Long life span 5-8 years
10. Using oxygen recombination technology: maintenance-free
11. Pb-Ca-Sn alloy for plate grids: less gassing and less self-discharging
12. High quality AGM separator: extend cycle life and prevents micro short circuit
13. Flame-resistance ABS material: increases the strength of battery container.
14. High purity raw material: ensures low self discharge rate
15. Silver-coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity
Charging Voltage and Settings for VRLA battery / ups/lead acid rechargeable battery 12V7ah
l. Constant voltage charging is recommended
2. Recommended float charge voltage: 2.27V/cell @20~25°C
3. Float voltage temperature compensation: -3mV/°C/cel l
4. Float voltage range: 2.27 to 2.30 V/cell @ 20~25°C
5. Cyclic application charge voltage : 2.40 to 2.47 V/cell @ 20~25°C
6. Max. charge current allowable : 0.25C
Application for Sealed free maintenance lead acid battery
Uninterruptible power supplies (UPS); Inverter; Emergency Lighting Systems; Solar powered systems; Communication equipment; Fire & security systems; Telecommunication systems; Electronic cash registers; Electronic test equipment; processor based office machines; Control equipment; Electric powered bicycle and wheelchairs; Geophysical equipment; Marine equipment; Medical equipment; Portable cine & video lights; Television& video recorders; Vending machines; Alarm Systems, Computers; Power Tools; Toys; Geophysical Equipment; Vending Machines ; Other standby or primary power supplies.
Certificates of CSPOWER Batteries 2v 6v 12v: CE, IEC, ISO,MSDS
Why Choose CSPOWER? vrla /ups/lead acid rechargeable battery 12V7ah
1) Nearly 13 years leading manufacturer,established in 2003. Factroy size: 50000 square meter
2) Strict management system and quality control, 100% inspection.Factories are satisfied with ISO 9001 & ISO
14001, products with CE/RoHS/TLC etc approval.
3) A professional experienced team to provide you high-quality service.All enquires will be replied in 24 hours.
4) Competitive price help you to occupy more market share
5) 20000KWH production capacity to guarantee the best deliver time
6) 1-3 years warranty policy, up to now, our product defective rate is under 0.4%.
CSPOWER BATTERY TAGS:
1. 2V battery,long life battery, battery pack ,12V Solar battery, battery for 48v system,6V solar battery, Lead acid battery, SLA Battery,vrla /ups/lead acid rechargeable battery 12V7ah
2. Gel Battery, AGM Battery, Batteries lead acid, SLA Battery, Free maintenance battery, Sealed battery, Deep cycle battery, Solar Power battery,VRLA Battery,rechargeable battery, Long life battery, Solar Gel Battery
3. Storage battery, Solar panel Battery, Inverter battery, Solar charger controller battery, UPS Battery, Marine battery, car battery, Electrical battery, Telecom Battery, Solar back-up battery, Terminal battery, Front Access battery, battery pack, Solar batteries, 12v battery
4. OPzV Battery, Gel Battery, 2V tubular battery, Deep cycle battery, Long life Gel Battery, OPzV tubular plates battery
5. Front terminal battery, front access battery, terminal battery, telecom battery, long type battery, VRLA Batteries, gel terminal battery, front terminal gel battery
Moredetails, welcome to our website for visiting: http://www.csagmbattery.com
VRLA Rechargeable lead acid AGM Battery 12V Specifications
| CSPOWER MODEL | Voltage | Capacity | Dimension (mm) | Weight (kg) | Bolt |
| (V) | (Ah) | Length | Width | Height | Total Height | (±3%) |
| CS6-4.0 | 6 | 4/20HR | 70 | 47 | 101 | 107 | 0.7 | F1/F2/CUT |
| CS6-4.5 | 6 | 4.5/20HR | 70 | 47 | 101 | 107 | 0.75 | F1/F2/CUT |
| CS6-5 | 6 | 5/20HR | 70 | 47 | 101 | 107 | 0.8 | F1/F2 |
| CS6-7.0 | 6 | 7.0/20HR | 151 | 34 | 95 | 101 | 1.15 | F1/F2 |
| CS6-10 | 6 | 10/20HR | 151 | 50 | 94 | 100 | 1.6 | F1/F2 |
| CS6-12 | 6 | 12/20HR | 151 | 50 | 94 | 100 | 1.75 | F1/F2 |
| CS12-4 | 12 | 4/20HR | 90 | 70 | 101 | 107 | 1.35 | F1/F2 |
| CS12-4.5 | 12 | 4.5/20HR | 90 | 70 | 101 | 107 | 1.48 | F1/F2 |
| CS12-5 | 12 | 5/20HR | 90 | 70 | 101 | 107 | 1.58 | F1/F2 |
| CS12-6.5 | 12 | 6.5/20HR | 151 | 65 | 94 | 100 | 1.9 | F1/F2 |
| CS12-7.0 | 12 | 7.0/20HR | 151 | 65 | 94 | 100 | 2.05 | F1/F2 |
| CS12-7.2 | 12 | 7.2/20HR | 151 | 65 | 94 | 100 | 2.15 | F1/F2 |
| CS12-7.5 | 12 | 7.5/20HR | 151 | 65 | 94 | 100 | 2.2 | F1/F2 |
| CS12-9 | 12 | 9/20HR | 151 | 65 | 94 | 100 | 2.4 | F1/F2 |
| CS12-10 | 12 | 10/20HR | 152 | 99 | 96 | 102 | 3.2 | F1/F2 |
| CS12-12 | 12 | 12/20HR | 152 | 99 | 96 | 102 | 3.5 | F1/F2 |
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
