| Prod Model: |
6FM8.5J(12V8.5AH/20HR) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Grey or Black |
| Terminal: |
F1/F2 |
| Size: |
151*65*94(Total Height: 100) Mm |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

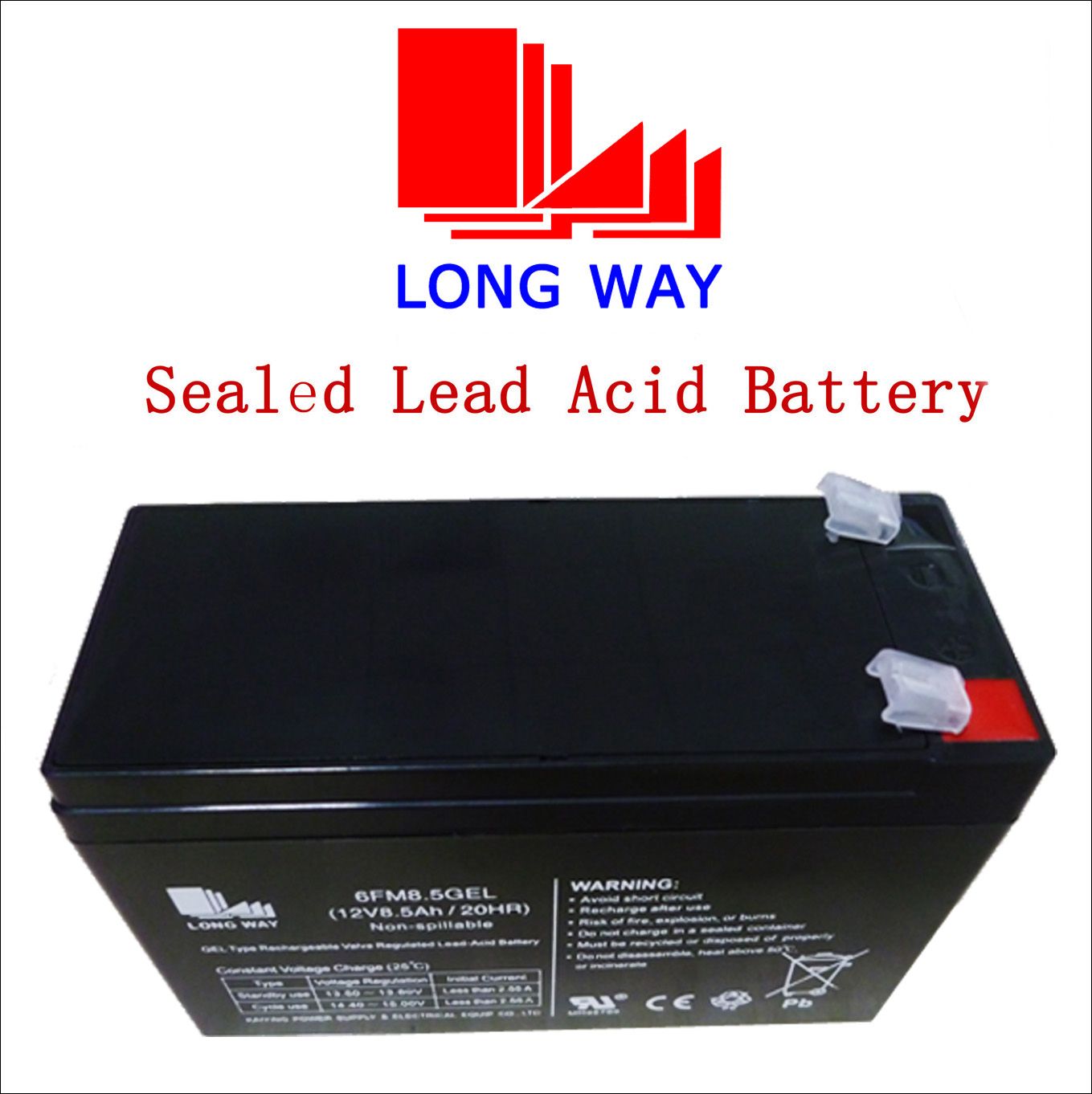

LONGWAY 12V8.5ah Wind system rechargeable sealed Lead Acid GEL Battery
LONGWAY gel series battery is manufactured silica gel to inmobilize the electrolyte inside the battery. The proven silica gel technology improves battery cycle life and performance at cold ambient temperatures. The deep discharge cycles is increased by 30% as compared with the AGM battery.
Product description
Model: 6FM8.5J(12V8.5AH/10HR)
Size: 151*65*94(total height: 100) mm
Approx. Weight: 2.30KG/5.07LBS
Terminal: F1/F2
Designed Service Life: 6 years
Packing Qty: 4 PCS/CTN
750 PCS/Container
Lead-time: 7-18 days for one container
OEM acceptable
General Features
Long service life
Better performance against overcharge
Wider ambient temperature range
No leakage
Maintenance free,
Convenient for installation
Flexible Orientaton,
Low self-discharge rate
UL approvals.
Applications
Lighting systems, Security systems, Electric toy, Medical equipment,
Telecommunication systems, Power systems, UPS, Electric toolsOur certificate

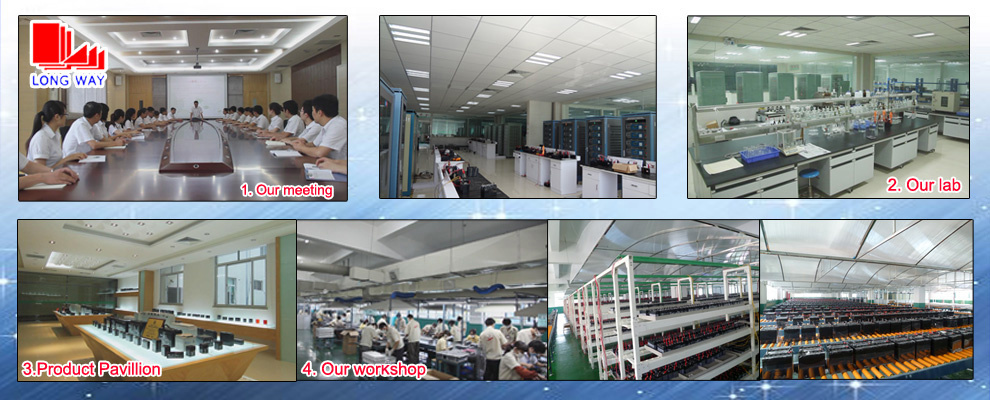

Our factory photo
For more information,pls feel free to let us know.
| Standby LONGWAY GEL series lead acid batteries |
| Battery Model | Nominal Voltage(V) | Nominal Capacity
(AH) | Length | Width | Height | Total Height | Weight(5%) | Terminal |
| In | mm | In | mm | In | mm | In | mm | Pound | Kg | Type | Position |
| 3FM7GEL | 6 | 7 | 5.94 | 151 | 1.42 | 36 | 3.7 | 94 | 3.94 | 100 | 2.43 | 1.1 | F1/F2 | C |
| 3FM7.2GEL | 6 | 7.2 | 5.94 | 151 | 1.42 | 36 | 3.7 | 94 | 3.94 | 100 | 2.43 | 1.1 | F1/F2 | C |
| 3FM12GEL | 6 | 12 | 5.94 | 151 | 1.97 | 50 | 3.7 | 94 | 3.94 | 100 | 3.64 | 1.65 | F1/F2 | C |
| 3FM42GEL | 6 | 42 | 6.38 | 162 | 3.46 | 88 | 6.42 | 163 | 6.69 | 170 | 13 | 5.9 | F2 | B |
| 3FM100GEL | 6 | 100 | 7.68 | 195 | 6.69 | 170 | 8.15 | 207 | 8.35 | 212 | 37.5 | 17 | F10 | A |
| 3FM150GEL | 6 | 150 | 10.2 | 260 | 7.09 | 180 | 9.72 | 247 | 9.92 | 252 | 51.8 | 23.5 | F10 | A |
| 3FM200GEL | 6 | 200 | 12.7 | 323 | 7.01 | 178 | 8.82 | 224 | 9.02 | 229 | 63.9 | 29 | F11 | A |
| 6FM7GEL | 12 | 7 | 5.94 | 151 | 2.56 | 65 | 3.7 | 94 | 3.94 | 100 | 4.63 | 2.1 | F1/F2 | F |
| 6FM7.2GEL | 12 | 7.2 | 5.94 | 151 | 2.56 | 65 | 3.7 | 94 | 3.94 | 100 | 4.85 | 2.2 | F1/F2 | F |
| 6FM8GEL | 12 | 8 | 5.94 | 151 | 2.56 | 65 | 3.7 | 94 | 3.94 | 100 | 5.07 | 2.3 | F1/F2 | F |
| 6FM12GEL | 12 | 12 | 5.94 | 151 | 3.86 | 98 | 3.74 | 95 | 3.98 | 101 | 8.27 | 3.75 | F2 | F |
| 6FM18GEL | 12 | 18 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 11.9 | 5.4 | F4/F8 | D |
| 6FM24GEL | 12 | 24 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 16.76 | 7.6 | F4/F8 | D |
| 6FM33GEL | 12 | 33 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 6.54 | 166 | 23.15 | 10.5 | F9 | C |
| 6FM38GEL | 12 | 38 | 7.8 | 198 | 6.54 | 166 | 6.69 | 170 | 6.69 | 170 | 29.76 | 13.5 | F9 | D |
| 6FM50GEL | 12 | 50 | 9.02 | 229 | 5.43 | 138 | 8.19 | 208 | 8.39 | 213 | 38.58 | 17.5 | F9 | C |
| 6FM65GEL | 12 | 65 | 13.78 | 350 | 6.5 | 165 | 7.17 | 182 | 7.17 | 182 | 46.3 | 21 | F6/F9 | C |
| 6FM70GEL | 12 | 70 | 102.2 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 47.4 | 21.5 | F9 | C |
| 6FM90GEL | 12 | 90 | 12.09 | 307 | 6.57 | 167 | 8.19 | 208 | 8.39 | 213 | 58.42 | 26.5 | F9 | C |
| 6FM100GEL | 12 | 100 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 66.14 | 30 | F11 | C |
| 6FM120GEL | 12 | 120 | 15.94 | 405 | 6.81 | 173 | 9.33 | 237 | 9.33 | 237 | 77.16 | 35 | F11 | C |
| 6FM150GEL | 12 | 150 | 19.02 | 483 | 6.69 | 170 | 9.49 | 241 | 9.49 | 241 | 99.21 | 45 | F11 | C |
| 6FM200GEL | 12 | 200 | 20.55 | 522 | 9.45 | 240 | 8.62 | 219 | 8.82 | 224 | 132.28 | 60 | F11 | E |
| 6FM230GEL | 12 | 230 | 20.51 | 521 | 10.59 | 269 | 7.99 | 203 | 8.19 | 208 | 145.51 | 66 | F11 | F |
| 6FM250GEL | 12 | 250 | 20.47 | 520 | 10.59 | 269 | 8.66 | 220 | 9.65 | 245 | 154.32 | 70 | F11 | E |
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
