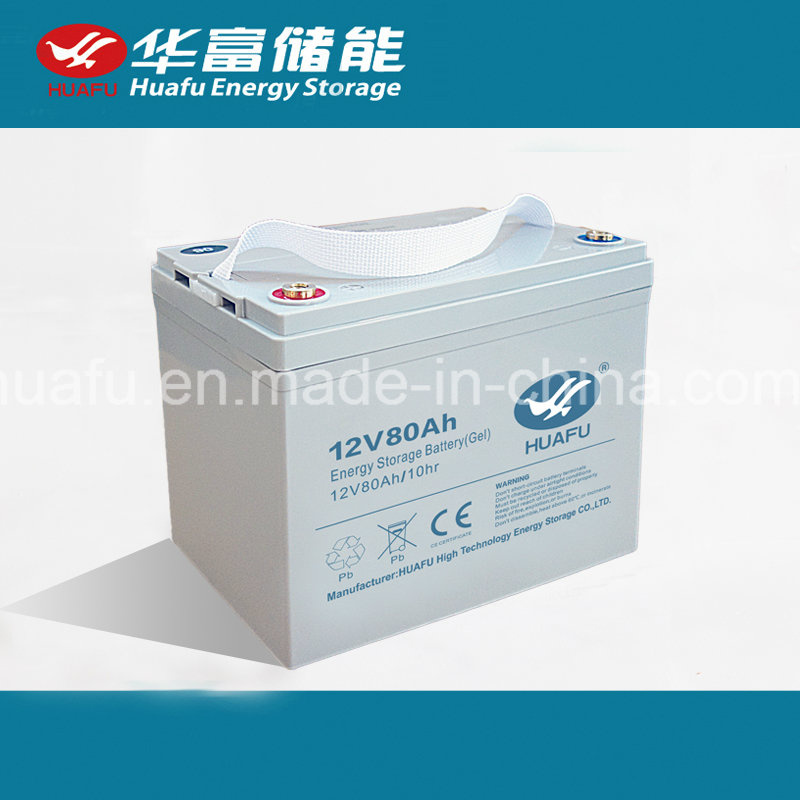

12V80ah Deep Cycle Battery & Copper Terminal Gel Battery

Prod Model:	12V80Ah
Size:	329*172*214
Weight:	25.2kgs
Design Life:	8 Years
Warranty:	3 Years
Terminal:	Copper
Maintenance Free:	Yes
Type:	Lead-Acid Batteries
Usage:	Boat
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

Factory Information: ranks NO.1 in the sales of gel battery in China and has more than 20 years of experience in producing VRLA AGM/Gel solar battery ,VRLA AGM/Gel Backup battery series (UPS),EV battery ,OPzS, OPzV, Lithium -Iron and lead carbon battery, etc.

Quality system & Certifications: ISO9001,ISO14001,OHSAS18001-2007, CE, UL, IEC, ROHS, SGS

Huafu Lead Acid Battery Construction

Element	Electrolyte	Positive Plate	Negative Plate	Container
Material	Colloidal Silicon	Lead dioxide	lead	ABS
Element	Cover	Safety valve	Terminal/Wire	Separator
Material	ABS	Rubber	Copper	Fiberglass

1). Electrolyte: Be immobilized in the cell through the use of a gelling agent or absorbed in the separators and plates. The cells shall have no residual free or bulk liquid electrolyte.
2). Separators: Made of fiberglass. Be porous to electrolyte but electrically insulating.
3). Continer & Cover: Cell containers and covers shall be made of a high impact, flame-retardant plastic
4). Terminal: Terminal posts shall be cast in lead or lead alloy and have a copper core insert.
5). Valve: The valve operate at the pressure limits specified. The valve will not allow ingress of outside air into the unit.


Huafu 12V80Ah Rechargeable Battery Specification

Battery Rated Voltage		12V
Rated capacity (10 hour rate)		80Ah
Dimension	Length	329mm
	Width	172mm
	Height	214mm
	Total Height (with terminal)	236mm
Weight Approx		25.2Kgs
Terminal	M8-20 Copper Terminal

Huafu Sealed Maintenance Free Battery Feature
1). Absorbent Glass Mat (AGM) technology for superior performance
2). Valve regulated, spill proof construction allows safe peration in any position
3). Power/volume ratio yielding unrivaled energy density
4). Rugged impact resistant ABS case and cover (UL94-HB)
5). Integrated ABS carrying handles for ease of movement
6). U.L. CE. IEC. SGS. RoHS. ISO9001. ISO14001. OHSAS18001-2007 recognized
7). Maintenance-free operation - no addition of water to the electrolyte is required.
8). Wide range of operating temperatures with temperature compensated charging.
9). Computer designed lead, calcium tin alloy grid for high power density.
10). Extended service life due to low self-discharge levels.


Huafu 12V80AH Battery Packing information

20FT=18 Wooden Boxes = 810 Pcs
Packing in Carton		Packing in Wooden Box
Pcs/Ctn	Ctn Size	Ctn/Box	Box Size
1	342*185*273mm	45	1075*995*990mm

Huafu Battery installed in type of horizontal rack
Applicable product series:
Energy storage use battery(CNJ series) ,Specialty battery for plateaus, Lead-carbon battery,
valve-regulated sealed battery(GFM series), Heat-tolerant battery.

Applicable models:
12V series:12V24Ah,12V30Ah,12V40Ah,12V50Ah,12V180Ah,12V200Ah,12V220Ah,12V250Ah;
6V series::6V180 Ah,6V200 Ah;
2V series:2V200 Ah,2V300 Ah,2V400 Ah,2V500Ah,2V600Ah.

Advantages:
Space saving: Because the horizontal installation's wiring is on the side face of the bracket, there is no need to reserve space like upright installed batteries , which greatly saves the whole installation volume; It is convenient and economical for end users to operate batteries in the container structure, narrow ,small and limited space. Easy to Install and maintain: It is convenient to install, replace and maintain the battery. When under the inspection, it is easy to find and deal with the problem directly.
Aesthetic appearance: The overall visual effect is consistent with the aesthetic design of industrialization
