| Prod Model: |
CG12-85 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
L*W*H=307*169*211mm |
| Voltage: |
12V |
| Capacity: |
85ah |
| Weight: |
29kg |
| Warranty: |
3 Years |
| Expected Cycle Time: |
15-20 Years |
| Delivery Time: |
7 Days |
| Brand: |
Cspower/OEM |
| Export Markets: |
Global |
| Terminal Type: |
T16A/T8 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
Gel |
Product Description

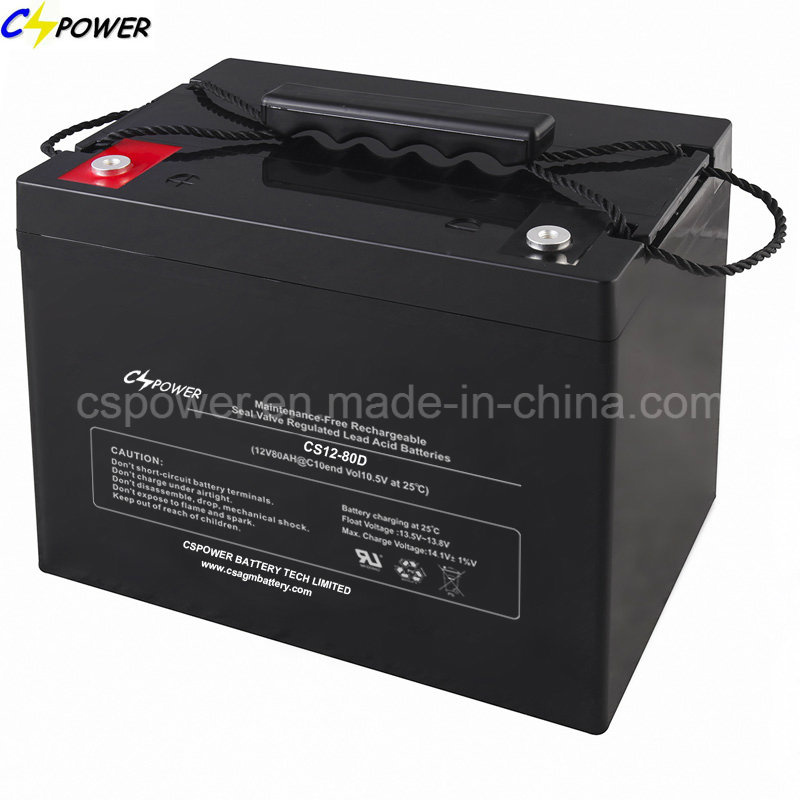

Gel Battery Solar GEL Battery series Description
Gel battery Solar Gel battery accumulator shows some distinctive advantages over flooded battery or AGM battery, such as super thermal stability, high deep discharge capability, good recovery from deep discharge.
Even if the battery is left discharged for three days, it will recover to 100% of capacity.
With the above-mentioned advantages, the gel battery has long service life, specially suitable for motive power applications, such as golf trailer, sruubber, folklift, etc.
The deep discharge cycles increased 50% as compared with the AGM battery.
Characteristics
1. Sealed free maintenance deep cycle battery 12V100Ah 200Ah 250Ah 300Ah
2. GEL solar battery
3. OEM/ODM free charge
4. Warranty 3years free replacement
Advanced Features
1. Environmentally friendly
2. Completely Maintenance-Free
3. Non-Spillable construction design.
4. Wide Operating Temperature Range(-20° C~+60° C)
5. Longer Life(20years designed life)
6. Explosion Proof
7. Valve Regulated & High Discharge Rate Capability
8. Low Self Discharge
9. Independent of Position
10. Ease of Shipment
11. No need of balanced charge or boost
12. No Memory
Applicition
1, Solar & Wind power systems
2, Fire & security systems
3, Uninterruptible power supplies
4, Golf cart, Electric vehicle
5, Electric powered bicycle and wheelchairs
6, Marine equipment
7, Communication equipment
8, Power tools
9, Telecommunication systems
Notice
- Matrix series batteries have acid in the case and are fully charged before leaving factory. Do not attempt to dismantle the battery, if accidental skin/eye contact is made with electrolyte, seek medical advice immediately.
- Do not use a new battery with an old one.
- Do not use the battery in sealed container.
- Each battery should have detailed record including the ex-factory date, installing date and using record.
- Check the connection of wire in a fixed interval (once a year). If there is any looseness should tighten the wire.
- Wipe the surface of the battery with soft cloth in a fixed interval (once three months) and always keep the battery clean.
- Avoid using any kind of organic solvents for cleaning the surface of the battery.
Why choose us:
1. Door to door service.
2. Low cost raw material with high quality. We have own plates factory, can manufacture plates by ourselves.
3. Independent designer with more than 10 years design experience.
4. Chief engineers with more than 20years experience in battery field.
5. Product with the international market step.
6. We focus on quality, never use faulse gel and recycle lead.
7. All production lines in our factory are automatic and imported from Germany.
8. Our products are exported to Middle East, Europe, France, Canada, Japan, Korea and else.
9. We would like stand with you in same line to open market with long term business.
Our goal
Creative.
Excellent quality.
Top service.
Stand same line with customer.
Long term business.
Welcome to ask me for price reference on specific models and quantity of batteries at any time.
We are sure any your question will get our prompt reply in 24 hours: )
| Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 20hrs/25 | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CG12-33 | 12 | 33 | 10.4 | 22.9 | 196 | 7.70 | 131 | 5.16 | 155 | 6.10 | 170 | 6.69 | T9/T16 |
| CG12-38 | 12 | 38 | 12.2 | 26.84 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CG12-50 | 12 | 50 | 16.2 | 35.6 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/T16 |
| CG12-55 | 12 | 55 | 16.2 | 35.6 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/T16 |
| CG12-65 | 12 | 65 | 20,5 | 45.1 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| CG12-70 | 12 | 70 | 22.0 | 48.4 | 260 | 10.2 | 169 | 6.65 | 211 | 8.30 | 215 | 8.46 | T16 |
| CG12-80 | 12 | 80 | 23.4 | 51.5 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9.02 | T14 |
| CG12-85 | 12 | 85 | 29 | 64.10 | 307 | 12.08 | 169 | 6.65 | 211 | 8.3 | 234 | 9.21 | T16A/T8 |
| CG12-100 | 12 | 100 | 30 | 66 | 331 | 13.0 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CG12-120 | 12 | 120 | 36.5 | 80.3 | 407 | 16.0 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CG12-134 | 12 | 134 | 41 | 90.2 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 283 | 11.14 | T9/T20 |
| CG12-150 | 12 | 150 | 42.5 | 93.5 | 484 | 19.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | T11 |
| CG12-180 | 12 | 180 | 56.5 | 124 | 530 | 20.9 | 209 | 8.23 | 214 | 8.43 | 240 | 9.45 | T9 |
| CG12-200 | 12 | 200 | 60 | 132 | 522 | 20.57 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CG12-230 | 12 | 230 | 64 | 140.8 | 522 | 20.6 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T9 |
| CG12-250 | 12 | 250 | 68 | 150 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T11 |
| CG2-100 | 2 | 100 | 6.4 | 14.11 | 171 | 6.73 | 72 | 2.83 | 206 | 8.11 | 227 | 8.94 | T16 |
| CG2-150 | 2 | 150 | 9.0 | 19.8 | 172 | 6.77 | 102 | 4.02 | 207 | 8.15 | 227 | 8.94 | T6 |
| CG2-200 | 2 | 200 | 14 | 30.9 | 172 | 6.77 | 111 | 4.37 | 329 | 13.0 | 356 | 14.0 | T20 |
| CG2-300 | 2 | 300 | 20.5 | 45.2 | 171 | 6.70 | 151 | 5.94 | 330 | 13.0 | 366 | 14.4 | T20 |
| CG2-400 | 2 | 400 | 27.5 | 60.6 | 210 | 8.27 | 176 | 6.93 | 329 | 13.0 | 366 | 14.4 | T20 |
| CG2-500 | 2 | 500 | 33.5 | 73.9 | 241 | 9.5 | 172 | 6.8 | 331 | 13.0 | 366 | 14.4 | T20 |
| CG2-600 | 2 | 600 | 41 | 90.4 | 301 | 11.9 | 175 | 6.89 | 331 | 13.0 | 366 | 14.4 | T20 |
| CG2-800 | 2 | 800 | 55 | 121.3 | 411 | 16.1 | 175 | 6.89 | 330 | 13 | 356 | 14 | T20 |
| CG2-1000 | 2 | 1000 | 66.5 | 146.6 | 475 | 18.7 | 175 | 6.89 | 330 | 12.99 | 356 | 14.02 | T20 |
| CG2-1500 | 2 | 1500 | 103.5 | 228.2 | 401 | 15.8 | 351 | 13.8 | 342 | 13.5 | 369 | 14.5 | T20 |
| CG2-2000 | 2 | 2000 | 136 | 299.8 | 491 | 19.3 | 351 | 13.8 | 343 | 13.5 | 369 | 14.5 | T20 |
| CG2-3000 | 2 | 3000 | 195 | 429 | 710 | 28.0 | 352 | 13.9 | 342 | 13.5 | 369 | 14.5 | T20 |
