| Prod Model: |
6FM85FR(12V85AH/10HR) |
| Color: |
Grey or Black |
| Operating Temperature: |
-20c~60c |
| Design Time: |
10-12 Years |
| Separator: |
AGM |
| Self Discharge: |
Less Than 3% Per Month |
| Certificate: |
ISO, UL, Ce |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

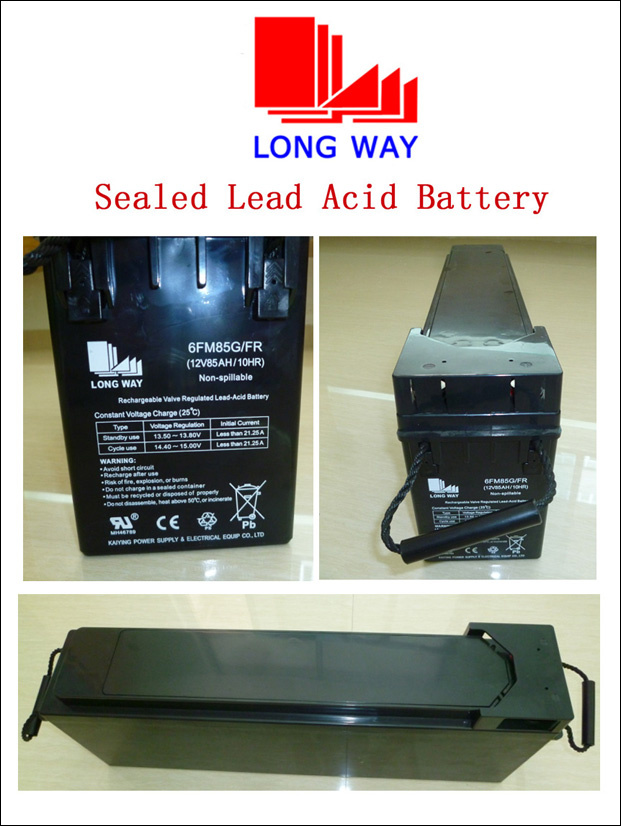

LONG WAY FRONT ACCESS series lead acid battery
The Longway FR series battery is mainly uesed in the area of communication, which is novel in design, reasonable in structure and occupying the leading position in the same industry of the world.
As with previous INTELEC(International Telecommunications Energy)conferences, many people were concerned about the life and durability of VRLA(Valve regulated lead acid) batteries, It can be employed in numerous applications in the fields of communications, In order to ensure that the power supply is guaranteed at all times, essential facilities are backed up with high performances battery systems. Sudden breaks in the power supply are then no longer a problem. If the power suddenly fails, battery systems take over the emergency supply of power.
Trademark: LONG WAY
Model: 6FM85FR (12V85HR)
Size: 562*115*187(Total Height194)mm
Weight: 25.5kg
Terminal: E
Color: Grey or black
General Features
Environmental friendly
Thick pasted plates with quality lead-tin-calcium alloy grids for long service life
Centralized venting system for gas ventilation
Plastics or rope handles for handling and installation convenience
Front access terminals for easy and quick connection
Low internal resistance
Lower self discharge
Design life is up to 12 years
Case and cover in strong flame retardant ABS, VO class
Applications
Communication equipment, Telecommunication System, Uninterruptible power supplies, Electronic cash registers, Microprocessor based office machine, Other standby power supplies.
If any interest, welcome to contact us freely.
| Battery Model | Internal model | Nominal Voltage (V) | Nominal Capacity (AH) | Length | Width | Height | Total Height | Weight(±5%) | Terminal |
| In | mm | In | mm | In | mm | In | mm | Pound | Kg | Type | Position |
| 6FM55FR | FR12-55 | 12 | 55 | 11.5 | 291 | 4.17 | 106 | 8.78 | 223 | 9.06 | 230 | 39.7 | 18.0 | F10 | E |
| 6FM55FR/A | FR12-55 | 12 | 55 | 10.9 | 277 | 4.17 | 106 | 8.78 | 223 | 8.78 | 223 | 39.7 | 18.0 | F10 | E |
| 6FM75FR | FR12-75 | 12 | 75 | 22.1 | 562 | 4.53 | 115 | 7.36 | 187 | 7.64 | 194 | 51.8 | 23.5 | F12 | E |
| 6FM75FR/A | FR12-75 | 12 | 75 | 22.1 | 562 | 4.49 | 114 | 7.40 | 188 | 7.40 | 188 | 51.8 | 23.5 | F12 | E |
| 6FM85FR | FR12-85 | 12 | 85 | 22.1 | 562 | 4.53 | 115 | 7.36 | 187 | 7.64 | 194 | 56.2 | 25.5 | F12 | E |
| 6FM85FR/A | FR12-85 | 12 | 85 | 22.1 | 562 | 4.49 | 114 | 7.40 | 188 | 7.40 | 188 | 56.2 | 25.5 | F12 | E |
| 6FM105FR | FR12-105 | 12 | 105 | 20.7 | 527 | 4.33 | 110 | 8.86 | 225 | 9.13 | 232 | 71.7 | 32.5 | F10 | E |
| 6FM105FR/A | FR12-105 | 12 | 105 | 20.0 | 507 | 4.29 | 109 | 8.78 | 223 | 9.37 | 238 | 71.7 | 32.5 | F10 | E |
| 6FM110FR | FR12-110 | 12 | 110 | 16.1 | 410 | 4.33 | 110 | 11.3 | 288 | 11.6 | 295 | 70.5 | 32.0 | F12 | E |
| 6FM110FR/A | FR12-110 | 12 | 110 | 15.5 | 394 | 4.33 | 110 | 11.3 | 286 | 11.3 | 286 | 70.5 | 32.0 | F12 | E |
| 6FM125FR | FR12-125 | 12 | 125 | 21.7 | 551 | 4.29 | 109 | 9.41 | 239 | 9.41 | 239 | 79.4 | 36.0 | F12 | E |
| 6FM125FR/A | FR12-125/A | 12 | 125 | 21.6 | 549.5 | 4.13 | 105 | 12.40 | 315 | 12.40 | 315 | 80.5 | 36.5 | F12 | E |
| 6FM150FR | FR12-150 | 12 | 150 | 22.2 | 565 | 4.33 | 110 | 11.3 | 288 | 11.6 | 295 | 97.0 | 44.0 | F12 | E |
| 6FM150FR/A | FR12-150 | 12 | 150 | 21.7 | 551 | 4.33 | 110 | 11.3 | 288 | 11.3 | 288 | 97.0 | 44.0 | F12 | E |
| 6FM170FR | FR12-170 | 12 | 170 | 22.0 | 560 | 4.92 | 125 | 12.4 | 316 | 12.4 | 316 | 105.8 | 48.0 | F12 | E |
| 6FM180FR | FR12-180 | 12 | 180 | 22.0 | 560 | 4.92 | 125 | 12.4 | 316 | 12.4 | 316 | 116.4 | 52.8 | F12 | E |
| 6FM180FR/A | FR12-180A | 12 | 180 | 21.5 | 546 | 4.92 | 125 | 12.8 | 324 | 12.8 | 324 | 112.4 | 51.0 | F13 | E |
