| Prod Model: |
12V9ah |
| Operating Temperature: |
Operating Temperature |
| Design Time: |
10-12 Years |
| Separator: |
AGM |
| Charge Voltage (Cycle): |
2.40~2.50V |
| Container Material: |
ABS(UL94-Hb) *Flammability Resistance of (UL94-V0) |
| Material Lead: |
#1 Lead Top Quality in China |
| Terminal: |
Nb or B |
| Color: |
Grey or Black |
| Self Discharge: |
Less Than 3% Per Month |
| Certificate: |
ISO, UL, Ce |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

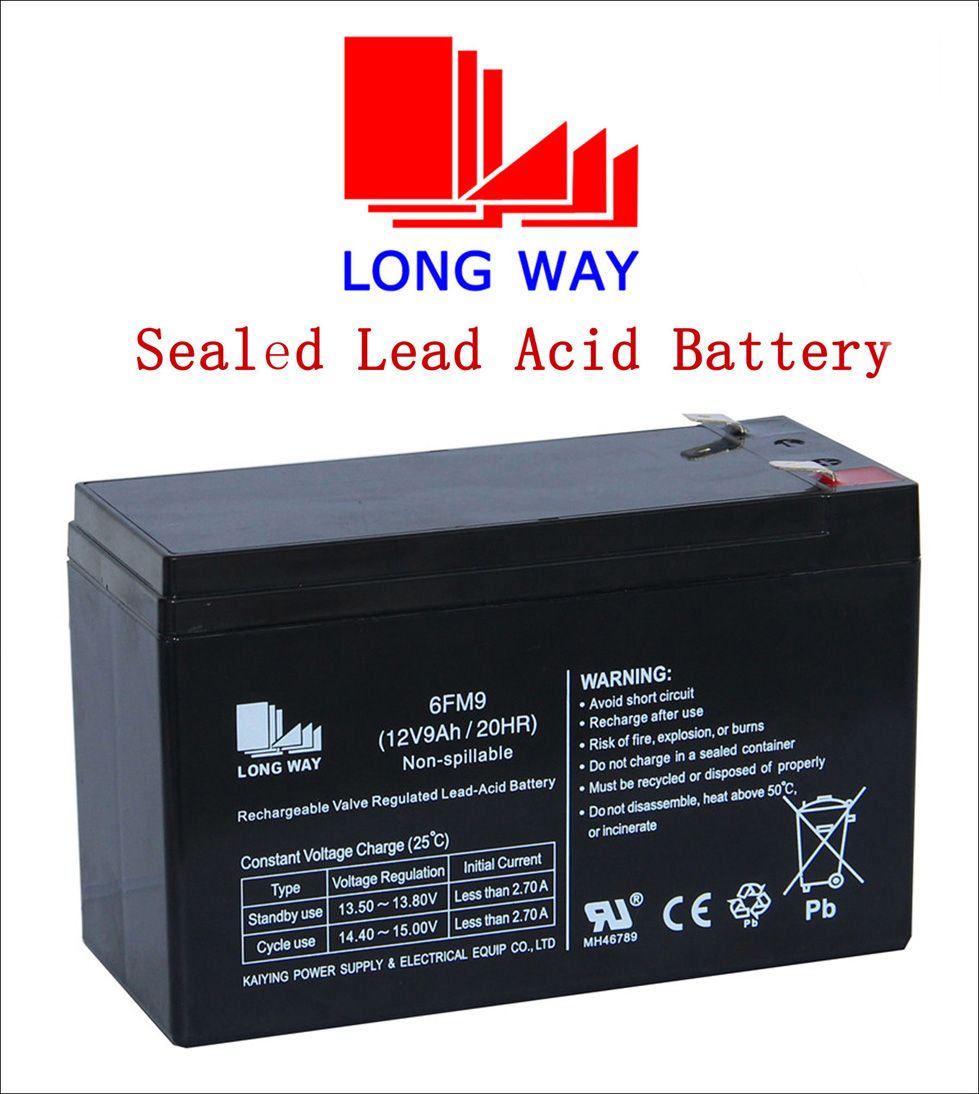

12V9ah AGM battery maintenance free battery for power tools
LONGWAY® Standard battery is design for a general purpose by KaiYing
Power. 6FM9 is a general purpose battery up to 5 years in star service or
more than 260 cycles at 100% discharge in cycle service. As with all
LONGWAY® batteries, all are rechargeable highly efficient, leak proof and
maintenance free.
| Normal Voltage | 12V |
| Capacity | 9Ah@20Hr-rate to 1.75V per cell@25ºC |
| Weight | Approx. (2.59±3%)kg(2.21bs) |
| Maximum Discharge Current | 90A(5sec) |
| Internal Resistance | Approx. 25mΩ full charged @25ºC |
| Operating Temperature Range | Discharge: -20ºC~60ºC
Charge: 0ºC~50ºC
Storage: -20ºC~60ºC |
| Nominal Operating Temperature Range | 25ºC±3ºC |
| Float Charging Voltage | 13.7~13.9VDC/unit Average @25ºC |
| Maximum Charging Current | 4.2A |
| Equalization and Cycle Service | 14.4V~15.0VDC/unit Average @ 25ºC |
| Self Discharge | LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored
for more than 6 months at 25ºC. Self-discharge ratio less than 3%
per month at 25ºC. Please charge batteries before using. |
| Terminal | F1(0.187)/F2(0.250) |
| Container Material | ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request |
| Dimensions | L151*W65*H94(TH100) |
Storage Series
LONGWAY Storage series batteries(S Type, "s"behind the model name stands for Storage energy application).by combining the newly develop namo gel electrolyte with high density paste. LONGWAY create offers high recharge efficiency at very low charge current which is very common at renewable energy systems. The acid stratification is highly depressed by adding of gel. This range battery is highly suitable for the energy storage for renewable energy such as PV and wind turbine power systems.
General Features
12 years design life at floating conditions
Long life expectancy of 5 years at renewable energy system
Wide temperature range from -20 to 60C
Nano gel electrolyte eliminate the acid stratification and prolong cycle life
Round trip efficiency as high as 85%
Thick positive flat design with high Tin Low Ca alloy and high density paste
Low self-discharge rate and long shelf life (1 year at 25C)
Excellent deep discharge recovery capacity
Applications
Photovoltaic system
Hybrid power system
Renewable energy system
Power storage for rural area
Telecom base station
