| Prod Model: |
TL1290 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
151*65*95(L*W*Hmm) |
| Weight: |
2.35kg |
| Rated Capacity: |
12V9ah |
| Color: |
White, Black , Grey |
| Company Type: |
Factory |
| Certificates: |
CE RoHS UL ISO |
| Port: |
Shenzhen |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

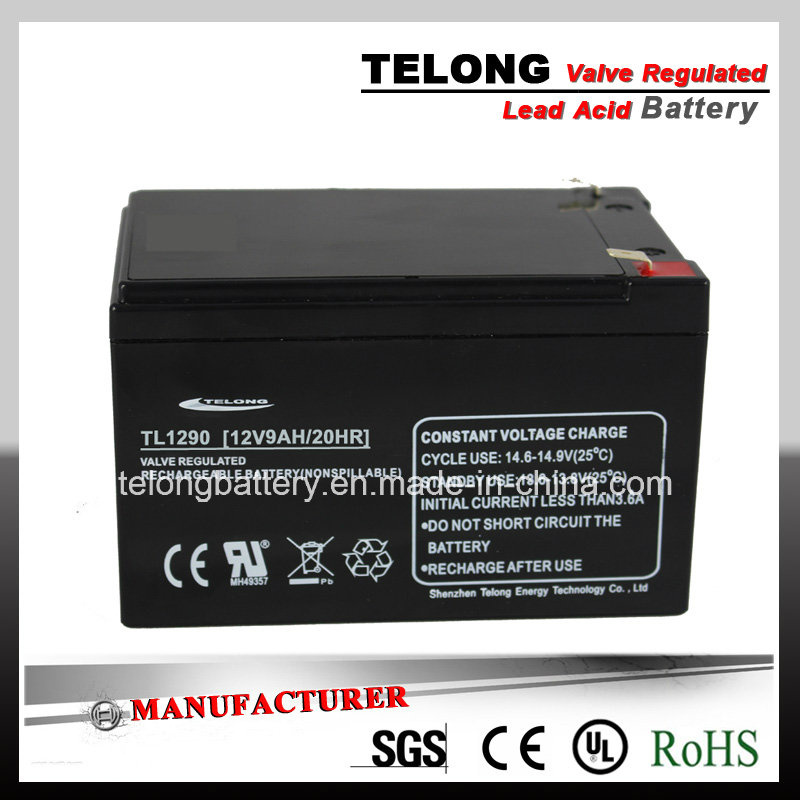

12V9AH Rechargeable Lead Acid Battery Solar Power Battery UPS Battery
Model No.: TL1290
1.Product Description
-Nominal Voltage: 12V9Ah
-Weight: 2.35Kg
-Dimension:151*65*95(L*W*Hmm)
-Color: White, Black , Grey
-Company type: Factory
-Certificates: CE ROHS UL ISO
2.General features
- Sealed Construction
- Maintenance Free
- Non - Spillable
- Absorptive Glass Mat Technology (AGM System)
- Gas Recommbination
- Position Free & Leakage Free
- Stable Quality & High Quality
- Long Service Life, Float or Cyclic
- Low Pressure Venting System
- Safety Measures
- Solid Copper Terminal
- Low Self Discharge
- High Recovery Capability
3.Packaging Detail
10pieces/carton,cartons with pallet,color box which is as per custmorers requirements
4.Delivery Detail
20 days after receive the deposit
5.Applifications
Our items are widely used in control system, wind/solar power system, electronic power system, UPS, telecommunication systems, etc.
Battery Application Area:
Electric Powered Vehicles
Golf Cars and Buggies
Wheel Chairs
Power Tools
Electric Powered Toys
Control System
Medical Equipments
UPS systems
PV applications
6. Company Informations
Founded in 2005, TeLong Energy Technology Co., Ltd has always been insisting on the follow enterprise business ethic ''Reasonable price, reliable quality, timely delivery, friendly service'', from which TeLong won a lot of reputation all over the world.
TeLong mainly produce the following type---AGM VRLA battery, GEL battery, OPzV, OPzS tubular plate battery, Automotive battery, Motorcycle battery, Golf cart battery, Electric vehicle battery, etc.
Our items have been sold out to South East Asia, Europe, Ameirica, Africa more than 100 different countries. We are well appreciated by our customers on good quality and performance.
In addition, We can OEM and ODM for a given brand or design. All of your calling and email will be highly appreciated. More information welcome to visit our company website: http://www.sztlg.com http://www.telongbattery.com
7. More informations, welcome to visit our website or contact me directly, all your comments will be highly appreciated.
http://www.sztlg.com/
http://www.telongbattery.com/
http://telongbattery.en.made-in-china.com/
| No. | Model No. | Nominal Voltage
(V) | Rated Capacity
(AH) | Dimension(mm) | Terminal | Weight
±4%(Kg) |
| L | W | H |
| mm | mm | mm | Type | Kg |
| 1 | TL1222 | 12 | 2.2 | 70 | 47 | 103 | F1 | 0.8 |
| 2 | TL1223 | 12 | 2.3 | 178 | 34 | 66 | F1 | 0.92 |
| 3 | TL1230 | 12 | 3 | 134 | 66 | 66 | F1/F2 | 1.32 |
| 4 | TL1240 | 12 | 4 | 90 | 70 | 100 | F1/F2 | 1.3 |
| 5 | TL1245 | 12 | 4.5 | 90 | 70 | 100 | F1/F2 | 1.46 |
| 6 | TL1250 | 12 | 5 | 90 | 70 | 100 | F1/F2 | 1.46 |
| 7 | TL1256 | 12 | 5.6 | 90 | 70 | 100 | F1/F2 | 1.7 |
| 8 | TL1260 | 12 | 6 | 151 | 50 | 100 | F1/F2 | 1.8 |
| 9 | TL1270A | 12 | 7 | 151 | 65 | 100 | F1/F2 | 2.05 |
| 10 | TL1270B | 12 | 7 | 151 | 65 | 100 | F1/F2 | 2.15 |
| 11 | TL1280 | 12 | 8 | 151 | 65 | 100 | F1/F2 | 2.3 |
| 12 | TL12100 | 12 | 10 | 151 | 98 | 100 | F1/F2 | 3 |
| 13 | TL12120 | 12 | 12 | 151 | 98 | 100 | F3/F13 | 3.35 |
| 14 | TL12150 | 12 | 15 | 181 | 76 | 167 | F3/F13 | 4.4 |
| 15 | TL12170 | 12 | 17 | 181 | 76 | 167 | F3/F13 | 5 |
| 16 | TL12200 | 12 | 20 | 181 | 76 | 167 | F3/F13 | 5.15 |
| 17 | TL12240 | 12 | 24 | 175 | 166 | 125 | F3/F13 | 8 |
| 18 | TL12320 | 12 | 32 | 196 | 131 | 172 | F7/F11 | 10 |
