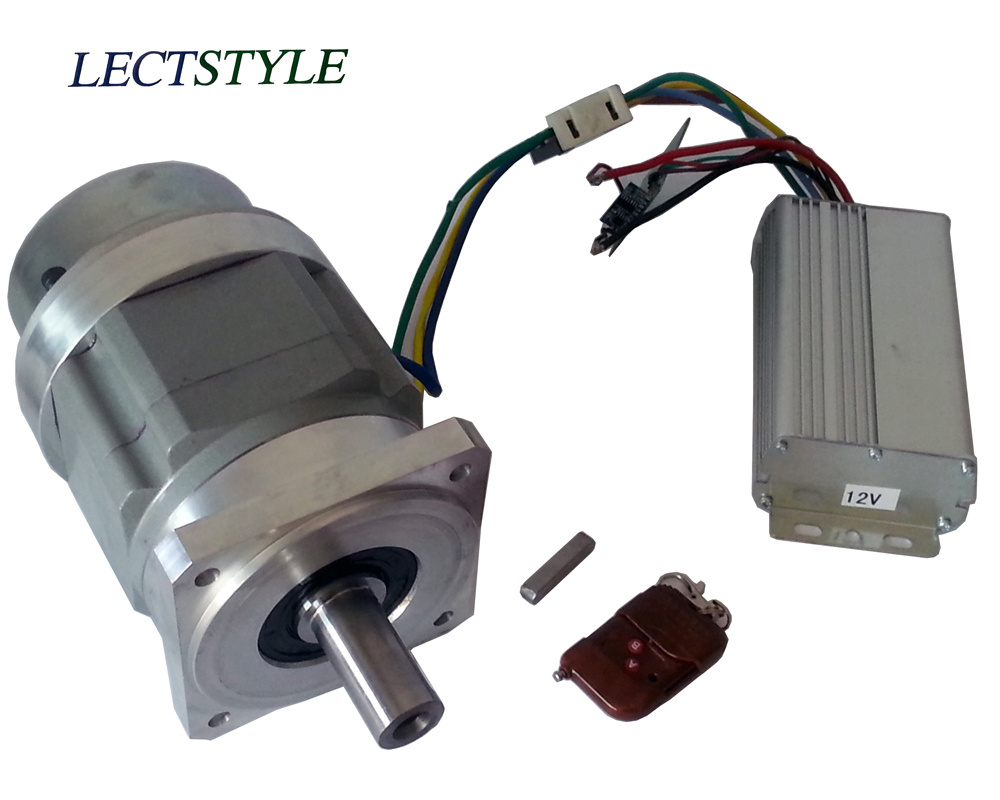

12VDC Brushless DC Motor with Output Speed 4-5rpm

Name: 12VDC Brushless DC Motor with Output Speed 4-5rpm
Brand: all-electronics-online.com
SKU: 757957345
Availability: InStock
Rating: 5 (42 reviews)

Price:	US $ 115/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	PF115-50-120
Markets:	North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Reduction Ratio:	50:1
Voltage:	12V DC
Body Length:	75mm
Body Height:	105mm
Body Width:	105mm
Output Power:	300W
Load Torque:	9.55n.M
Current:	29.5AMPS
Nominal Output Torque:	300n.M
Nominal Input Speed:	3000rpm
Structure And Working Principle:	Brushless
Operating Speed:	Adjust Speed
Application:	Industrial
Excitation Mode:	Excited
Number Of Poles:	3
Brand:	Lectstyle
Type:	Ngw

Product Description

We are a professional fabrication, design and trade company, our business products are included Precision Planetary Reducer, BLDC Motors, DC Motors, Gears, Roller Chains, Sprockets, Commutator etc, HANGZHOU LECTSTYLE TRADE CO., LTD is approved to import and export goods as a professional international sales department for serving the whole company, our factory is only responsible for production and Chinese domestic market.

For example, our planetary reducer is introduced to you as below:
Our advantage:
(1)Manufacturer and trade company
(2)Professional Engineering Capability
(3)Stable Quality
(4)Reasonable Price
(5)Small Orders Accepted
(6)Continuous Improvements
(7)High Product Performance
(8)Prompt Delivery
(9)Professional Service

Available options +
(1)Output type: Keywayed output shaft
(2)Input type: Motor mounted version
(3)Design: Long time and lifetime lubrication

Applications +
(1)Gantries
(2)Injection-molding machines
(3)Pick-and-place automation
(4)Linear slides
(5)Packaging machines
(6)Conveyors

Welcome to contact us about the above product if you are interested in, please send its outside structure drawing to us, marks its reduction ratio, speed, output torque, connecting type and diameter of shaft, material of body and gear etc, and then we will give you the accurate offer.

Technical Data of PLE-090
number of stage				1-stage					2-stage					3-stage
reduction ratio i				3,4,5,7,10					12,16,20,25,28,35,40,50,70,100					80,100, 125, 140, 175, 200, 250, 350, 400, 500, 700, 1000
body length A(mm)				61					86					111
overall length B(mm)				154					179					204
nominal input speed(rpm)				3500					3500					3500
max input speed(rpm)				6000					6000					6000
max radial torque(N)				1020					1270					1420
max axial torque(N)				850					1100					1250
driving moment torque(N.m)				0.8					0.4					0.4
full load efficiency(%)				96					94					90
backlash				<3					<5					<8
				<8					<10					<12
running noise(dB)				≤62					≤62					≤62
weight(Kg)				2.8					3.4					4
lifetime(h)				>20,000
torsional stiffness(N.m/arcmin)				7.5
lubrication type				lifetime lubrication
degree of protection IP				IP65
mounting type				any

reduction ratio i	3	4	5		7	10	12	16		20	25	28	35		40	50	70
nominal output torque	60	86	94		64	39	30	96		96	105	96	105		96	105	71
maxl output torque	120	172	189		128	79	192	192		192	211	192	211		192	211	143
moment of inertia	0.4	0.3	0.29		0.28	0.28	0.4	0.3		0.29	0.29	0.28	0.28		0.28	0.28	0.28

reduction ratio i	80	1002	1003		125	140	175	200		250	280	350	400		500	700	1000
nominal output torque	120	44	120		132	120	132	120		132	120	132	44		132	89.5	55
maxl output torque	240	88	240		264	240	264	240		264	240	264	88		264	179	110
moment of inertia	0.29	0.28	0.29		0.29	0.28	0.28	0.28		0.28	0.28	0.28	0.28		0.28	0.28	0.28

About us

Our HANGZHOU LECTSTYLE TRADE Co., Ltd is one reliable OEM supplier, we have own chain factory, motor factory and export trade company to support our job, some spare parts are from our long cooperated suppliers, these quality parts are repeatedly proven and tested in-factory, so donot worry about our capacity.

Our main supplied products as below:

1. DC Motors, windshield wiper motor, wheelchair motor, dump truck tarp motor, wind turbine generator and planetary reducer

2. Transmission parts (roller chain, agricultural roller chain, conveyor chain, silent chain, sprocket, spur gear, transmission gear, gear shaft etc).

Our company is qualified with integrally mechatronic abilities of design, manufacture and testing. In these years of production process, throught constant practice, experiment and research, we have collected a large amount of data and accumulated rich experience. Through these, our plant created a various of advanced production process documents, quality standard and inspection process documents, which guarantee the product's production process of each contact completely in according to one standard control.

Our LECTSTYLE always adhere to the "Ensuring quality, Persisting improvement, Pursuiting customer satisfaction" principle, to provide the best products for the domestic and foreign clients with the pre-sales and after-sales service.

In the pages, you will find some samples of the thousands of parts, products, and components that LECTSTYLE supervises the fabrication in our own and cooperated factory. It's really best to contact us directly, so the LECTSTYLE can address your project and structure all elements of a complete end to end solution that can get your job done right.
