| Prod Model: |
6FM65 |
| Color: |
Grey or Black or Orange |
| Weight: |
21kg |
| Terminal: |
B/Nb |
| Certificate: |
UL Ce ISO RoHS |
| Charger Type: |
Electric Charger |
| Nominal Voltage: |
12V |
| Type: |
Lead Acid Battery |
| Charger Application: |
Solar System |
Product Description
Sealed Rechargeable Lead-Acid Battery
Tradmark: Longway
Longway battery used for AGM VRLA/SLA maintenance-free battery.
6V - 1.3Ah to 12Ah used for emergency lighting and alarm lighting and sound application.
12V - 0.8Ah to 250Ah used for power storage and backup for standby power & deep cycle use.
2V - 50Ah to 3000Ah used for solar power systems and telecommunication are using all self-made high quality and thick deep cycle plates.
1)

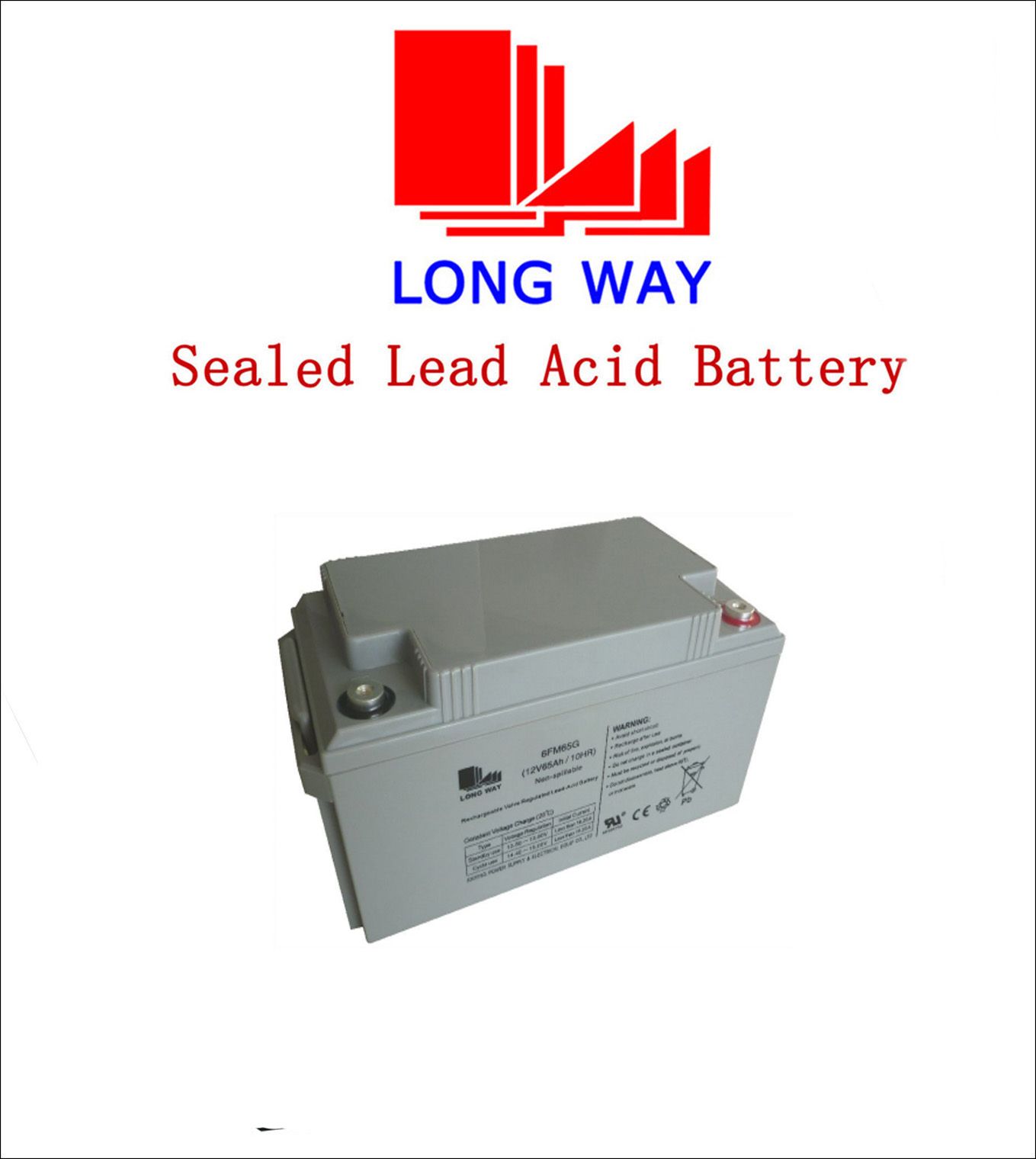

Model: 6FM65G (12V65AH/10HR)
Size: 350*165*182(total height: 182) mm
Terminal: C
Packing Qty: 1 PCS/CTN
950PCS/Container
Lead-time: 20 days for one container
OEM acceptable
2)
General Features
Sealed construction
Maintenance-free operation
Position-free and leakage-free
Stable quality & high reliability
Long service life, float or cyclic
Low pressure venting system
Heavy-duty grids
Low self discharge
High recovery capability
UL and CE component recognition
3)
Applications: UPS, Solar Light system, Medical Equipment, Inverter
For more information, please contact us and welcome you!
| Standby LONGWAY Standard Series batteries |
| Battery Model | Nominal Voltage(V) | Nominal Capacity
(AH) | Length | Width | Height | Total Height | Weight(5%) | Terminal |
| In | mm | In | mm | In | mm | In | mm | Pound | Kg | Type | Position |
| 6FM1.2 | 12 | 1.2 | 3.86 | 98 | 1.71 | 43.5 | 2.05 | 52 | 2.28 | 58 | 1.26 | 0.57 | F1 | E |
| 6FM2.2 | 12 | 2.2 | 2.78 | 70.5 | 1.87 | 47.5 | 3.90 | 99 | 4.09 | 104 | 1.70 | 0.77 | F1 | C |
| 6FM2.4 | 12 | 2.4 | 7.01 | 178 | 1.38 | 35 | 2.40 | 61 | 2.64 | 67 | 2.14 | 0.97 | F1 | C |
| 6FM2.6 | 12 | 2.6 | 2.78 | 70.5 | 1.87 | 47.5 | 3.90 | 99 | 4.09 | 104 | 1.83 | 0.83 | F1 | C |
| 6FM3.2 | 12 | 3.2 | 5.28 | 134 | 2.64 | 67 | 2.34 | 59.5 | 2.60 | 66 | 2.80 | 1.27 | F1/F2 | E |
| 6FM4 | 12 | 4 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.15 | 1.43 | F1/F2 | C |
| 6FM4.5 | 12 | 4.5 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.26 | 1.48 | | C |
| 6FM5 | 12 | 5 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.57 | 1.62 | F1/F2 | C |
| 6FM5A | 12 | 5 | 5.51 | 140 | 1.89 | 48 | 4.13 | 105 | 4.13 | 105 | 3.66 | 1.66 | F2+F1- | C |
| 6FM5B | 12 | 5 | 5.94 | 151 | 2.01 | 51 | 3.66 | 93 | 3.90 | 99 | 3.66 | 1.66 | F1 | F |
| 6FM5.5 | 12 | 5.5 | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.86 | 1.75 | F1/F2 | C |
| 6FM5.5A | 12 | 5.5 | 5.51 | 140 | 1.89 | 48 | 4.13 | 105 | 4.13 | 105 | 3.86 | 1.75 | F2+F1- | C |
| 6FM5.5B | 12 | 5.5 | 5.94 | 151 | 2.01 | 51 | 3.66 | 93 | 3.90 | 99 | 3.66 | 1.66 | F1 | F |
| 6FM6 | 12 | 6 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.30 | 1.95 | F1/F2 | F |
| 6FM7 | 12 | 7 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.63 | 2.10 | F1/F2 | F |
| 6FM7.2 | 12 | 7.2 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.74 | 2.15 | F1/F2 | F |
| 6FM7.5 | 12 | 7.5 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 4.85 | 2.20 | F1/F2 | F |
| 6FM8 | 12 | 8 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 5.07 | 2.30 | F1/F2 | F |
| 6FM8E | 12 | 8 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 5.07 | 2.30 | F1/F2 | F |
| 6FM9 | 12 | 9 | 5.94 | 151 | 2.56 | 65 | 3.70 | 94 | 3.94 | 100 | 5.73 | 2.60 | F1/F2 | F |
| 6FM10A | 12 | 10 | 5.94 | 151 | 2.56 | 65 | 4.37 | 111 | 4.61 | 117 | 6.61 | 3.00 | F2 | F |
| 6FM10B | 12 | 10 | 5.94 | 151 | 2.56 | 65 | 4.37 | 111 | 4.61 | 117 | 6.39 | 2.90 | F2 | F |
| 6FM10 | 12 | 10 | 5.94 | 151 | 3.86 | 98 | 3.74 | 95 | 3.98 | 101 | 6.72 | 3.05 | F2 | F |
| 6FM11 | 12 | 11 | 7.13 | 134 | 3.15 | 80 | 6.34 | 161 | 6.50 | 165 | 10.10 | 4.58 | F3 | C |
| 6FM12 | 12 | 12 | 7.13 | 151 | 3.86 | 98 | 3.74 | 95 | 3.98 | 101 | 7.17 | 3.25 | F2 | F |
| 6FM14 | 12 | 14 | 7.13 | 151 | 3.86 | 98 | 3.74 | 95 | 3.98 | 101 | 8.27 | 3.75 | F2 | F |
| 6FM15 | 12 | 15 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 10.14 | 4.60 | F4 | D |
| 6FM17 | 12 | 17 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 11.02 | 5.00 | F4 | D |
| 6FM18 | 12 | 18 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 11.90 | 5.40 | F4 | D |
| 6FM18C | 12 | 18 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 11.24 | 5.10 | F4 | D |
| 6FM20 | 12 | 20 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 12.35 | 5.60 | F4 | D |
| 6FM24 | 12 | 24 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 16.76 | 7.60 | F4/F8 | D |
| 6FM26 | 12 | 26 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 18.96 | 8.60 | F4/F8 | D |
| 6FM28 | 12 | 28 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 19.84 | 9.00 | F4/F8 | D |
| 6FM28A | 12 | 28 | 6.50 | 165 | 4.96 | 126 | 6.89 | 175 | 7.01 | 178 | 18.74 | 8.50 | F14/F9 | D |
| 6FM30 | 12 | 30 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 6.54 | 166 | 20.94 | 9.50 | F9/F15 | C |
| 6FM33 | 12 | 33 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 6.54 | 166 | 22.49 | 10.20 | F9 | C |
| 6FM35 | 12 | 35 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 6.54 | 166 | 23.15 | 10.50 | F9 | C |
| 6FM38 | 12 | 38 | 7.80 | 198 | 6.54 | 166 | 6.69 | 170 | 6.69 | 170 | 28.66 | 13.00 | F9 | D |
| 6FM40 | 12 | 40 | 7.80 | 198 | 6.54 | 166 | 6.69 | 170 | 6.69 | 170 | 29.76 | 13.50 | F9 | D |
| 6FM45 | 12 | 45 | 7.80 | 198 | 6.54 | 166 | 6.69 | 170 | 6.69 | 170 | 30.86 | 14.00 | F9 | D |
| 6FM50 | 12 | 50 | 9.02 | 229 | 5.43 | 138 | 8.19 | 208 | 8.39 | 213 | 37.04 | 16.80 | F9 | C |
| 6FM55 | 12 | 55 | 9.02 | 229 | 5.43 | 138 | 8.19 | 208 | 8.39 | 213 | 38.58 | 17.50 | F9 | C |
| 6FM60 | 12 | 60 | 10.20 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 47.40 | 21.50 | F9 | C |
| 6FM65 | 12 | 65 | 13.78 | 350 | 6.50 | 165 | 7.17 | 182 | 7.17 | 182 | 46.30 | 21.00 | F6/F9 | C |
| 6FM70 | 12 | 70 | 10.20 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 47.40 | 21.50 | F9 | C |
| 6FM75 | 12 | 75 | 10.20 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 50.71 | 23.00 | F9 | C |
| 6FM80B | 12 | 80 | 10.20 | 259 | 6.65 | 169 | 8.19 | 208 | 8.39 | 213 | 51.81 | 23.50 | F9 | C |
| 6FM80 | 12 | 80 | 12.09 | 307 | 6.57 | 167 | 8.27 | 210 | 8.46 | 215 | 55.12 | 25.00 | F9 | C |
| 6FM90 | 12 | 90 | 12.09 | 307 | 6.57 | 167 | 8.19 | 208 | 8.39 | 213 | 58.42 | 26.50 | F9 | C |
| 6FM95 | 12 | 95 | 12.09 | 307 | 6.57 | 167 | 8.19 | 208 | 8.39 | 213 | 59.52 | 27.00 | F9 | C |
| 6FM100H | 12 | 100 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 66.14 | 30.00 | F11 | C |
| 6FM100E | 12 | 100 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 65.04 | 29.50 | F11 | C |
| 6FM120 | 12 | 120 | 15.94 | 405 | 6.81 | 173 | 9.33 | 237 | 9.33 | 237 | 77.16 | 35.00 | F11 | C |
| 6FM120E | 12 | 120 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 68.34 | 31.00 | F11 | C |
| 6FM134 | 12 | 134 | 13.43 | 341 | 6.81 | 173 | 11.14 | 283 | 11.34 | 288 | 91.49 | 41.50 | F10 | C |
| 6FM150 | 12 | 150 | 19.02 | 483 | 6.69 | 170 | 9.49 | 241 | 9.49 | 241 | 97.00 | 44 | F11 | C |
| 6FM160 | 12 | 160 | 13.43 | 341 | 6.81 | 173 | 11.14 | 283 | 11.34 | 288 | 99.21 | 45 | F10 | C |
| 6FM200 | 12 | 200 | 20.55 | 522 | 9.45 | 240 | 8.62 | 219 | 8.82 | 224 | 132.28 | 60 | F11 | E |
| 6FM200E | 12 | 200 | 20.55 | 522 | 9.45 | 240 | 8.62 | 219 | 8.82 | 224 | 134.48 | 61 | F11 | E |
| 6FM230 | 12 | 230 | 20.51 | 521 | 10.59 | 269 | 7.99 | 203 | 8.19 | 208 | 145.51 | 66 | F11 | F |
| 6FM250 | 12 | 250 | 20.47 | 520 | 10.59 | 269 | 8.66 | 220 | 9.65 | 245 | 154.32 | 70 | F11 | E
|
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
