12volt Solar UPS Sealed Rechargeable Lead Acid Battery

Name: 12volt Solar UPS Sealed Rechargeable Lead Acid Battery
Brand: all-electronics-online.com
SKU: 609650935
Availability: InStock
Rating: 4.5 (114 reviews)

Price:	US $ 14-14.5/Piece
Trade Terms:	FOB,others
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	12V12AH/20HR(6FM12S)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Grey or Black or Orange
Terminal:	F1/F2
Size:	L151W98H96(Th102)mm
Application:	Solar System; Wind Power System
Approx Weight:	3.3 Kg (7.02 Lbs)
Type:	Lead-Acid Batteries
Usage:	Solar Battery
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

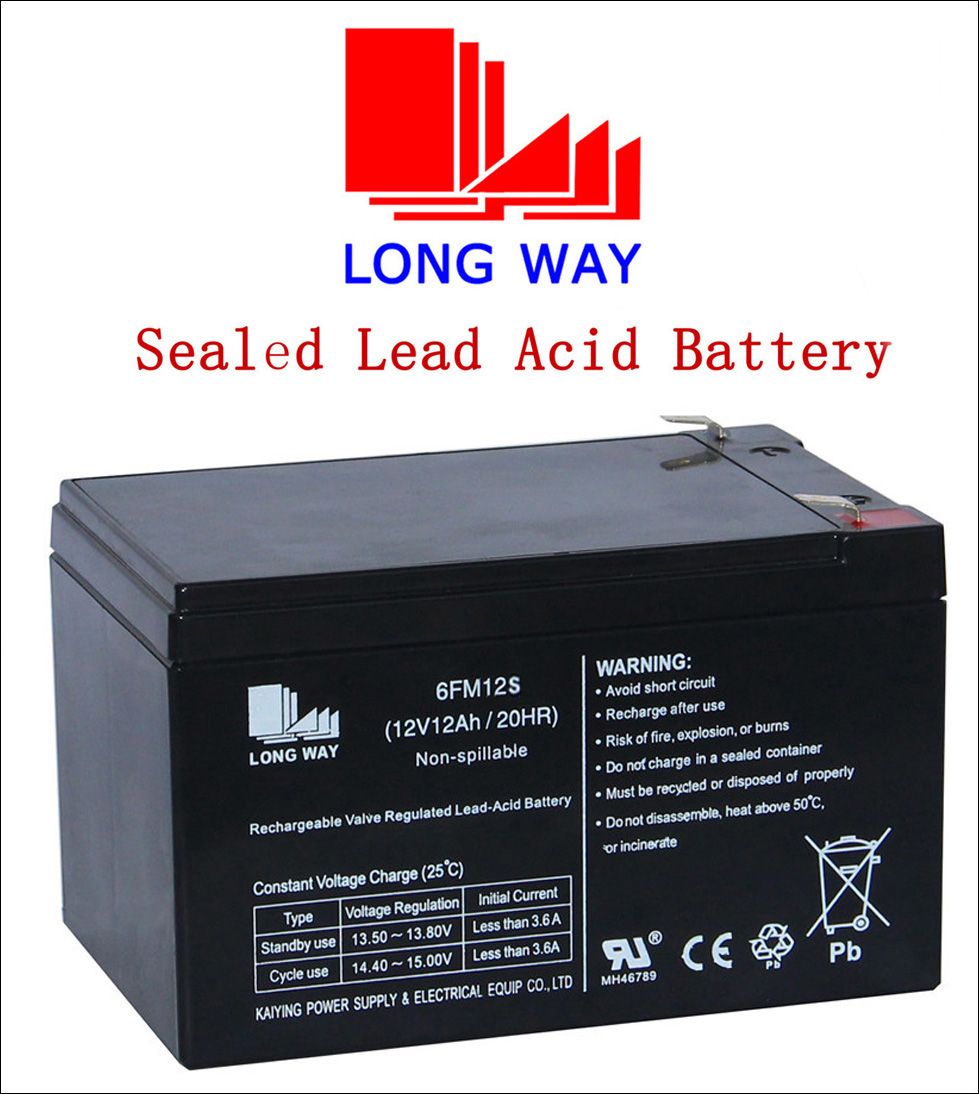

LONG WAY 12V12AH 12volt Solar UPS Sealed Rechargeable Lead Acid Battery

*LONG WAY S series is specially designed for solar system & wind power system. According the condition of applications, Zhongshan Long Way Battery Manufacturing Co., Ltd., spent more than
one year to develop and research S series.

S Series performs excellent when it is recharged in high ambient temperature, discharge in low ambient temperature.

S Series has good capacity retention under the poor recharging condition.

*Specifications:

Cells per Unit	6
Normal Voltage	12V
Capacity	12Ah@20Hr-rate to 1.75V per cell@25ºC
Capacity	14Ah@100Hr-rate to 1.9V per cell@25ºC
Weight	Approx.(3.3±3%) kg (7.20lbs)
Maximum Discharge Current	140A(5sec)
Internal Resistance	Approx. 15mΩ full charged @25ºC
Operating Temperature Range	Discharge: -20ºC~60ºC Charge: 0ºC~50ºC Storage: -20ºC~60ºC
Nominal Operating Temperature Range	25ºC±3ºC
Float Charging Voltage	13.7~13.9VDC/unit Average @25ºC
Maximum Charging Current	4.2A
Equalization and Cycle Service	14.4V~15.0VDC/unit Average @ 25ºC
Self Discharge	Self-discharge ratio less than 3%per month at 25ºC.
Terminal	F2(0.250)
Container Material	ABS(UL94-HB) *Flammability resistance of (UL94-V0) can be available upon request

*General Features:
High Recharging Efficiency; Good Renewal Ability after Deep Discharge;
Excellent Performance in Low Temperature; Maintenance-Free; Safe and Non-spillable;
Long Life Service; UL Approvals

*Designed Service Life: 6 years
*warranty: 1 years
*OEM Acceptable

For more information, please contact us and welcome you! !

Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.

As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.

Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.

During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
