12W 0.15A Indoor Constant Current Non-Isolated LED Power Supply

Name: 12W 0.15A Indoor Constant Current Non-Isolated LED Power Supply
Brand: all-electronics-online.com
SKU: 813898085
Availability: InStock
Rating: 4.6 (33 reviews)

Price:	US $ 2.1-3.2/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD012-1SCH72-150
Output Power:	12W
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	180~264VAC
Pack Sealing Size:	127X40X29 mm
Brand:	Fsp-Powerland

Product Description

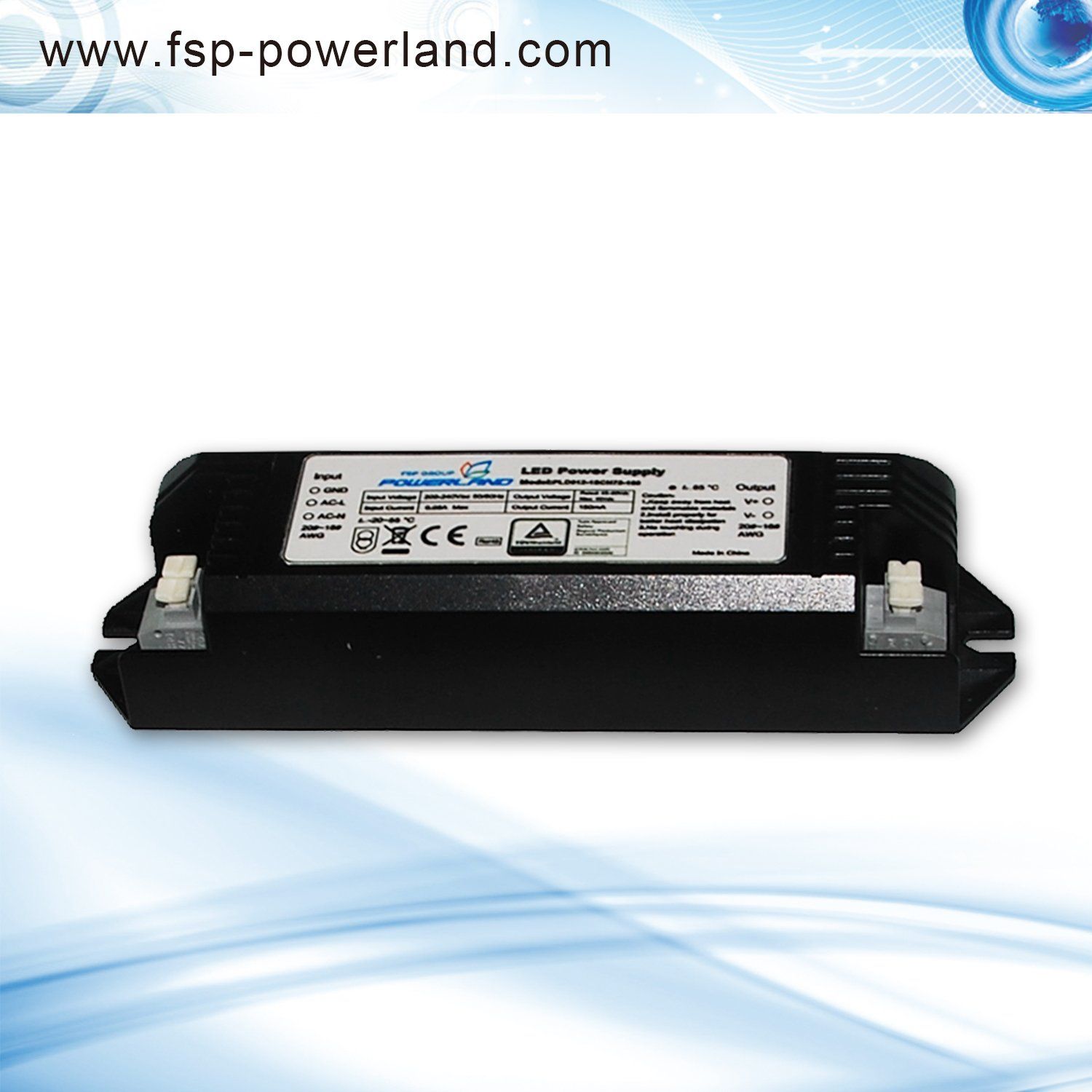

12W 0.15A Indoor Constant Current Non-Isolated LED Power Supply

PLD012-1SCH72-150 offers 12W constant current drivers with 180~264Vac input.

The output current of this series is up to 0.15A, and designed for indoor applications.

Applications
Indoor LED lights
Downlights, spotlights, LED panels

Features
50,000 hours lifetime at 60ºC Tcase
3 years warranty at 60ºC Tcase
Constant current output
Safety according to EN61347-1
EMC according to EN55015
Lightning, OVP, SCP, & Open Circuit Protection

Electrical Specifications

Model	PLD012-1SCH72-150
Output Voltage	65~80V
Output Current	0.15A
Output Power	12W
Max. Current Ripple	150mA
Voltage Range	180~264Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	0.08A
Max. Input Power	15W
Power Factor	>0.90 @ 230Vac & 100% load
Efficiency	92%
Max. Open Circuit Voltage	95V
THD	<25% @ 230Vac & 90~100% load
Protections	OVP, OCP, SCP
Environmental Protection	IP20
Working Temperature	-20~+50ºC
Max. Case Temperature	80ºC
Surge Protection	1kV/2kV
Agency Approbations	EN61347-1
Electromagnetic Compliance	EN55015
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	N/A
Dimension	127x40x29 mm
Mounting Length	137 mm
Overall Length	150 mm
Weight	0.11 kg 0.27 kg
Life Time	50,000 hours @ full load, 60ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
