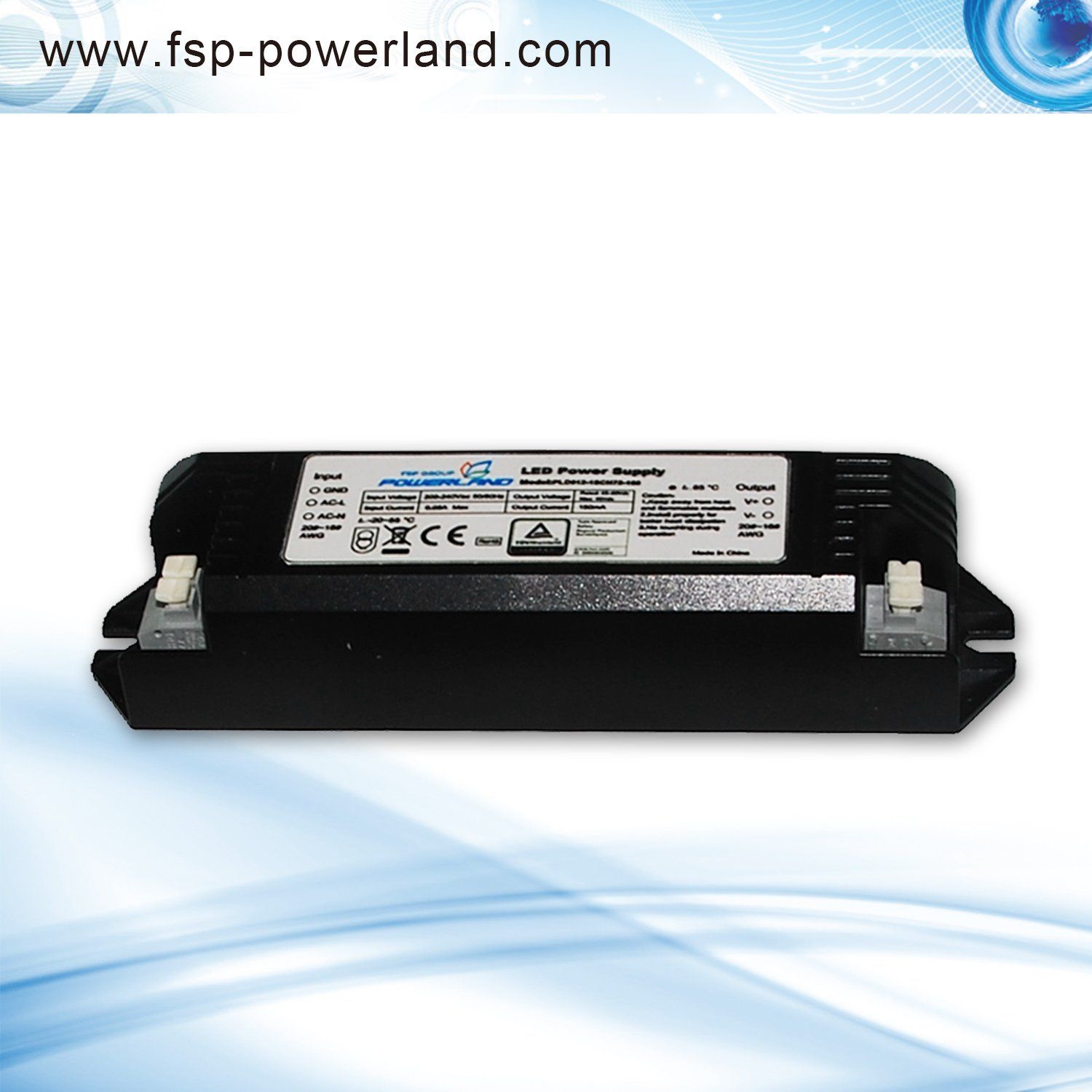

12W~96W Constant Current EU LED Driver (Non-Isolated)

Name: 12W~96W Constant Current EU LED Driver (Non-Isolated)
Brand: all-electronics-online.com
SKU: 799523005
Availability: InStock
Rating: 4.9 (89 reviews)

Price:	US $ 2.05-5.85/Piece
Min Order:	300/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLDXXX-1SCH72-XXX
Output Power:	12W
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	180~264VAC
Pack Sealing Size:	127X40X29 mm
Brand:	Fsp-Powerland

Product Description

12W~96W Constant Current EU LED Driver (Non-Isolated)

Powerland's EU AC Non-Isolated series offers 12/24/40/48/80/96W constant current drivers with 180~264Vac input.

The output current of this series is up to 0.15/0.3/0.55/0.6/1.1/1.2A,and designed for indoor applications.

Applications
Indoor LED lights

Downlights, spotlights, LED panels

Features
50,000 hours lifetime at 60ºC Tcase

3 years warranty at 60ºC Tcase

Constant current output

Safety according to EN61347-1

EMC according to EN55015

Lightning, OVP, SCP, & Open Circuit Protection

Specifications

Input Voltage	Output Power	Output Voltage	Output Current	Efficiency	Max. Case Temperature	Max. Input Current	Max. Input Power	THD	Power Factor
180~264Vac	12~96W	65V … 80V	0.15A … 1.20A	92%	90ºC	0.6A	124W	<25%	>0.90

* Based on 25oC ambient temperature, rated input voltage, and full load.
** Refer to Page 2 for detailed specifications for this series of LED drivers.

Electrical Specifications

Model	PLD012-1SCH72-150	PLD024-1SCH72-300	PLD040-1SCH72-550	PLD048-1SCH72-600	PLD080-1SCH72-1100	PLD100-1SCH72-1200
Output Voltage	65~80V	65~75V	60~72.5V	65~80V	60~72.5V	65~80V
Output Current	0.15A	0.30A	0.55A	0.60A	1.10A	1.20A
Output Power	12W	24W	40W	48W	80W	96W
Max. Current Ripple	150mA	300mA	500mA	600mA	500mA	500mA
Voltage Range	180~264Vac	180~264Vac	180~264Vac	180~264Vac	180~264Vac	180~264Vac
Frequency Range	47~63Hz	47~63Hz	47~63Hz	47~63Hz	47~63Hz	47~63Hz
Max. Input Current @ 230Vac	0.08A	0.16A	0.25A	0.25A	0.5A	0.6A
Max. Input Power	15W	29W	50W	60W	99W	124W
Power Factor	>0.90 @ 230Vac & 100% load
Efficiency	92%	92%	90%	90%	90%	90%
Max. Open Circuit Voltage	95V	95V	95V	95V	95V	95V
THD	<25% @ 230Vac & 90~100% load				<30% @ 230Vac & 90~100% load
Protections	OVP, OCP, SCP
Environmental Protection	IP20
Working Temperature	-20~+50ºC
Max. Case Temperature	80ºC				90ºC
Surge Protection	1kV/2kV
Agency Approbations	EN61347-1
Electromagnetic Compliance	EN55015
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	N/A
Dimension	127x40x29 mm				176x41x30 mm
Mounting Length	137 mm				222 mm
Overall Length	150 mm				232 mm
Weight	0.11 kg 0.27 kg				0.27 kg
Life Time	50,000 hours @ full load, 60ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

Performance Characteristics

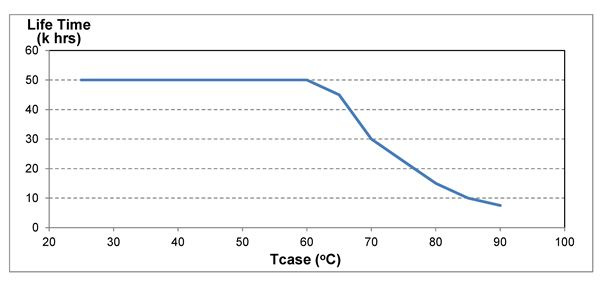

Life Time vs. Case Temperature
