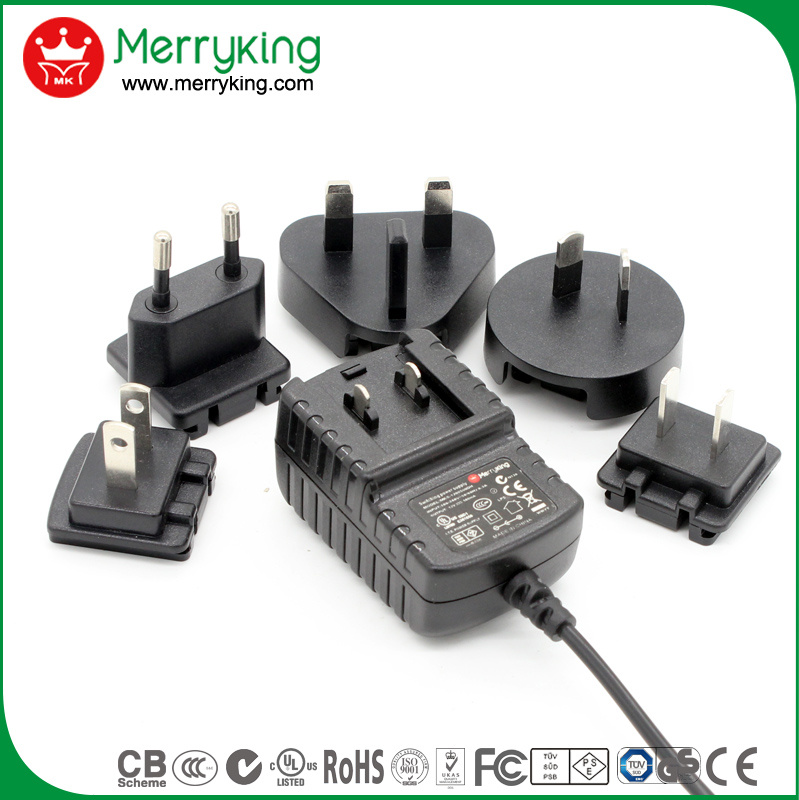

12W Series Wall Mount 12V1a AC/DC Interchangeable Adapter

12W Series Wall Mount 12V1a AC/DC Interchangeable Adapter
Price: US $ 2-3/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: MKS-1200500
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty: 36 Months
Protection: Short Circuit,Over-Voltage,Over-Current
Name: AC DC Adapter
Delivery Detail: 15 Days
Port: Shenzhen
Supply Ability: 5000000 Piece/Pieces Per Year
Usage: Display
Output Type: DC
Connection: Plug In
Type: Merryking/OEM/ODM
Brand: Merryking/OEM/ODM

Product Description


 Key Specifications/Special Features:

*12W series external wall-mount AC/DC switching power adapter (AC/DC adapter), class II, LPS, Universal input.
*Customized designs are available
*Model number: MKS-1200500
*Reliability:
     100% full loading, 40°C, 4 hours each part of this series can be sold separately
     MTBF: meet MIL-HDBK-217F over 50,000 hours, full loading, 25°C burn-in
     Leakage current: 0.25mA, maximum at 264V AC
     Withstanding voltage: 3kV, 1 minute, 10mA (maximum), between primary and secondary

*Features:
    LED light indicator
    High Quality Competitive Price
    High-reliability
    High-efficiency consumption
    Light and portable ,convenient to carry , easy to use
    With fuse, short-circuit protection
    Environmently friendly, energy-saving, complying with the safe certification standard
    Double insulated circuit board designed to protect your valuable gadgets from short circui

*application :
    LED display, led strip, nixie tube, street light, lamp
    Electrical equipment, Instrumentation
    Digital and electronic products
    LCD, LED, CCTV camera
    Building lighting decoration
    Communications and security products

*Specification:

Model

MKS-1200500

AC Input

Voltage

100-240V AC

Input current

0.3A/230V AC

Frequency

47-63 Hz

Efficiency

85% typical

DC Output

Voltage

12V

Current

500mA

Rated Power

6W

Ripple&noise

80mvp-p

Setup rise hold up time

500ms,20ms,50ms/230VAC 500ms,20ms,15ms/115VAC at full load

Protection

Over Load

120%Max, hiccup mode auto recovery after fault condition is remo
ved

Short Circuit

Auto recovery

Environment

Store Temperature

-20-85°C

Wokring Temperature

0--50°C

Operating Humidity

20%-80%RH

Certifications


CE

EN 60950-1:2006;  EN60065-6-3:2001; EN 55022:2006+A1:2007

EN61558-6-1:2001; EN55024:1998+A1:2000+A2:2003

UL

UL 60950-1 ;CSA C22.2 No. 60950-1-07

SAA

AS/NZS 60950.1:2011 & AS/NZS 3112:2011

PSE
J60950-1(H22) and J55022(H22)

cTUVus
UL 60950-1:2001;CAN/CSA-C22.2 No.60950-1:2007

others

Product dimension

61.8*39*26.5mm

Packing

1PCS/Box  140pcs/ctn,43*38*32.5cm

DC connector size

5.5x2.1, 5.5x2.5. 3.5x1.35 or others

Cable length

1.5M or others

  Shipping  Details:
   1.  By air
   Your order will be delivered by DHL, FEDEX, UPS, TNT, or other International Express. It's up to you to    choose your suitable express company. It normally takes 3-7 days to arrive at your destination. Surcharge will   be charged if your destination is remote area.
    2.  By sea
    Shipments will be operated under FOB conditions.

Our Services
   1.We will send samples to your confirmation.
   2.We welcome customers to check mass goods before delivery
   3.You can ask refund goods in 30 days after you get goods,and all of the cost we will afford if the reason is ours,What's more we will give you the new products as soon as possible
MERRYKING advantage:
   Aging test
   Aging test, many manufactures test for only one hour so that it can save time. But for our company, we will test four hours in order to make sure the quality of the product and protect the user's safety.
   High quality materials
   To be honest, we will provide the high quality materials with reasonable prices. We believe that MERRYKING will be assured good power supply in the same industry.
   Best quality service
   Three is a professional sales team and technical team in our company. Our staffs can provide the best service for you and answer your products' questions in the particular time.

FAQ
    1 :What are the main products in your company?
        Our main products include switching power supply, power adapters, lithium battery chargers .
    2 :What are your products have been certified?
        Our products have assed UL,CUL,FCC,CCC,GS,CB,CE,TUV,SAA,KC,ROHS and PSE certification. In other to make the customers understand our products qualities clearly. We will provide the related certifications as the customer requirements.
    3:Can you give me more details about the price of your products?
        We think our prices are very reasonable. If you purchase the quantity of product more enough, we will give you discount.
    4: Would you please kindly tell us the below details for suggesting you the suitable adapter?
        1) What's the input please? eg:100-240VAC, 50/60Hz
        2)What's the output, please? eg: 5V DC 2A
    5:How to choose suitable power adapter ?
        1) If your product working current is 1A ,we suggest you to use 12v 1.5A model ,so the adapter can keep good working status and long life ,and the working temperature is very low ,the 12v 1.5A adapter's price is nearby with 12v 1A .
        2) If your product is belong to medical device ,the quality standard should be IEC 60601 ,if your product is belong to IT device ,the quality should be IEC 60950
     6. Payment
        You can pay for the order via :T/T,L/C,D/P,Western Union.
MERRYKING is a Hi-Tech Enterprise involving designing, production and marketing of various kinds of electronic products such as Power Adapters, Switching Power Supplies, USB Charger, Linear Adapters and Chargers, etc. Also our products are widely applied in Digital products, Medical, Telecom, Home and IT products. MERRYKING is the registered trademark.

Our products have passed most of safety approvals in the world including UL, cUL, PSE, GS, CE, EK, SAA, CCC, C-tick, BS, CB, BSMI, etc. Also our products are widely introduced to domestic market and exported to USA, Canada, Europe, Japan, Australia, Argentina, Korea, Mexico, Singapore, Russia, etc, and established good relationship and long term cooperation with several overseas well-known brands.

Also we pay much attention to managements, we have obtained certificates issued by CCE Italy of ISO9001: 2008 quality management system and ISO14001: 2004 Environmental management system. Merryking is highly appreciated in the field for its high grade, efficient and unique operation principle.

Our factory locates in Shajing, bao'an, Shenzhen, is close to The Shenzhen International Airport with feasible transportation and beautiful environment. It is equipped with advanced Lead-free Dual Wave Soldering Machine, Reflow Soldering Machine, electronic load constant temperature aging room and many kinds of sophisticated testing equipment. With scale production ability, our monthly capacity reaches over half million pieces.

MERRYKING emphasizes its staffing as our most valuable treasure, and owns a high qualified team with rich experience and strong technology. We aim at being the first class professional electronic and electric supporting factory with excellent management and work team. In accordance with our company spirit of "Quality First, Customers Foremost, Keep Improving", we stick to our company aim of "Honesty, pragmatism, innovation, initiative", and provide excellent services to all of our customers.
