13.0m L&C Dual-Band Rx Only Satellite Antenna

Name: 13.0m L&C Dual-Band Rx Only Satellite Antenna
Brand: all-electronics-online.com
SKU: 817860325
Availability: InStock
Rating: 4.8 (55 reviews)

Price:	US $ 100-1000/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HXWJ13.0m-L&C
Size:	13.0m
Polarization:	Linear/Circular
Drive Type:	Motorized
Color:	White
Warranty:	1 Year
Enterprise Nature:	Manufacturer
Customized:	Available
Certificate:	ISO9001
Market:	Global
Logo:	Huaxin/Customized
Usage:	Broadcasting Antenna
Material:	Al
Usage Occasion:	Fixed Earth Station Antenna
Operating Wavelength:	L&C Dual-Band
Sturcture Form:	King Post Pedestal

Product Description

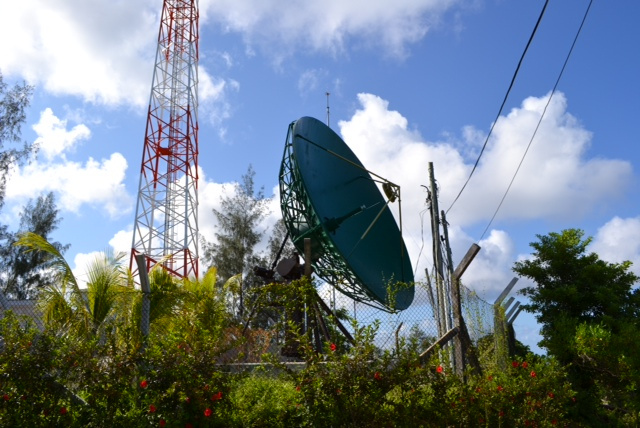

13.0m L and C Dual-band Rx Only Antenna

Features:
Dual shape ring-focus design
Aluminum major reflector & sub reflector with high precision
Factory feed system assembled to reduce installation time
No field alignment required
Well in anti-corrosion
Excellent in stability

Specification of 13.0m L and C Dual-band Rx Only Antenna

R.F SPECIFICATIONS	C-Band		L-Band
	RECEIVE		RECEIVE
1. Frequency(GHz)	3.4-4.2		1.518-1.559
2. Typical Gain(dBi)	51.6 at 3.8GHz		43.0 at 1.5385GHz
3. VSWR	1.3:1		1.3:1
4. Beamwidth (-3dB)	0.43°		1.1°
5. Antenna Noise Temperature(K)
10°Elevation	≤44K		≤50K
6. Feed Interface	CPR-229		N-Female
7. Feed Insertion Loss	≤0.3dB		≤1dB
8. Polarization	Dual linear Pol		LHCP
9.Cross Pol Isolation	Cross Pol Isolation		Circular Pol axial ratio
On Axis	≥35dB		≤2dB
10.Sidelobes	≤-14dB		≤-14dB
MECHANICAL SPECIFICATION		ENVIRONMENTAL SPECIFICATION
1. Antenna Type	Dual-reflector	1. Wind Loading, Operational (Maintain Precision)		Steady wind 20m/s,gust 27m/s
2. Drive Type	Motorized	2. Wind Loading, Operational (Decrease Precision)		Steady wind 27m/s,gust 32m/s
3. AZ Travel	±90°	3. Wind Loading, Survival (Fixed Heavenward)		56m/s,antenna locked upwards
4. EL Travel	0° to 90°	4. Ambient Temperature		Outdoor -45 °C to 60°C Indoor 0°C to 40°C
5. POL Travel	±90°	5. Rain		100mm/h
6. Reflector Material	Precision formed aluminum	6. Relative Humidity		Outdoor 0 to 100% Indoor 10 to 95%
7. Reflector Segments	54	7. Solar Radiation	360 BTU/h/ft²(1000Kcal/h/m²)
8. Mount Type	Kingpost pedestal	8. Ice	Above 25mm
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.

Company Introduction

Established in 1985, HUAXIN ANTENNA is a professional manufacturer which is specialized in all series of Satellite Earth Station Antennas, Carbon Fiber Antennas and Customized Antennas with size from 0.35m to 16.0m. Keeping adequate inventory and providing professional customized service, HUAXIN is able to meet clients' emergency requirements and satisfy clients' individual needs.

HUAXIN products have achieved ISO9001: 2008 Quality Management System Certification, some are type approved by Asiasat, APT, China Satcom, and some have Intelsat, Eutelsat, SES, and FCC certificates. Integrated with research, development, manufacturing and sales, HUAXIN has developed into one of the leading companies in the market with excellent quality and competitive price domestically and internationally.

Manufacturing Ability

Factory covers an area of 395000 sq FT, which owns workshop area of 215300 sq FT and research & development center area of 54000 sq FT.

Professional R&D center and test center (antenna feed technology lab, microwave test center, antenna far-field test center)

Independently design, develop and manufacture all kinds of antenna mould and antenna parts, which can effectively reduce the cost and shorten the lead time.

Excellent Production Capacity - 2 or 3 Shifts, able to operate big projects in short time; Keep a large stock of goods; Prompt and short period of delivery.

Precise CNC machine, dedicated tooling equipment:

Structural component processing equipment: CNC Machine Centre, CNC Gantry Milling Machine, CNC Boring Machine, CNC Lathe, CNC Vertical Drill Machine, CNC Cutting Machine, CNC Bending Machine

Panel processing equipment: Panel stretcher, Large-tonnage Hydraulic Machine, Autoclave

Tooling: Single Panel Riveting Tooling, Reflector Assembly Tooling

Surface Accuracy Measuring Equipment: MPS/S Single Camera Industrial Photogrammetric System

Electric Performance Test Equipment: Scalar Network Analyzer, Scalar Network Signal Source, Spectrum Analyzer, Signal Source

Surface Treatment Equipment: Shot blasting machine, Surface Grinding Machine, Professional Clean Spray Room
