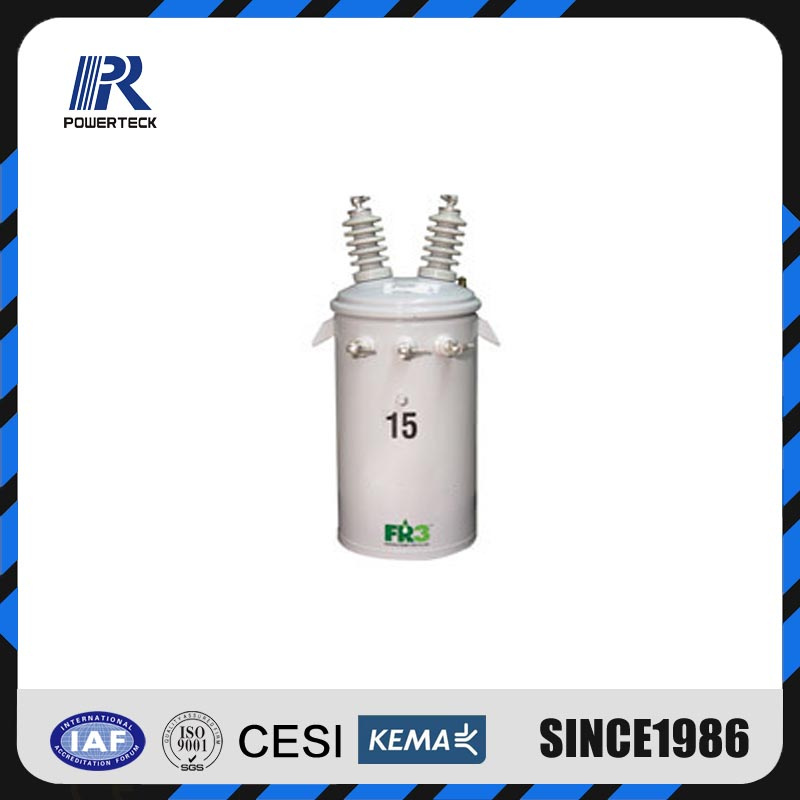

13.8kv 10kVA Single Phase Step Down Oil Transformer Conventional Type
| Price: |
US $ 1500-20000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
D11/D9 |
| Application: |
Power |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Powertech |
Product Description
Western countries and Southeast Asia, North and South America region, as a large number of single-phase transformer distribution transformers. In the decentralized power distribution network, as a single-phase transformer distribution transformers have greater advantages. It can reduce the length of the low-voltage distribution lines, reduce line losses, improve power quality, energy-efficient volume using the core structure design, the characteristics of the transformer is the use of a column suspension installation, small size, low investment in infrastructure, reducing low pressure power supply radius, can reduce the loss of more than 60% of low-voltage lines. Transformer with fully sealed structure, strong overload capacity, high reliability, continuous operation, easy maintenance, long service life.
Suitable for rural power grids, remote areas, dispersed villages, agricultural production, lighting and power electricity, it can also be used in railways, urban energy-saving column grid type distribution lines.
It can run single-phase or three-phase operation as a single complementary group. | Technical Data of D9 Series Single Phase Distribution Transformer |
| Rated Capacity | Voltage group(KV) | Connection Method | Loss(KW) | No-load current | Impedance | Weight(kg) |
| (KVA) | HV | LV | | No-load | Load | % | % | Machine | Oil | Gross |
| 5 | 13.8 | 0.22
0.24 | | 35 | 145 | 4 | 3.5 | 50 | 40 | 130 |
| 10 | 13.2 | | 55 | 260 | 3.5 | 65 | 40 | 150 |
| 16 | 11 | | 65 | 365 | 3.2 | 80 | 40 | 180 |
| 20 | 10.5 | | 80 | 430 | 3 | 100 | 50 | 205 |
| 30 | 10 | Li0 | 100 | 625 | 2.5 | 115 | 50 | 225 |
| 40 | Li6 | 125 | 775 | 2.5 | 150 | 55 | 270 |
| 50 | 6.3 | | 150 | 950 | 2.3 | 175 | 70 | 310 |
| 63 | 6 | | 180 | 1135 | 2.1 | 190 | 80 | 340 |
| 80 | | | 200 | 1400 | 2 | 240 | 100 | 420 |
| 100 | | | 240 | 1650 | 1.9 | 295 | 100 | 490 |
| 125 | | | 285 | 1950 | 1.8 | 370 | 110 | 560 |
| 160 | | | 365 | 2365 | 1.7 | 430 | 130 | 650 |
ATTENTION:
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
OUR SERVICE:
1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.
WHY CHOOSE POWERTECH:
1. One-stop supplier globally.
2. More than 10 years professional experiences in electrical appliance industry.
3.We offer professional online technology support for perfecting your electrical solution free.
4. Experienced sales service and suggestion.
5. All the products with accessories under strict quality control and final inspection before shipping.
6. We can assure the powerful competitive price and reliable quality products.
7. Most competitive shipping rate from our own shipping forwarder.
8. Warranty assurance: 12 month
9. Whatever big or small order, we can provide you one-to-one service.
